4-Port Dual View DisplayPort Secure KVM Switch w/Audio and CAC Support

DisplayPort NIAP PP4.0 TAA Compliant
MPN: GCS1424TAA4C

UPC: 881317520845

Sale price$926.95

  • NIAP-Certified PP4.0
    Validated to Protection Profile for Peripheral Sharing Device v4.0
  • CAC & Biometrics Support
    Dedicated peripheral port for authorized CAC readers only and supported Biometrics readers1
  • 4-Port Dual View DisplayPort Secure KVM Switch
    One USB console controls 4 secure computers on 2 displays
  • Superior 4K UHD Video Resolution
  • UHD Resolution: 3840 x 2160 @30Hz

4-Port Dual View DisplayPort Secure KVM with Audio and CAC Protection Profile v4.0

Secure and manage multiple data-sensitive systems from one workstation from internal and external cybersecurity threats with the TAA-compliant IOGEAR 4-Port Dual View DisplayPort Secure KVM with Audio and CAC Protection Profile v4.0. Enable authorized users secure access to up to four systems with one keyboard, mouse, up to two 4K @30Hz monitors and dedicated common access card (CAC) reader port.

Featuring the latest in Common Criteria and NIAP Protection Profile v4.0 security requirements set for the U.S. government for peripheral sharing switches, the secure KVM switches are built for multiple interfaces and ideal for use in high-security environments that demand rigorous cybersecurity provisions including military and defense, federal agencies, government, utilities, commercial and healthcare applications.

NIAP Certified, Common Criteria Compliance & TAA Compliant

IOGEAR secure KVM switches comply with NIAP PP v4.0 security certification meeting the latest cybersecurity requirements from the U.S. government. The secure KVM also meets with the Common Criterial Compliance as part of the international Common Criteria Recognition Arrangement. The unit also meets with all TAA-compliant guidelines.

Superior Video Quality

The secure KVM switch supports a dual view display and exceptional 4K Ultra-HD resolutions up to 3840x2160 @30Hz. With the addition of the universal KVM cables, the secure KVM switch can support any monitor port even if the monitor uses a different display standard while enabling a universal display standard.

Active Tamper-Proof System

IOGEAR secure KVM switch hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Compliance with NIAP Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the secure KVM switch, providing high-level security, protection and data safekeeping.

With the combination of physical and software security, secure KVM switches offer secure air-gap network isolation to prevent internal and external access to individual system with authorization while consolidating multiple workstations with varying security classification levels.

Dedicated Common Access Card Reader Port

A fully advanced and configurable CAC reader port supports smart cards or biometric readers in compliance with NIAP-certified access accessories.

Compatible with IOGEAR Remote Port Selector

Securely select and switch between systems with optional external remote port selector that provides full operator control for an optimized user experience.

Data Channel Isolation and Unidirectional Data Flow

IOGEAR Secure KVM switches control and isolate data flow between the console device and the connected computers preventing any data transfer between the connected computers. Data channel isolation prevents data leakage between connected computers via isolated channel per port and unidirectional data flow ensures unidirectional data flow between the console devices and the selected computer. The secure KVM switch supports analog audio via speakers only.

Multiple Video Interface Support

Connect multiple to multiple port configurations with IOGEAR Universal KVM cables* enabling IT administrators options for preventing compatibility issues with diverse secure computer ecosystem. The universal KVM cables connect multiple video sources to a IOGEAR KVM even if they are using different display standards. This flexibility enables IT managers to deploy the same KVM switch across their network without the need for unreliable active cables or costly external video converters or additional docking stations. The universal cables options include HDMI® to DisplayPort, DVI to DisplayPort and USB Type-C™ to DisplayPort.

Government, Military and Commercial Applications

The IOGEAR secure KVM switches physically isolate sensitive networks and network assets from any exposure to the public internet and only accessible with authorized permissions. Additionally, these secure KVM switches filter or block exposed USB ports on servers and desktop computers to ensure the data integrity is never compromised. Designed originally for military and federal intelligence agencies, secure KVM switches are able to serve many organizations including:

  • FBI
  • CIA
  • NSA
  • Department of Defense
  • Federal departments
  • State and Local Utilities
  • Financial institutions
  • Healthcare organization
  • Law firms

*Universal KVM cables sold separately.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. (or affiliate) in the United States and other countries. USB Type-C and USB-C are trademarks of USB Implementers Forum.

  • NIAP-Certified PP4.0
    Validated to Protection Profile for Peripheral Sharing Device v4.0
  • CAC & Biometrics Support
    Dedicated peripheral port for authorized CAC readers only and supported Biometrics readers1
  • 4-Port Dual View DisplayPort Secure KVM Switch
    One USB console controls 4 secure computers on 2 displays
  • Superior 4K UHD Video Resolution

           UHD Resolution: 3840 x 2160 @30Hz

  • Port Selection via Push-Button and Remote Port Selector** for Enhanced Security
    Keyboard restrictions - OSD & hotkey methods are not allowed
  • Isolated Channel per Port
    Unidirectional data flow restricts data leakage between connected computers
  • Active Chassis Intrusion Detection
    Compromising the unit's cover renders the switch inoperable
  • Tamper-Evident Seals
    Visually detect attempts to gain access to switch's internal components
  • Tamper-Proof Hardware
    Integrated circuits are soldered directly onto the circuit board to hinder component sabotage
  • Non-Reprogrammable Firmware
    Prevents tampering and attempts to reprogram the switch's firmware
  • Clears Keyboard Buffer
    Data clears automatically after transmission to switch and resets
  • Analog Speaker Support
  • Secure audio data input does not convert digital audio to analog audio
  • Multiplatform Support
    Windows® 2000, Vista, 7, 8, 8.1, 10, 11 Linux, Mac OS X, & Sun
  • Rugged Metal Enclosure
    Durable, Full Metal Chassis
  • Build-In, Internal Power Supply

1Compatible with Microsoft® LifeCam HD-3000 and Microsoft Fingerprint Reader. Please contact your Administrator for CAC and Biometric Reader authorization.

** Remote Port Selector sold separately

Console

  • DisplayPort monitors capable of the highest resolution that you will be using on any computer in the installation
  • Standard 104-key wired USB keyboard
  • Standard 2 or 3 button wired USB mouse
  • Speaker (optional)
  • USB Smart card or CAC (Common Access Card) reader (Optional)

Computers

  • 2 x DisplayPort Video output connectors
  • A USB Type A port for keyboard and mouse
  • A USB Type A port for Smart Card or CAC reader (Optional)
  • A 3.5mm jack Audio port for speaker (Optional)

Operating Systems

  • Win 7, 8, 10, 11
  • Linux: Kernel2.6+, RedHat v6.0+, SuSE v8.2+ Mandriva(Mandrake) v9.0+
  • Unix: AIX v4.3, FreeBSD v3.51+, Sun Solaris v9.0+
  • Novell Netware v5.0+Mac OS v9+
  • DOS v6.2+
  • 1x GCS1424TAA4C
  • 1x Power Cord
  • 1x User Guide
  • 1x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS1424TAA4C
Computer Connections
Direct4
Port SelectionPushbutton or Remote Port Selector
Console Connectors
Monitor2 x DisplayPort Female
KeyboardUSB Type-A
MouseUSB Type-A
Audio1 x 3.5mm Mini Stereo Jack Female
CAC1x USB Type-A Female

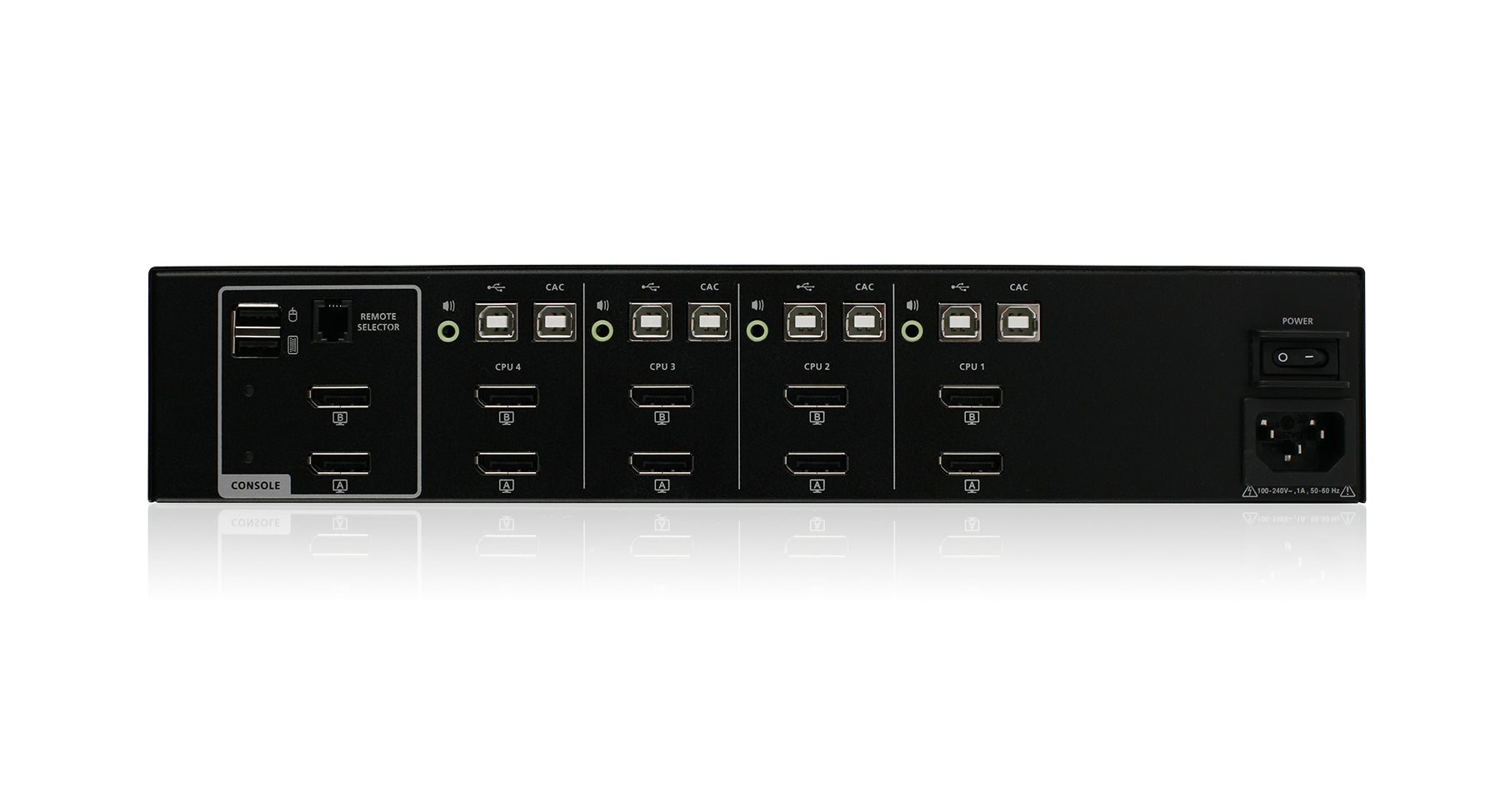

CPU Connectors
Monitor8 x DisplayPort Female
Keyboard & Mouse4 x USB Type-B Female
Audio4 x 3.5 Mini Stereo Jack Female
CAC4 x USB Type-B Female
Switches
Port Selection4 x Pushbuttons
Reset1 x Semi-recessed Pushbutton
Power1x Rocker
LEDs
On Line4 x Orange
Selected4 x Orange
CAC4 x Green
Power On1 x Green
Key Lock3 x Green
Console Video2 x Green
Emulation
KeyboardUSB
MouseUSB
Video ResolutionUp to 3840 x 2160@30Hz (UHD)
Power
Input Rating100 - 240V, 50 - 60Hz; 1A
Environment
Operation Temperature0 - 50C
Storage Temperature-20 - 60C
Humidity0 - 80% RH, Non-condensing
Housing
CaseMetal
DimensionsGCS1424TAA4C
Unit Package Dimensions
Height9.5 in. (24.1 cm)
Length5.25in. (13.3 cm)
Width21.25 in. (53.9 cm)
Master Carton
Height10.25 in (26.0 cm)
Length16.75 in. (42.5 cm)
Width22 in. (55.9 cm)
Master Carton Qty.3
Weight
Master Carton Wt.22.05 lb. (10.0 kg)
Unit Pack Wt.6.65 lb. (3.0 kg)
