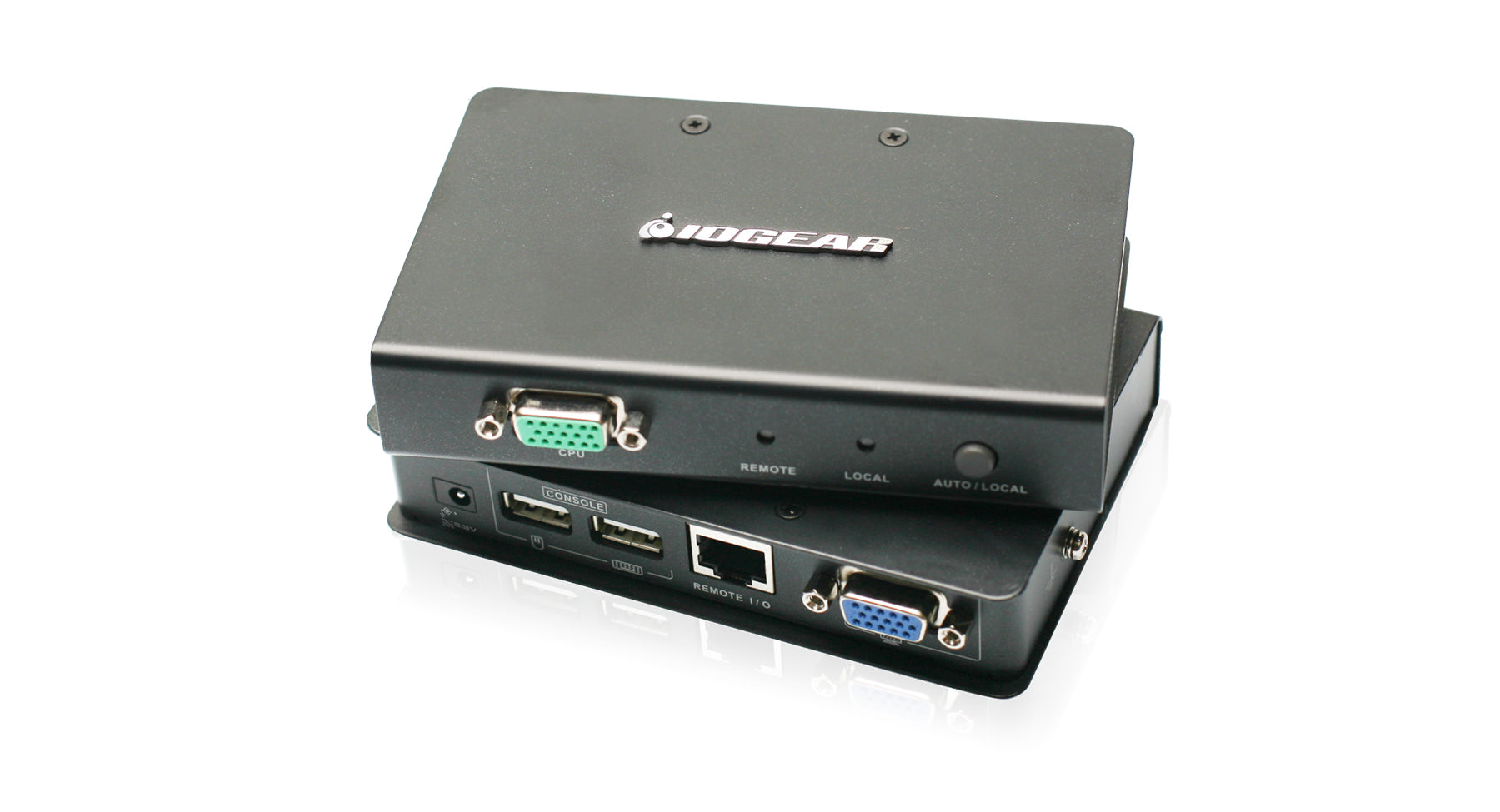

USB VGA KVM Console Extender
UPC: 881317506016
Choose options

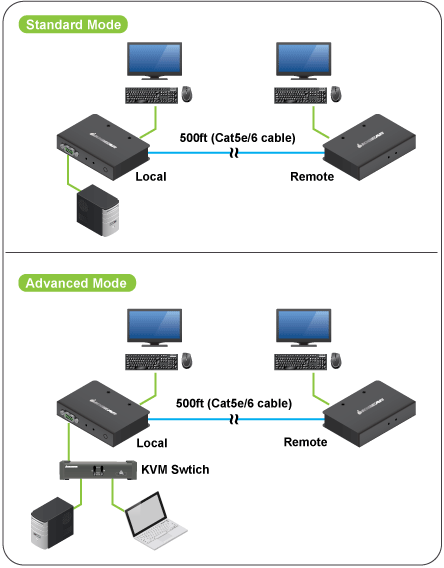

Dual Console Operation
The GCE500U has 2 modes for local console use and remote consoles via a pushbutton switch on the front of the extender. This allows for operation at both ends of the extender for ease of use.
Convenience and Comfort
The GCE500U is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location up to 500 feet away via CAT5e/6 cable.
Cost Effective Solution
The GCE500U is a cost-effective solution because it uses inexpensive UTP (CAT5e/6) cabling to extend the distance, compared to other models that use expensive and bulky coaxial cabling.
Ease of use and reliability
The GCE500U is easy to install and operate thanks to its Auto Signal Compensation (ASC) technology, which senses the distance and adjusts the signal levels accordingly so there is no need to do any DIP switch setting. It also provides a built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility.
- Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables
- Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
- Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
- Dual Console Operation - Control your system from either the local or remote console
- Built-in 8KV ESD protection and 2KV surge protection
- Maximum video resolution up to:
1920 x 1200 @ 60Hz (100 ft. - 30m)
1600 x 1200 @ 60HZ (330 ft. - 100m)
1280 x 1024 @ 60Hz (500 ft. - 150m) - USB over-current detection and prevention
- Easy To Operate - Push button selection between local and remote console
- Local monitor supports DDC; DDC2; DDC2B
- Rack Mountable (rack mount kit included)
- Plug-N-Play - No need for any software driver installation
- A Solid CAT5e/6 Cable
Console:
- VGA, SVGA, SXGA, UXGA, WUXGA or multi-sync monitor
- USB keyboard and mouse
Computers:
- VGA, SVGA, SXGA, UXGA, WUXGA or multi-sync video output
- An available USB port
1 x GCE500U Local Unit
1 x GCE500U Remote Unit
2 x Rack Mount Kit
1 x USB KVM Cable
2 x Grounding Wire
2 x Power Adapter
1 x Installation Guide
1 x Warranty Card
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GCE500U |
|---|---|
| Console Connectors | |
| Monitor | 1 x HDB-15 Female |
| Keyboard | 1 x USB Type A Female |
| Mouse | 1 x USB Type A Female |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 1 x SPHD-17 Female (Green) |
| Unit to Unit Connectors | 1 x RJ45 Female |
| Power Connections | 1 x DC Jack |
| Function Keys | 1 x Operating Mode Pushbutton |
| LEDs | |
| Local | 1 x Local; 1 x Remote |
| Remote | 1 x Remote; 1 x Link |
| Emulation | |
| Keyboard | USB |
| Mouse | USB |
| Power Consumption | Local: DC5.3V, 2.31W; Remote: DC5.3V, 2.84W |
| Power | |
| Voltage | DC5.3V |
| Amps | 0.94A |
| Video Resolution | Up to 1920x1200@60Hz |
| Cable Distance | Up to 495ft (150m) |
| Environment | |
| Operation Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| Humidity | 0~80% RH; Non-condensing |
| Housing | |
| Case | Metal |
| Dimensions | GCE500U |
|---|---|
| Unit Dimensions | |
| Height | 1in. |
| Depth | 3.375in. |
| Width | 5in. |
| Unit Package Dimensions | |
| Height | 7in. |
| Width | 11.25in. |
| Depth | 4in. |
| Master Carton | |
| Height | 15.25in. |
| Width | 12in. |
| Depth | 12.5in. |
| Master Carton Qty. | 6 |
| Weight | |
| Master Carton Wt. | 21.06lb |
| Unit Pack Wt. | 3.28lb |
| Unit Wt. w/accessories | 2.74lb |
| Unit Wt. | 1.41lb |
