4K HDMI Console Extender w/ Keyboard and Mouse Support

Wired Console Extender

4K HDMI Console Extender w/ Keyboard and Mouse Support

Name: 4K HDMI Console Extender w/ Keyboard and Mouse Support
Brand: IOGEAR
SKU: GCEH4K
Price: 179.95 USD
Availability: OutOfStock

4K@60hz Console Extender Wired HDMI Extender

MPN: GCEH4K

UPC: 881317522108

$179.95

The GCEH4K extends HDMI signals, including 4K@60Hz video and high-quality audio, over up to 70 meters of Ethernet cables. It supports various HDR formats and offers features such as KVM (keyboard, video, mouse) extension and Power over Cable (PoC). Ideal for home theaters, conference rooms, and digital signage.

Seamless 4K HDMI Signal Extension – Ideal for Home Theaters and Conference Rooms!

The GCEH4K extends HDMI signals, including 4K video at 60Hz and high-quality audio, over Ethernet cables up to 225 ft. long. It supports multiple HDR formats and includes features such as KVM (keyboard, video, mouse) extension and Power over Cable (PoC). This device is ideal for use in home theaters, conference rooms, and digital signage applications.

Immerse Yourself in Stunning 4K Visuals

Content Feature 1 Copy: Experience stunning visuals with 4K@60Hz resolution, delivering crisp details, vibrant colors, and a smooth viewing experience. Ideal for contractors installing home theaters in new homes, retail businesses showcasing products, houses of worship enhancing presentations, and education institutions creating engaging classrooms.

Immersive Sound: Multi-Channel Audio

Experience cinematic audio experience with support for LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio, delivering surround sound that immerses you in the action.

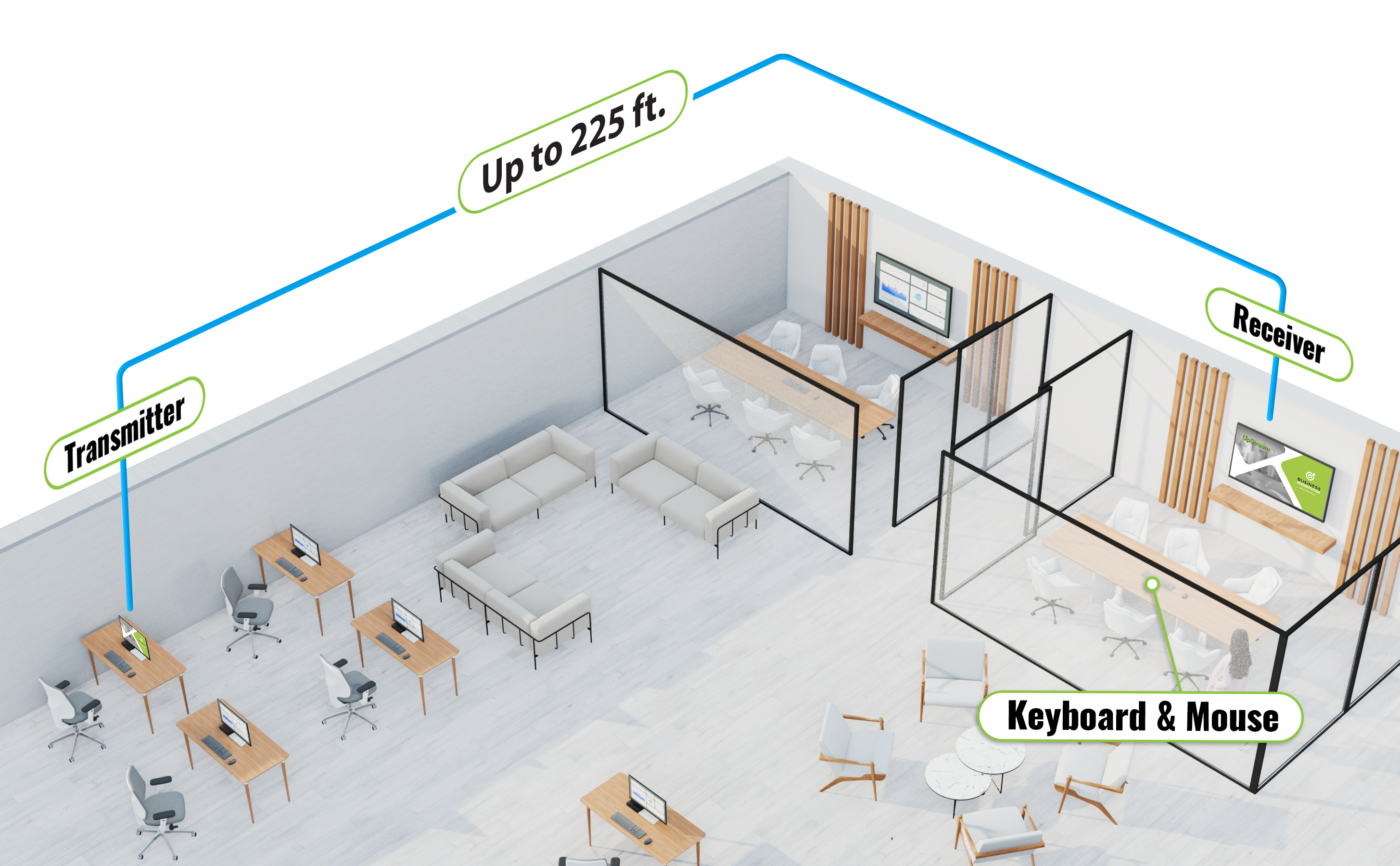

Extend HDMI 225ft with One Cable & PoC

Extend HDMI up to 225 feet with a single Ethernet cable, simplifying your setup and eliminating bulky cables. Power over Cable (PoC) lets you power the transmitter or receiver from either end for added convenience.

Control Your Devices with Ease

Seamlessly control your connected devices with your keyboard and mouse, eliminating the need for multiple peripherals and simplifying your workflow. Additionally, the GCEH4K extends the capabilities of your IOGEAR KVM switch by connecting additional devices, allowing you to manage multiple computers from a remote location. This feature provides a comprehensive solution for controlling your devices, whether you're using a single computer or multiple systems. 

HDCP 2.2 compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K @60Hz RGB/YCBCR 4:4:4
Supports HDR, HDR10, HDR10+, and Dolby Vision pass through
HDMI and KVM over one single Cat5e/6/6A cable up to 230ft/70m
Zero latency
Supports mouse & keyboard, touch panel extension via USB
EDID copy pass-through function between the source device and display device
Support bi-directional POC (Power over Cable) function
Audio formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+)
Support 3.5mm analog audio de-embedding, audio is output through the L/R OUT port of the receiver
With USB KVM pass-through function, USB1.1 compliant, support remote-control by keyboard and mouse

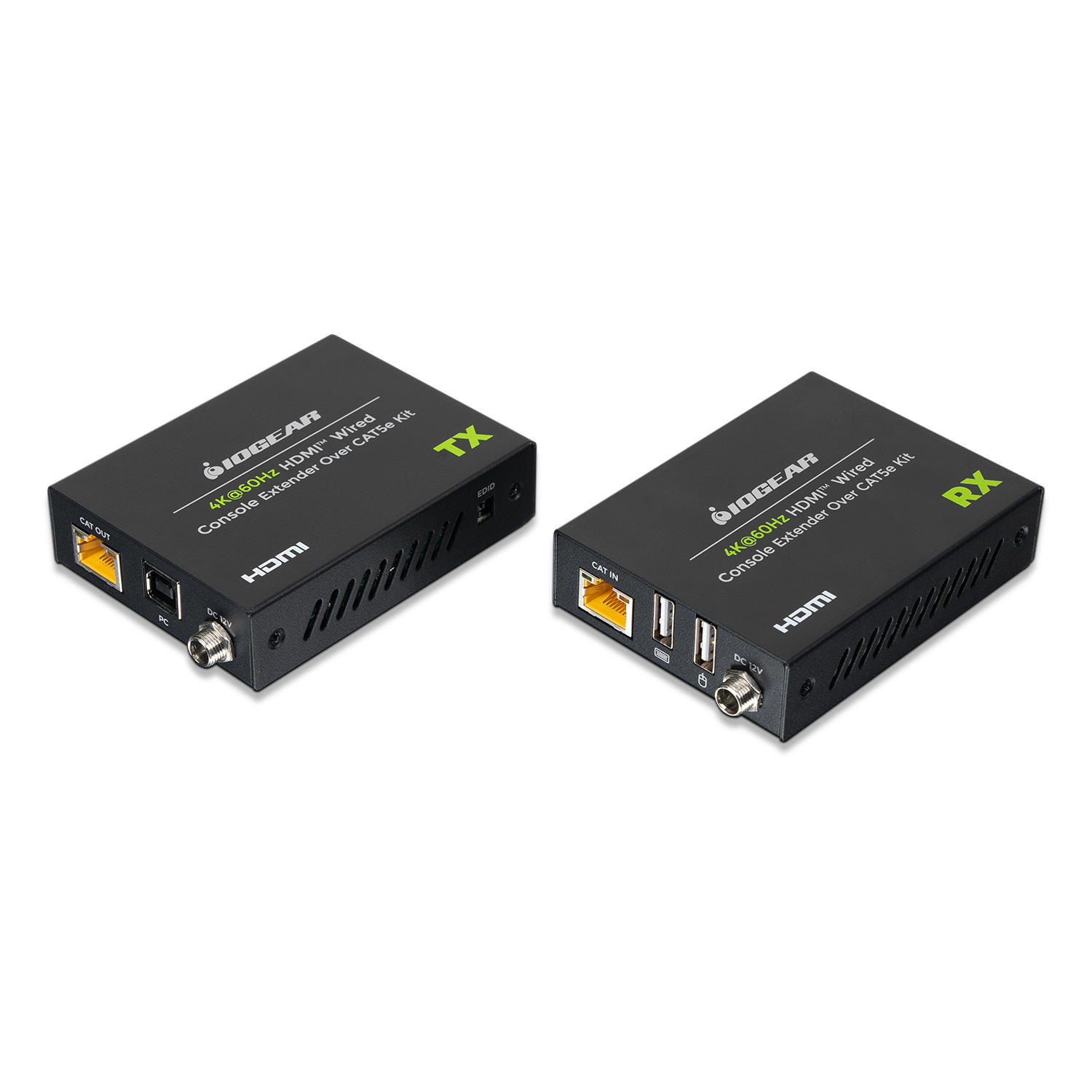

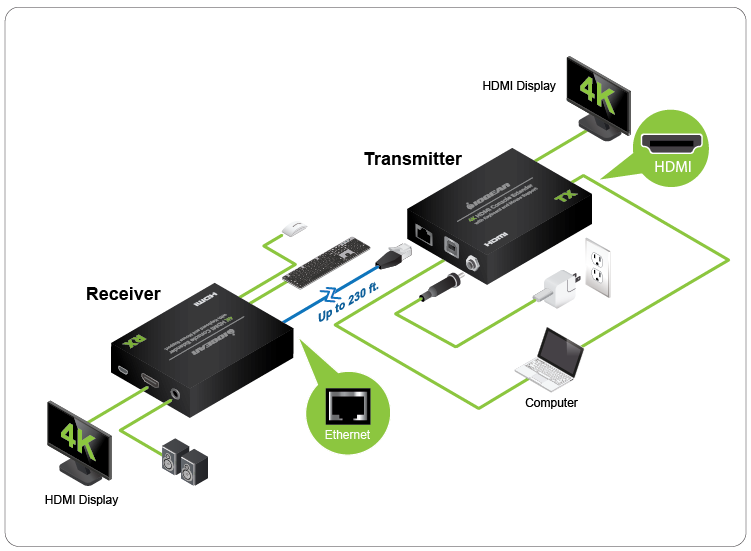

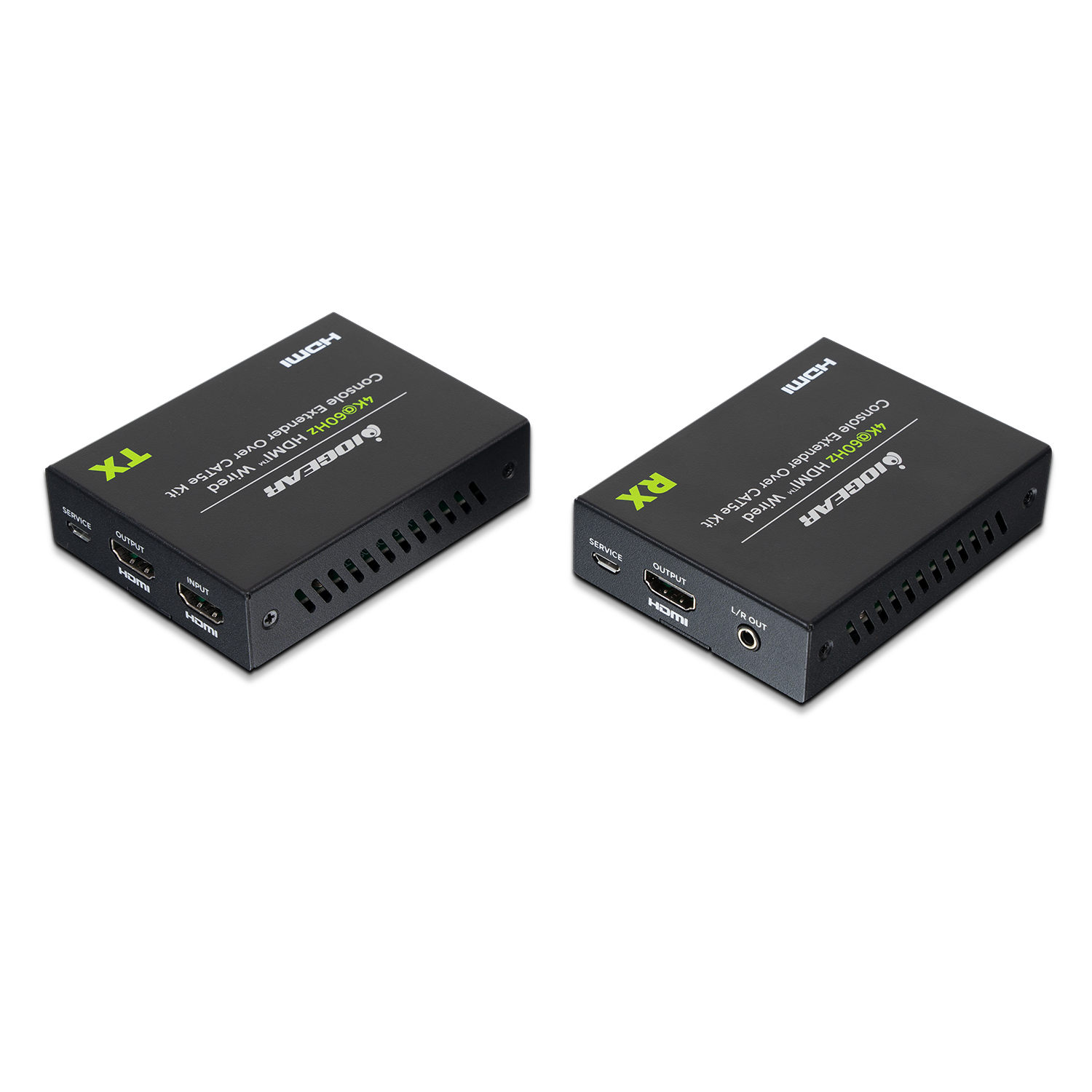

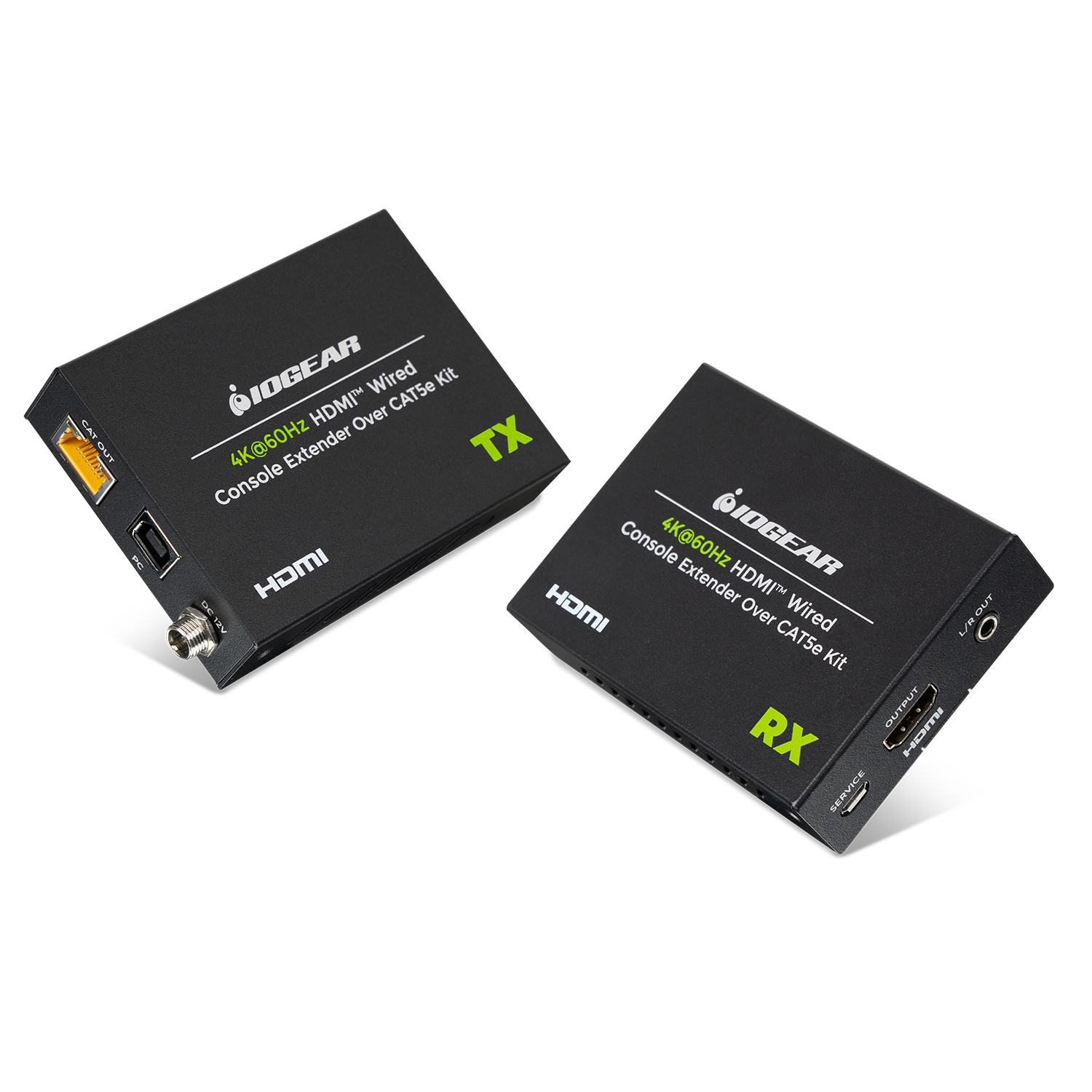

Transmitter:

1 x HDMI Source up to 3840x2160
1 x HDMI Display (Optional)
1 x Ethernet Cable (Cat5e/6/6A) up to 230ft/70m
1 x USB-A port for Keyboard and Mouse Support
1 x Power source*

Receiver:

1 x HDMI Display
1 x Standard 3 button mouse
1 x Standard 104 key keyboard
1 x Power source*

* 1 x 12V/1A Power adapter included. Power-Over-Ethernet will share power to both units

1 x Wired HDMI Transmitter
1 x Wired HDMI Receiver
1 x USB-A to USB-A Cable
1 x 12V/1A Locking Power Adapter
4 x Mounting Ears
8 x Machine Screws
1 x User Manual
1 x Warranty Card

GCEH4K Quick Start Guide Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCEH4K
Console Connectors
Monitor	1 x HDMI Female
Keyboard	1 x USB Type A Female
Mouse	1 x USB Type A Female
CPU Connectors
Keyboard, Mouse, and Monitor	1 x HDMI 1x USB-B Female
Unit to Unit Connectors	1 x RJ45 Female
Power Connections	1 x DC Jack
LEDs
Local	1 x Link Signal Indicator 1 x Data Signal Indicator
Remote	1 x Link Signal Indicator 1 x Data Signal Indicator
Power Consumption	Local: DC12V, 12W; Remote: DC12V, 12W
Power
Voltage	DC12V
Amps	1A
Video Resolution	Up to 3840x2160@60Hz
Cable Distance	Up to 230ft (70m)
Environment
Operation Temperature
Storage Temperature
Humidity
Housing
Case	Metal

Dimensions	GCEH4K
Unit Dimensions
Height	.87in.
Depth	3.5in.
Width	2.7in.
Unit Package Dimensions
Height	2.95in.
Width	8.47in.
Depth	5.31in.
Master Carton
Height	11.5in.
Width	9.76in.
Depth	17.68in.
Master Carton Qty.	12
Weight
Master Carton Wt.	FILL
Unit Pack Wt.	FILL
Unit Wt. w/accessories	FILL
Unit Wt.	.75lb

1 Year Limited Warranty
