2-Port USB 3.0 8K DisplayPort KVMP™ Switch
UPC: 672792017049
Choose options
Ultra-High Resolution for Versatile Professional Applications
The CS1922A delivers up to 8K@60 Hz and 4K@120 Hz, providing precise, clear visuals for demanding tasks. It enables users to control multiple computers from a single console, supporting efficient multitasking and high-resolution workflows while keeping the workspace clean and organized.
Multi-Display Expansion and Broad Display Compatibility
Daisy-chaining further allows multi-display setups using a single keyboard and mouse, streamlining multi-screen workflows and enhancing productivity for complex tasks. With DisplayPort Dual-Mode (DP++) support, the switch can connect to HDMI or DVI displays via compatible adapters, expanding compatibility with a wide range of monitors.
Flexible and Intuitive Switching for Efficient Workflows
Multiple switching methods, including front panel pushbuttons, a remote port selector, hotkeys, mouse switching, and RS-232 commands, allow users to control connected computers seamlessly. This flexibility enables fast, efficient workflow management tailored to individual preferences, ensuring smooth transitions between multiple systems.
Efficient Peripheral Sharing and Easy Installation
The integrated USB 3.1 Gen 1 hub provides 5 Gbps data transfer speeds, enabling fast sharing of peripherals between connected computers. All required DisplayPort and USB cables, along with a power adapter, are included for quick, plug-and-play setup, helping users maintain a clean, organized, and fully functional workspace from the start.
-
High-Performance Hardware and Display Capabilities
- Superior video quality – up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 120 Hz
- Two USB 3.1 Gen 1 ports with SuperSpeed 5 Gbps transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)1
- Supports MST (Multi-Stream Transport) 2
- DisplayPort 1.4 compliant; HDCP compliant
- Supports HDR 10+
- Supports HD Audio3
- Supports Daisy-chaining setup4
- Supports hot-plugging
-
Comprehensive Management and Switching Controls
- One USB keyboard and mouse control two/four DisplayPort computers and share two USB peripherals

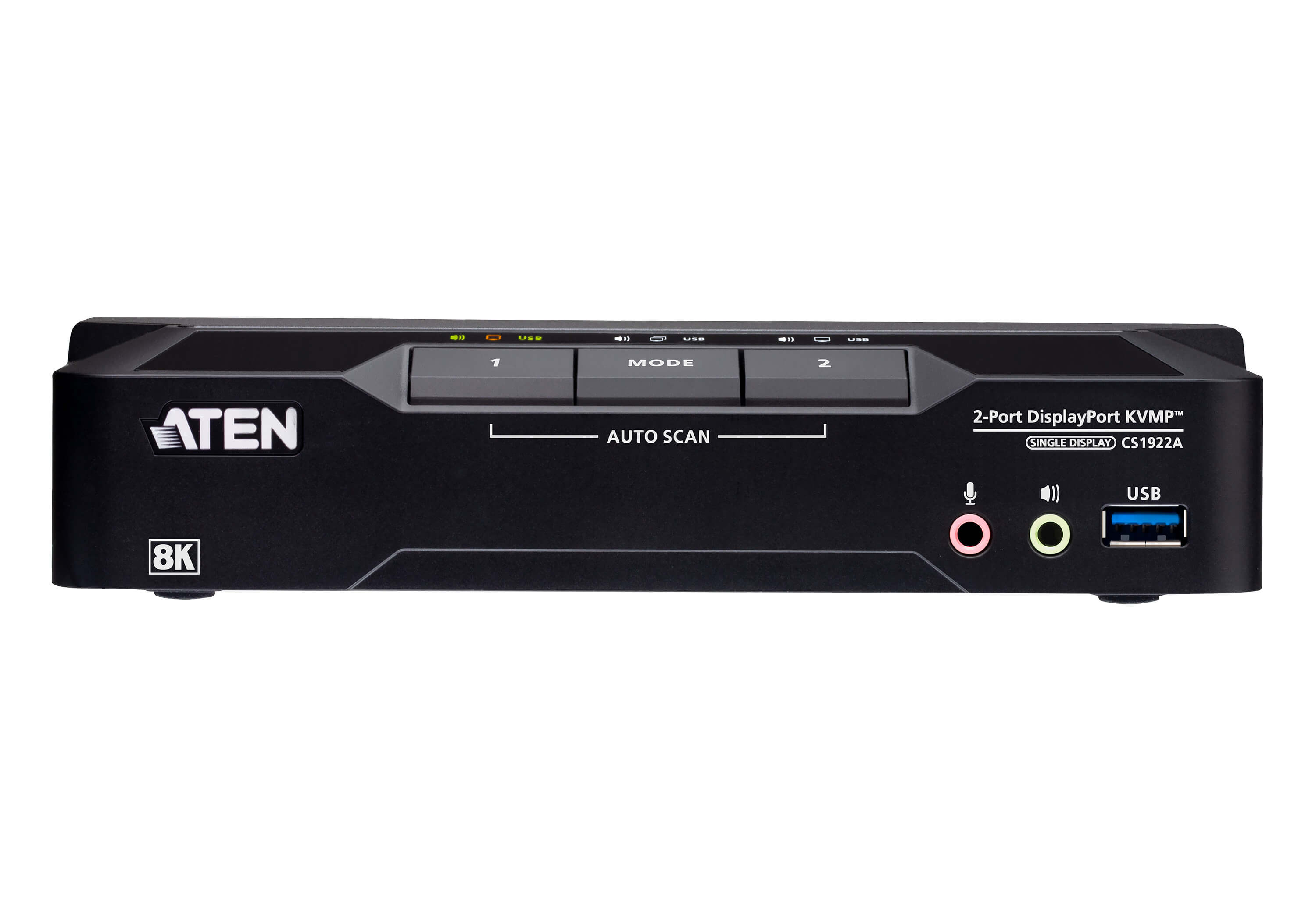

- Computer selection via pushbuttons, remote port selector, hotkeys, mouse5, and RS-232 commands
- Independent switching of KVM, USB, and Audio
- Supports Console keyboard/mouse emulation/bypass feature
- Power-on detection automatically switches to the next active computer
- Firmware upgradable
- Multilingual keyboard mapping – supports English, Japanese, French, and German keyboards6
-
Streamlined, Ready-to-Use Experience
- Plug & play

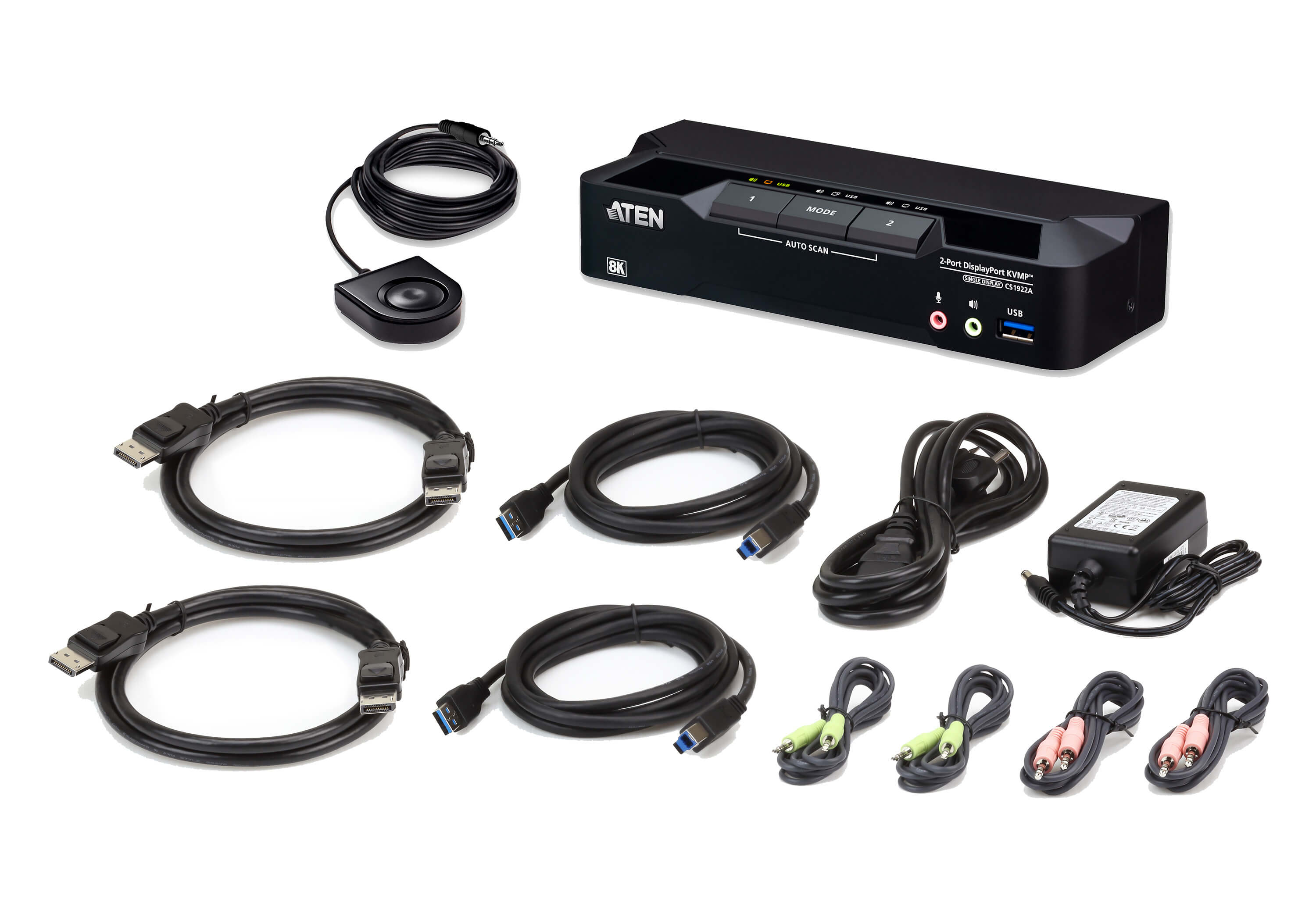

- All DisplayPort/USB cables and power adapter included for hassle-free installation – no extra purchases needed
-
Multiplatform support – Windows, Mac, and Linux
Note:
1. DP++ (DP Dual Mode) requires a DP++ adapter (powered DP++ adapter recommended). The graphics source must be DP++ compliant.
2. MST (Multi-Stream Transport) requires monitors capable of DisplayPort 1.4 daisy-chaining or the use of a powered DisplayPort MST hub. The PC source must be DisplayPort 1.4 compliant. A DisplayPort 1.1a or 1.2 display can be the last display in a DisplayPort 1.4 chain.
3. HD audio through HDMI cannot be switched independently.
4. Supports Daisy-chaining setup for dual- or triple-display control - single-display models can connect with single- or dual-display models for dual- or triple-display setups using one keyboard and mouse.
5. For 3-button USB wheel mouse only. Mouse-port switching is supported only under mouse emulation mode.
6. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with Mac computers.
Need more help with this product? Visit IOGEAR Knowledge Base
3 (Green) 3 (Green) USB DC12V:2.26W:69BTU/h Note:The measurement in Watts indicates the typical power consumption of the device with no external loading. The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. 20.2 in (51.31 cm) 13.5 in (34.29 cm) 9.1 in (23.11 cm) 5 3.83 lb (1.74 kg) 20.6 lbs (9.34 kgs)
Function CS1922A Computer Connections Direct 2 Port Selection Hotkey, Pushbutton, Mouse Wheel, RS-232 Commands, Remote Port Selector Console Connectors Console Ports 2 x USB Type A Female
1 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) KVM (Computer) Ports 2 x USB3.1 Gen1 Type B Female (Blue)
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink) Daisy Chain Ports 1 x RJ-45 Female Power 1 x DC Jack USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) LEDs KVM 3 (Orange) Audio USB Link Switches Selected 3 x Pushbutton Station Selection 1 x Slide Switch Emulation Keyboad/Mouse Video Resolution Up to 7680 x 4320 @ 60 Hz, 5120 x 2880@60Hz, 4096 x 2160@120Hz Scan Interval 1~99 seconds (5 seconds default) Power Consumption Environment Operation Temperature 0~50C Storage Temperature -20~60C Humidity 0~80% RH, Non-condensing Housing Case Metal
Dimensions CS1922A Unit Dimensions Height 1.69 in (4.29 cm) Length 7.87 in (19.99 cm) Width 2.87 in (7.29 cm) Unit Package Dimensions Height 8.2 in (20.83 cm) Length 12.8 in (32.51 cm) Width 3.9 in (9.91 cm) Master Carton Height Length Width Master Carton Quantity Weight Unit Wt. 1.04 lb (0.47 kg) Unit Package Wt. Master Carton Wt.
During this Limited Warranty Period, ATEN will, in its sole discretion, repair or replace a defective product. This is the end user’s sole remedy. ATEN does not guarantee uninterrupted or error-free operation of the products. The warranty will not apply if (i) the product is damaged by accident, improper installation, intentional or accidental misuse, abuse, neglect, improper maintenance, use with products not manufactured or supplied by ATEN, abnormal use, lightning, fire, water, or other acts of nature; (ii) the product is damaged by alterations or repairs done by anyone other than ATEN or an ATEN authorized service provider; or (iii) the damage is cosmetic in nature or reasonably expected as a result of normal wear and tear. Replaced and repaired products undertake the remaining warranty period of the original product.
IN NO EVENT WILL ATEN BE LIABLE FOR ANY LOSS OF USE, REVENUES, ANTICIPATORY PROFIT, OR DIRECT OR INDIRECT CONSEQUENTIAL DAMAGES ARISING OUT OF OR CONNECTED WITH THE SALES, USE, OPERATION, OR INABILITY TO USE OF THE PRODUCTS SOLD.
EXCEPT AS OTHERWISE PROVIDED IN THIS SECTION, ATEN MAKES NO REPRESENTATIONS OR WARRANTIES, WHETHER EXPRESSED OR IMPLIED, WITH RESPECT TO ANY OF THE PRODUCTS, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ALL SUCH WARRANTIES ARE EXPRESSLY DISCLAIMED UNLESS SUCH A DISCLAIMER IS OTHERWISE PROHIBITED BY LAW.
For warranty questions or assistance, please contact ATEN in the US and Canada at 888-999-2836 option 2 or email us at support@aten-usa.com.
