Wireless Extender

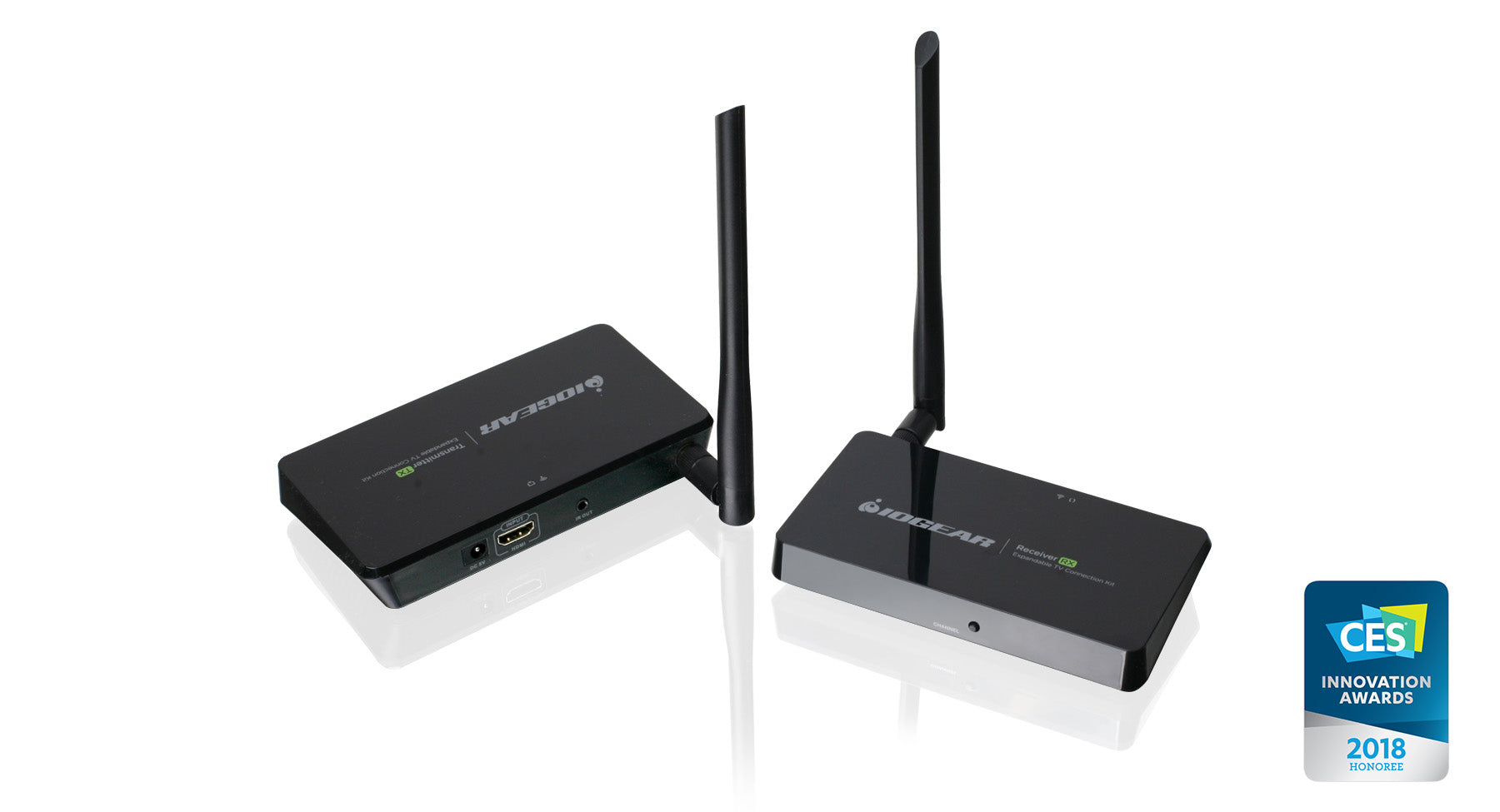

Expandable Wireless HDTV Connection Kit

EOL Wireless HDMI Extender
MPN: GWMHDKIT22

UPC: 881317516732

This product is EOL and is no longer being sold.
Sale price$186.95

The Expandable Wireless HDTV Connection Kit allows you to connect up to two (2) HDMI TVs to one HDMI output connection. Expand the system to connect up to 10 HDTVs to 10 different selectable HDMI video sources with additional kits or separate transmitters or receivers.


Eliminate Cables Without Sacrificing HD Quality

This dedicated wireless solution sets up quickly and doesn't require a WiFi network. Connect a source device such as a cable box or satellite receiver, laptop or game console to an HDTV and transmit High Definition video and audio up to 150 feet through walls and doors.* With support for HD resolutions up to 1080p, you can eliminate your HDMI cables without sacrificing picture or sound quality.


Connect and Expand Without the Hassle of Wiring

The Expandable Wireless HDTV Connection Kit allows you to connect up to two (2) HDMI TVs to one HDMI output connection. Expand the system to connect up to 10 HDTVs to 10 different selectable HDMI video sources with additional kits or separate transmitters or receivers. Enjoy a stunning audio/video experience with the convenience of wireless and the flexibility to connect your environment any way you want without the hassle and expense of wiring.


Fast, Plug-n-Play Setup

Setting up the Kit is hassle-free and does not require a WiFi network or complicated security configurations. The Kit sends video utilizing advanced wireless technology through a dedicated wireless connection. The included transmitter and receiver come pre-paired and ready with wireless security enabled.


Control Sources Remotely

Control each HDMI video source with your existing remote control. The included IR blast cable, and IR extension cable allows signal transmission between your remote and audio/video equipment. Once set up, just point your remote at the Kit receiver and click to control.

Ideally best performance is obtained using line-of-sight. Distances may vary depending on environment. Solid and non-porous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distances or loss of signal.

  • Wirelessly connect an HDTV to a video source such as cable boxes, Blu-ray players, laptops, and more
  • Avoid the hassle of expensive and disruptive wiring
  • Each wireless transmitter (video source) can connect up to 2 wireless receivers (TVs)
  • Also comes with its own remote for channel section for either the transmitter or receiver
  • System expands to connect up to 10 TVs from 10 selectable HDMI sources
  • 10 Independent wireless channels with no interference
  • No wireless pairing required- Just match the receiver channel to transmit channel
  • Transmit full HD video up to 150 ft. (1080p @ 60fps)
  • Penetrates walls for flexible setup*
  • High fidelity H.264 video compression
  • Control video sources with their original remote controls via included IR remote kit
  • No existing WiFi network required
  • Advanced wireless technology- 5GHz
  • WPA-2 wireless security

* Ideally best performance is obtained using line-of-sight. Distances may vary depending on environment. Solid and non-porous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distances or loss of signal.

  • 1 HDMI video source connection
  • 1 HDMI display connection
  • 1 x GWMHDKIT22 Transmitter
  • 1 x GWMHDKIT22 Receiver
  • IR Remote Control to Select Transmitter or Receiver Channels
  • 2 x 3 Foot High Speed HDMI (TM) Cables
  • 1 x IR Blaster Extension cable
  • 1 x IR Receiver Extension cable
  • 2 x 5VDC/2A Switching Power Supply
  • 1 x Quick Start Guide

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGWMHDKIT22
Video Resolution1080p
Video StreamingH.264 <200ms Latency
Cable Connections
InputHDMI Connection
OutputHDMI Connection
Cable Length3.3 feet
Cable TypeHigh Speed HDMI Cable
Connectors
Video InputHDMI Connection
Video OutputHDMI Connection
Display Output
HDMIHDCP Support
Audio
Audio OutputPCM Stereo
Antenna TypeExternal 5 DBi
Power Supplyswitching 100-240 VAC Input, 5VDC/2A Output
Housing
CasePlastic
Power ConsumptionTx 7W, Rx 6.5W
Infrared
Frequency20-60Hz
Operating Range150 ft
Operating Temperature32-122F
DimensionsGWMHDKIT22
Unit Dimensions
Height0.875 in
Length5.75 in
Depth3.125 in
Unit Package Dimensions
Height3.125 in
Width9.75 in
Depth7 in
Master Carton
Height10.50 in
Width14.50 in
Depth10.25 in
Master Carton Qty.6
Weight
Master Carton Wt.12.70 lb
Unit Pack Wt.1.95 lb
Unit Wt.0.25 lb x 2
