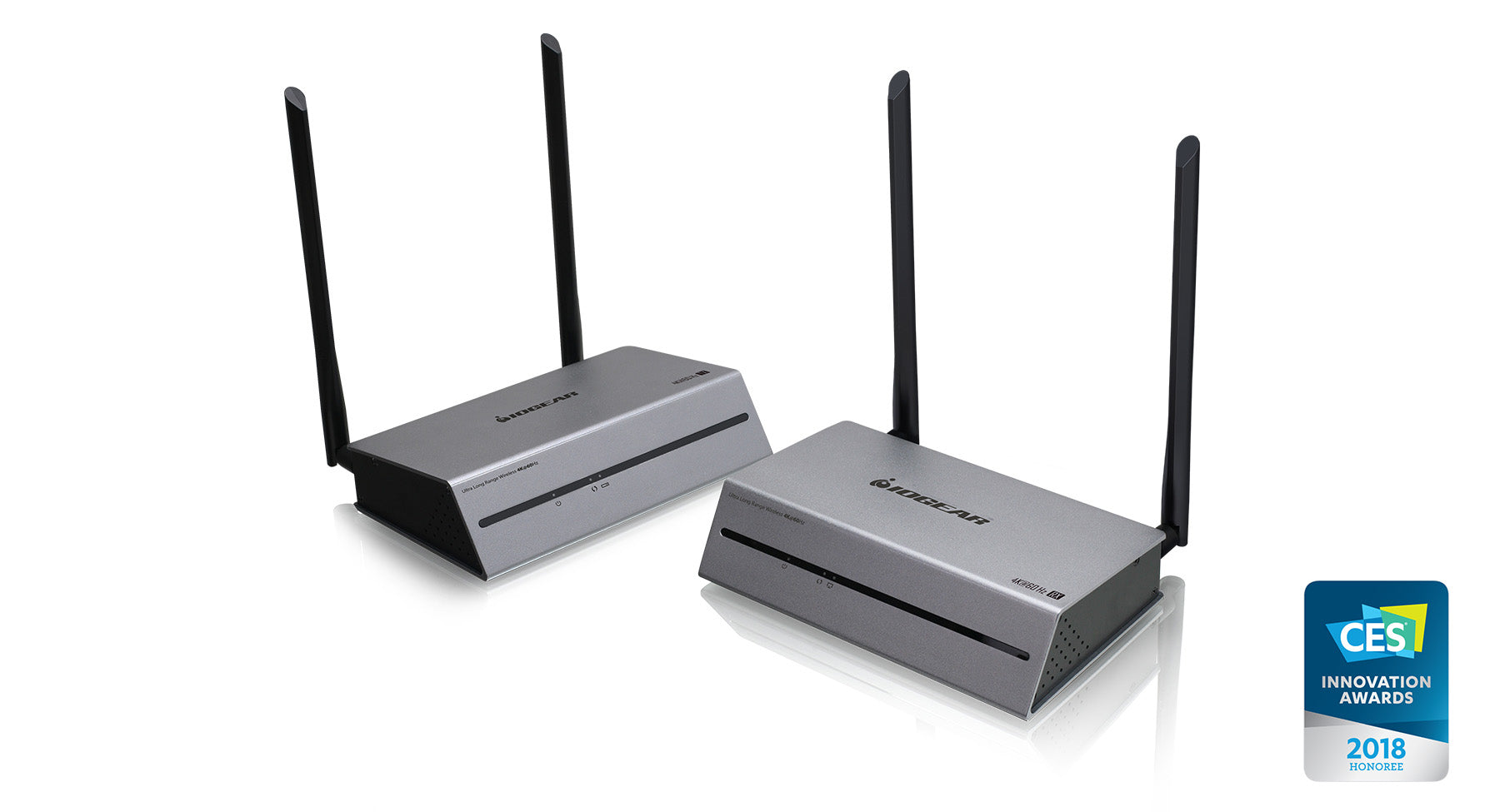

Ultra Long-Range Wireless 4K @ 60Hz Video Transmitter and Receiver Kit
UPC: 881317517449
Choose options
Wireless 4K Ultra HD Audio/Video up to 600 Ft.
IOGEAR's Ultra Long- Range Wireless 4K Video transmitter and receiver offers the highest quality video at distances of up to 600 feet for exceptional flexibility in TV/display placement. Quickly change the location of your HDMI®-enabled display as needed without the hassle and expense of running or hiding cables in walls. Wirelessly transmit 4K Ultra High Definition resolutions to 3840 x 2160 @ 60Hz refresh rates.
Flexible TV or Display Placement
Enjoy crystal-clear quality from an HDMI 2.0 source and the newest 4K Ultra High Definition (UHD) High Dynamic Range TVs and content with resolutions reaching 3840 x 2160 at a 60Hz refresh rate. By eliminating the bulk of HDMI wiring over long distances, the Wireless 4K Video transmitter and receiver affords greater flexibility in TV/display placement. Quickly place TVs in temporary environments such as on a patio or in the kitchen and add a second or third TV with additional wireless receivers.
Control Source Device Remotely With IR Support
Easily control your source remotely from the TV with the included IR blast and extension cables. Once the IR cables are connected, point your remote control at the Wireless 4K Video receiver and press a button to control the source. This feature only works from the system's HDMI receiver (GWLR4K60RX).
Reliable, Dedicated Wireless System
The Ultra Long-Range Wireless 4K Video transmitter and receiver is a dedicated, closed 5GHz wireless system exclusively for audio & video. Since the system operates independently of an existing home or business wireless network, it does not consume the bandwidth needed for other wireless devices. The system also auto-senses other 5G Hz wireless devices in its range and dynamically selects among 78 available operating channels. Advanced wireless technology ensures reliability, guarding against interference from common wireless devices including most Wi-Fi routers, mobile, and IoT devices.
HDMI Transmitter and Receiver for Multiple Applications
The rransmitter and receiver is ideal for applications where audio and video signals need to be transmitted long distances such as in large homes, restaurants, retail stores, airports, houses of worship, events venues and in digital signage applications.
Need more help with this product? Visit IOGEAR Knowledge Base
Function | GWLR4K60KIT |
---|---|
Connectors | |
Video Output | HDCP 2.2 Support |
Power | 1 x Power Jack |
Video Resolution | 3840 x 2160 @ 60Hz; 1920x1080@60Hz;1680x1050@60Hz;1440x900@60Hz; 1360x768@60Hz;1280x1024@60Hz;1280x960@60Hz; 1280x720@60Hz;1024x768@60Hz;800x600@60Hz |
Video Streaming | <200ms Latency H.264 |
Audio | |
Audio Output | L/R Stereo Audio |
Codec | PCM |
Frequency | 5.1 ~ 5.8 G Wireless Transmission |
Antenna Type | Dual Hi-Gain 5 DBi |
Operating Range | Up to 600 Feet |
Infrared | |
Frequency | IR Passback 20-60 KHz |
Housing | |
Case | Iron alloy and crystal panel |
Power | |
Amps | 3.1 A |
Voltage | 5 VDC |
Warranty | 1-Year |
Operating Temperature | 32~122ºF (0~50ºC) |
Power Consumption | TX <11W / RX <12W |
Environment | |
Humidity | 0?90% |
Transfer Rate | 18 Gbps |
Dimensions | GWLR4K60KIT |
---|---|
Unit Dimensions | |
Height | 1.75 in |
Length | 7.63 in |
Depth | 4.50 in |
Unit Package Dimensions | |
Height | 6.00 in |
Length | 14.75 in |
Depth | 3.35 in |
Master Carton | |
Height | 11.25 in |
Width | 15.50 in |
Depth | 13 in |
Master Carton Qty. | 6 |
Weight | |
Master Carton Wt. | 31.31 lb (14.2 KGs) |
Unit Pack Wt. | 4.85 lb (2.2 KGs) |
Unit Wt. | 1.45 lb (0.66 KGs) |
