Upstream Pro Dual Video Capture Adapter
UPC: 881317519634
Choose options
Broadcast-Level AV Capture, Mix, Effects & Control for Live Streaming
Capture and create customized, high-quality video with professional effects from multiple sources and control your program via a smartphone with the TAA Compliant UpStream™ Pro Dual Video Capture Adapter. Along with the FREE UpStream™ Essentials App, you€™ll get the essential pro tools needed to create a customized, broadcast-level video finish in real-time that™ ready to stream.
The UpStream Pro Dual Video Capture Adapter is perfect for adding a professional-level finish to your videos, taking them to the next level.
Take Your Video to the Next Level
Add a high-quality camera and mic to dramatically improve the quality of your Zoom or Teams presentations, customize your YouTube videos for a wider audience, or enhance live streaming programs from an Android phone or a game console.
Make Live Streams More Dynamic With Broadcast-Quality Finish & UpStream Essentials for iOS/Android
Easily create dynamic videos with eight (8) preset scenes, add studio video editing effects like Picture-in-Picture (PIP) and split screens; resize and crop images and customize green-screen backgrounds with the chroma key tool with the free UpStream Essentials app for iOS or Android smartphones & tablets.
With new UpStream Essentials app feature UpStream Command Center, create up to 18 fully customizable hotkey buttons to control your broadcast from your smart phone via Bluetooth. Add hotkey macros to control OBS or other streaming software to fully control your stream, from starting and ending the stream, change scenes, adjust audio levels and adding/removing graphics.
1. Capture
Capture and mix HD and 4K video and audio from multiple sources, including HDMI, RCA, and XLR microphone inputs.
2. Create
Create engaging videos with scene presets and by adding studio effects like Picture-in-Picture and split-screen. Effortlessly customize green-screen backgrounds with the chroma key feature.
3. Control
Control your entire program right from the UpStream Essentials App on your smartphone via Bluetooth® wireless, freeing up a desktop or laptop to run OBS Studios or other streaming software. Or stream directly from your smartphone via mobile streaming software.
Improve Your Video Quality & Add a 2nd Camera
Capture and mix HD and 4K video by adding up to two (2) high-quality cameras with 4K resolutions to significantly improve video image quality over an existing webcam. A second camera adds another perspective to your video calls and Team chat sessions and doubles for in-person interviews, trainings, presentations, video podcasts, or any two-camera program need.
Improve Your Audio Quality - Add a Pro Microphone & Audio Equipment
Excellent audio is a must-have for professional-quality live streams and recordings. Adding a dedicated microphone and managing audio levels is a breeze with the Dual Capture Adapter. Capture, mix and manage audio from multiple sources, including HDMI, RCA, and XLR microphone inputs; even add an audio mixer board for more audio inputs as needed.

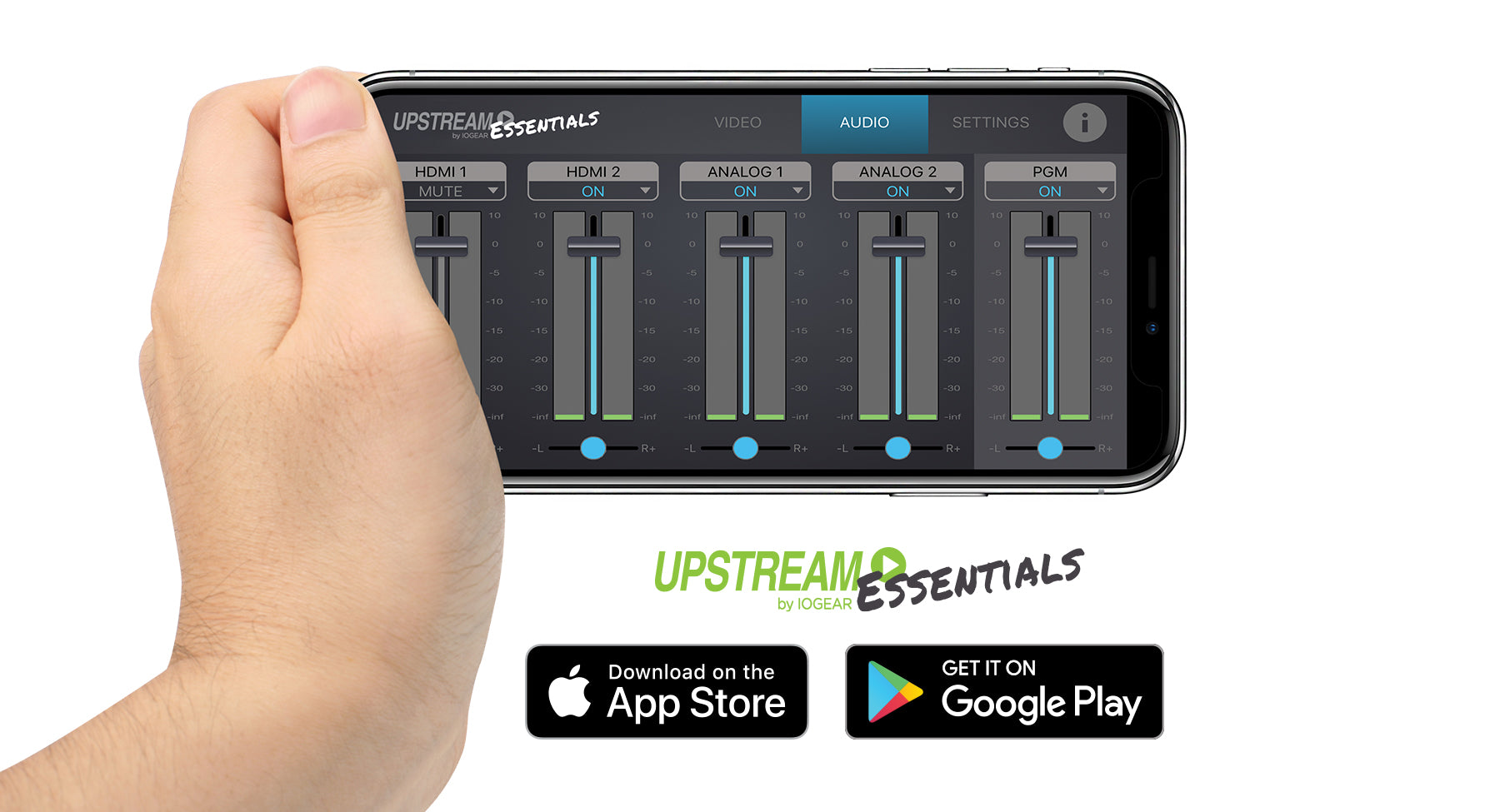

Mix Audio & Video Easily With the UpStream Essentials App
Mix right from your smartphone with the free UpStream Essentials App for both Android™ and iPhone®. Control your program right from your smartphone via Bluetooth wireless to free up a desktop or laptop running streaming software or stream directly from your smartphone with a compatible third-party app.
- Capture & mix two (2) unencrypted live 4K videos at 1080p
- Connects to your streaming desktop, laptop or mobile device via USB 3.1
- Operate via smartphone app, control adapter via Bluetooth wireless
- FREE Android/iOS UpStream Essentials App lets you control & select scenes
- Customize live streams including NEW UpStream Command Center feature to create up to 18 hot key buttons to control your broadcast to control
- Broadcast-level finish - Picture-in-Picture (PIP) & split screen options
- Change backgrounds, add green screen effects with built-in chroma key tool
- Real-time video preview and program management
- Audio mixer with dual analog audio inputs
- Automatic audio transitions are ideal for podcasts & interviews
- Supports protected video switching mode for regular event usage
- Compatible with USB & Thunderbolt™ 3 (USB-C) specification
- Capture and mix 2 live HDMI video inputs to HD UVC format
- 4:4:4 HDMI Video Sampling
- YUY2, RGB output color space

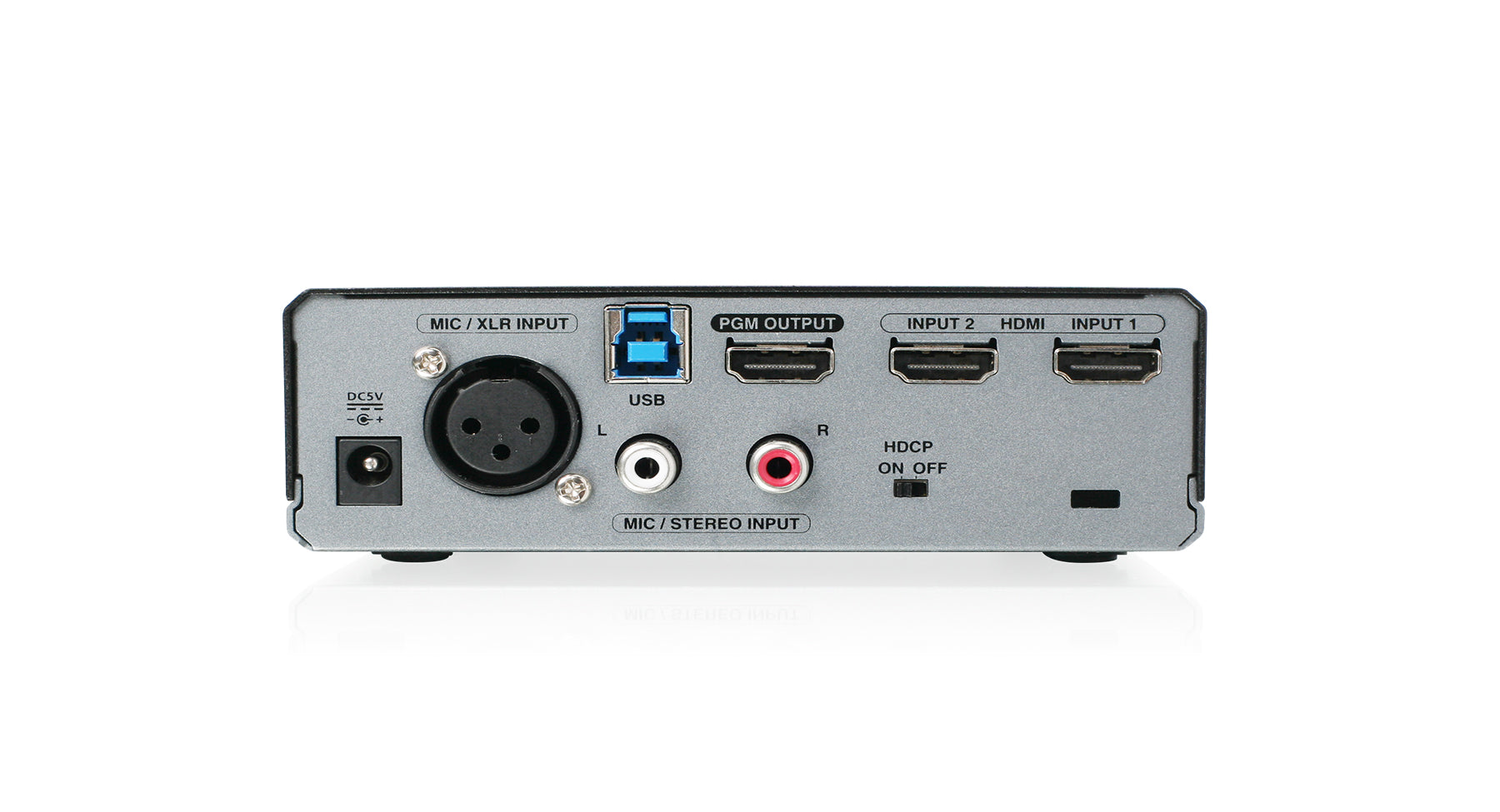

- 2 x HDMI input
- 2 x RCA (L/R) input
- 1 x MIC XLR input
- 1 x HDMI PGM output
- TAA Compliant
- Windows 7 and above with UVC (USB Video Class) v1.1 support
- Mac OSX 10.13 and above with UVC support
- Android Smartphone with UVC support*
- System requirements:
- CPU:Intel® Core™ i3 2.8 GHz or higher
- Memory: 4GB or more
- One USB-A or USB-C 3.1 port
- Stream software with UVC device support
- UpStream Essentials App: iOS 11+, Android 5+
- Stream Software Support*:
- Youtube, Facebook, and Twitch
- OBS: https://obsproject.com
- Xsplit: https://www.xsplit.com
1x GUV322
1x USB-B to A Cable
1x USB-B to C Cable
1x Quick Start Guide
1x Tripod Mount
1x Warranty Card
Need more help with this product? Visit IOGEAR Knowledge Base
Function | GUV322 |
---|---|
Connectors | |
Audio Input | 1x MIC XLR 1x RCA (L/R) |
USB | 1x USB Type-B for host computer |
Video Input | 720p50, 720p60, 1080p24, 1080p25, 1080p30,1080p50, 1080p60, 2160p24, 2160p25, 2160p30 |
Video Output | UVC Capture Enabled: 720p50, 720p60, 1080p24, 1080p25, 1080p30,1080p50, 1080p60 (HDCP disabled) UVC Capture Disabled: 720p50, 720p60, 1080p24, 1080p25, 1080p30,1080p50, 1080p60, 2160p24, 2160p25, 2160p30 (HDCP enabled) |
Video connections | |
Input | 2x HDMI inputs (Up to 4K@30) |
Output | 1x HDMI PGM output 1080P |
Power | |
Input Rating | DC Jack with Power cable IEC C14, 100-240 Vac (w/250V fuse) |
Video capture size | UVC Output: Uncompressed 720p60, 1080p60 UVC Video Stream with UAC Audio |
Operating Temperature | 0 - 40 ºC |
Storage Temperature | -20 ? 60 ºC |
Humidity | 0 - 80% RH, Non-Condensing |
Operating System Requirements | |
Other | PC/Mac: ? CPU: Intel® i3 Dual Core 2.8Ghz or higher ? RAM: 4GB or more One USB-C Interface or USB-A Interface Android smartphone with UVC and USB-C |
Dimensions | GUV322 |
---|---|
Unit Dimensions | |
Height | 1.6" |
Length | 5.6" |
Depth | 5.07" |
Unit Package Dimensions | |
Height | 10.5" |
Length | 3.8" |
Width | 8.8" |
Master Carton | |
Height | 11" |
Width | 12.3" |
Depth | 9.6" |
Master Carton Qty. | 3 pc |
Weight | |
Master Carton Wt. | 11.41 lbs (5.18 kg) |
Unit Pack Wt. | 3.45 lbs (1.56 kg) |
Unit Wt. | 1.50 lbs (0.68 kg) |
