USB-C CAC Reader Hub with Power Pass Through(TAA).

CAC Reader

USB-C CAC Reader Hub with Power Pass Through(TAA)

Name: USB-C CAC Reader Hub with Power Pass Through(TAA)
Brand: IOGEAR
SKU: GUH3C200TAA
Price: 17.98 USD
Availability: InStock

PD Passthrough TAA Compliant USB-A

MPN: GUH3C200TAA

UPC: 881317521767

$17.98

$49.95

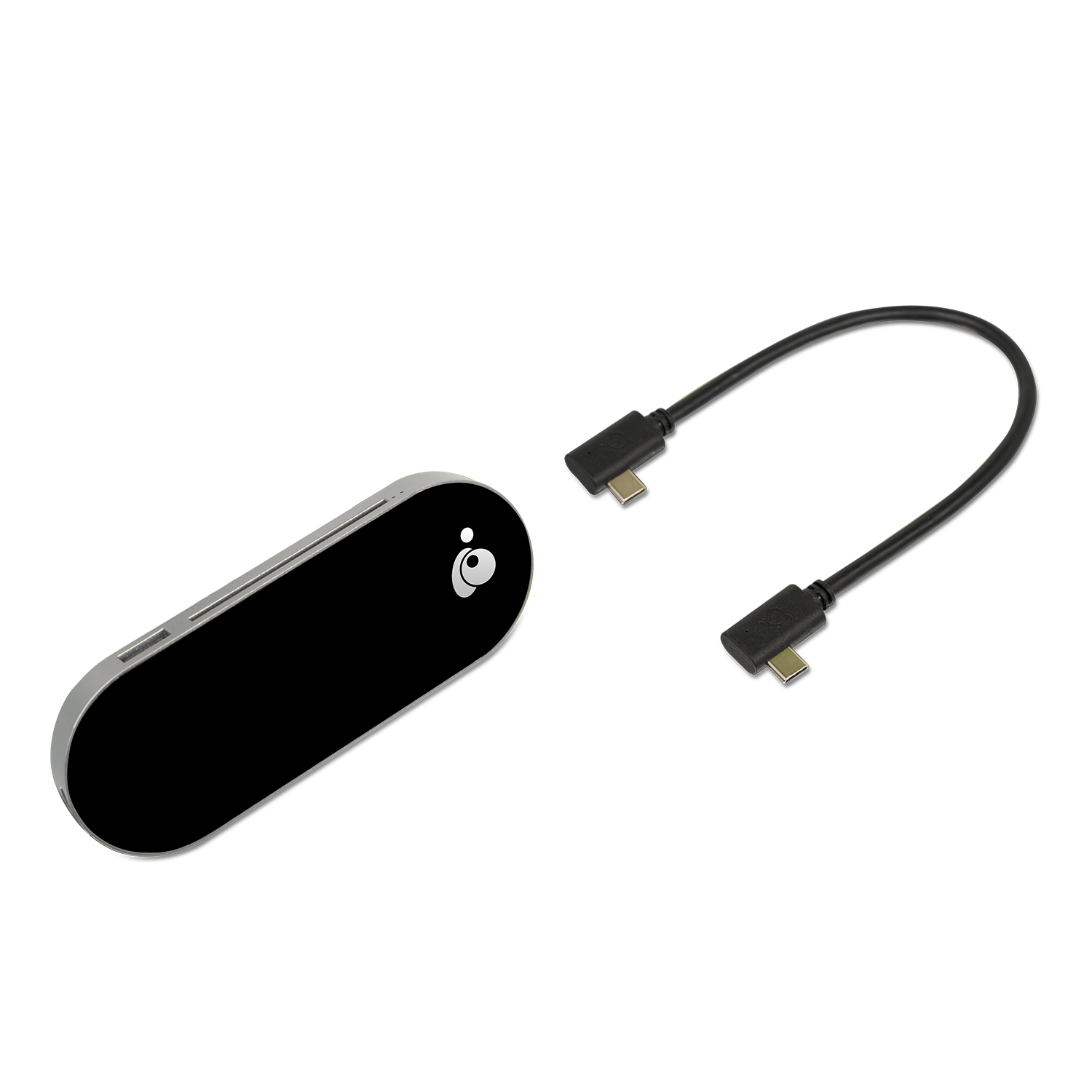

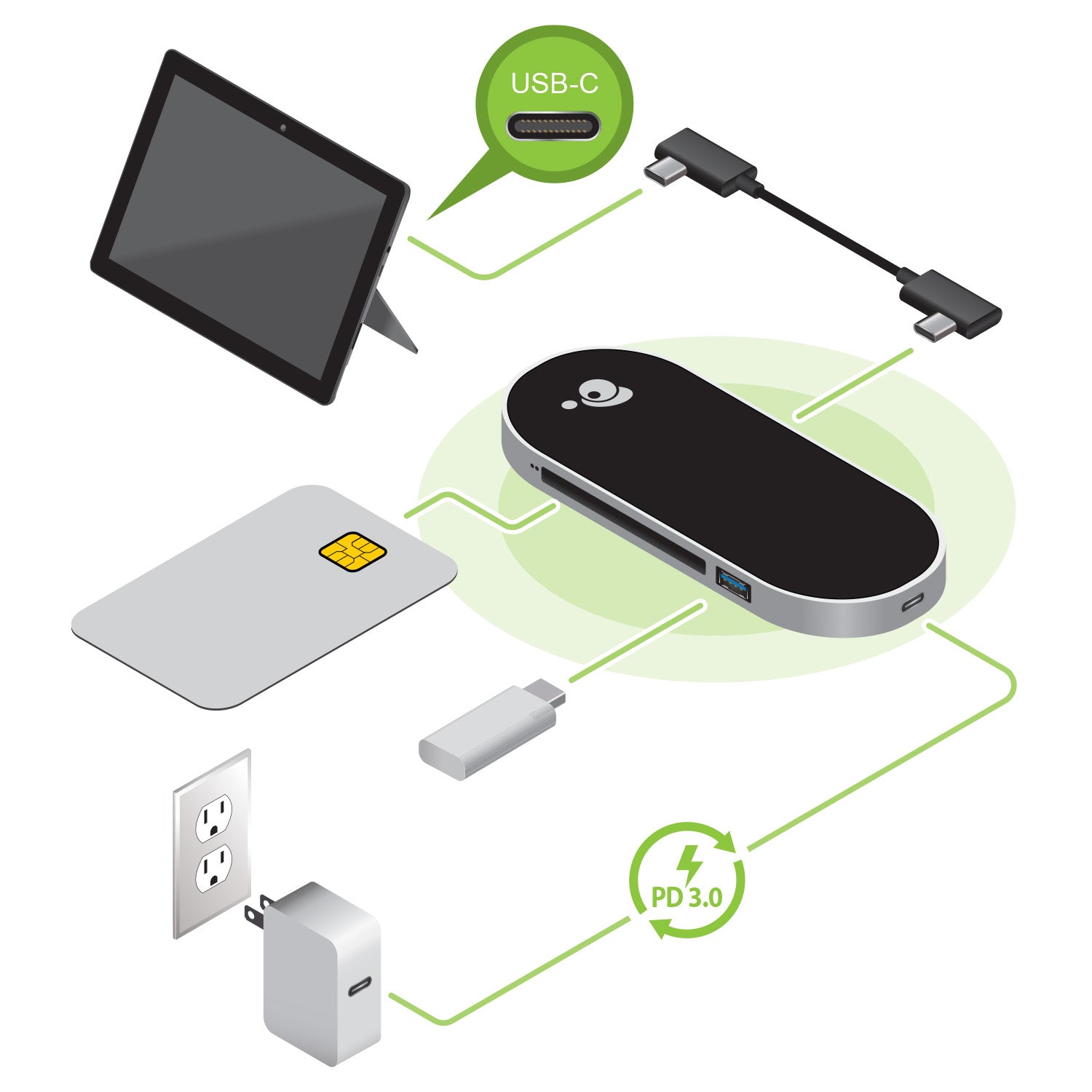

The IOGEAR USB-C Hub with PD and CAC reader is an easy-to-install USB-C device designed for all Microsoft Surface devices, but compatible with most USB-C or Thunderbolt 4 laptops, or tablets. It offers an additional USB-A 3.2 Gen 1 port for connecting peripherals like flash drives, keyboards, and mice, while simultaneously providing up to 100W of power passthrough to keep your laptop charged.

USB-C CAC Reader Hub with Power Pass Through(TAA)

$17.98

$49.95

Expand Your Connectivity

The USB-C Hub w/ PD and CAC Reader feature a USB-A 3.2 Gen 1 port, allowing you to connect any essential USB device like flash drives, keyboards, and mice for efficient data transfer and a clutter-free workspace.

Universal CAC Compatibility

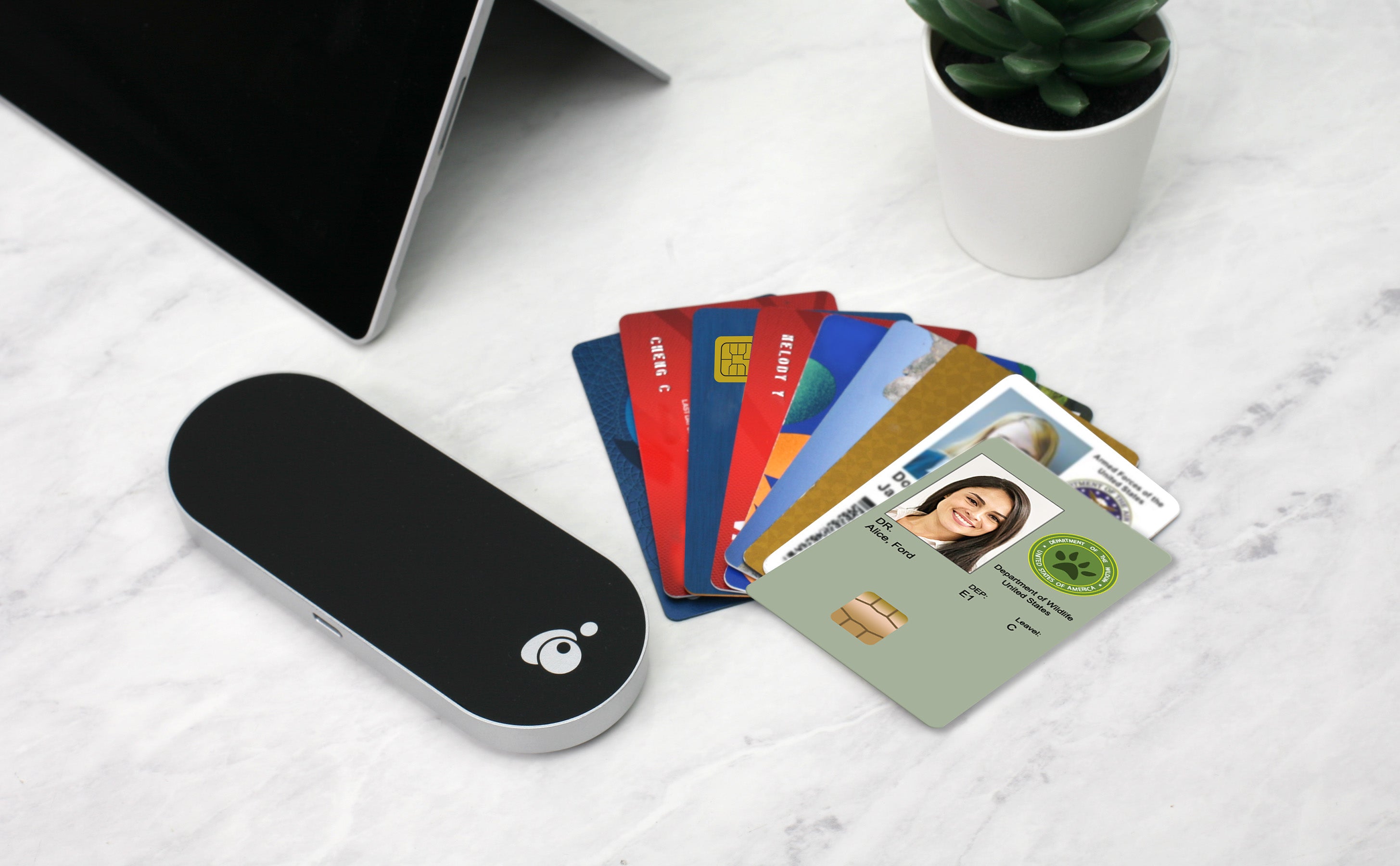

Utilizing the latest common access card encryptions (CAC) and compatible with most CAC middleware software, the USB-C CAC Reader Plus works with all CACs issued by any organization from the U.S. Department of Defense (DOD) to military personnel, federal and state employees, government contractors as well as corporate, banking and healthcare industries.

Keep Your Laptop Charged and Productive

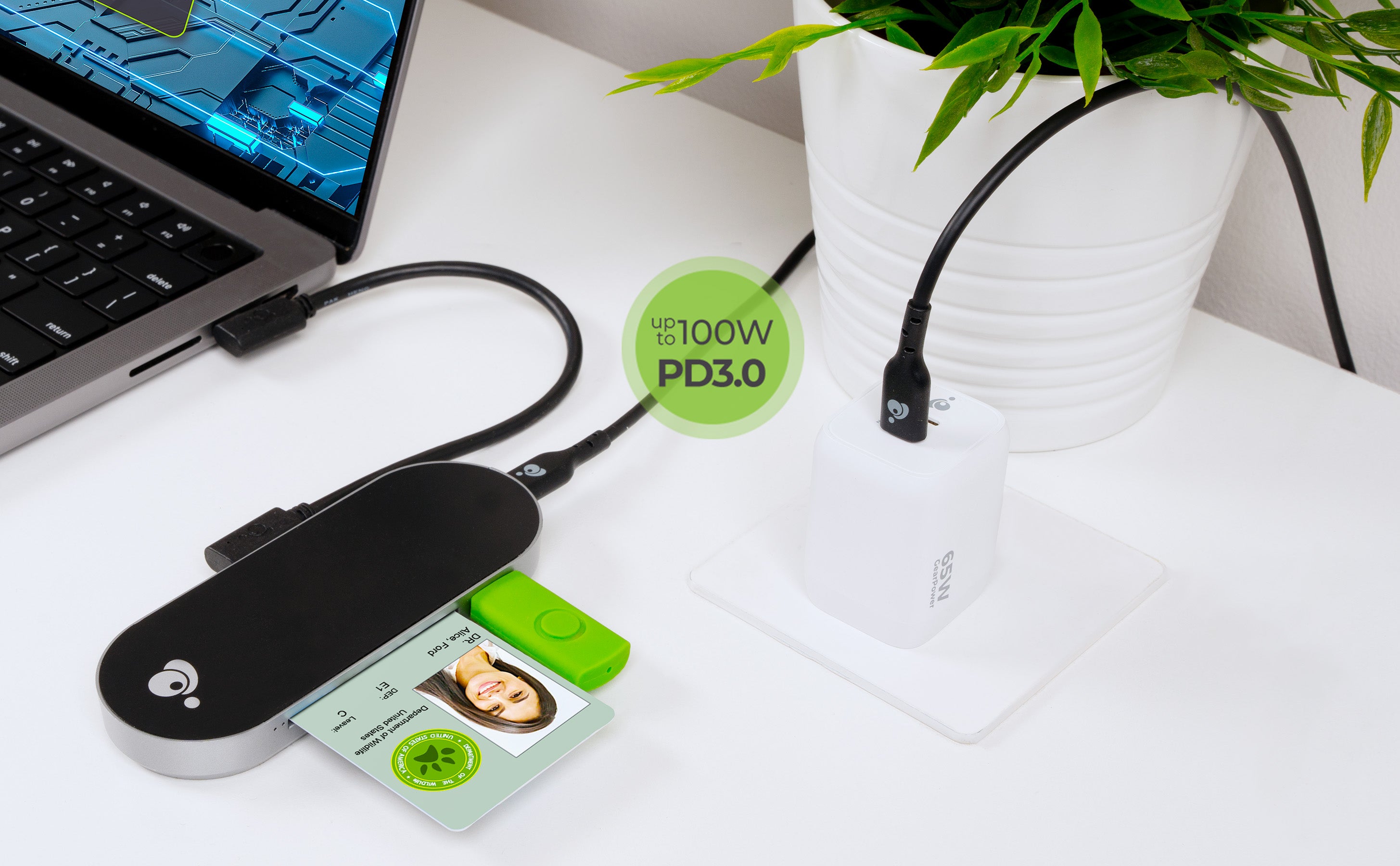

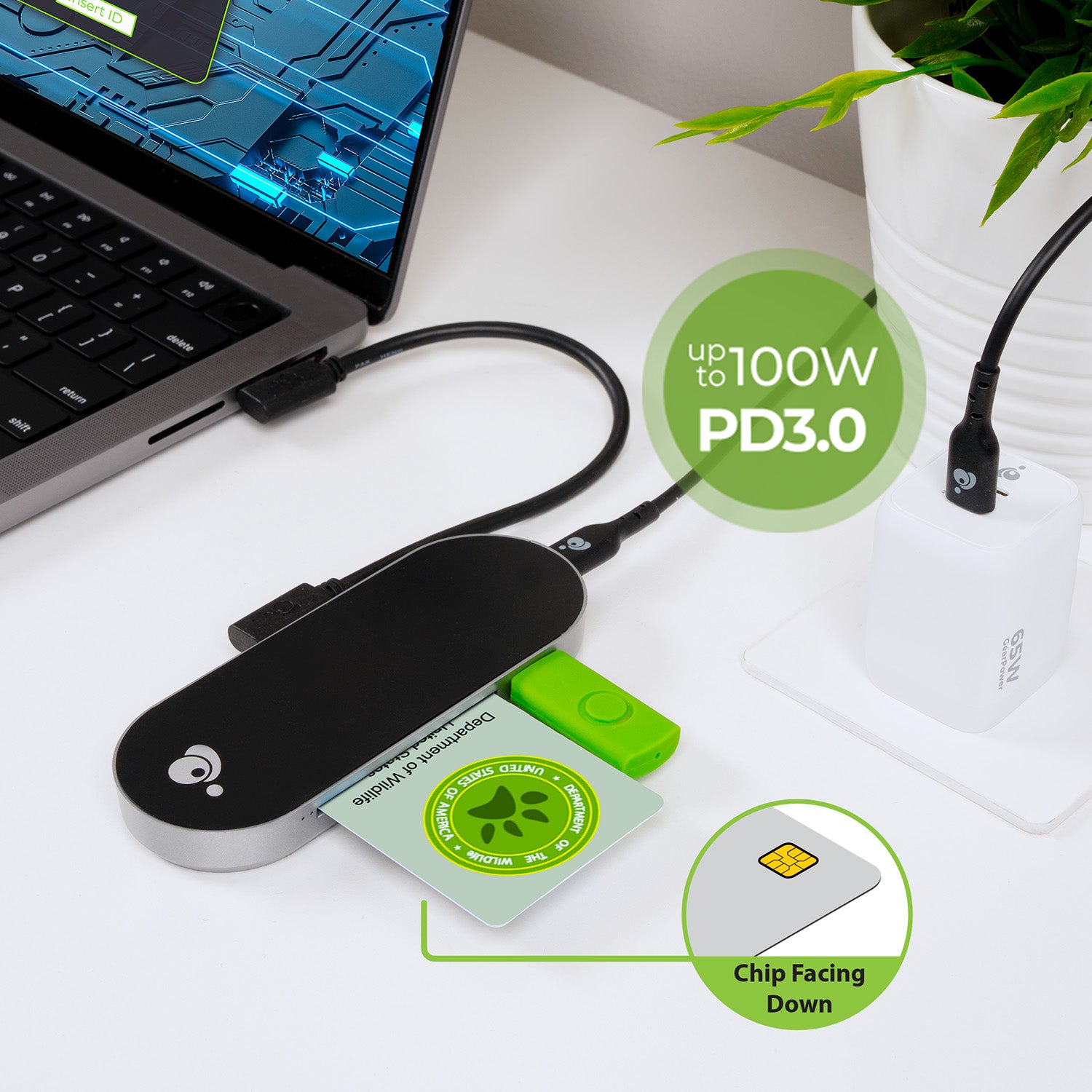

Never slow down again! This hub supports up to 100W of Power passthrough, allowing you to charge your laptop at full speed while using all the other connected devices.

Perfect for Government, Military, Banking or Healthcare

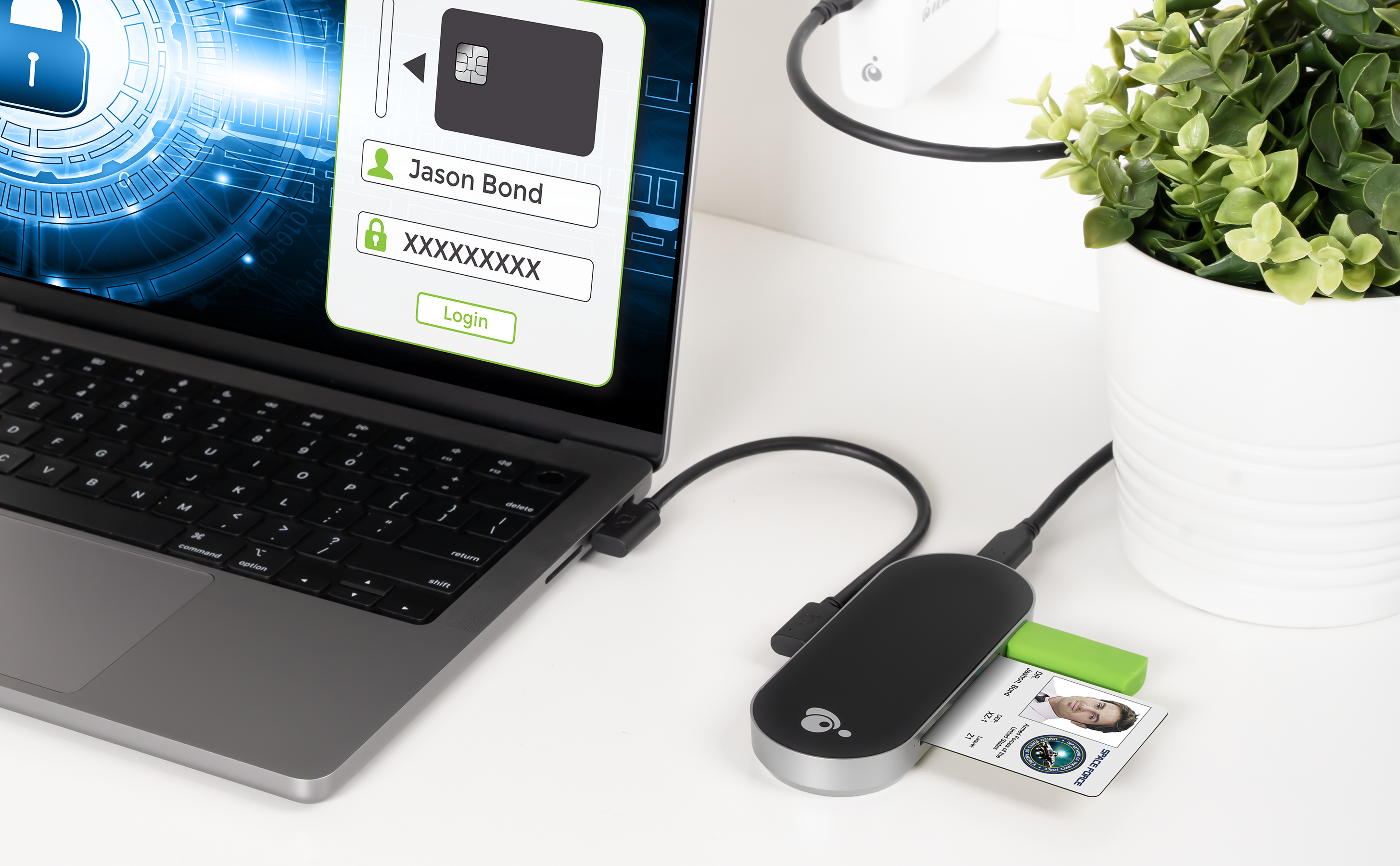

The TAA-certified USB-C Hub w/ PD and CAC Reader is designed for users to remotely access secret or restrictive information in which the users have secure access rights. Access securely stored information on smart cards including pins, passwords, credit cards and family contacts. The CAC reader will end any session automatically if you remove the card or disconnect the reader.

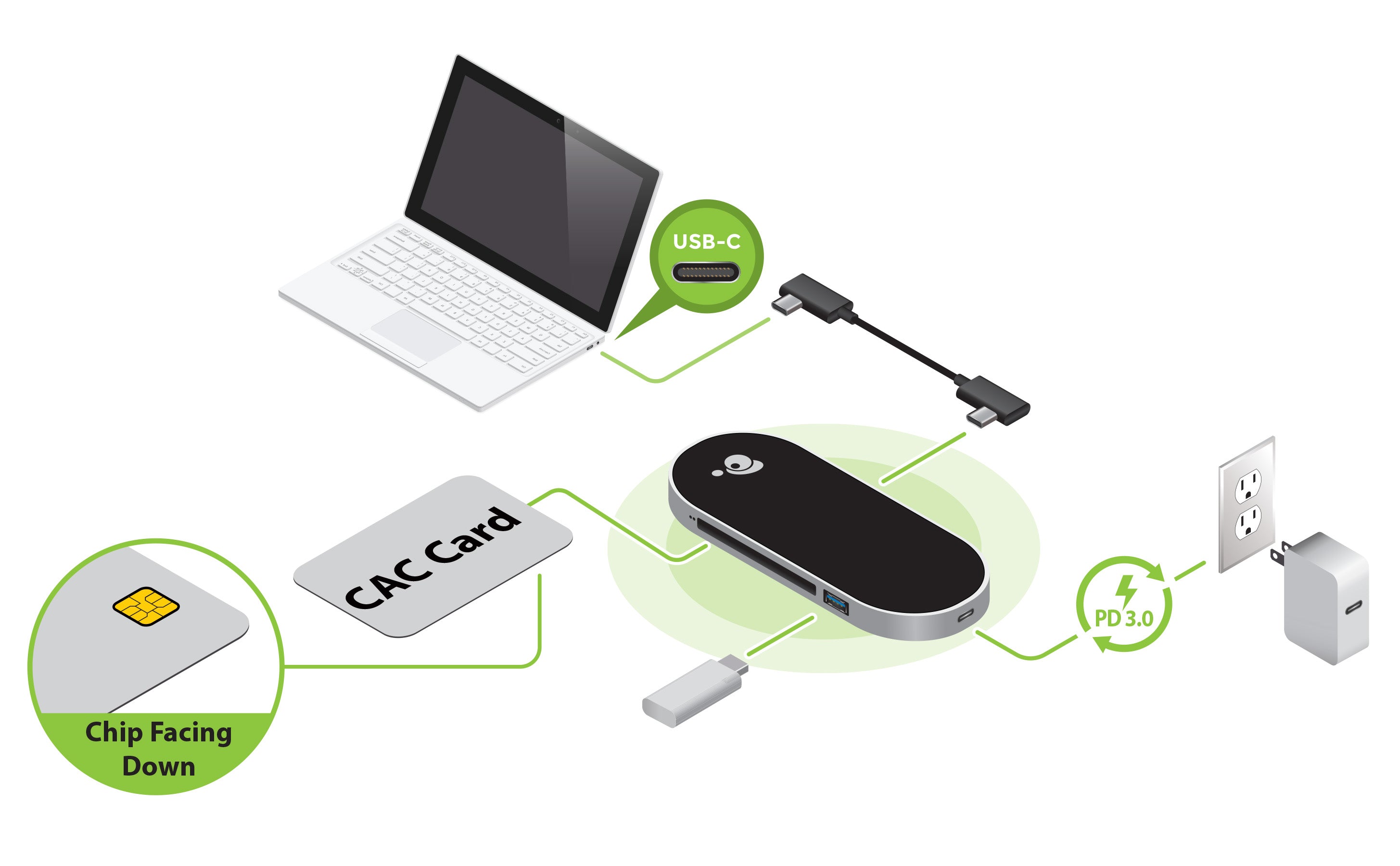

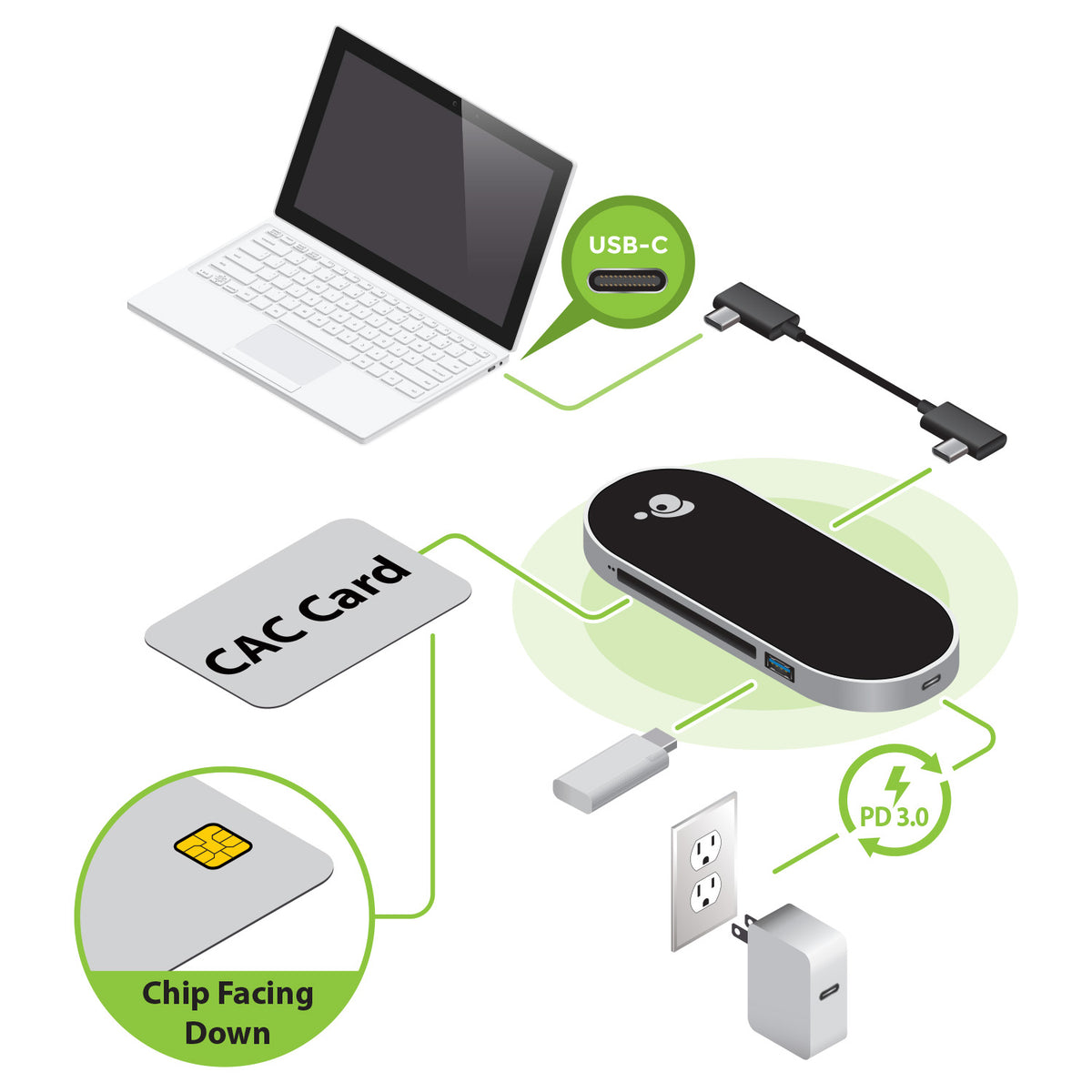

Follow these quick steps to properly insert your CAC card into the IOGEAR reader:

Step 1:
Position the reader: Hold the CAC card reader with the IOGEAR logo facing up.

Step 2:

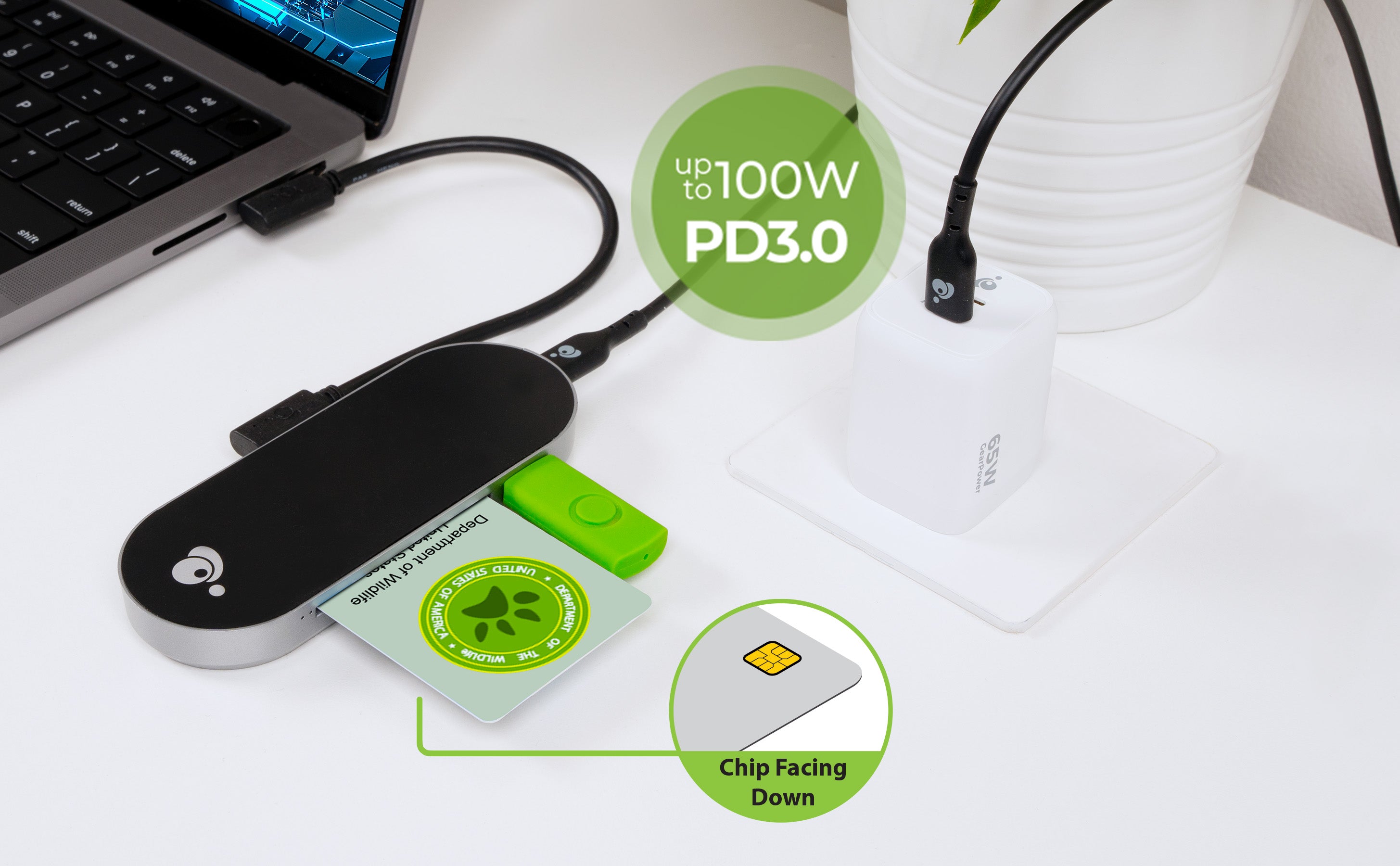

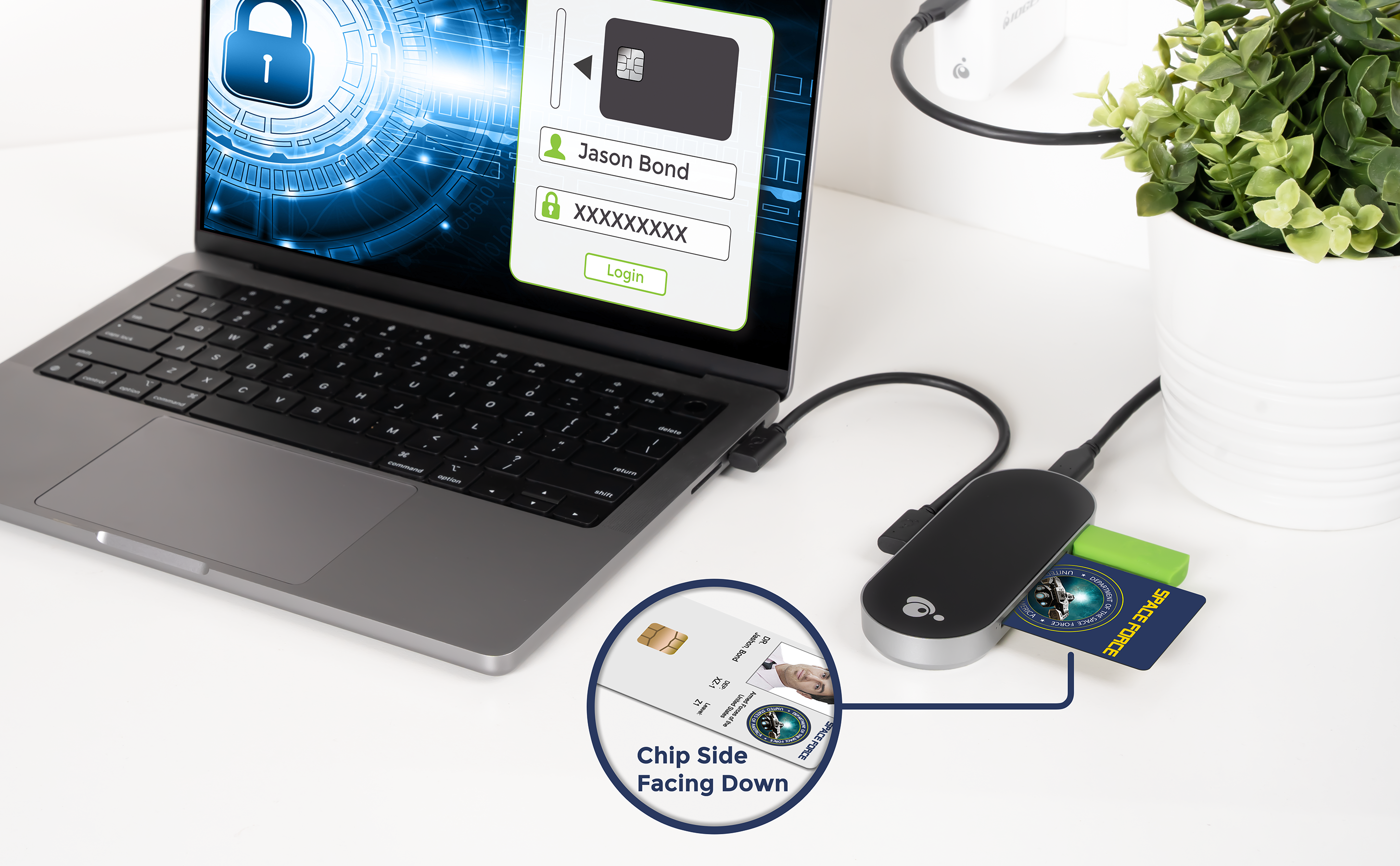

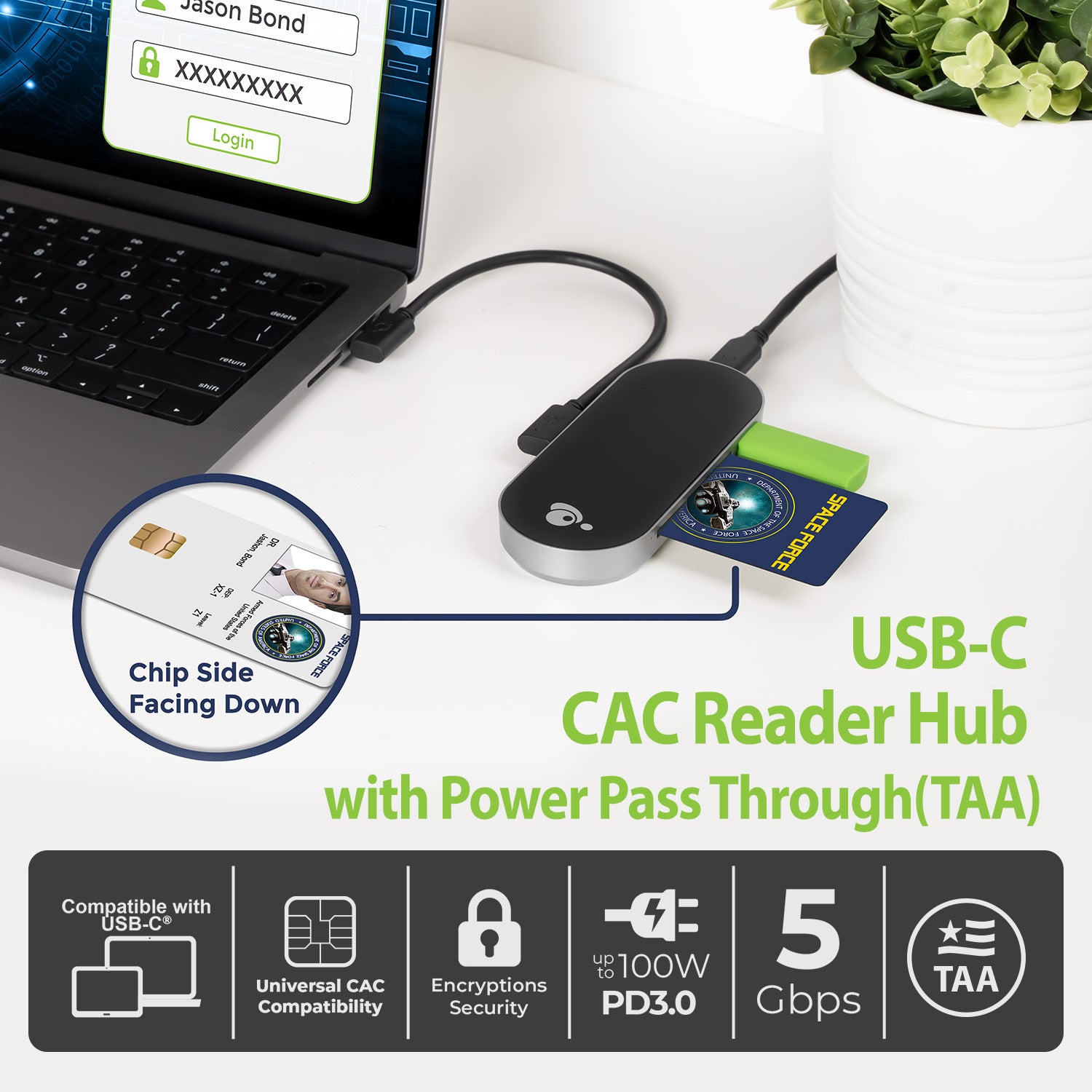

Position the card: Turn your CAC card so the gold microchip faces down.

Step 3:
Insert the card: Gently slide the card into the reader slot until it clicks or rests fully in place

TAA Compliant USB-C CAC Reader* with PD 3.0 and USB 3.2 Gen1 Hub
USB-A 3.2 Gen 1 port for USB devices (Flash Drive, Keyboard, Mouse etc.)
PD 3.0 up to 100W passthrough
Compatible with Microsoft USB-CCID driver
Ideal for government, military, healthcare or banking
Portable design with power and scan LED indicators
688Kbps read speed with multi-protocol support**
ISO7816 implementation-Class A, B and C (5V,3V,1.8V) card
EMV2000 Level 1 approved and supports 3V & 5V cards
EMVCo 4.3 Level 1 Specification certified
PBOC3.0 Level 1 Specification certified
Support PC Smart Card industry standard-PC/SC 2.0
Support ISO7816 T0, T1 protocol
Support ISO7816 Class A, B, C (5/3/1.8V) cards
Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436,SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM
Support customized USB VID/PID, manufacture/product strings and serial number by external EEPROM via USB interface
Support remote wake up through inserting card/removing card
Support USB selective suspend
Support Power Saving Mode (Using one pin to select between Normal/PWR Saving Mode)
Support card power over current protection mechanism
Supports PIV cards
Support single slot
TAA compliant

* CAC Middleware is not included
** Software driver may be needed to achieve maximum speed. Actual speed may be dependent on system environments.

Windows® 7, Windows® 8.1, Windows® 10, Windows® 11
MAC OS X 10.4 or later (32-bit/64-bit, embedded smart card services)
Linux Redhat, Ubuntu, Fedora (Kernel 2.4 or later)
USB-C Enabled computers
Thunderbolt compatible

1x GUH3C200TAA
1x QSG
1x Warranty card

GUH3C200TAA Quick Start Guide Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GUH3C200TAA
LEDs
Power On	White
Input	Green
Cable Length	8.25 in (20.63 cm)
Downstream Port
USB-C	1 x USB-C (Power Only)
USB-A	1 x USB-A (5Gbps)
Card Reader	1x CAC slot
Upstream Port
USB-C	1 x USB-C (5Gbps)

Dimensions	GUH3C200TAA
Unit Dimensions
Height	0.5 in (1.27 cm)
Length	5 in (12.7 cm)
Width	1.7 in (4.3 cm)
Unit Package Dimensions
Height	8.2 in (21 cm)
Length	1.5 in (4 cm)
Width	5.9 in (15.2 cm)
Master Carton
Height	8.5 in (21.6 cm)
Length	12.5 in (31.75 cm)
Width	10.1 in (25.7 cm)
Master Carton Qty.	12 pcs
Weight
Master Carton Wt.	5.4 lbs (2.4 kg)
Unit Pack Wt.	0.35 lbs (0.16 kg)
Unit Wt.	0.15 lbs (0.08 kg)

1 Year Limited Warranty
