Docking Station

USB-C Docking Station with 60W Power Delivery

EOL
MPN: GUD3C32

UPC: 881317517791

This product is EOL and is no longer being sold.
Sale price$149.95

Effortlessly add up to 10 ports to your USB-C laptop with a single USB-C cable, turning your MacBook or Windows laptop or tablet into a robust workstation.

USB-C Docking Station with 60W Power Delivery
USB-C Docking Station with 60W Power Delivery Sale price$149.95

Expand Your Laptop's Connections

Effortlessly add up to 10 ports to your USB-C laptop with a single USB-C cable, turning your MacBook or Windows laptop or tablet into a robust workstation. Whether you're on-the-go or docking at a workstation, the IOGEAR USB-C Docking Station with 60W Power Delivery Pass-Through is sure to work as hard as you do. Add an HD monitor or two*, a full-sized keyboard and mouse, an external hard drive, a printer or other peripherals.

*Only one additional video output can be utilized for extending the desktop under MacOS.


Monitor Setup Option #1

4K Ultra HD Single Monitor Setup

  • Enjoy the remarkable visual experience of 4K Ultra HD (UHD), at four times the resolution of standard HD.
  • The dock supports impressive, Ultra HD 4K quality on a single DisplayPort monitor to 3840 x 2160p at 30Hz.
  • Perfect for watching videos, playing games, working and creating.

Full 1080p

Dual Monitor Setup

Extend your monitors

  • Adding two monitors to your laptop will improve your productivity and allow you to get more done.
  • Extend your Windows USB-C laptop to two monitors or extend your MacBook or USB-C Apple laptop to one additional monitor.
  • Browse the web on one screen, edit a document on a second. When using a Windows USB-C laptop, write an email or connect to a webinar on a third monitor.

Monitor Setup Option #2

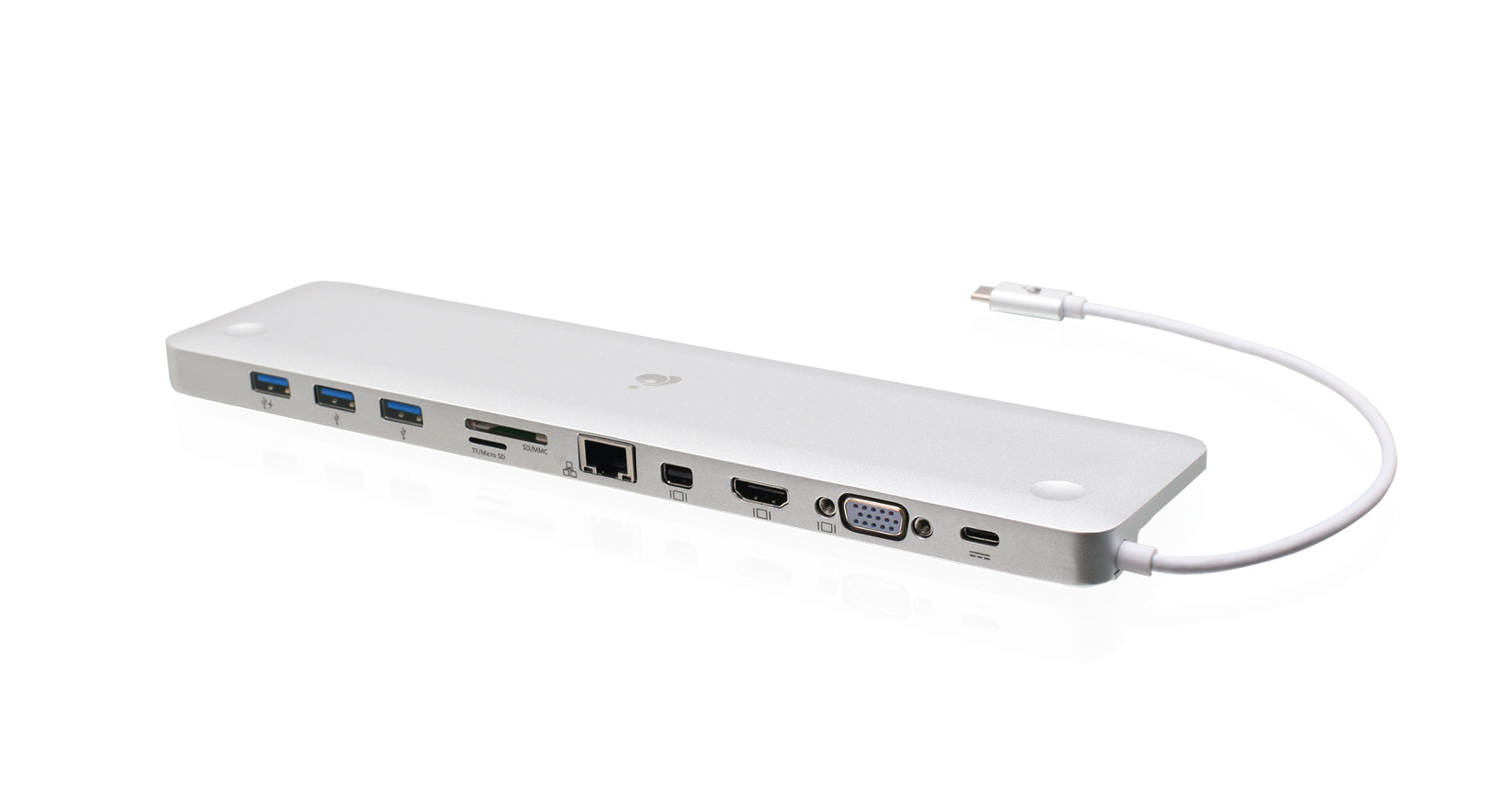

10 Ports Add Flexibility

Utilize up to 10 ports simultaneously with your laptop or tablet through a single USB-C cable.

  • Three video connectivity options: HDMI, Mini DisplayPort or VGA.
  • Plug in your favorite headphones via the audio/speaker jack.
  • Connect to your network with the included Gigabit Ethernet port. You can connect to you LAN for robust data bandwidth and increased security.
  • This docking station is equipped with memory card readers for SD/MMC/MicroSD memory cards for quick access to your data
  • Three USB 3.0 (Type-A) parts so you can connect an array of USB Type-A peripherals.
  • With the quick charge USB port, you can charge your phone or tablet at super-fast rates.

Charge Your Laptop While Docked

  • Charge your laptop while connected to your docking station without the need to buy an additional power supply.
  • Connect your manufacturer's USB-C AC power adapter directly to the docking station and power you laptop while you work or play.
  • With up to 60W of power delivery pass through, you can keep all your power-hungry devices and peripherals ready to go.
  • When you are on-the-go, this bus-powered docking station does not need a power supply to connect your devices.

60W Power Delivery Pass-Through


Slim Space-Saving Design

  • This versatile and innovative dock design fits seamlessly into any workstation or setup.
  • The intelligently contoured design provides the best ergonomic typing experience for you laptop.
  • Save space on your desk by placing your laptop directly on top of the docking station or display the dock next to your monitors for a sleek, minimalist workstation.

*Disclaimer on Functional Diagram: MST-enabled systems support extended mode: without MST, device operates in mirror mode only. Mac OS does not support MST.

  • Expand your laptop up to 10 ports
  • Charge laptop while docked via 60W Power Delivery Pass-Through*
  • Enjoy stunning 4K video resolution
  • 3 x USB 3.0 (USB Type-A) w/ 1 x BC 1.2 Charge Port **
  • Built-in memory card readers (SD/MMC/Micro SD)
  • 3.5mm Audio input/output
  • Gigabit Ethernet port
  • HDMI (4K), Mini DisplayPort (4K) and VGA
  • HDCP 1.4 compliant
  • Works with the latest USB-C iPad Pro (2018 late)  under mirror-mode

* USB-C laptop charger required. Utilizes a total of up to 60W to charge laptop after 15W is used by the dock.
* Pass-thru power delivered to the laptop is dependent upon the capacity of your USB-C power supply.
Ex. If your USB-C power supply is 60W, then the maximum power can be delivered to the laptop is 60W-15W = 45W.
If your power supply is 87W, then the maximum power can be delivered to the laptop is 60W.
**For optimal performance it is recommended that External HDD be connected to the BC 1.2 port only.                                                                                                                                                                                                                                                                                                                                                                                 *** When using the HDMI/VGA ports, only one video output is supported at a time (either VGA or HDMI)
*** When using the Mini DP/VGA ports, only one video output is supported at a time (either VGA or Mini DP)
*** For best video performance, it is recommended to have direct connection between your external displays and the docking station, without using an adapter between the docking station and the display or video cables

  • USB-C compatible laptops with DP Alt-Mode support
  • USB-C AC Adapter from Laptop is needed for Power Delivery Pass-Thru Function
  • Mac OS X 10.10.5+ (*MST is not supported by Mac OS)
  • Only one additional video output can be utilized for extended desktop using Mac OS
  • For dual screen extended desktop in Windows, you must use HDMI with Mini DisplayPort*
  • When VGA output is utilized, only one additional extended desktop screen will be available
  • Compatible with USB-C and Thunderbolt 3 laptop

* Mini DisplayPort is not compatible with Thunderbolt 2 port, and the docking station will not work with Thunderbolt 2 display

  • 1 x USB-C Docking Station
  • 1 x Quick Start Guide
  • 1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGUD3C32
Upstream Port
USB-CBuilt-in USB 3.1 G1 Type-C cable
Cable Length9 inch (23cm)
Downstream Port
HDMI1x HDMI port (v.1.4 spec compliant, up to 3840x2160@30Hz)
Mini DisplayPort1x miniDisplayPort port (v.1.2 spec compliant, up to 3840x2160@30Hz)
VGA1x VGA port (up to 1920x1200@60Hz)
Ethernet1x Gigabit Ethernet port
USB-A3x USB 3.0 A ports, 1 port with BC1.2 charging
USB-C1x USB-C port (charging only)
Card ReaderSupports SD/SDHC/SDXC @ UHS-I class, MMC
Audio1 x 3.5mm (in/out shared)
Power
Power Delivery Pass-Thru75W (A total of up to 60W can be charged to the laptop after deduction of max 15W used by the dock)
Operating System Requirements
WindowsWindows 7 / 8 / 8.1 / 10
MacMac OS X 10.10.5+
DimensionsGUD3C32
Unit Dimensions
Height0.6" (1.52cm)
Length11" (27.94cm)
Depth3.0" (7.62cm)
Unit Package Dimensions
Height4.5" (11.43cm)
Width13.5" (34.29cm)
Depth1.4" (3.56cm)
Master Carton
Height5.25" (13.34cm)
Width14.25" (36.2cm)
Depth9" (22.86cm)
Master Carton Qty.6
Weight
Master Carton Wt.6.68 lb (3.03kg)
Unit Pack Wt.0.92 lb (0.45kg)
Unit Wt.0.70 lb (0.32kg)
