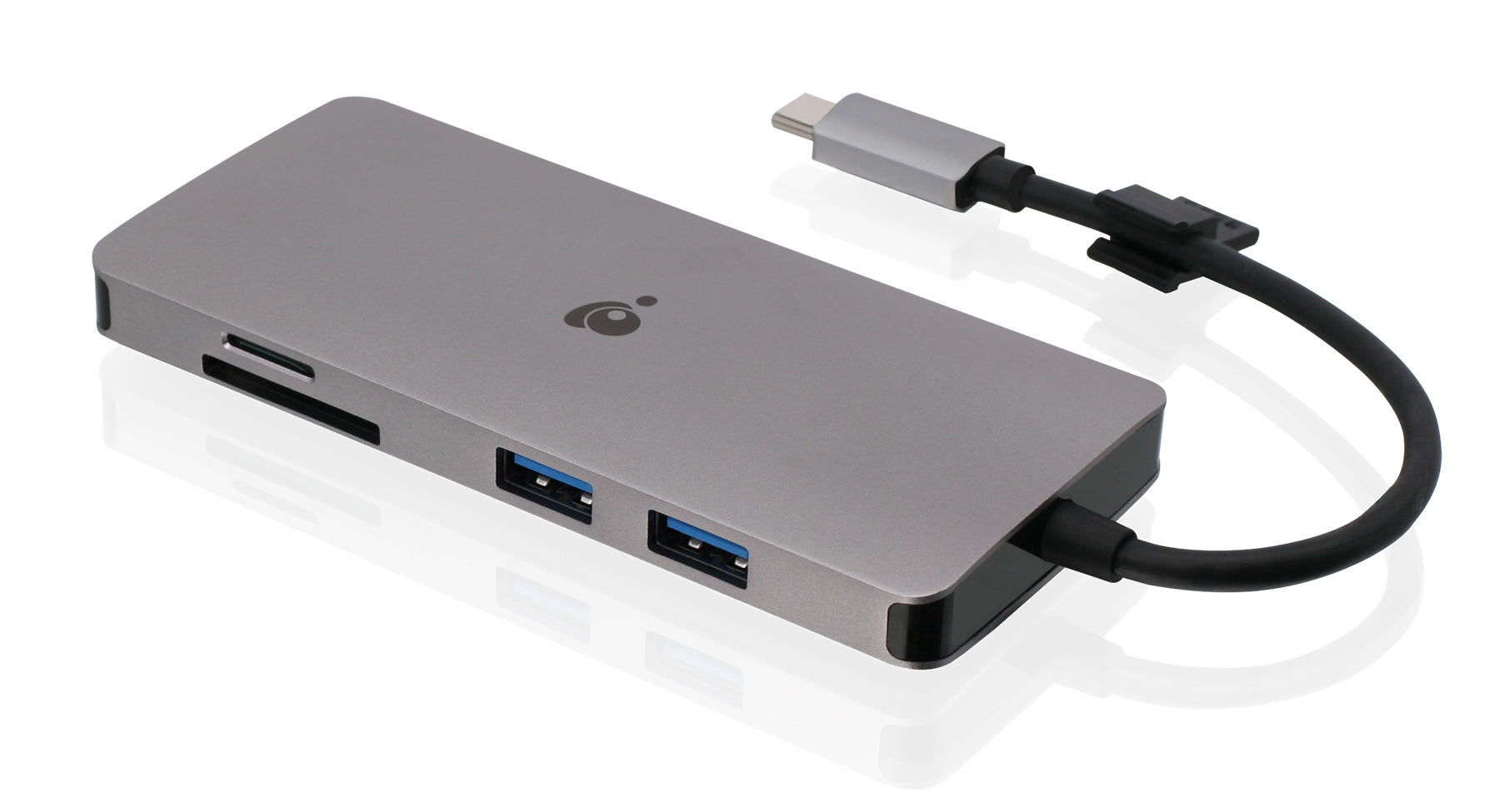

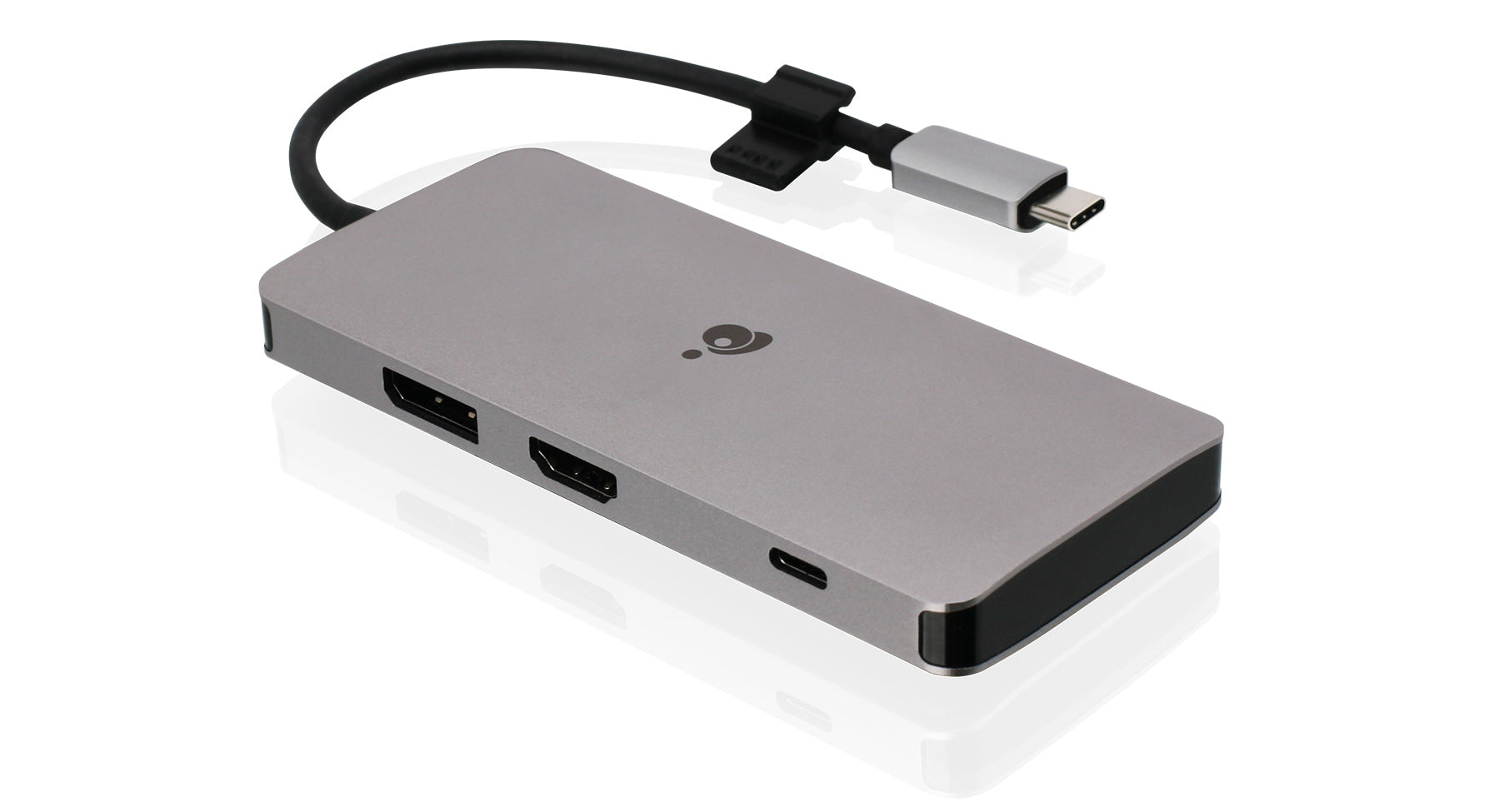

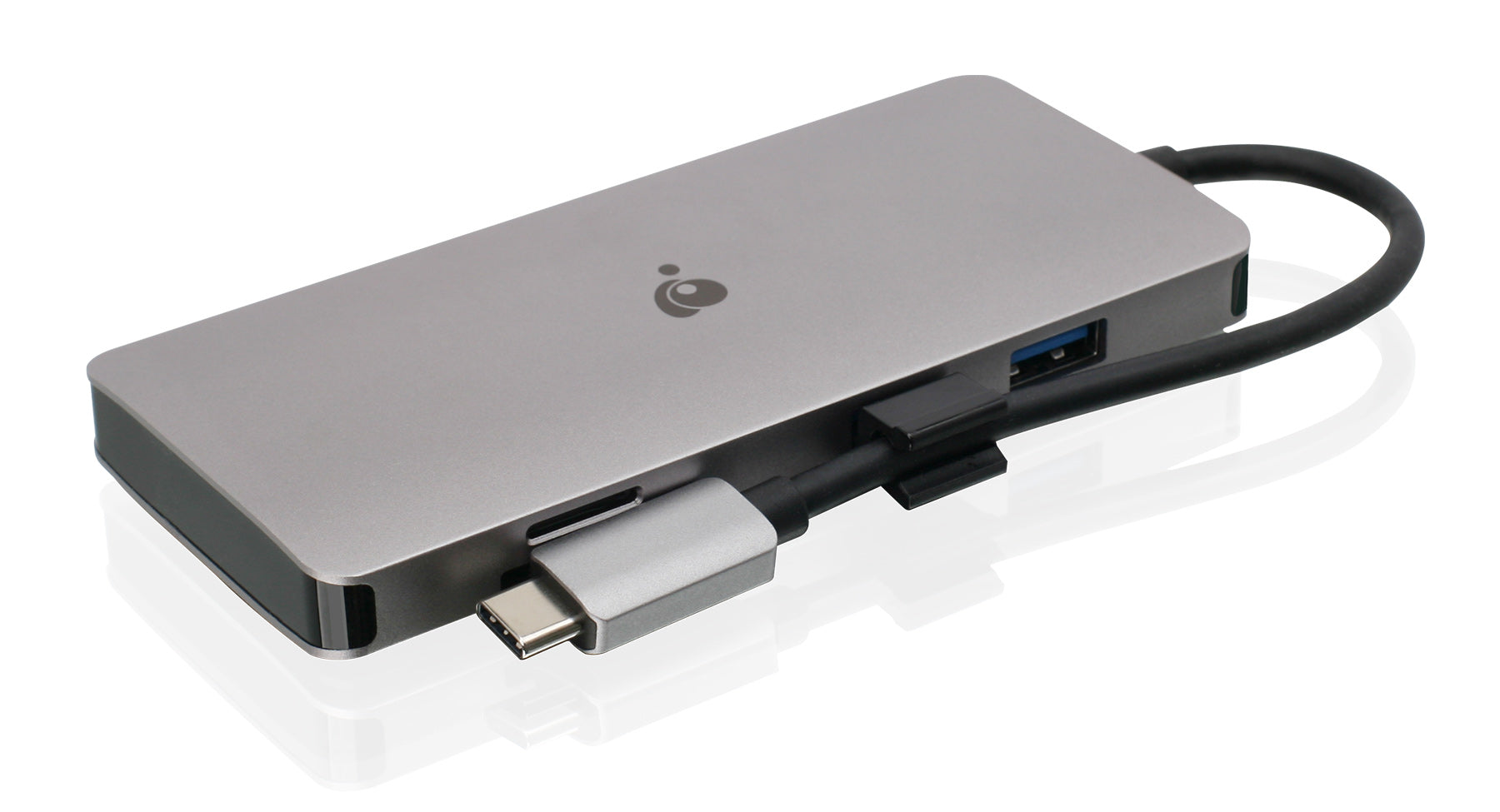

USB-C Dual HD Travel Dock with Power Delivery 3.0
UPC: 881317518262
Choose options
![USB-C Dual HD Travel Dock with Power Delivery 3.0](http://iogear.com/cdn/shop/files/GUD3C09_2.jpg?v=1716573828&width=1800)
![USB-C Dual HD Travel Dock with Power Delivery 3.0](http://iogear.com/cdn/shop/files/GUD3C09_1.jpg?v=1716573828&width=1800)
![USB-C Dual HD Travel Dock with Power Delivery 3.0](http://iogear.com/cdn/shop/files/GUD3C09_0.jpg?v=1716573828&width=1800)
![](http://support.iogear.com/imgs/productpage/GUD3C09/GUD3C09-Module-1.jpg)
Perfect On-the-Go Companion
IOGEAR Travel Pro™ USB-C Dual HD Dock with Power Delivery 3.0 quickly expands your USB-C laptop or tablet's connectivity. Travel lighter with this portable, 7-in-1 dock and leave your bulky accessories at home. The Travel Pro Dock is equipped with a USB-C power charging pass-through port, two high-speed USB 3.0 expansion ports, dual SD/MicroSD card reader/writer and dual monitor ports via an HDMI and DisplayPort monitors.
Charge Laptop & Devices
Never worry about running out of power while using the Travel Pro USB-C Dual HD Dock. Attach your laptop or tablet's original USB-C AC charger to the dock's USB-C port to deliver up to 85W of power to your workstation and dock-connected devices.
![](https://support.iogear.com/imgs/productpage/GUD3C09/GUD3C09-Module-3.png)
Dual HD or Single 4K Video
Extend your viewing workspace by adding dual HD monitors for a more complete visual experience or connect a single 4K monitor for sharp, crystal clear resolution.
Simultaneous SD/MicroSD Reader
Read and write both SD and MicroSD card content and efficiently transfer full-resolution photos, documents and videos between mobile, computer, and external storage devices.
![](https://support.iogear.com/imgs/productpage/GUD3C09/GUD3C09-Module-5.png)
Need more help with this product? Visit IOGEAR Knowledge Base
Function | GUD3C09 |
---|---|
Upstream Port | |
USB-C | USB-C 3.1 G1 (5G) |
Downstream Port | |
Card Reader | Supports Secure Digital v3.0 UHS-I (Ultra High Speed)?SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s) |
USB-A | 2 x USB-A (5G), 1 port supports BC1.2 (Charging@1.5A) |
USB-C | USB 3.1 data or PD 3.0 |
HDMI | HDMI 1.4 (resolution up to 4Kx2K@30Hz) |
DisplayPort | DP 1.2 with DP++ (resolution up to 4Kx2K@30Hz) |
Power | |
Power Delivery Pass-Thru | Power Delivery 3.0 spec (Up to 85W power pass-thru to host computer after deduct 15W to docking station and connected devices) |
Video Resolution | Single view up to 4k@30hz, Dual view up to 1080p@30hz |
Environment | |
Humidity | 10% to 90% RH (no condensation) |
Operation Temperature | 0 C to +45 C |
Operating System Requirements | |
Mac | Mac OS X 10.7+ |
Windows | Windows 7 / 8 / 8.1 / 10 |
Dimensions | GUD3C09 |
---|---|
Unit Dimensions | |
Height | 4.5" (11.3cm) |
Length | 2" (5.08cm) |
Depth | 0.39" (1cm) |
Inner Pack | |
Height | 11.4" (29 cm) |
Length | 6.2" (16 cm) |
Width | 5.9" (15 cm) |
Inner Pack Qty. | 6 pc |
Unit Package Dimensions | |
Height | 5.7" (14.5 cm) |
Width | 5.3" (13.5 cm) |
Depth | 1.7" (4.4 cm) |
Master Carton | |
Height | 13.3" (34 cm) |
Width | 12.5" (32 cm) |
Depth | 12.2" (31 cm) |
Master Carton Qty. | 24 pc |
Weight | |
Master Carton Wt. | 10 lbs (4.6 kg) |
Inner Pack Wt. | 2.2 lbs (1 kg) |
Unit Pack Wt. | 0.35 lbs (0.16 kg) |
Unit Wt. | 0.09 kg |
