USB-C Docking Station

USB-C Docking Station with PD Pass-Thru

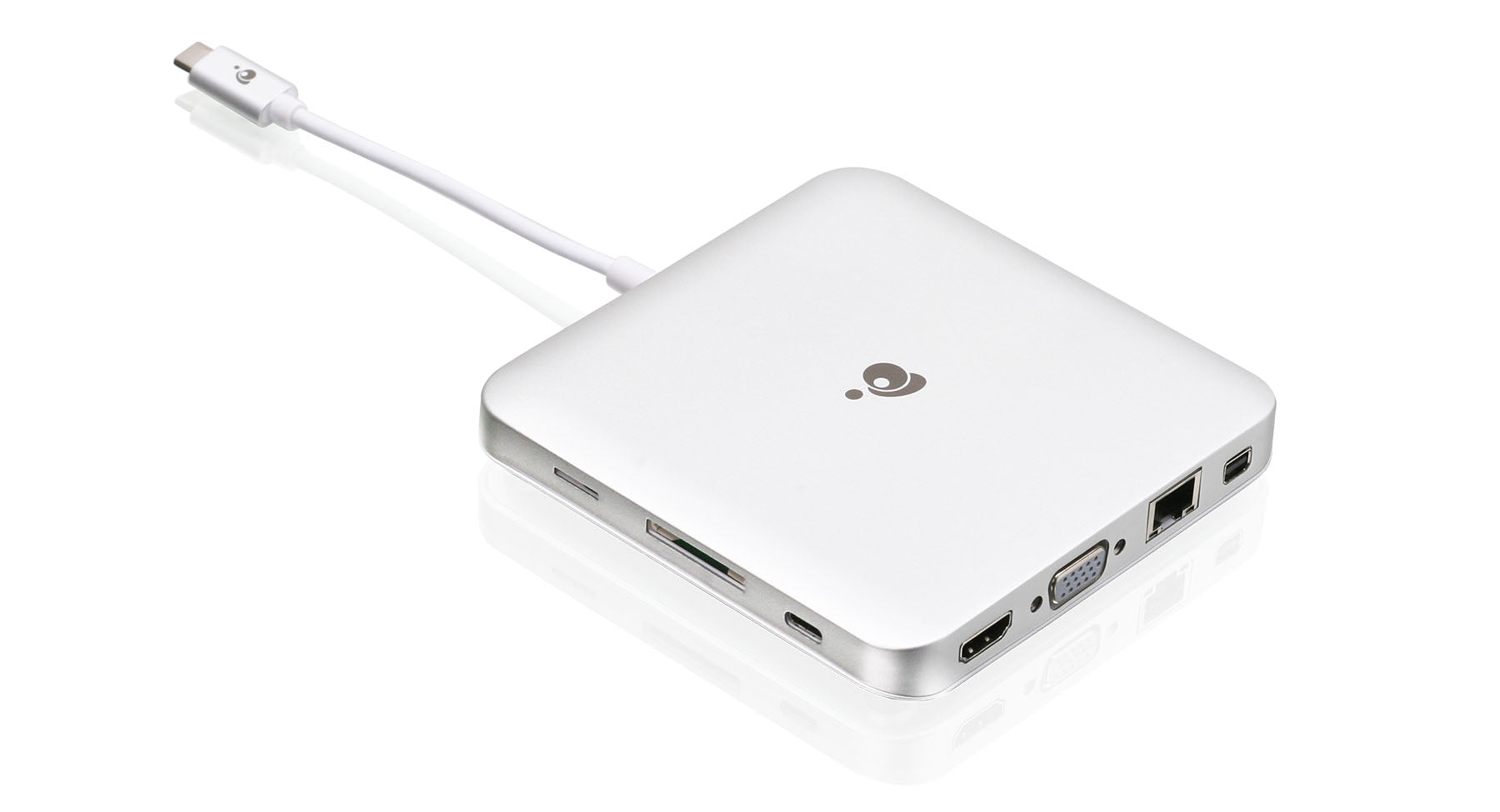

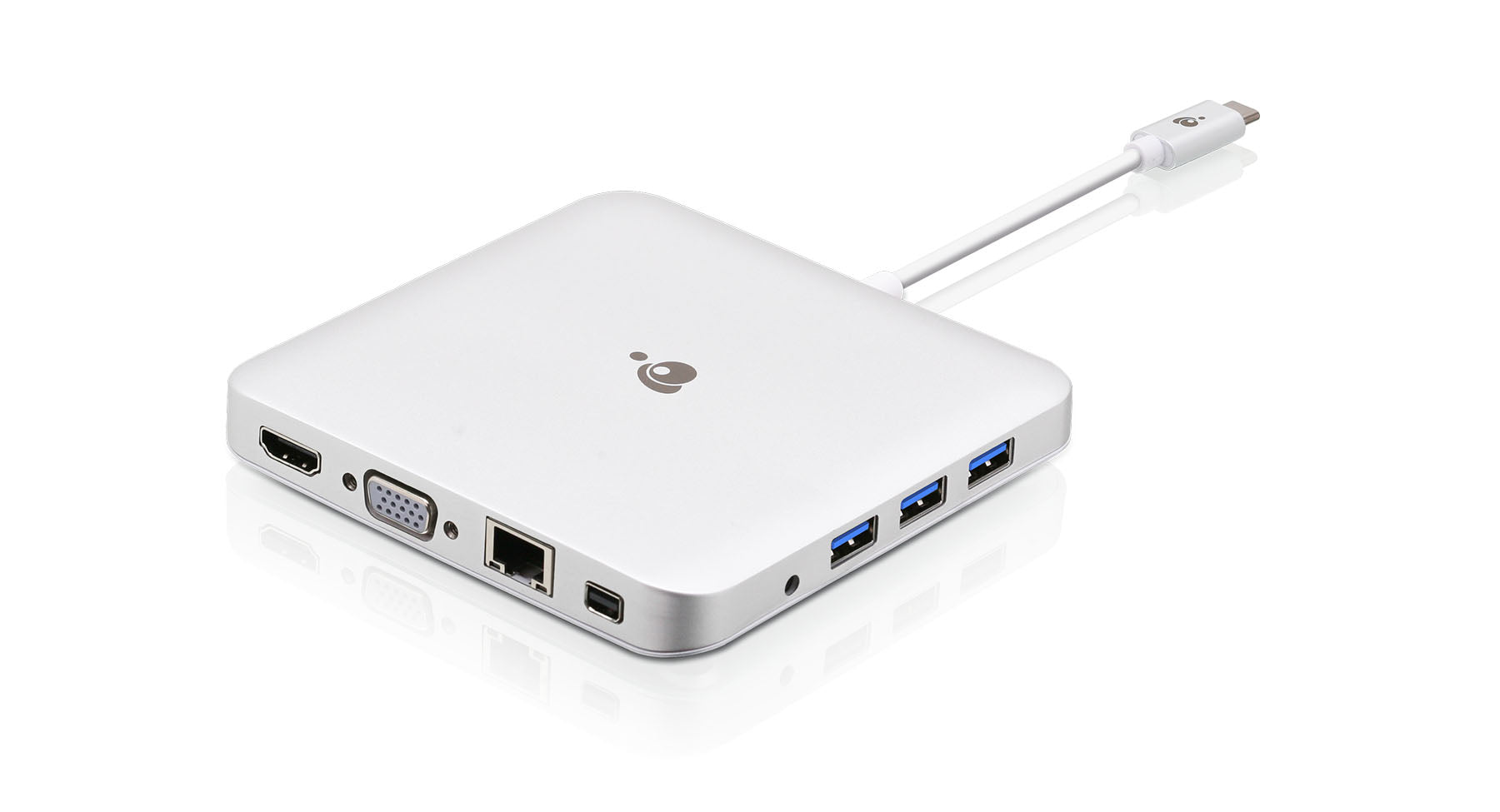

Name: USB-C Docking Station with PD Pass-Thru
Brand: IOGear
SKU: GUD3C03
Price: 119.95 USD
Availability: InStock

Dual Monitor EOL Plug-N-Play Up to 45W

MPN: GUD3C03

UPC: 881317515568

This product is EOL and is no longer being sold. Click here for replacement product

$119.95

Full-sized Productivity in a Compact Design Built with high-grade aluminum, this stylish docking station will fit beautifuly into your minimalistic desktop space, backpack or purse.

USB-C Docking Station with PD Pass-Thru

$119.95

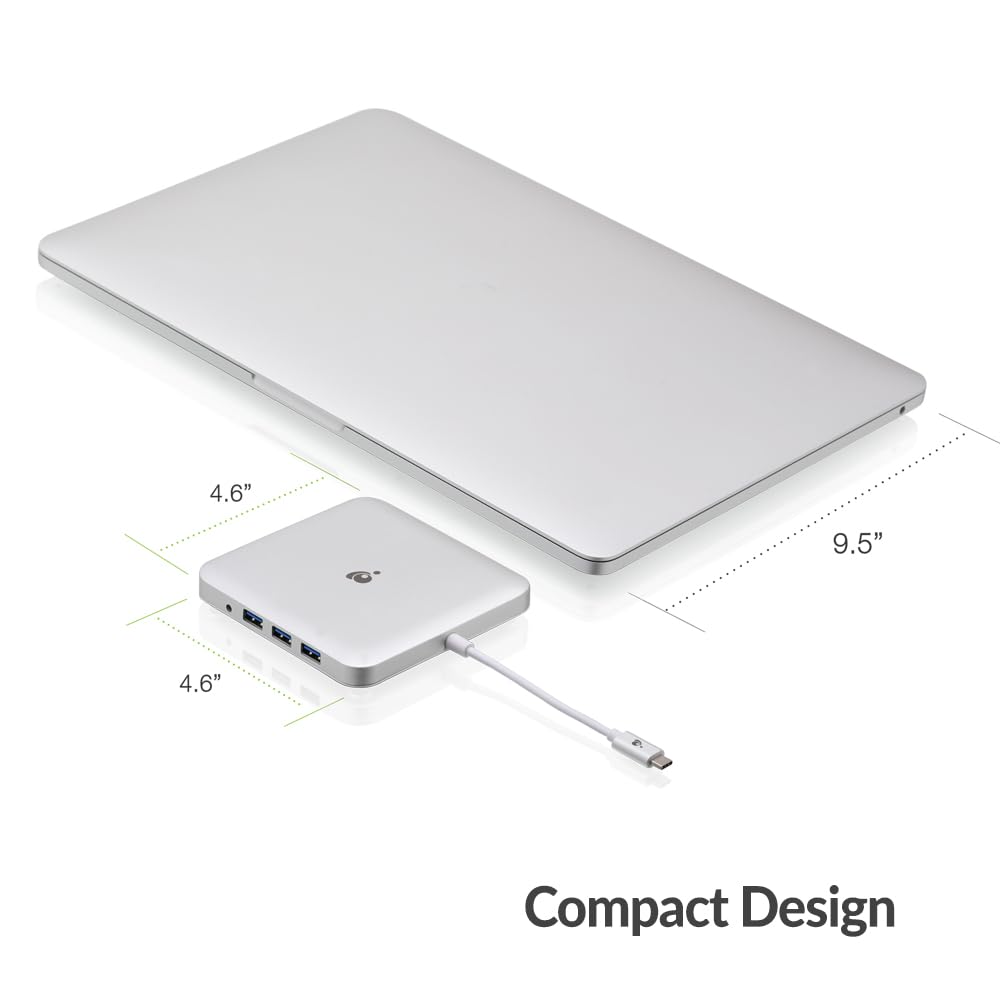

Full-sized Productivity in a Compact Design

Built with high-grade aluminum, this stylish docking station will fit beautifuly into your minimalistic desktop space, backpack or purse. With all the available ports, this compact docking station will work as hard as you do. With 10 ports of freedom for connectivity in a small form factor, this compact USB-C dock transforms your USB-C laptop into a full-featured 4K workstation empowering your USB-C laptop to take on any challenges that may come its way, regardless of the complexity or the size of the computing tasks.

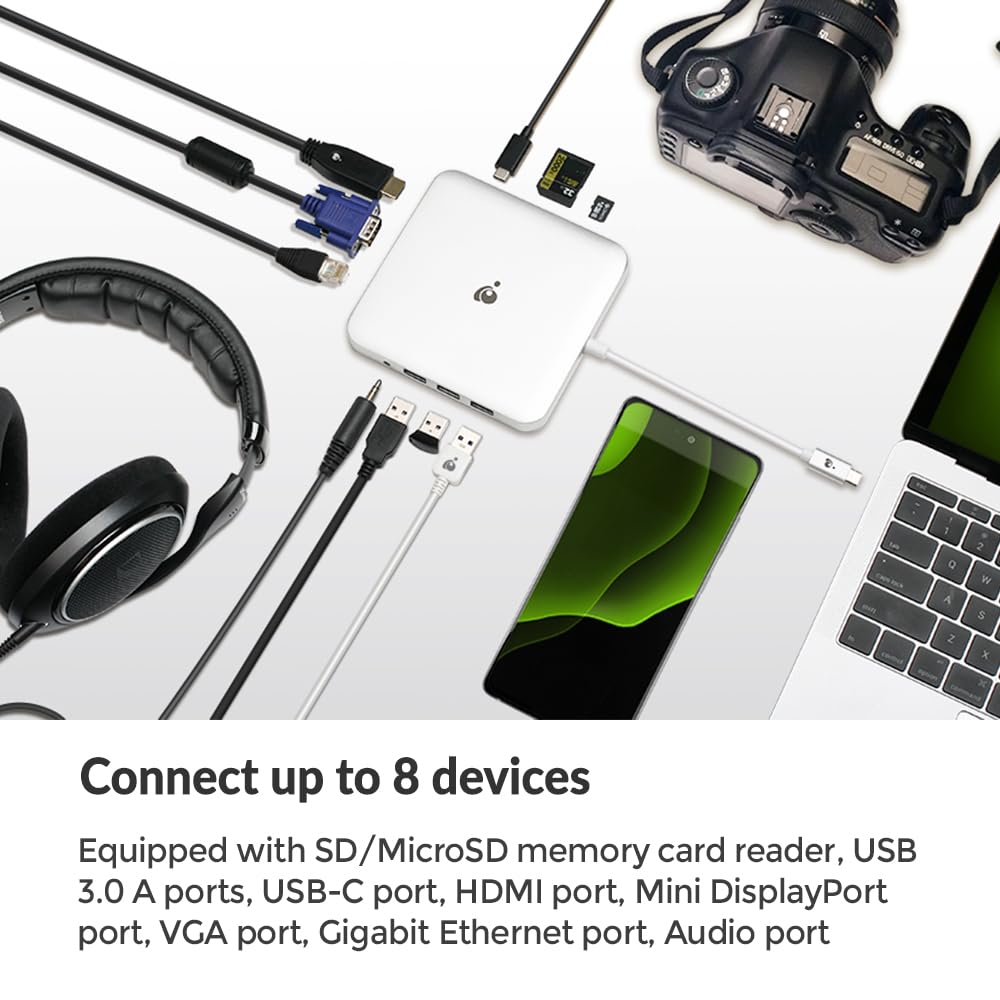

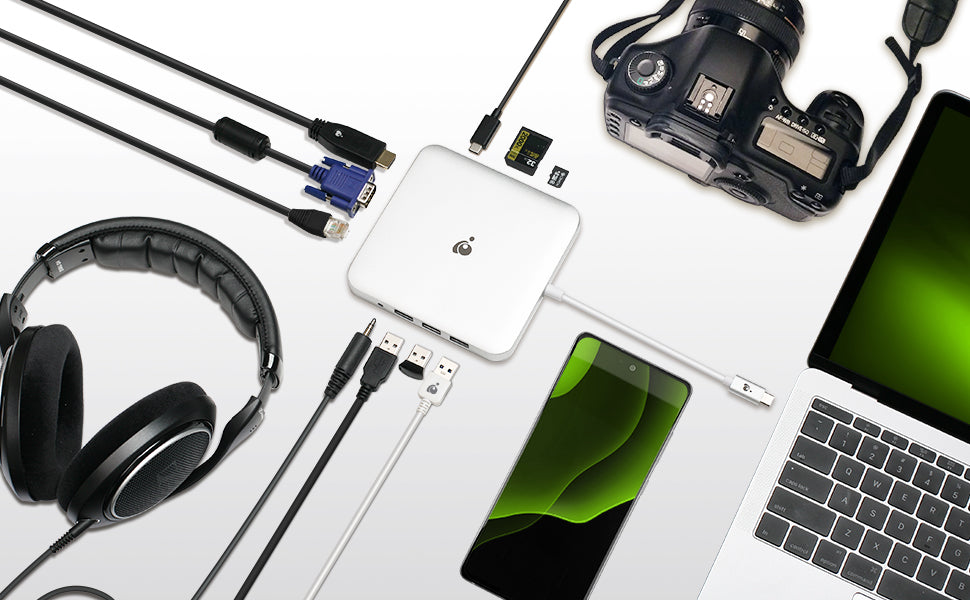

10 Ports of Freedom

Connect up to 8 devices effortlessly to your laptop with a single USB-C cable. This docking station is equipped with memory card readers for SD/MicroSD memory cards for quick access to your data. With three USB 3.0 (Type-A) ports, you can connect an array of USB Type-A peripherals. With the quick charge USB port, you can charge your phone or tablet at super-fast rates. With the included Gigabit Ethernet power, you can connect to your LAN for robust data bandwidth and increased security. On top of all this connectivity, this docking station also offers the flexibility of 3 video connectivity options: HDMI, Mini DisplayPort and VGA. You can also connect a headset or microphone to complete your multimedia workstation setup.

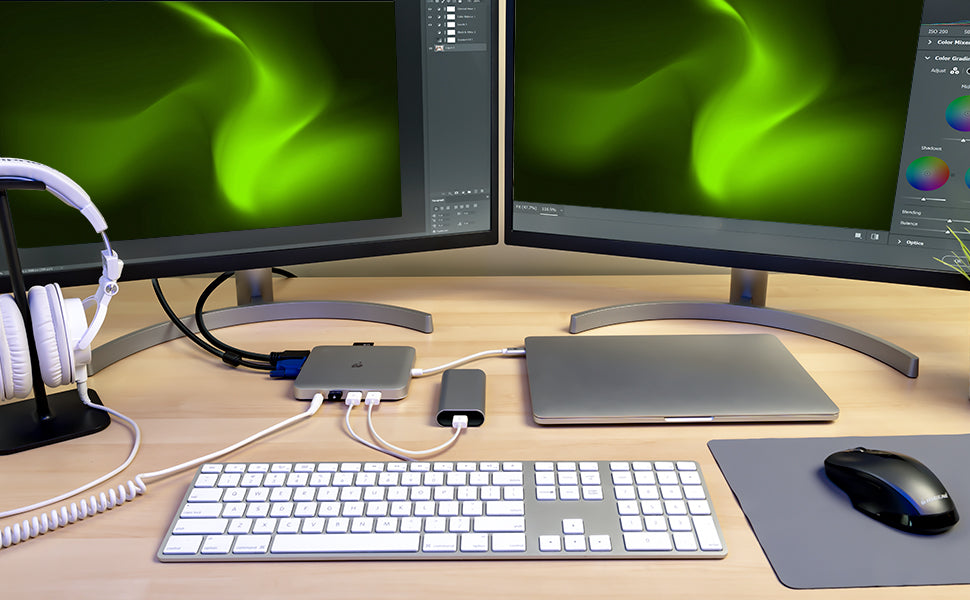

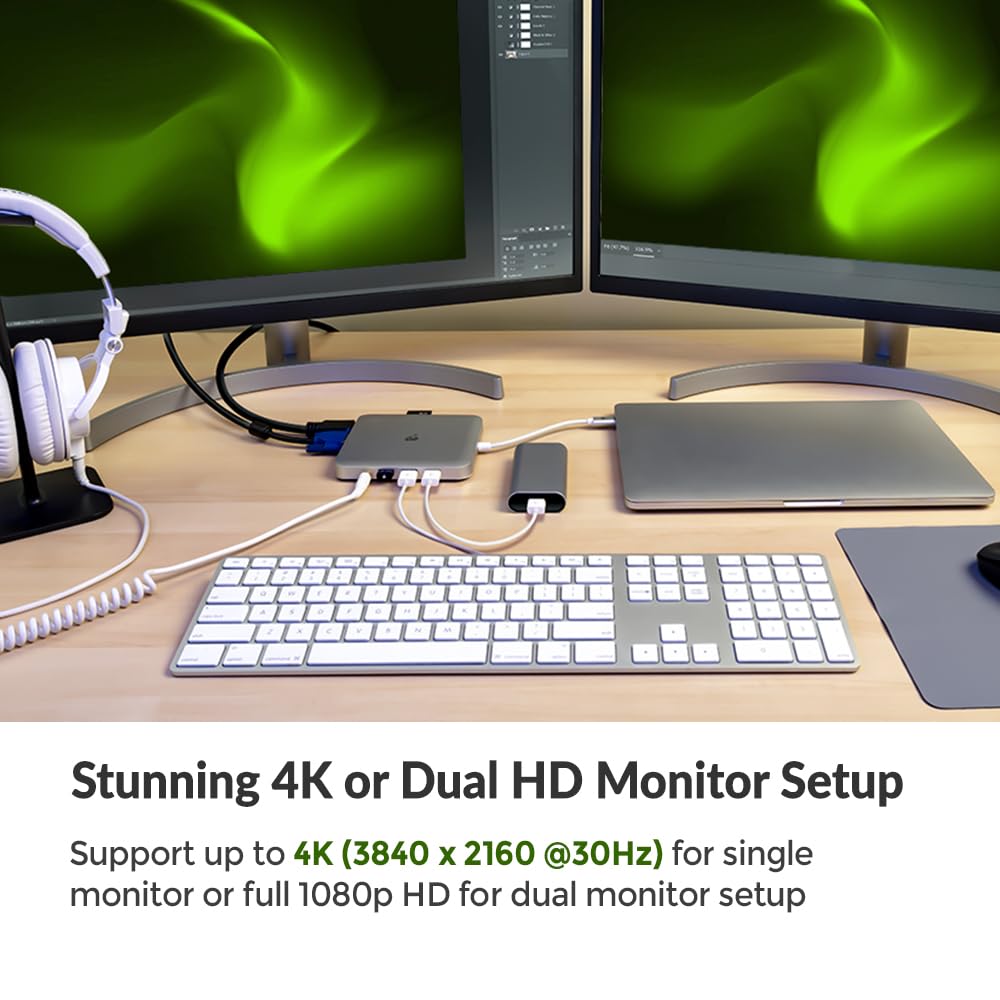

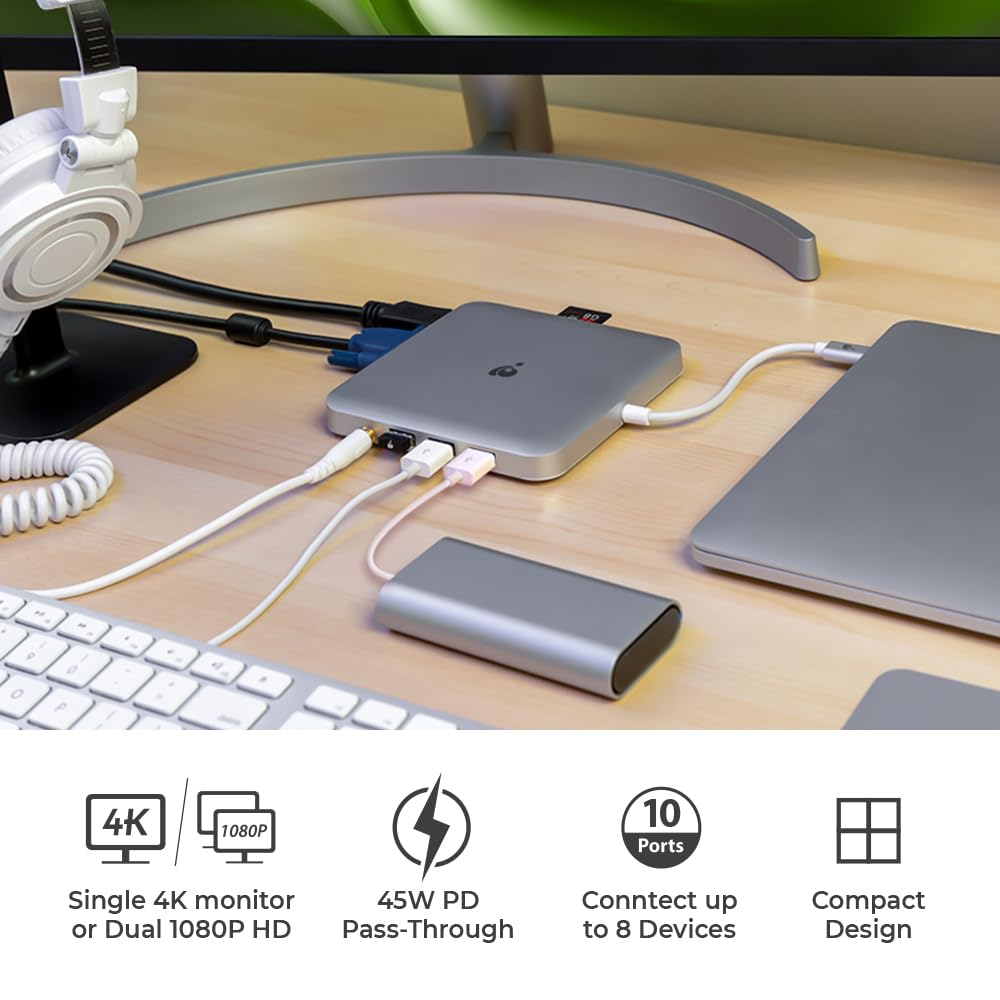

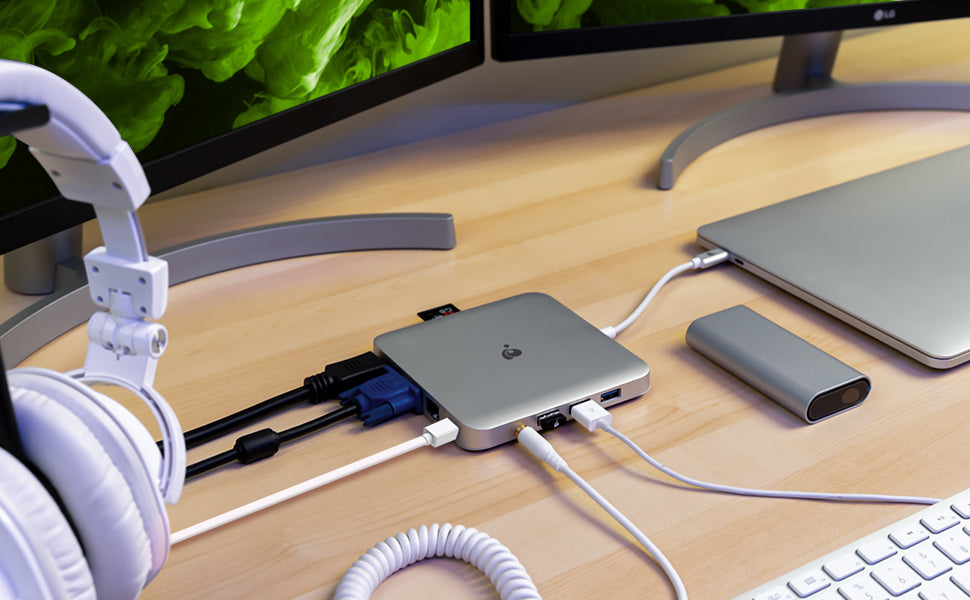

Stunning 4K or Dual HD Monitor Setup

Unravel the remarkable visual experience of 4K Ultra HD (UHD), at 4 times the resolution of standard HD. The dual video monitor functionality provides astonishing video quality that will please your eyes and provide a higher level of enjoyment from watching videos, playing video games, working and creating from your home office. Further more, you can get full 1080p HD quality video when using a dual monitor setup.

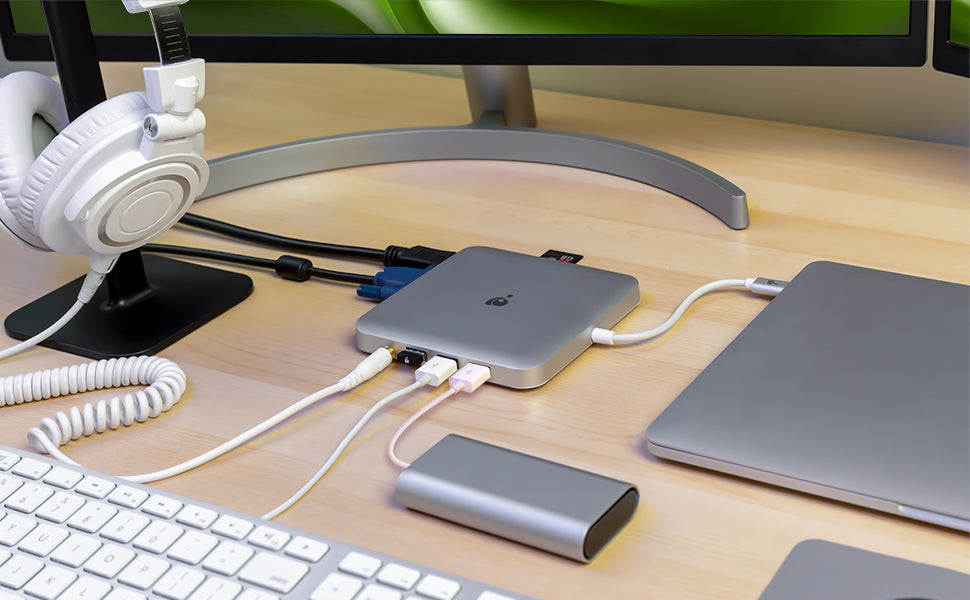

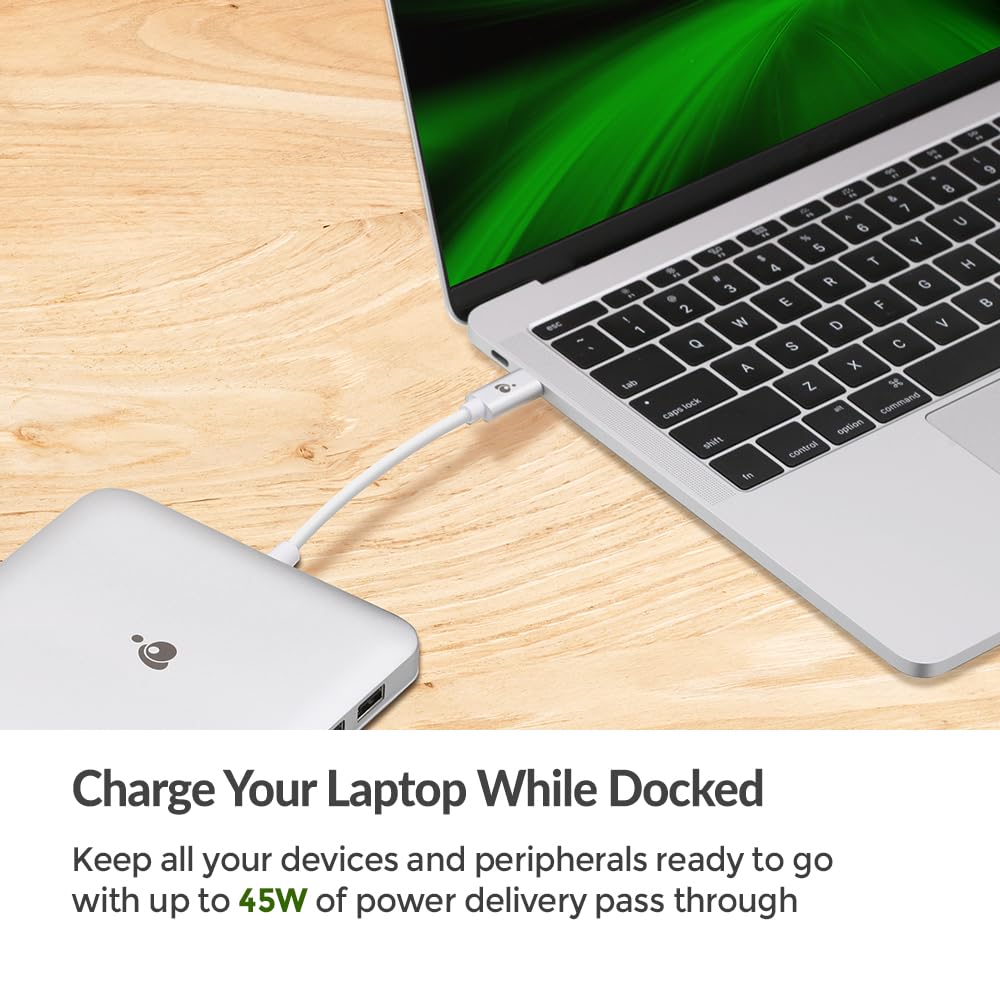

Charge Your Laptop While Docked - Power Delivery Pass Through

Charge your laptop while connected to your docking station without the need to buy an additional power supply. Connect your manufacturer's USB-C AC power adapter directly to the docking station and power your laptop while you work or play. With up to 45W of power delivery pass through, you can keep all your power-hungry devices and peripherals ready to go. When you are on-the-go, this bus-powered docking station does not need a power supply to connect your devices.

Full-sized productivity in a compact design
Affordably connect up to 8 devices
4K Ultra HD (UHD)
SD and Micro SD card reader built-in
Use your USB-C power supply - Charge your laptop up to 45W
Works with the new USB-C iPad Pro under mirror-mode

* Power Delivery pass-through requires USB-C charger from your laptop. A total of up to 45W can be charged to the laptop after deduction of 15W is used by the dock.
** Pass-thru power delivered to the laptop is dependent upon the capacity of your USB-C power supply. Ex. If your USB-C power supply is 60W, then the maximum power can be delivered to the laptop is 60W-15W = 45W. Regardless of the capacity of your USB-C power supply, the maximum power can be delivered to your laptop is 45W.
*** When using the HDMI/VGA ports, only one video output is supported at a time (either VGA or HDMI)
**** When using the MiniDP/VGA ports, only one video output is supported at a time (either VGA or MiniDP)
***** For best video performance direct connections are recommended. Adapters and converters are not guaranteed to function properly.

System Requirements
USB-C compatible laptops with DP Alt-Mode support
USB-C AC Adapter from Laptop is needed for Power Delivery Pass-Through Function
Only one additional video output can be utilized for extended desktop using Mac OS
For dual screen extended desktop in Windows, you must use HDMI with DisplayPort
When VGA output is utilized, only one additional extended desktop screen will be available
Compatible with USB-C and Thunderbolt 3 laptop
For Windows OS: dual screen extended desktop can only configured though both HDMI and Mini DisplayPort*
For Mac OS: dual screen is operate in mirror mode via HDMI and Mini DisplayPort*

* Mini DisplayPort is not compatible with Thunderbolt 2 port, and the docking station will not work with Thunderbolt 2 display
** For best video performance, it is recommended to have direct connection between your external displays and the docking station, without using an adapter between the docking station and the display or video cables
*** Kindly note that for iPad pro, mouse or trackpad device will not work due to the lack of mouse pointer location in iPad

Operating System Requirements

Windows 10 Mac OS X 10.10.5+ (MST is not supported by Mac OS) Google Chrome OS

1 x USB-C Docking Station
1 x Quick Start Guide
1 x Warranty Card

GUD3C03 Quick Start Guide Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GUD3C03
Upstream Port
USB-C	Built-in USB 3.1 Type-C cable
Downstream Port
HDMI	1x HDMI port (v.1.4 spec compliant, up to 3840x2160@30Hz)
Mini DisplayPort	1x miniDisplayPort port (v.1.2 spec compliant, up to 3840x2160@30Hz)
VGA	1x VGA port (up to 1920x1200@60Hz)
Ethernet	1x Gigabit Ethernet port
USB-A	3x USB 3.0 A ports, 1 port with BC1.2 charging
USB-C	1x USB-C port for Power Delivery pass-through only
Card Reader	Supports SD/SDHC/SDXC @ UHS-I class, MMC
Audio	1 x 3.5mm (in/out shared)
Power
Power Delivery Pass-Thru	60W (A total of up to 45W can be charged to the laptop after deduction of max 15W used by the dock)
Operating System Requirements
Windows	Windows 7/8/8.1/10
Mac	Mac OS X 10.10.5+

Dimensions	GUD3C03
Unit Dimensions
Height	0.47" (1.2cm)
Length	4.7" (12cm)
Depth	4.7" (12cm)
Inner Pack
Height	7.5" (19cm)
Length	6.7" (17cm)
Width	5.1" (13cm)
Inner Pack Qty.	6
Unit Package Dimensions
Height	0.79" (2cm)
Length	6.3" (16cm)
Depth	7" (18cm)
Master Carton
Height	11" (28cm)
Width	14" (36cm)
Depth	8.3" (21cm)
Master Carton Qty.	24
Weight
Master Carton Wt.	17.2 lb (7.8kgs)
Inner Pack Wt.	4.2 lb (1.9kgs)
Unit Pack Wt.	0.65 lb (0.3kgs)
Unit Wt.	0.5 lb (0.23kgs)

1 Year Limited Warranty
