Thunderbolt Docking Station

Thunderbolt 2 Docking Station

EOL
MPN: GTD720

UPC: 881317512574

This product is EOL and is no longer being sold.
Sale price$249.99

IOGEAR's Thunderbolt 2 Docking Station brings the connectivity of a desktop to your Macbook, Ultrabook, or other Thunderbolt 2 enabled devices. With its thoughtful design and ultra-sleek stainless steel body casing, the GTD720 allows you to connect up to 13 devices including dual displays* so that you don't have to be restricted by the standard ports on your portable device.


Thunderbolt™ 2 Docking Station

IOGEAR's Thunderbolt 2 Docking Station brings the connectivity of a desktop to your Macbook, Ultrabook, or other Thunderbolt 2 enabled devices. With its thoughtful design and ultra-sleek stainless steel body casing, the GTD720 allows you to connect up to 13 devices including dual displays* so that you don't have to be restricted by the standard ports on your portable device.

Thunderbolt™ 2 technology allows data transfer at an astounding 20Gbps, so that you can optimize your perfect workspace at blazing fast speeds.


The Ultimate Workstation Setup

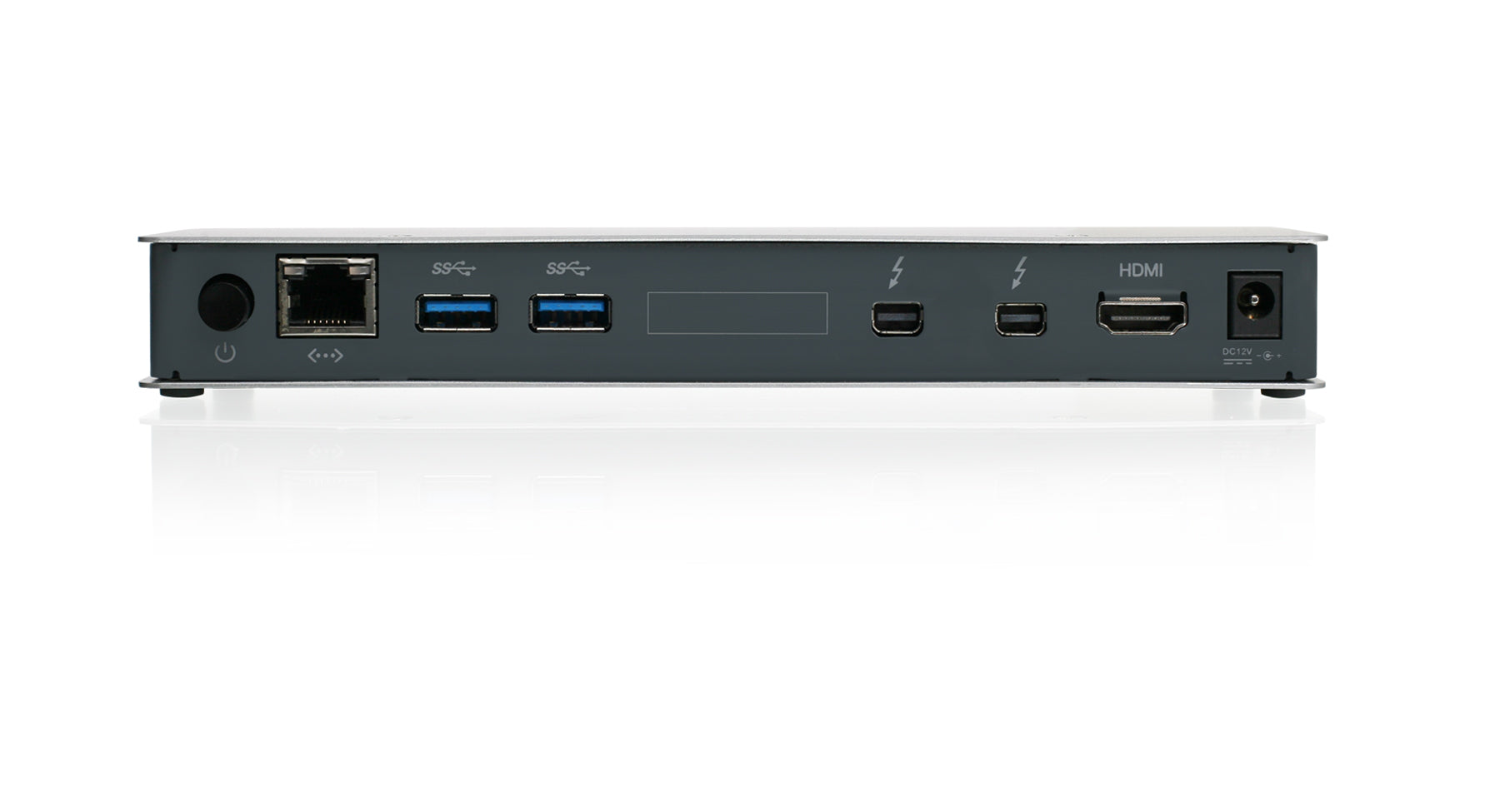

This versatile docking station connects to your device via a single Thunderbolt cable making connecting and disconnecting hassle-free. The GTD720 features three USB 3.0 ports, a gigabit Ethernet port for access to a wired network connection, an HDMI port, and two Thunderbolt™ 2 ports capable of daisy-chaining up to six devices. A dedicated front-facing USB fast-charging port can charge your handheld devices even when your computer is turned off or completely disconnected -so you’ll never have to turn on your computer just to charge your phone, tablet, or other device again. The front-facing optical line-in/line-out ports provide 5.1 digital audio editing and playback capabilities. All ports have been strategically placed on the dock's body to minimize visual clutter and maximize convenience, making multitasking almost effortless.


Unprecedented Speed

The GTD720 is a connectivity powerhouse. With ultra-high speed bandwidth expansion and a data transfer rate of up to 20Gbps, the GTD720 will allow you to transfer data 4 times faster than USB 3.0, 40 times faster than USB 2.0 and 25 times faster than Firewire 800! With that kind of speed, you can transfer full-length HD videos in a matter of minutes. IOGEAR's Thunderbolt 2 Docking Station also supports 4K cinema resolution so you can discover the remarkable visual experience of 4K Ultra HD (UHD). The GTD720 has everything you need to knock down any connectivity obstacle in your way so you can build the ultimate workstation setup.


One Cable

Thunderbolt connects to your device via a single Thunderbolt cable making connecting and disconnecting hassle-free.

Daisy Chain

You can daisy chain up to 4 Thunderbolt - compabtible peripherals to your Mac, without any compromise on performance.

Dual View 4K

IOGEAR's Thunderbolt supports 4K (UHD) video output and high-speed file transfer simultaneously.

Optical Audio

Optical audio line-in/line-out port provides 5.1 digital audio editing and playback capabilities.


*Note about dual displays: At least one display has to be Thunderbolt or Thunderbolt 2 technology-ready. For displays that are not Thunderbolt technology-ready, the Thunderbolt port is backwards compatible with Mini DisplayPort. The dock supports either HDMI or Mini DisplayPort, but not both. The dock supports only one display at 4K cinema resolution.

  • Operates at a rate of up to 20Gbps with Thunderbolt™ 2
  • Ultra-high speed bandwidth expansion for 4 times faster data transfer than USB 3.0, 40 times faster than USB 2.0 and 25 times faster than FireWire 800
  • Supports up to 4K (3840x2160) resolution on both HDMI and Thunderbolt 2 ports*
  • Supports dual displays for HDMI and Thunderbolt display monitors
  • Ability to connect up to 8 devices directly to the dock and daisy chain up to 5 additional Thunderbolt devices (including Thunderbolt Monitor)
  • Dedicated USB charging port for tablets or smartphones
  • Optical audio line-in/line-out port provides 5.1 digital audio editing and playback capabilities**
  • Free Thunderbolt Gateway™ file transfer software for quick and easy data transfer
  • Compatible with Thunderbolt 3***
  • Backwards compatible with Thunderbolt 1
  • TAA Compliant

*  Maximum resolution is dependent on the capability of the video display and its computer source
** For use with amplified headsets or speakers
*** An Apple Thunderbolt 3 (USB-C)  to Thunderbolt 2 (mDP) Adapter is required

  • Thunderbolt enabled computers

The following Mac models are Thunderbolt 2 capable:

  • MacBook Pro (Retina, Late 2013 and later)
  • Mac Pro (Late 2013)
  • iMac (Retina 5K, 27-inch, Late 2014)
  • Mac mini (Late 2014)
  • 1 x GTD720 Thunderbolt 2 Docking Station
  • 1 x 1m (3ft) Thunderbolt Cable
  • 1 x AC Power Adapter
  • 1 x Quick Start Guide
  • 1 x Warranty Card

FunctionGTD720
Cable Connections
InputThunderbolt 2
OutputThunderbolt 2
Cable Length3.3ft (1m)
Cable TypeThunderbolt™ 2 Male to Male Cable
Connectors
Audio InputOptical Line-In
Audio OutputOptical Line-Out
Computer SideThunderbolt Port
Power12V 6.5A Full Range Power Adapter
USB3 x USB3.0 Data Port ; 1 x 5V 1.5A Fast Charging Port
Video OutputHDMI and Mini DP (Thunderbolt)
LANGigabit Ethernet
LEDs
Power OnWhite LED
DimensionsGTD720
Unit Dimensions
Height1.1" (2.8cm)
Depth3.15" (8cm)
Length7.87" (20cm)
Unit Package Dimensions
Height5.39" (13.7cm)
Depth4.64" (11.8cm)
Length10.04" (25.5cm)
Master Carton
Width14.56" (37cm)
Height6.10" (15.5cm)
Depth10.63" (27cm)
Master Carton Qty.3
Weight
Master Carton Wt.10.53lbs (4.785kgs)
Unit Pack Wt.3.23lbs (1.465kgs)
Unit Wt.1.211lbs (0.55kgs)
