Video Adapter

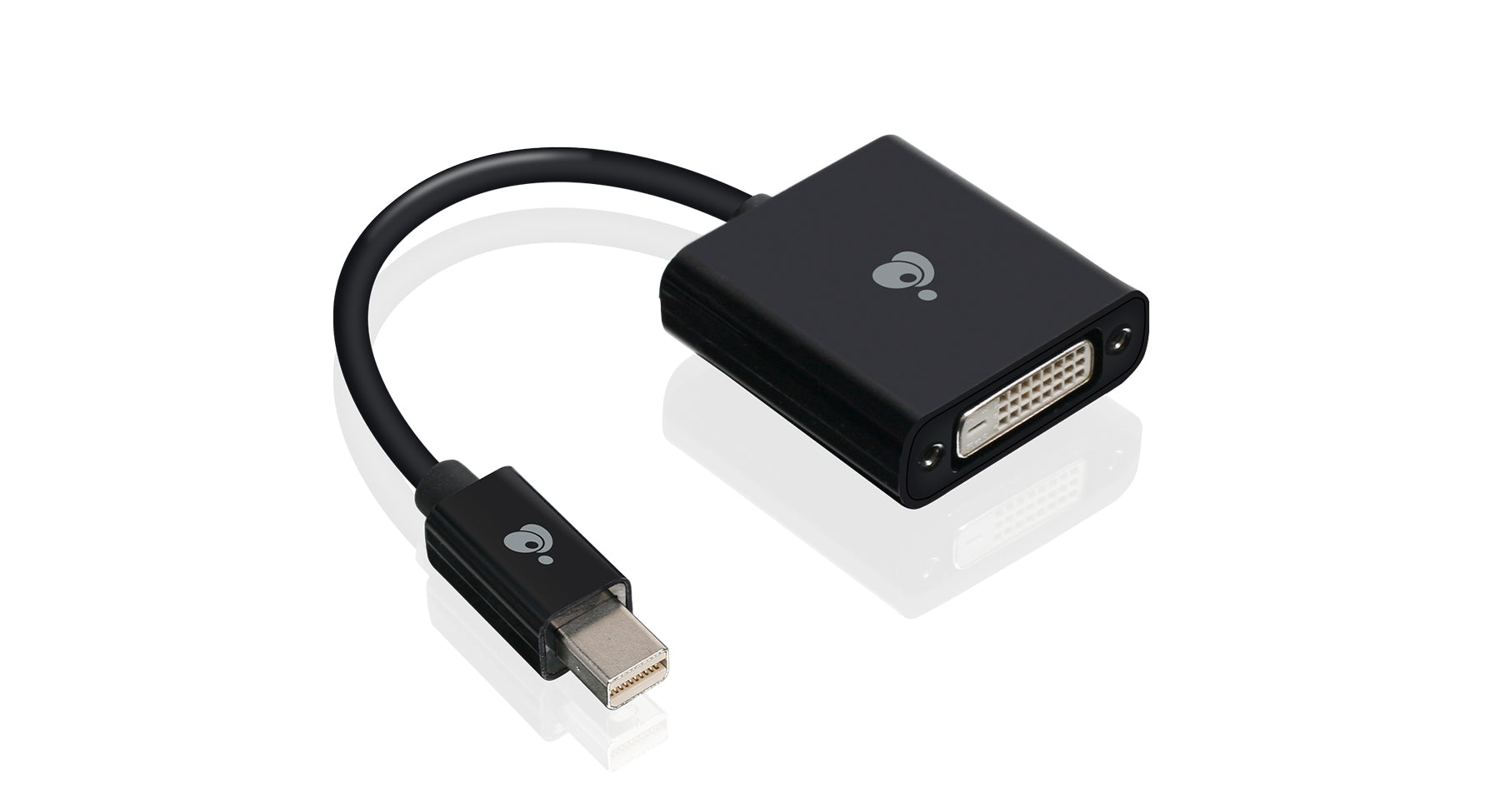

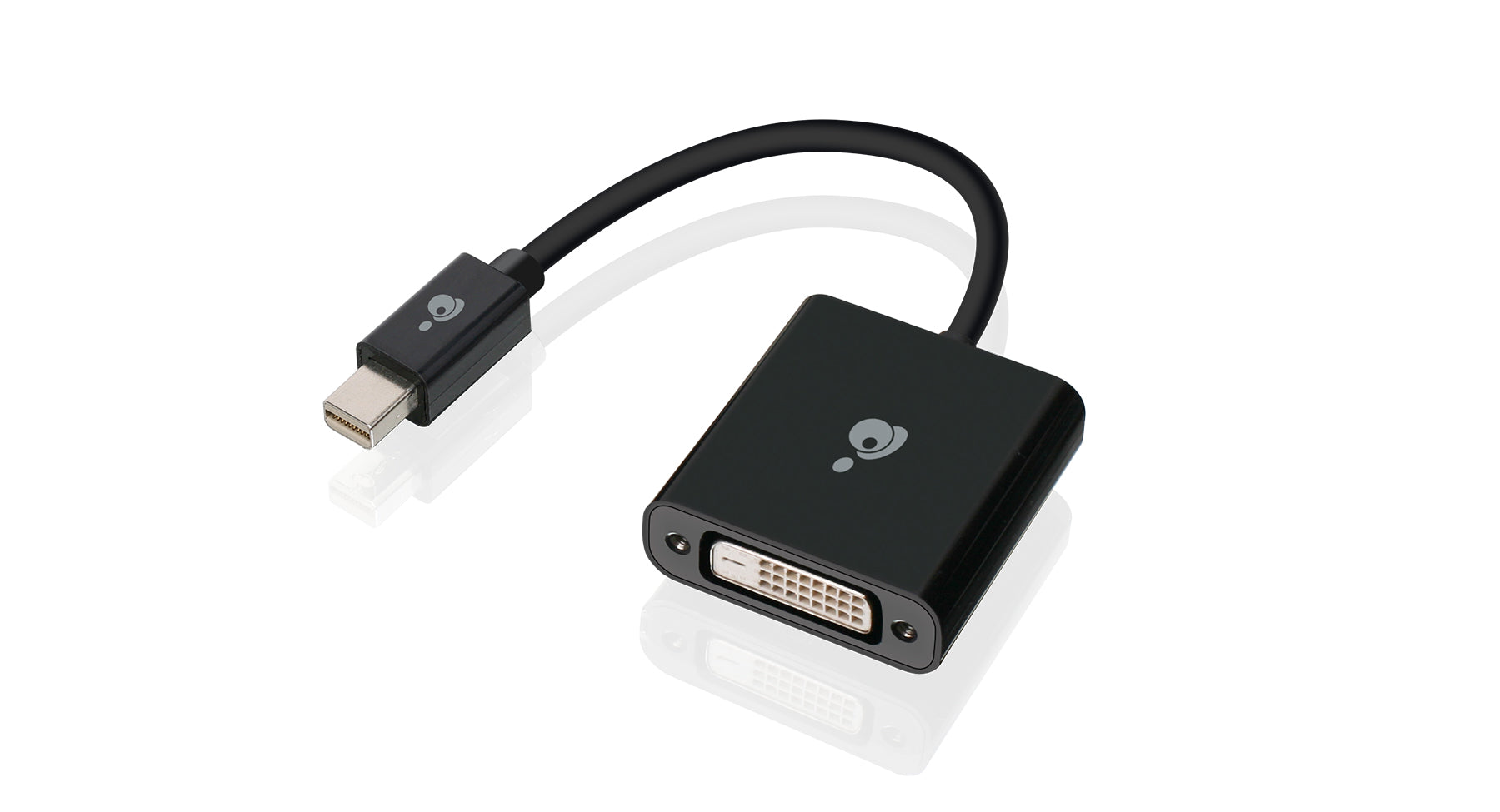

Active Mini DisplayPort to DVI Adapter - 4K 30Hz


UPC: 881317516169

This product is EOL and is no longer being sold.
Sale price$34.95

The IOGEAR Active Mini DisplayPort to DVI Adapter connects a Mini DisplayPort equipped computer or laptop to a DVI monitor. It supports high-resolution displays up to 4K at 30Hz for crisp visuals. This adapter is actively powered, ensuring compatibility and synchronized video output. No software or drivers are needed, making it a convenient plug-and-play solution.

Active vs. Passive Adapter: Which one do I need?

A passive adapter is the most basic type of Mini DisplayPort to DVI adapter that is available. A passive Mini DisplayPort video adapter allows the Graphics Processing Unit (GPU) to communicate with any DVI monitor that does not support the Mini DisplayPort video output on the computer.

In contrast, IOGEAR's Active Mini DisplayPort to DVI adapter will actively convert the display's DVI signal into a Mini DisplayPort signal for your GPU to interpret. These active adapters are required when connecting more than 2 displays to a video card such as an AMD Radeon™ GPU that supports Eyefinity technology. The native Mini DisplayPort signals are able to be recognized and controlled by the GPU, ensuring all the connected monitors are synchronized.

Active Mini DisplayPort to DVI Video Adapter

IOGEAR's Active Mini DisplayPort to DVI adapter is the ideal hardware solution to convert any Mini DisplayPort output to an DVI output. This allows you to connect your Mini DisplayPort equipped video source (i.e. Computer, Laptop or Mini DisplayPort Graphics Card) to a DVI based monitor, projector or HDTV. The built-in chipset actively communicates with the GPU for a synchronized display working in harmony with your computer.

Mini DisplayPort 1.2 Compliant

The IOGEAR Active Mini DisplayPort to DVI Adapter supports the latest Mini DisplayPort 1.2 standard for the best video playback, with resolutions of up to 3840x2160. This results in high levels of visual fidelity giving you the ability to display crisp content from your Mini DisplayPort equipped device on the latest DVI equipped displays.

Plug-N-Play Solution

IOGEAR's Mini DisplayPort to DVI adapter features an extremely easy to use, Plug-N-Play design which requires no external power, software or drivers to be installed. Simply connect the adapter to the Mini DisplayPort video out on your computer or laptop and connect a DVI cable to your monitor and you are ready to go!

Flexibility through Connectivity

IOGEAR offers a wide selection of DisplayPort and Mini DisplayPort adapters, providing cost-effective solutions to integrate the latest technology into your existing equipment setup.

  • Active Mini DisplayPort to DVI Video Adapter
  • Compatible with AMD® Radeon™ Eyefinity Graphics Processing Units (GPUs)
  • Mini DisplayPort 1.2 compliant
  • Supports DVI resolutions up to 3840x2160 @30HZ
  • Plug-N-Play solution - No software or driver installation necessary
  • Powered by Mini DisplayPort output - No external power adapter needed


  • 1 x Mini DisplayPort Source


  • 1 x Projector or Display with DVI Port

1 x Active Mini DisplayPort to DVI Adapter

Need more help with this product? Visit IOGEAR Knowledge Base

Video connections
InputMiniDisplay Port Male 20-pins
OutputDVI Female (24+5)
Video Resolution4K@30HZ
Power Consumption1 W
Operating Temperature0? to 70?
Storage Temperature-10? to 80?
Unit Dimensions
Height0.875" (2.2cm)
Length6.875" (17.5cm)
Depth0.5" (1.3cm)
Inner Pack
Height4.5" (11.4cm)
Length9.5" (24.1cm)
Width8.75" (22.2cm)
Inner Pack Qty.12
Unit Package Dimensions
Height10.25" (26.03cm)
Width4" (10.2cm)
Depth0.5" (
Master Carton
Height9.75" (24.8cm)
Width10.375" (26.3cm)
Depth18.125" (46.04cm)
Master Carton Qty.48
Master Carton Wt.4.65lb (2.1kg)
Inner Pack Wt.0.85lb (0.4kg)
Unit Pack Wt.0.05lb (0.02kg)
Unit Wt.0.05lb (0.02kg)
