USB Keyboard

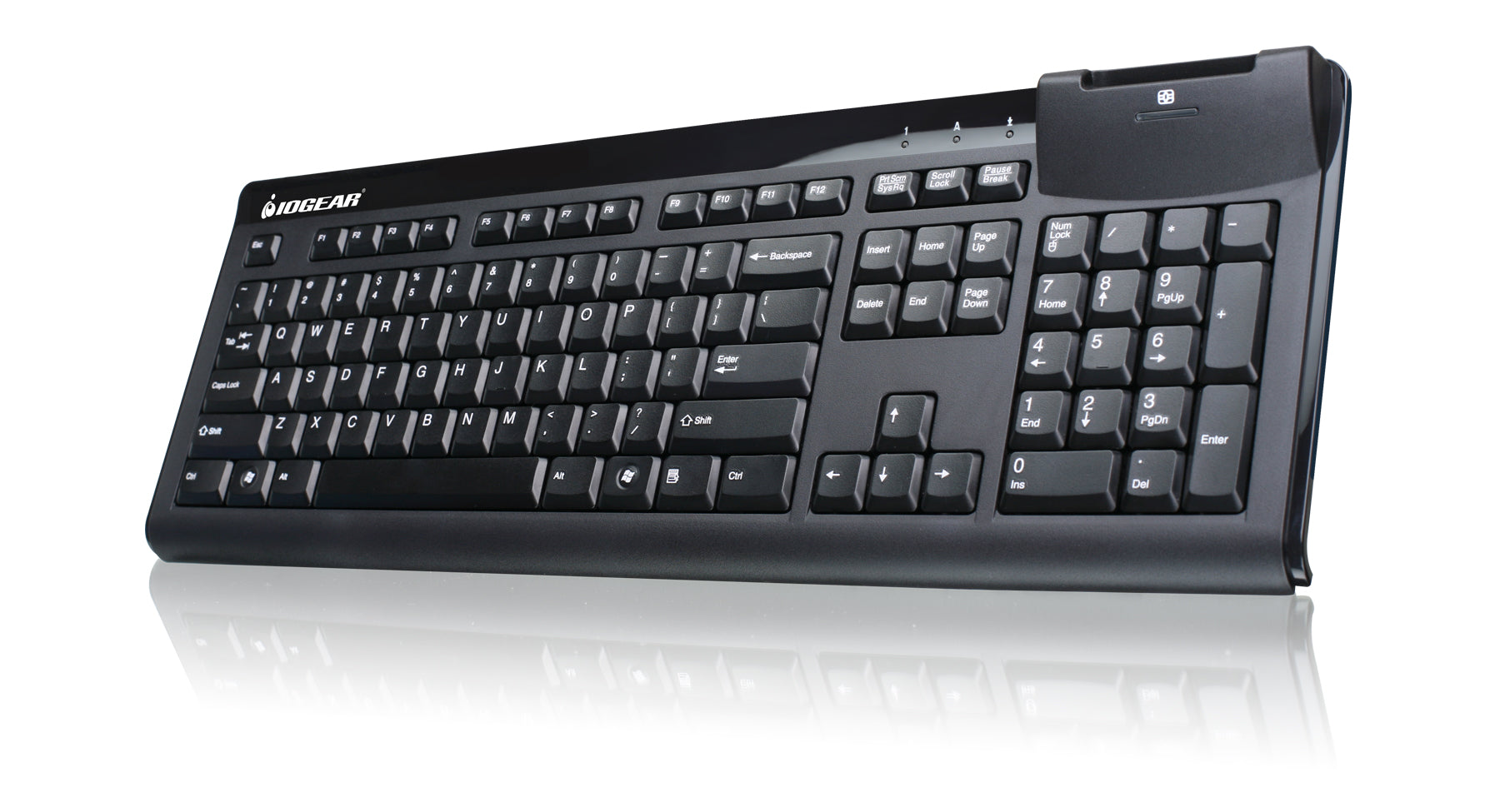

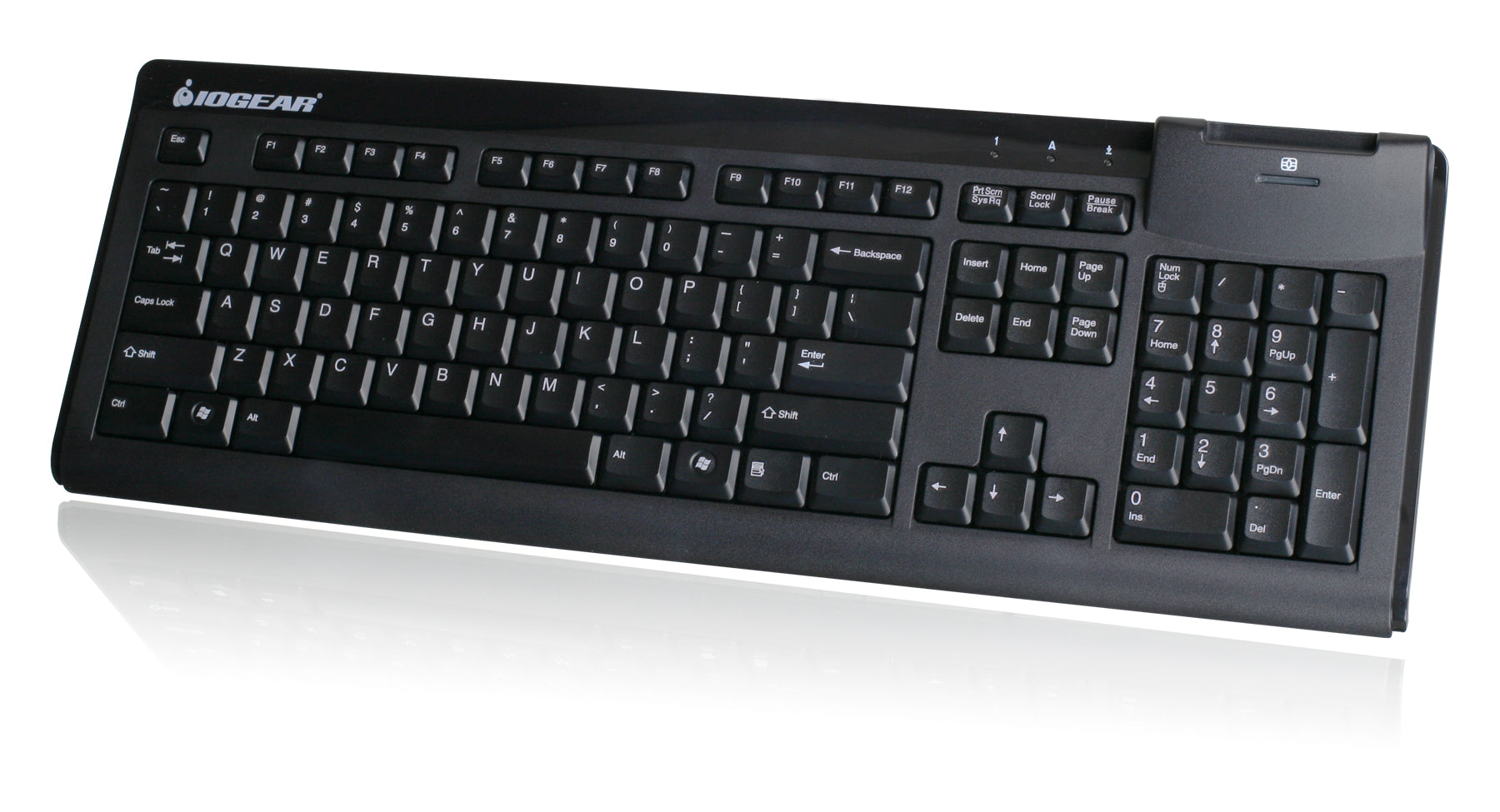

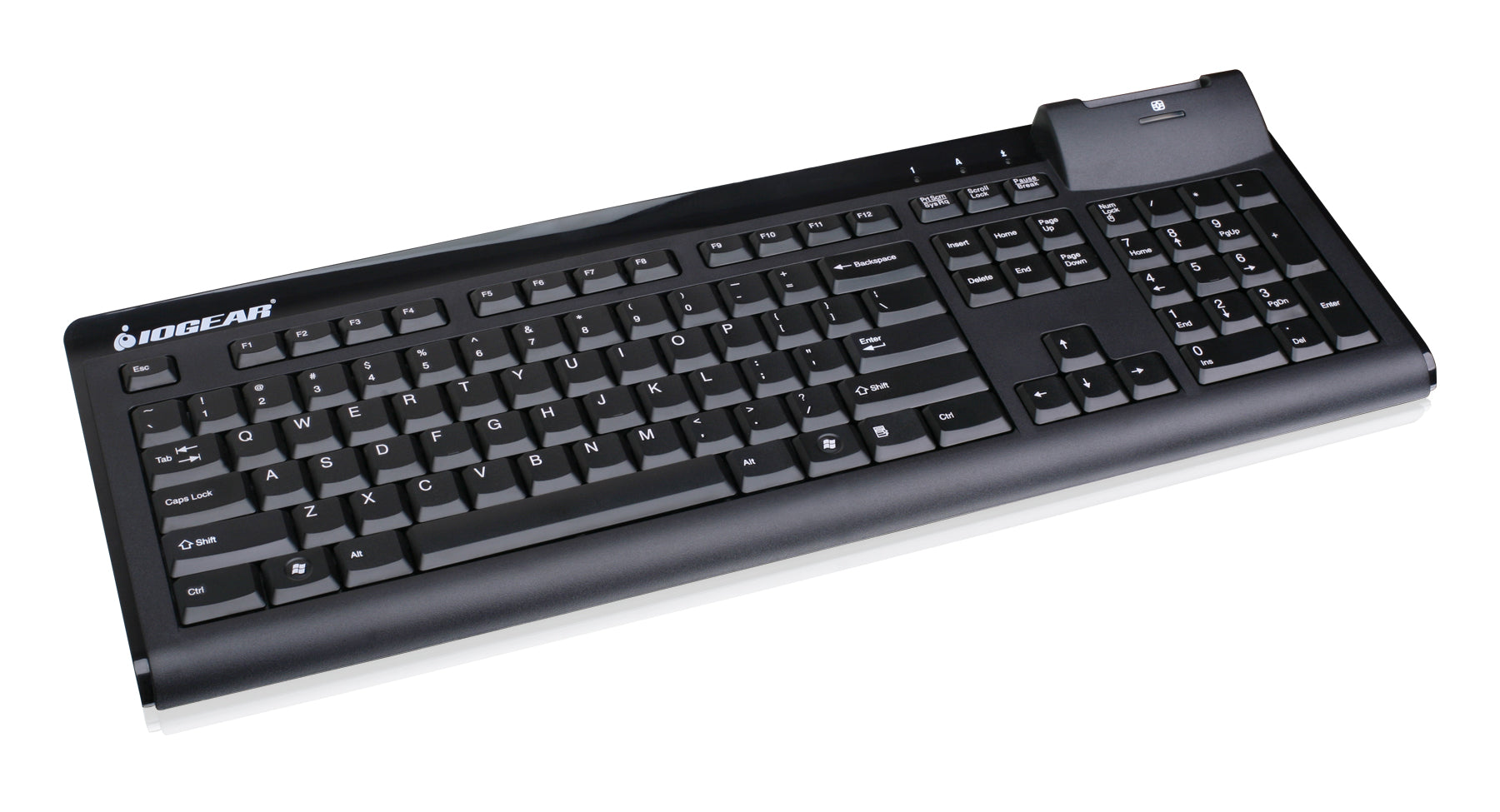

104-Key Keyboard w/Built-in Common Access Card Reader

104-key CAC Plug-N-Play

UPC: 881317510556

Sale price$49.95

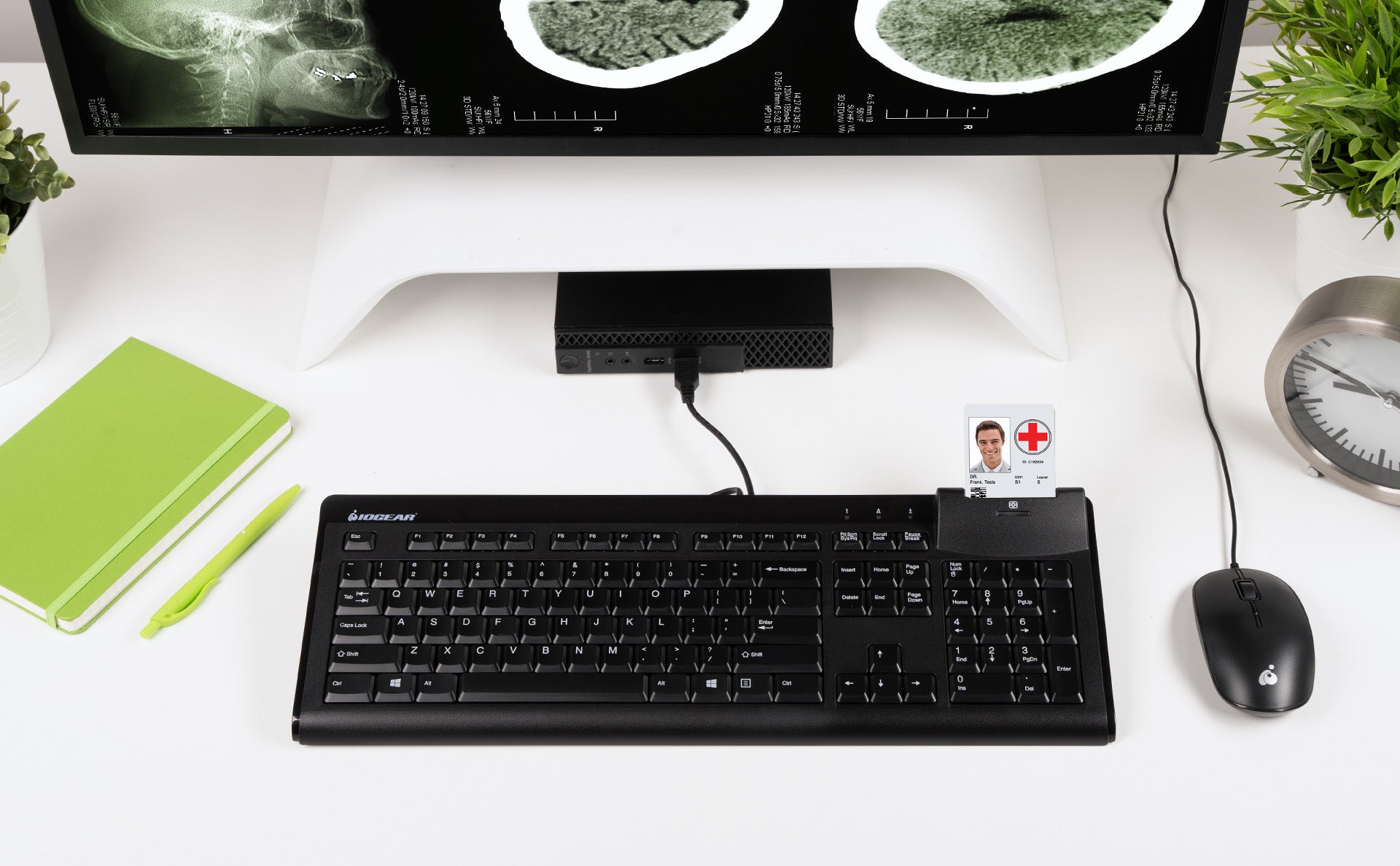

IOGEAR's GKBSR201 104-Key Keyboard with Integrated Smart Card Reader is a secure terminal for computer users in hospitals, education, banking or even at home. A Smart Card is the shape of a credit card, however it is embedded with a chip that can process data, and permit access to delegated computer systems.

104-Key Keyboard w/Built-in Common Access Card Reader
104-Key Keyboard w/Built-in Common Access Card Reader Sale price$49.95
Secure Contact

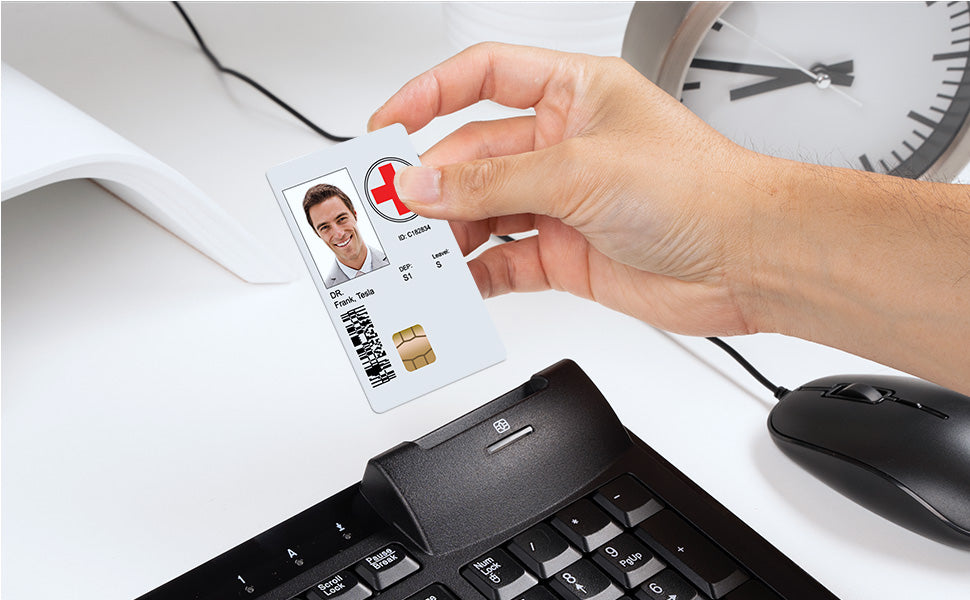

GKBSR201's card reader uses a contact system which is less prone to misaligning your card when it is inserted, eliminating the possibility of it being misread. Smart Cards are the next generation of secure and user friendly identification, authentication, and data storage solutions.

Dual Functions

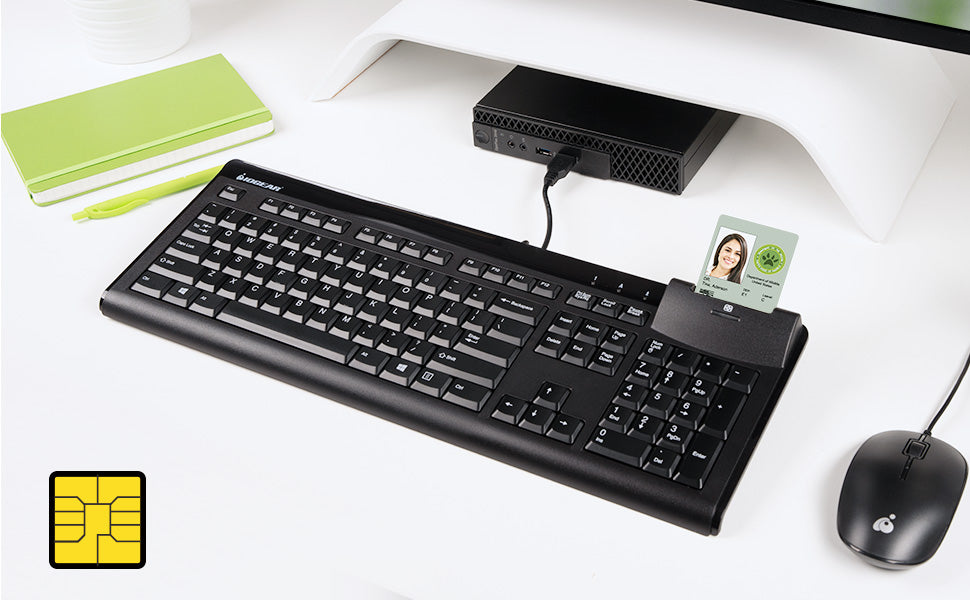

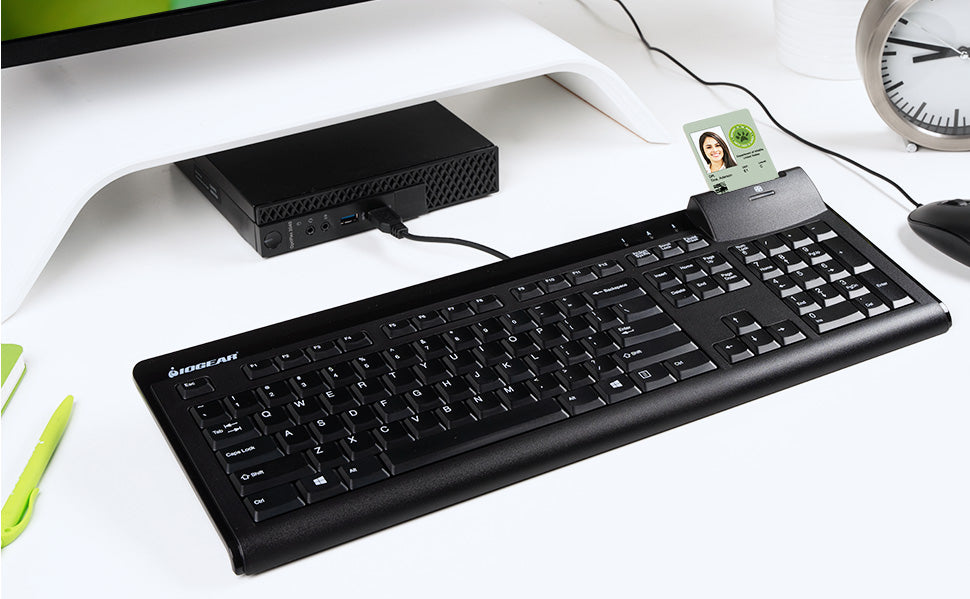

The IOGEAR GKBSR201 is an efficient and accurate Smart Card reader solution. The keyboard with the integrated card reader solution will help minimize the clutter of an external, free-standing card reading device on your desk.

Plug n Play

The universal design allows any Windows or Mac desktop or laptop to connect via a standard wired USB. Common access card/smart middleware software is not included.

***The FIPS 201 Evaluation Program removed LACS Transparent Readers from the Approved Products list. See link for more details.

  • EMV 2000 Certified: EMV 2000 Level 1 approved and suitable for banking / financial institutions
  • Supports ISO-7816 Class A, B and C
  • CCID Complaint
  • FIPS-201 Compliant: Meets US Federal Information Processing Standard Publication 201*
  • CAC Compatible for use with CAC card software*
  • Suitable for applications in government, healthcare, banking, entertainment, and secure network login
  • Standard full size keyboard for fast typing
  • Power / Scan LED indicators

*CAC middleware is not included


  • Computers with available USB port

Operating System

  • Windows XP®, Windows® Vista, Windows® 7, Windows® 8, Windows® 8.1,  Windows® 10
  • Linux based systems: Ubuntu, Fedora, Debian, Open Suse

Note: CAC middleware is not included

  • 1 x USB Smart Card Keyboard
  • 1 x Quick Start Guide
  • 1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

Operating System SupportWindows XP®, Windows® Vista, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Ubuntu, Fedora, Debian, Open Suse
Operating Temperature0~40°C (32~104°F)
Storage Temperature-20~60°C (-4~140°F)
Unit Dimensions
Height1.45 in (3.7cm)
Length18.4 (46.7cm)
Width6.375 in (16.2cm)
Unit Package Dimensions
Height1.75 in.
Length20.25 in.
Width8.00 in.
Master Carton
Height12.00 in.
Width20.50 in.
Depth8.75 in.
Master Carton Qty.6
Master Carton Wt.15.35 lb.
Unit Pack Wt.2.35 lb.
Unit Wt.1.8 lb.
