4-Port 4K HDMI Splitter Kit
EOL
UPC: 881317519115
This product is EOL and
is no longer being sold.
Send Cinema 4K audio and video from a single HDMI source such as a set-top box, game console, Blu-ray™ player or media server or computer to four 4K displays or projectors.
Choose options
4-Port 4K HDMI Splitter Kit
Sale price$103.95
Regular price$103.95
4-Port Cinema 4K Splitter With HDMI®
Send Cinema 4K audio and video from a single HDMI source such as a set-top box, game console, Blu-ray™ player or media server or computer to four 4K displays or projectors.
Highest Quality Video at Extended Distances
Deliver exceptional Cinema 4K resolutions (4096 x 2160 @60Hz) with crisp, 3D, and Deep Color images up to 4K 12- bit (4:2:0), or 68 billion colors, for a remarkable visual experience. The splitter extends the distance between your HDMI video sources and your HDMI displays up to 49 feet with data rates up to 10.2 Gbps, providing greater flexibility in system design.
- Send audio and video from 1 HDMI source to 4 HDMI displays
- Cinema 4K resolutions up to 4096 x 2160 @60Hz, (4:2:0)
- Long distance connections to 49 ft. (24 AWG)
- Dolby True HD and DTS HD Master Audio
- Supports up to 10.2 Gbps data speeds for high performance video
- Plug-n-play – No software installation required
- All High Speed HDMI cables included
- HDCP 1.4 compatible
- Rack Mountable
- All metal chassis
- All cables included
- Display
- 4K TV, 4K HD Display or 4K HD Projector with HDMI Input
- Media Source
- 1 HDMI Output

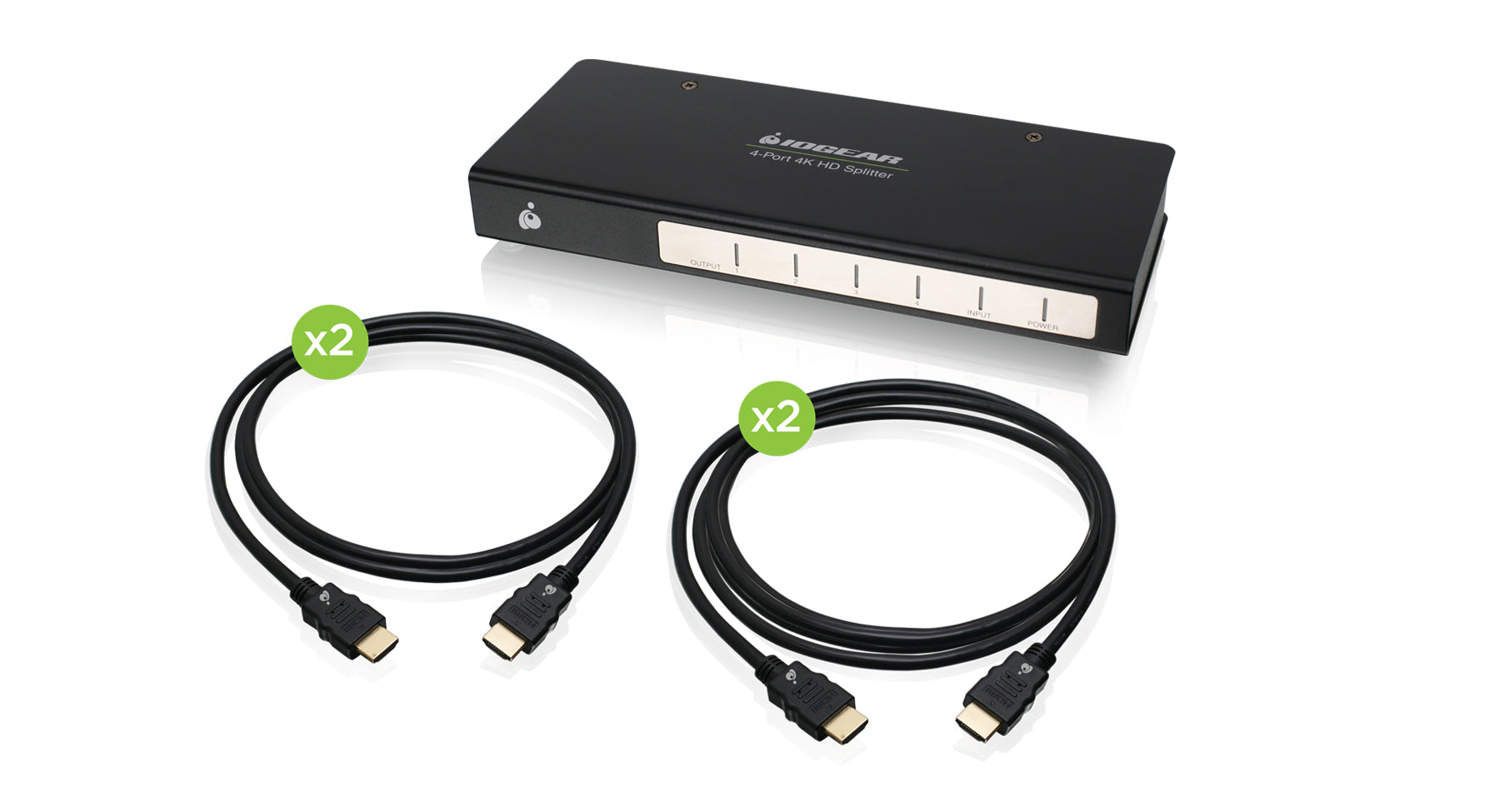

- 1 x GSP8424B 4-Port Splitter with HDMI Connectors
- 1 x Power Adapter
- 5 x High Speed HDMI Cables (1x HDMI input cable, 2x 3 ft. HDMI cables and 2x 6 ft. HDMI cables)
- 1 x Mounting Kit
- 1 x Quick Install Guide
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GHSP8424BKIT |
|---|---|
| Video connections | |
| Input | HDMI Type A Female |
| Output | HDMI Type A Female |
| Video Resolution | 4096 x 2160 @ 60Hz (4:2:0) |
| Video Streaming | Max Data Rate 10.2 Gbps |
| Power Consumption | 6.02 W |
| Power Adapter | 5.3V/2.4A |
| Environment | |
| Humidity | 0 - 80% RH, Non-Condensing |
| Operation Temperature | 32~122ºF (0~50ºC) |
| Storage Temperature | -4F ~ 140F (-20 - 60C) |
| Warranty | 3 - Years |
| Dimensions | GHSP8424BKIT |
|---|---|
| Unit Dimensions | |
| Height | 0.98 in |
| Depth | 3.15 in |
| Length | 7.87 in |
| Unit Package Dimensions | |
| Width | 9.375 in |
| Height | 6.25 in |
| Depth | 2.25 in |
| Weight | |
| Unit Wt. w/accessories | 2.28 lb |
| Unit Wt. | 1.05 lb |
