4x4 HDMI Matrix Switch with RS-232
UPC: 881317507396
Choose options
![4x4 HDMI Matrix Switch with RS-232](http://iogear.com/cdn/shop/files/GHMS8044_0.jpg?v=1715128853&width=1800)
![4x4 HDMI Matrix Switch with RS-232](http://iogear.com/cdn/shop/files/GHMS8044_1.jpg?v=1717029505&width=1800)
![4x4 HDMI Matrix Switch with RS-232](http://iogear.com/cdn/shop/files/GHMS8044_2.jpg?v=1717029505&width=1800)
![4x4 HDMI Matrix Switch with RS-232](http://iogear.com/cdn/shop/files/GHMS8044_3.jpg?v=1717029504&width=1800)
HDMI Matrix

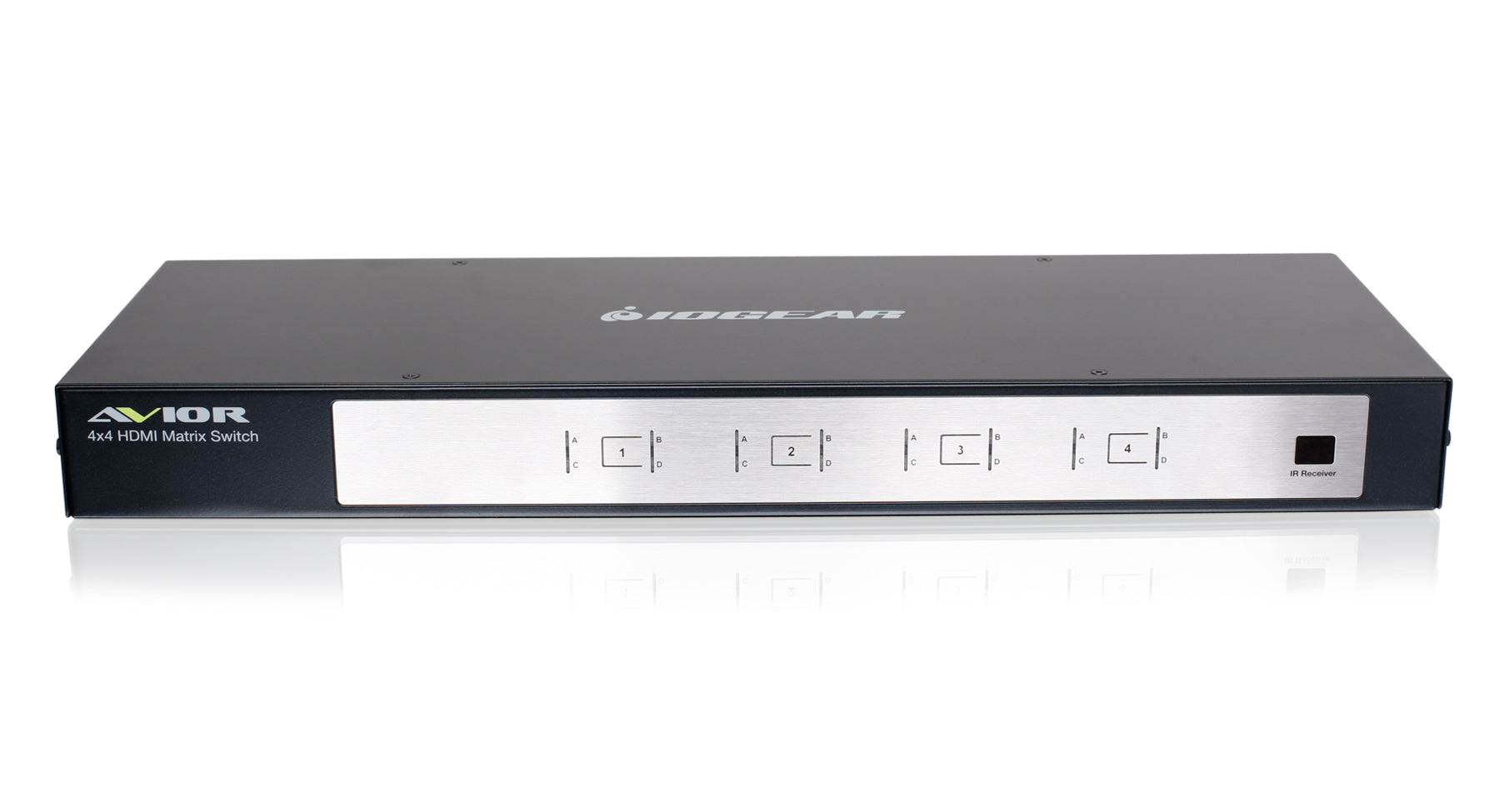

The IOGEAR 4x4 HDMI® Matrix switch connects up to 4 Full HD 1080p source devices with multi-channel digital audio and routes them to any of four connected HDMI displays with support for 3D. With 4 HDMI inputs for devices such as, Blu-ray / DVD players, DVR / Set-top boxes and Media Servers it enables cross switching between devices or splitting a single source in a mirror mode up to 4 HDMI equipped HD displays. Designed with 1U rack-mountable metal casing.
Applications: Home - Boardroom - Education - House of Worship - Sports Bar

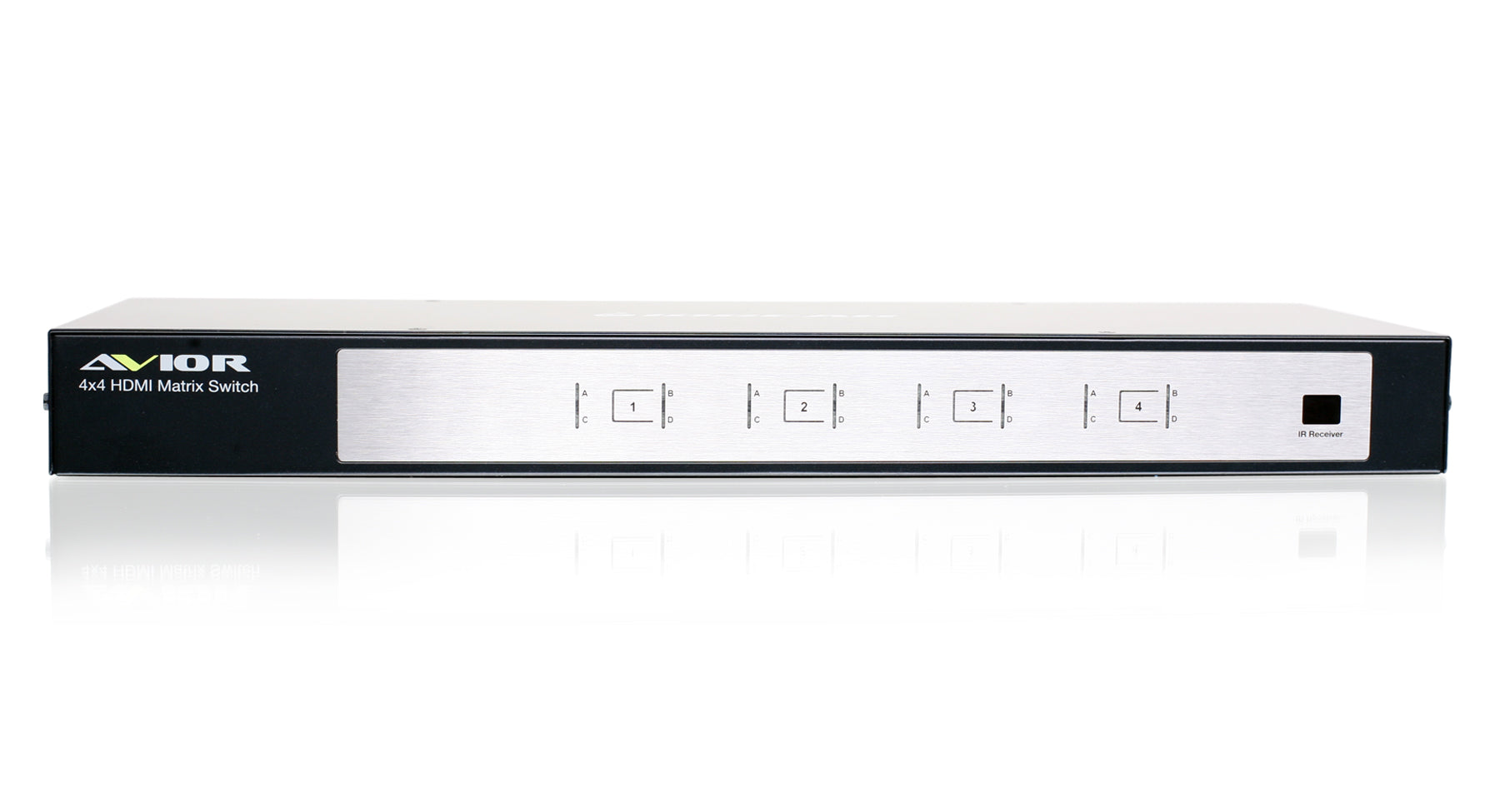

The IOGEAR 4x4 HDMI Matrix supports Full HD 1080p with HDCP compliance and Dolby® TrueHD and DTS HD Master Audio for a total high-end matrix switching install solution. Individual source are accessible for switching, cross switching or setting to mirror mode by convenient front panel pushbutton, IR remote, or by the RS232 port for total professional control.
Need more help with this product? Visit IOGEAR Knowledge Base
Function | GHMS8044 |
---|---|
Computer Connections | |
Direct | 4 |
Daisy Chain or Cascading | 64 |

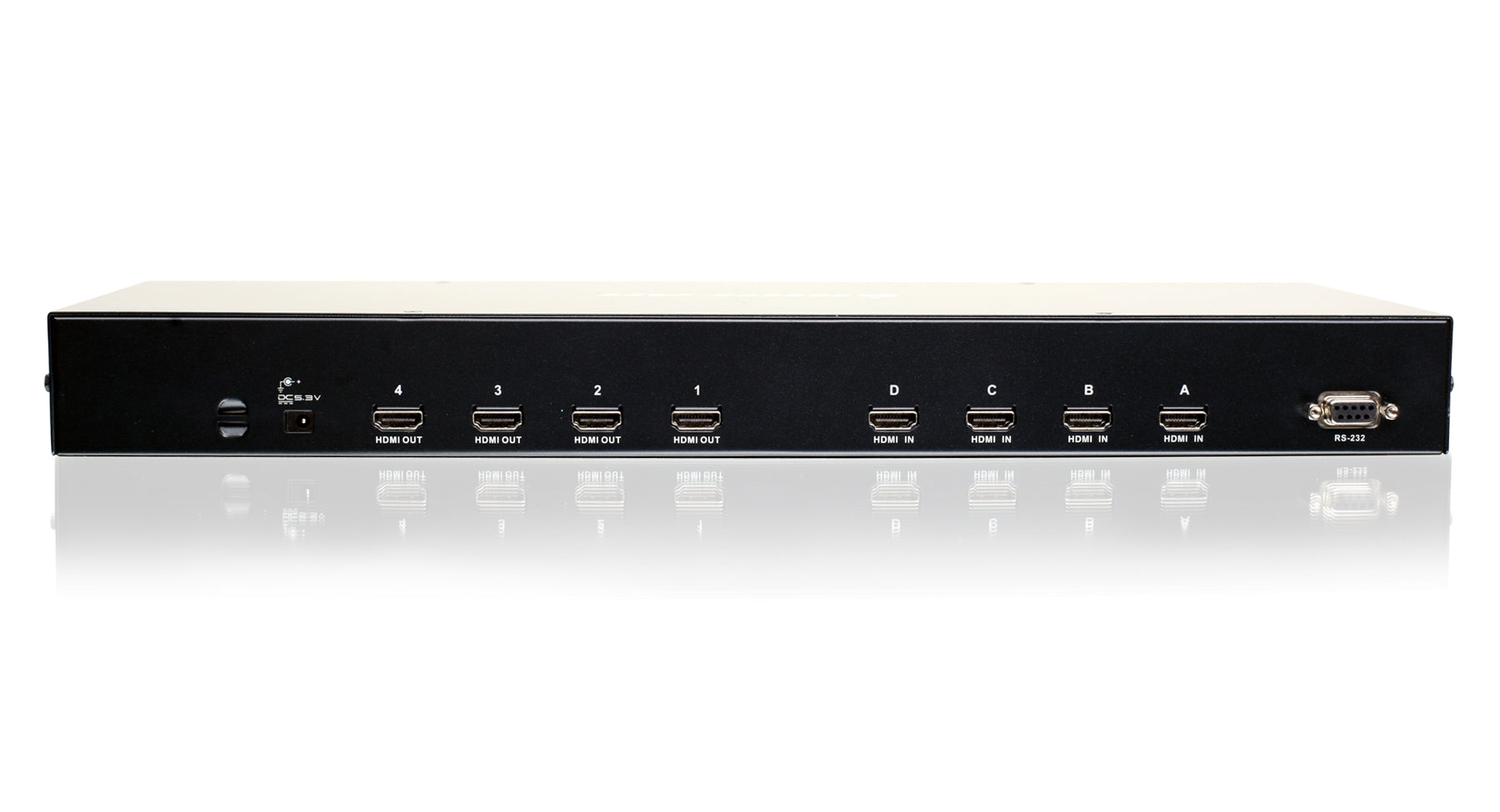

Connectors | |
Video Input | 4 x HDMI Type A Female |
Video Output | 4 x HDMI Type A Female |
RS-232 | 1 x DB-9 Female |
Power | 1 x DC Jack |
Cable Connections | |
Input | HDMI |
Output | HDMI |
Switches | |
Port Selection | 4 x Pushbutton or IR Remote |
LEDs | |
Selected | 16 x Green |
Video Resolution | 480i/480p/720p/1080i/1080p; VGA/SVGA/XGA/SXGA/UXGA |
Data Rate | Up to 2.25Gbps |
Power Consumption | DC 5.3V, 9W (Max) |
Power | |
Voltage | DC5.3V |
Amps | 2.4A |
Environment | |
Storage Temperature | -20°C~60°C |
Operation Temperature | 0°C~50°C |
Humidity | 0 - 80% RH (Non Condensing) |
Housing | |
Case | Metal |
Dimensions | GHMS8044 |
---|---|
Unit Dimensions | |
Height | 11.6cm (4.56in) |
Depth | 23.3cm (9.17 in.) |
Length | 54cm (21.26in.) |
Unit Package Dimensions | |
Width | 4.75" |
Height | 9.5" |
Depth | 21.5" |
Master Carton | |
Width | 15" |
Height | 10.5" |
Depth | 22.25" |
Master Carton Qty. | 3 |
Weight | |
Master Carton Wt. | 19.80lbs |
Unit Pack Wt. | 6.1lbs. |
Unit Wt. | 4.15lbs. |
