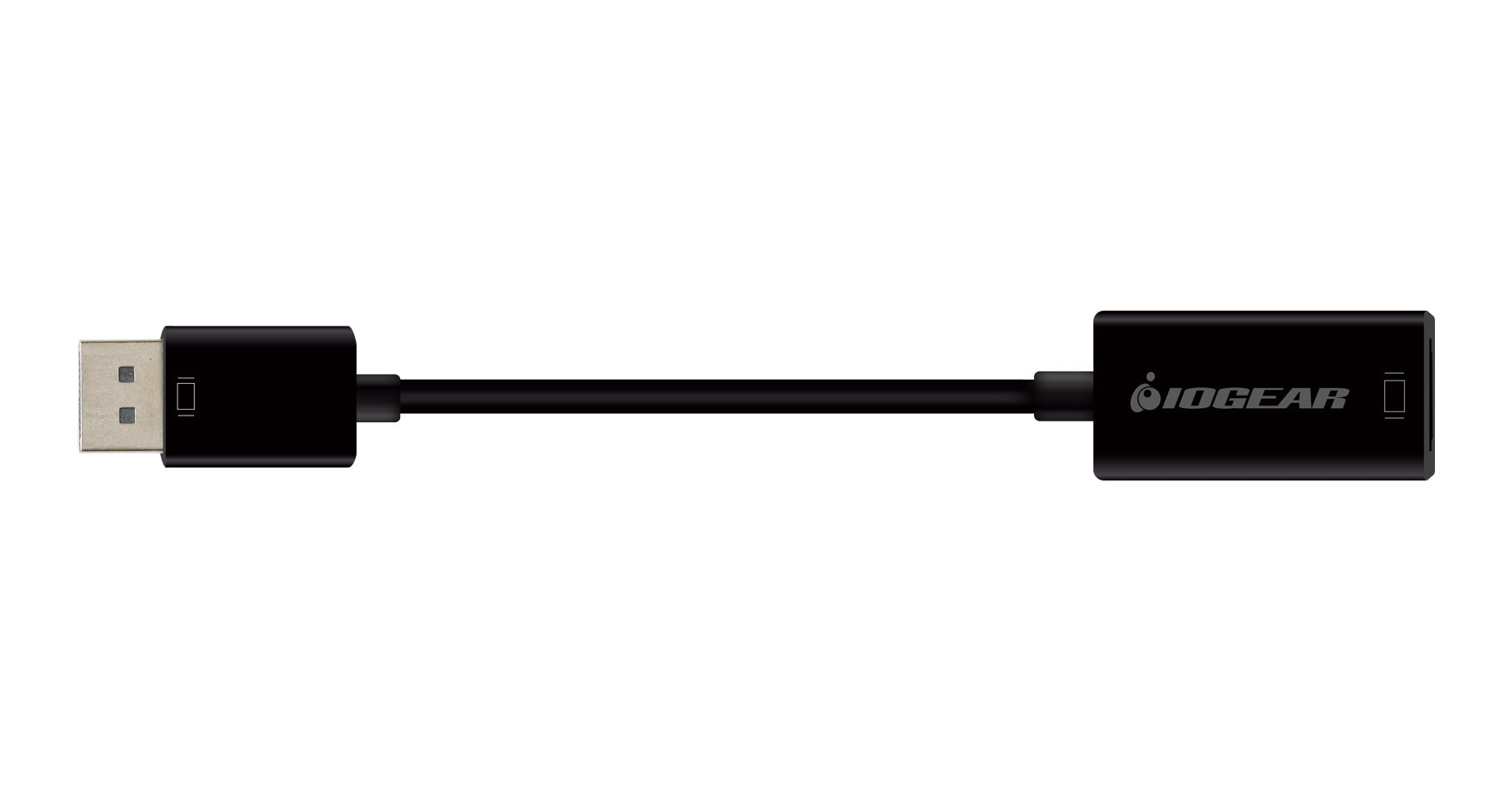

4K Active DisplayPort (M) to HDMI® Interface (F) Adapter
UPC: 881317513311
Choose options
Active DisplayPort® to HDMI® Interface Video & Audio Adapter
The IOGEAR 4K Active DisplayPort (M) to HDMI Interface (F) Adapter is the ideal hardware solution to convert any DisplayPort output to an HDMI interface output. This allows you to connect your DisplayPort-equipped video source (i.e. Computer, Laptop or DisplayPort Graphics Card) to a HDMI enabled display or projector.
DisplayPort 1.2 & 4K Ultra High-Definition Video Resolution Support
The 4K Active DisplayPort (M) to HDMI Interface (F) Adapter is the latest DisplayPort 1.2 standard for UHD (Ultra HD) video playback, with resolutions of up to 3840 x 2160 @30Hz. This results in the highest level of visual fidelity currently available on HDMI equipped displays on the consumer market; giving you the ability to display 4K content from your DisplayPort-equipped device on your HDMI enabled display or projector.
High Definition, Multi-Channel Audio Pass Through
The DisplayPort video standard found on all current generation DisplayPort devices, supports audio via the DisplayPort output. The GDPHD4KA Active DisplayPort to HDMI Adapter supports multi-channel digital audio signal pass-through, preventing the need to carry an additional audio cable when connecting to an external display with audio playback support.
Active vs. Passive Adapter: Which one do I need?
A passive adapter is the most basic type of DisplayPort to HDMI interface adapter available. A passive DisplayPort video adapter allows the Graphics Processing Unit (GPU) to communicate with any HDMI enabled display that does not support the DisplayPort video output on the computer.
In contrast, IOGEAR's Active DisplayPort to HDMI interface adapter will actively convert the display's HDMI signal into a DisplayPort signal for your GPU to interpret. These active adapters are required when connecting more than 2 displays to a video card such as an AMD Radeon GPU that supports Eyefinity technology. The native DisplayPort signals are able to be recognized and controlled by the GPU, ensuring all the connected monitors are synchronized.
Easy Set Up, Plug-N-Play Solution
IOGEAR's DisplayPort to HDMI interface adapter features an easy-to-use, plug-n-play design and requires no external power, software or drivers to be installed. Simply connect the adapter to the DisplayPort video out on your computer or laptop and connect a High-Speed HDMI cable to your HDMI enabled display and you are ready to go!
Flexibility Through Connectivity
IOGEAR offers a wide selection of DisplayPort and Mini DisplayPort adapters, providing cost-effective solutions to integrate the latest technology into your existing equipment setup.
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GDPHD4KA |
|---|---|
| Operating Temperature | 32~158°F (0~70°C) |
| Storage Temperature | 14~176°F (-10~80°C) |
| Connectors | |
| Video Input | DisplayPort Male 20 Pin |
| Video Output | HDMI Interface (F) Type A 19 Pin |
| Video Resolution | Up to 4K@30Hz |
| Power Consumption | 1W |
| Humidity | Operating: 10-85% RH (Non Condensing), Storage: 5-90% RH (Non Condensing) |
| Cable Length | 3.375" (8.6cm) |
| Dimensions | GDPHD4KA |
|---|---|
| Unit Dimensions | |
| Height | 0.875" (2.2cm) |
| Length | 7.125" (18.1cm) |
| Depth | 0.5" (1.3cm) |
| Inner Pack | |
| Height | 4.5" (11.4cm) |
| Length | 9.5" (24.1cm) |
| Width | 8.75" (22.2cm) |
| Inner Pack Qty. | 12 |
| Unit Package Dimensions | |
| Height | 10.375" (26.3cm) |
| Width | 4" (10.2cm) |
| Depth | 0.5" (1.3cm) |
| Master Carton | |
| Height | 9.75" (24.8cm) |
| Width | 10.375" (26.3cm) |
| Depth | 18.125" (46.04cm) |
| Master Carton Qty. | 48 |
| Weight | |
| Master Carton Wt. | 5.4lb (2.5kg) |
| Inner Pack Wt. | 1.0lb (0.5kg) |
| Unit Pack Wt. | 0.05lb (0.02kg) |
| Unit Wt. | 0.05lb (0.02kg) |
