2-Port Cable KVMs

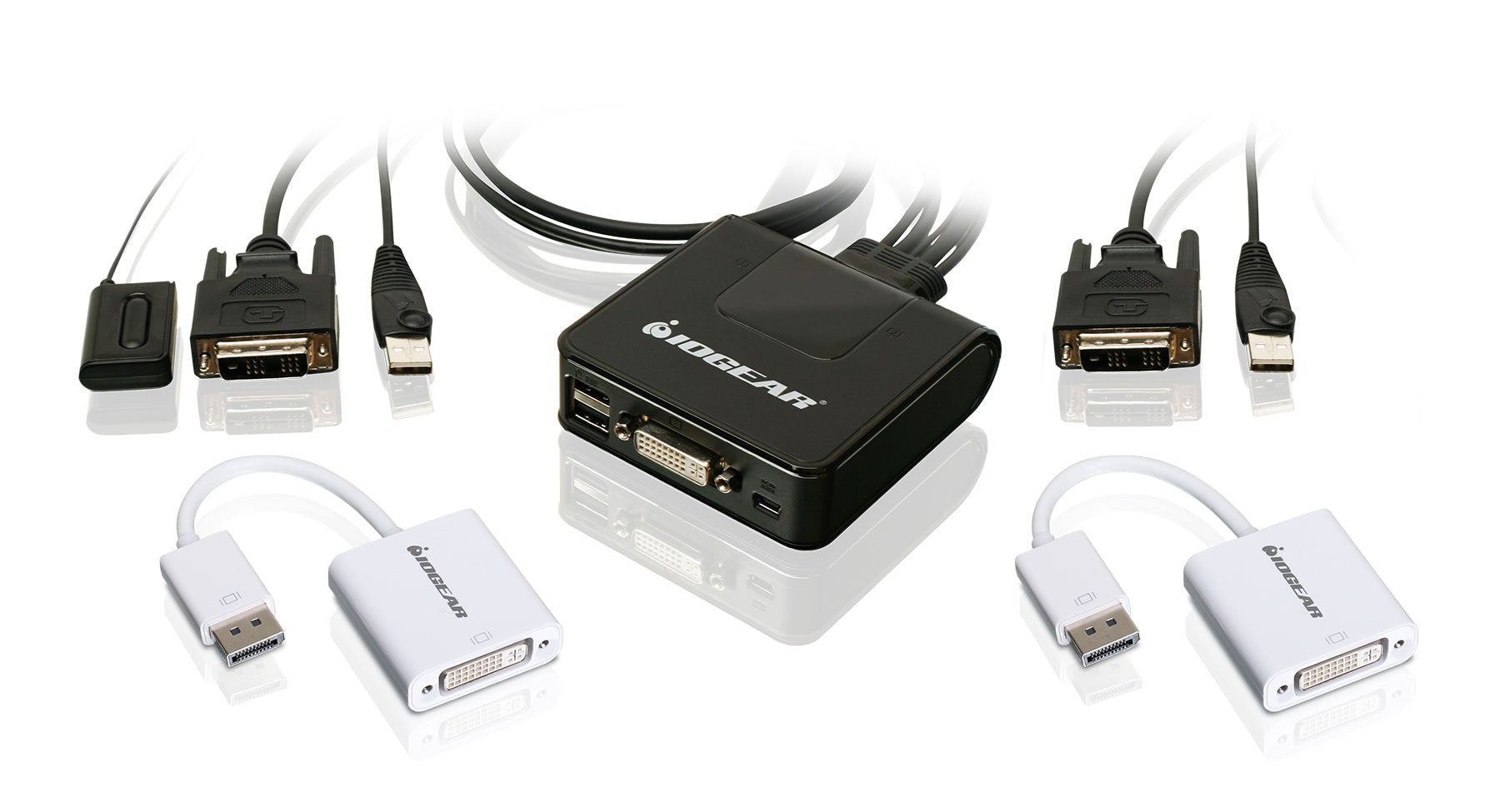

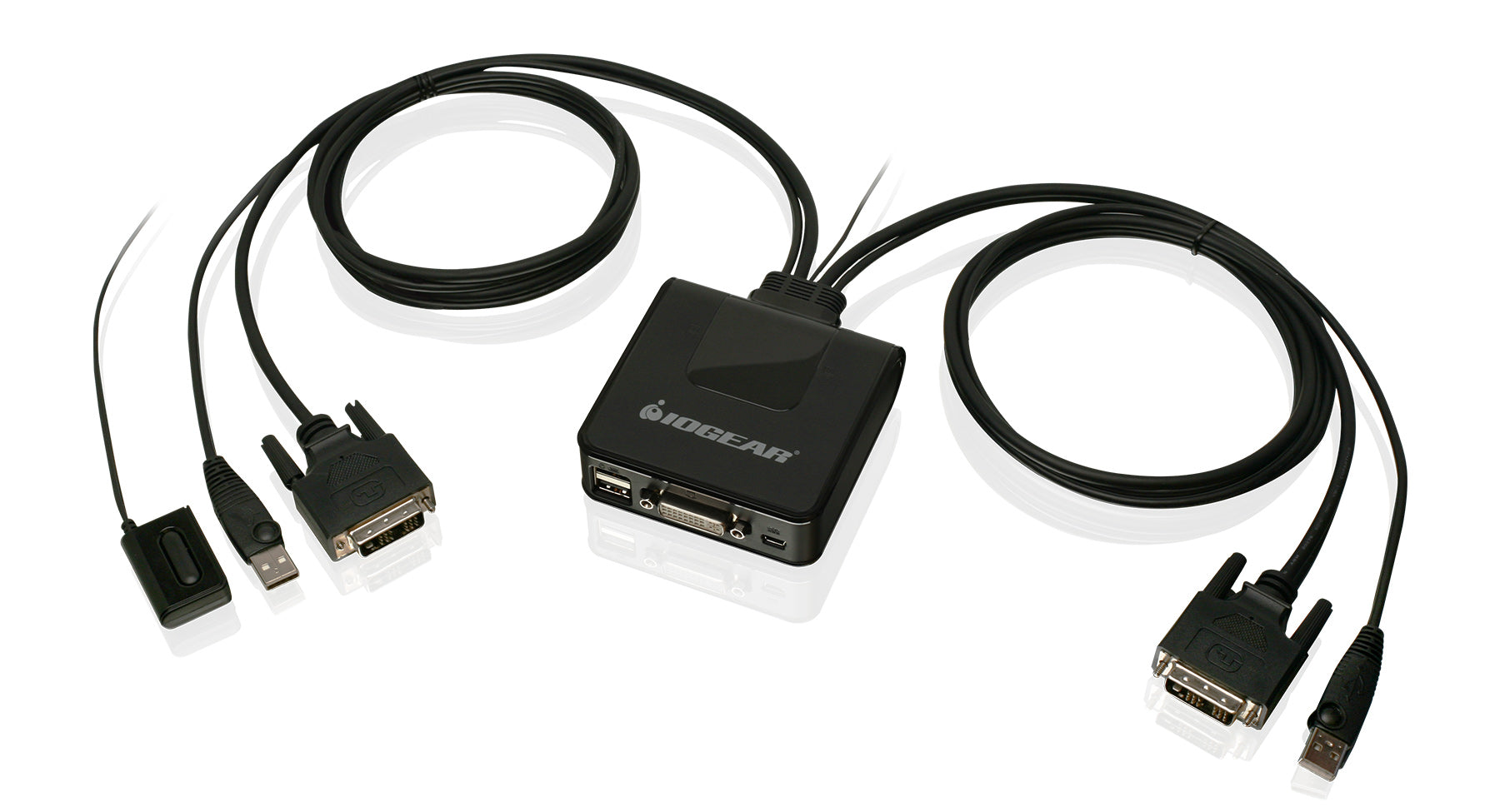

2-Port USB DVI and DisplayPort Cable KVM Kit

2-Port DisplayPort DVI
MPN: GCS922DPKIT

UPC: 881317515100

Sale price$104.95

  • Switch between two computers with the push of a button
  • Offers the flexibility to mix and match computer connections: DVI and DisplayPort
  • Includes 2 x DisplayPort to DVI adapters
  • No external power needed
  • Save Cabling Costs: ALL cables are included

2-Port Cable VGA / Mini DisplayPort KVM Switch

  • Switch between two computers with the push of a button
  • Offers the flexibility to mix and match computer connections: VGA and Mini DisplayPort
  • Includes 2 x Mini DisplayPort to VGA adapters
  • No external power needed
  • Cost effective, Plug-N-Play solution

Flexibility to Choose VGA and/or Mini DisplayPort

You finally have the flexibility to mix and match your video options with this kit, streamlining and developing efficient workstations by eliminating multiple desktop setups. With the included adapters, IOGEAR's VGA and Mini DisplayPort KVM Solution simplifies the method of sharing two computers using one VGA monitor, keyboard and mouse. This bundle is perfect for a home office or small / medium size business, as it offers the flexibility of choosing between VGA and/or Mini DisplayPort connections. Take advantage of your existing Mini DisplayPort computers and use the included adapters to view your content on a VGA projector, monitor, or display. Connect your Mini DisplayPort or Thunderbolt® enabled Apple® MacBook®, MacBook Pro®, MacBook Air®, iMac®, Microsoft Surface™ or Microsoft Surface Pro to any external VGA based high resolution display, projector or TV.

Plug-N-Play Switching

Switch and control any of the two connected computers easily via remote push button. This 2-Port VGA - Mini DisplayPort switch does not require external power and supports USB hot-plugging, making it easy to add or remove USB computers connected to the KVM. Expand your USB peripheral sharing by using the USB mouse port. This VGA - Mini DisplayPort KVM bundle supports video resolution up to 1920 x 1200 @ 60Hz, giving users excellent, crisp images on the screen every time.

Ease-of-Use

With no external power needed or software installation required, this is a straight out-of-the-box solution. With built-in cables and included adapters, IOGEAR's 2-Port Cable USB VGA and Mini DisplayPort KVM bundle is a true Plug-N-Play solution to your connectivity needs! This Cable VGA KVM switch also offers a cost-effective solution to increase productivity by allowing users to switch between the Internet and Intranet with connected PCs.

  • Connect and control two DVI-D or DisplayPort USB 2.0 interface computers with a single keyboard and mouse
  • Video resolution – up to 1920 x 1200 @60Hz
  • USB mouse port can be used for USB peripheral sharing, such as external storage drive
  • Computer Selection via push-button Remote Port Selector
  • Supports USB hot-plugging
  • Power supply not required
  • All cables are included

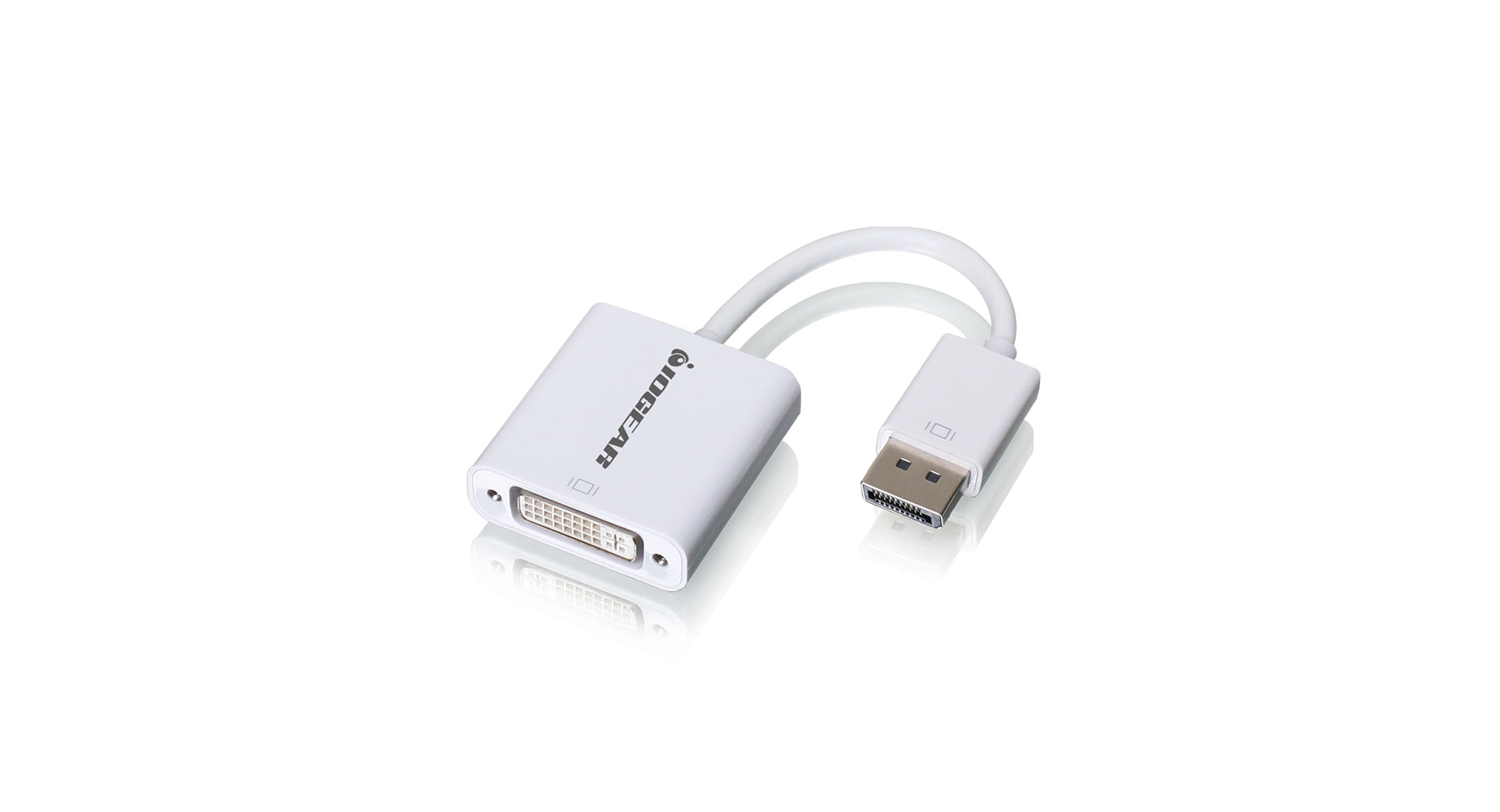

  • DisplayPort to DVI Adapters:
  • Console:
  • 1 x DVI display
  • 1 x standard 104 key wired USB keyboard
  • 1 x standard 2 or 3 button wired USB mouse

  • Computers:
  • DVI-D Port or DisplayPort
  • USB Ports

  • Operating Systems:
  • Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
  • Mac OS 9 to 10.x
  • Oracle® Solaris
  • Linux®, Unix and other USB supported systems*

*Additional drivers and support may be needed

  • 1 x GCS922U
  • 2 x DisplayPort to DVI Adapters
  • 1 x Quick Start Guide
  • 1 x Warranty

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS922DPKIT
Computer Connections
Direct2
Console Connectors
Monitor1 x DVI-D
Keyboard1 x USB Type A Female
Mouse1 x USB Type A Female
CPU Connectors
Monitor2 x DVI-D Male; 2 x DisplayPort Male (adapters)
Keyboard & Mouse2 x USB Type A Male
LEDs
On Line2 x Green
Video Resolution1900x1200 @60Hz
Environment
Storage Temperature-20~60?C
Operation Temperature0~50?C
Humidity0~80%; Non-condensing
Port SelectionRemote Switch
Cable Length2 x 4ft. ea KVM cables; 1 x 6ft. Remote Switch
Cable TypeBonded USB KVM
Housing
CasePlastic
DimensionsGCS922DPKIT
POP Information
10'' Peg Hook5
6'' Peg Hook3
Unit Dimensions
Height1.06" (2.69cm)
Depth4.06" (10.3cm)
Length3.44" (8.74cm)
Unit Package Dimensions
Width6.13" (15.6cm)
Height8.81" (22.4cm)
Depth2.25" (5.72cm)
Master Carton
Width6.75" (17.1cm)
Height15" (38.1cm)
Depth8" (20.3cm)
Master Carton Qty.6
Weight
Master Carton Wt.7.2lb (3.27kg)
Unit Pack Wt.1.1lb (0.5kg)
Unit Wt. w/accessories0.85lb (0.39kg)
Unit Wt.0.75lb (0.34kg)
