2-Port USB VGA and DisplayPort Cable KVM Kit

2-Port Cable KVMs

2-Port USB VGA and DisplayPort Cable KVM Kit

Name: 2-Port USB VGA and DisplayPort Cable KVM Kit
Brand: IOGEAR
SKU: GCS72DPKIT
Price: 64.95 USD
Availability: InStock

4-Port DisplayPort VGA

MPN: GCS72DPKIT

UPC: 881317515216

$64.95

You finally have the flexibility to mix and match your video options with this kit, streamlining and developing efficient workstations by eliminating multiple desktop setups. With the included adapters, IOGEAR's VGA and DisplayPort KVM Solution simplifies the method of sharing two computers using one VGA monitor, keyboard and mouse. This bundle is perfect for a home office or small / medium size business, as it offers the flexibility of choosing between VGA and/or DisplayPort connections. Take advantage of your existing DisplayPort computers and use the included adapters to view your content on a VGA projector, monitor, or display.

2-Port USB VGA and DisplayPort Cable KVM Kit

$64.95

Switch Between 2 VGA or DisplayPort Computers

The GCS72DPKIT offers the most efficient and affordable way to switch between your two VGA DisplayPort computers and control them with one monitor, one keyboard and one mouse.

Built-in Remote Port Selector for Easy Port Switching

A built-in push button style remote port selector with 6ft cable provides most easy and flexible way for port switching and cable management.

Compact and Cables built-in Design

The GCS72DPKIT KVM with built-in cables is straight forward, easy, and time saving for installation. Less than half the size of regular desktop KVMs, the GCS72DPKIT's compact design frees up desktop space for all your needs.

Switch between two computers with the push of a button

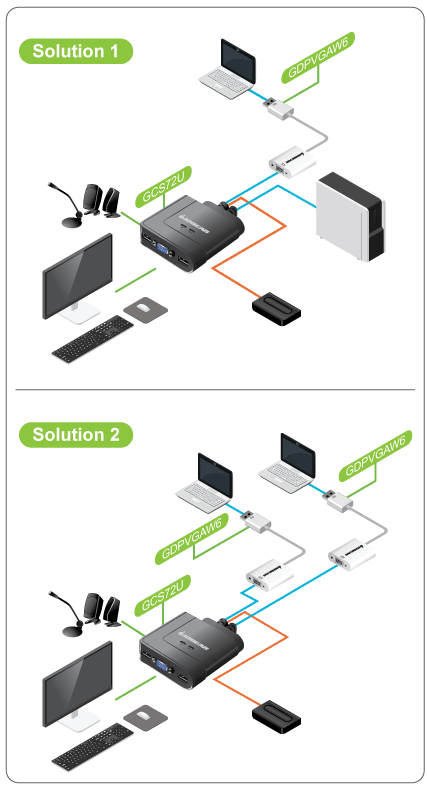

Offers the flexibility to mix and match computer connections: VGA and DisplayPort

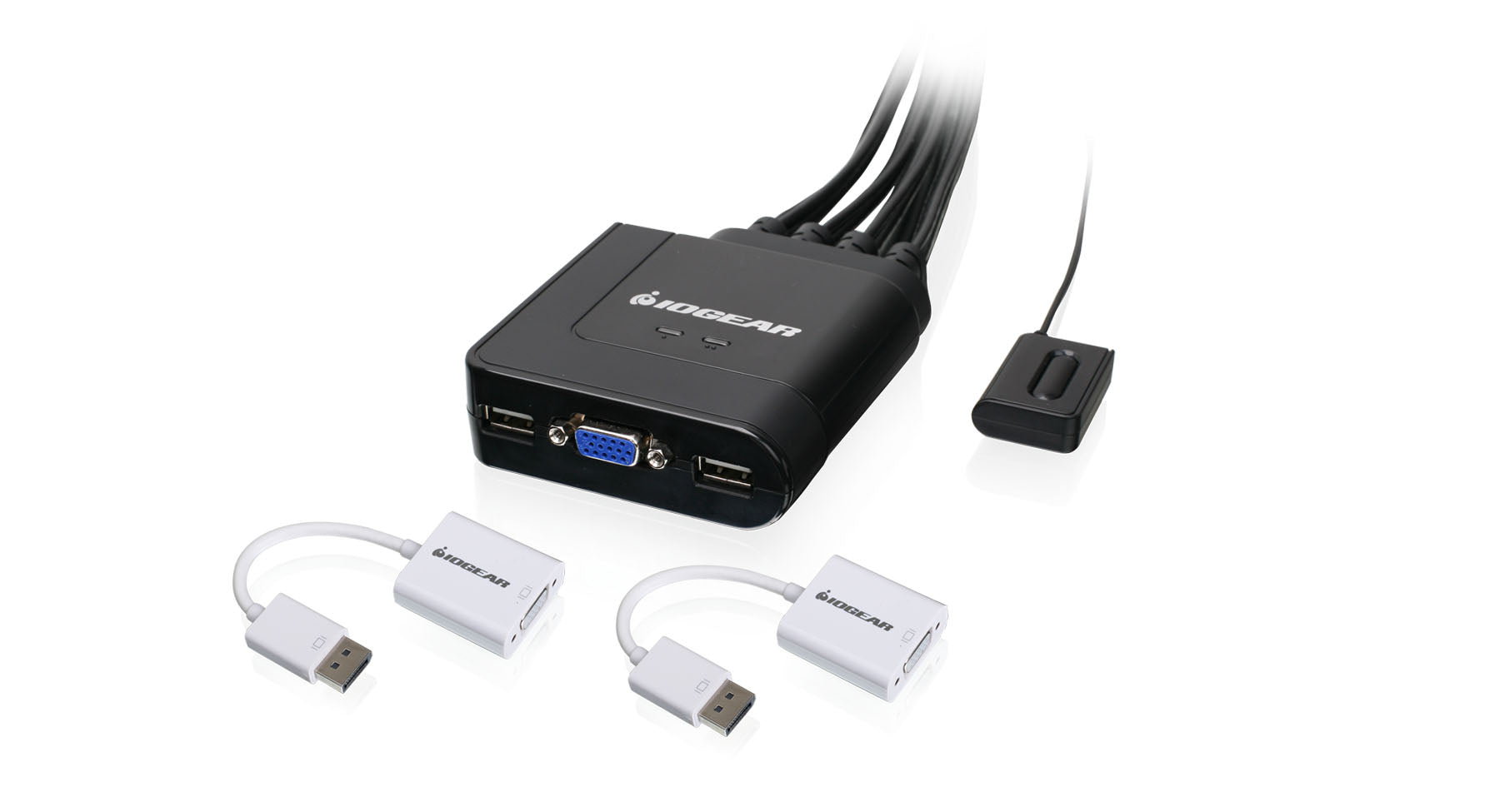

Includes 2 x DisplayPort to VGA adapters
No external power needed
Cost effective, Plug-N-Play solution
One USB keyboard, USB mouse, and VGA monitor control two computers
Max resolution: 2048 x 1536, DDC2B
2.1 Stereo audio and microphone support
3' long molded-in cables to simplify setup
Compatible with PC, MAC and SUN operating platforms
Supports Windows XP or higher, Mac OS 9.0 or higher, Sun Solaris 9 or higher
Full Mac keyboard support
Supports programmable mice
All cables included

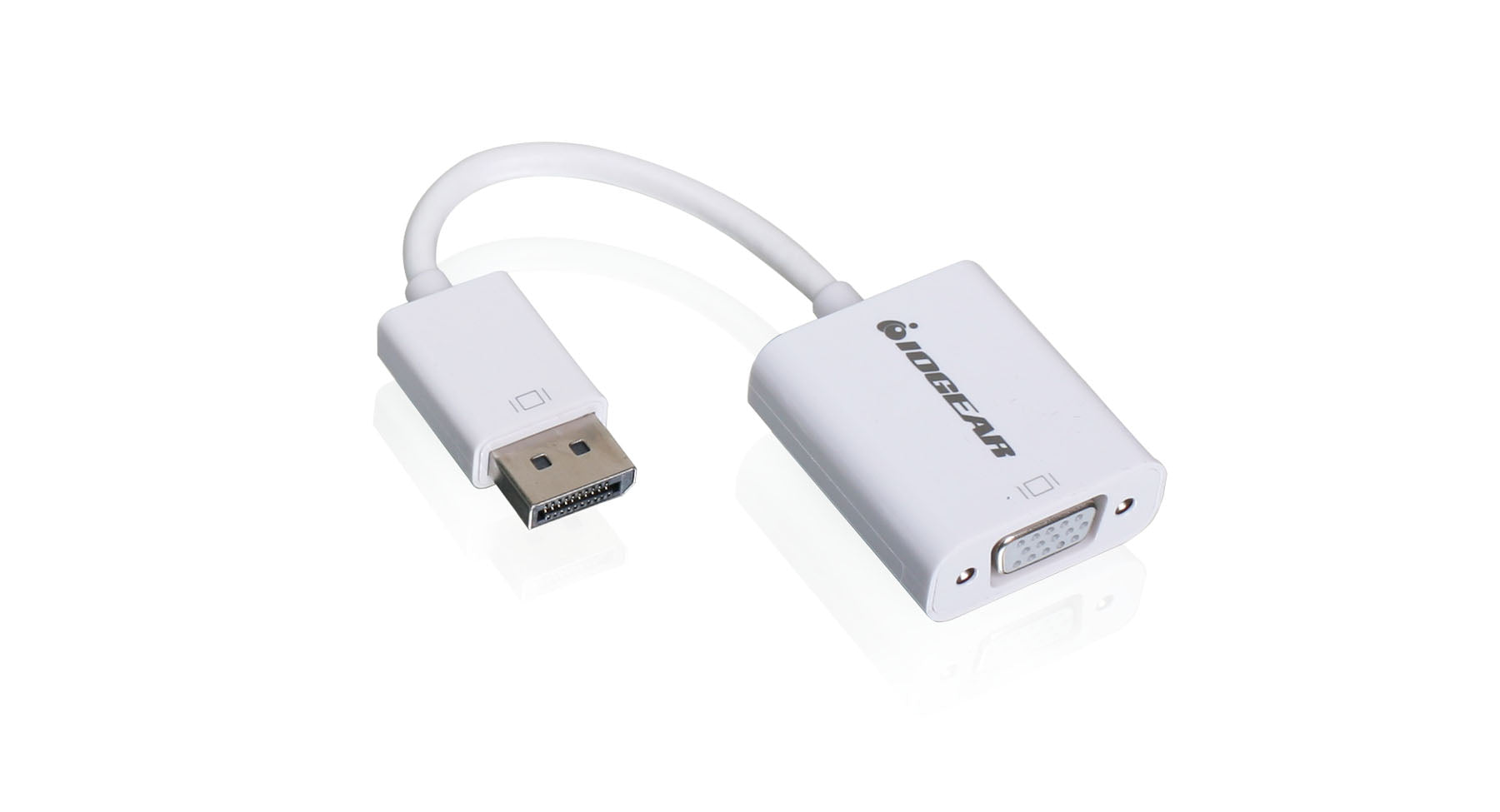

2 x DisplayPort to VGA Adapters convert your DisplayPort to VGA:
- Works with computer systems using DisplayPort
- Compliant with Displayport Specification 1.1a for both 1.62 Gbps and 2.7 Gbps
- Support full DisplayPort link tracking
- Supported resolutions:
  - Full HD 1080p
  - 1920x1200
  - VGA, SVGA, XGA, SXGA and UXGA at 162 MHz pixel rate
- Support interrupt request output for expansion function
- Support Deep Sleep Mode (suspend mode)

Console:
1 x VGA display
1 x standard 104 key wired USB keyboard
1 x standard 2 or 3 button wired USB mouse
Computers:
VGA or DisplayPort port
USB ports
3.5mm audio port (optional)
Operating Systems:
Windows Vista®, Windows® 7, Windows® 8.1, Windows® 10
Mac OS 9 to 10.x
Oracle® Solaris
Linux®, Unix and other USB supported systems*

*Additional drivers and support may be needed

1 x 2-Port USB Cable KVM
2 x DisplayPort to VGA Adapters
1 x Quick Start Guide
1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

Distributor	Part #
Ingram	9A9341
DH	GCS72DPKIT
Synnex	4842150

Function	GCS72DPKIT
Computer Connections
Direct	2
Console Connectors
Monitor	VGA
Keyboard	USB
Mouse	USB
CPU Connectors
Monitor	2 x VGA; 2 x DisplayPort (with adapters)
Keyboard & Mouse	2 x USB
LEDs
On Line	Green
Video Resolution	2048x1536 (VGA), 1920x1200 (with adapters)
Port Selection	Remote Pushbutton
Cable Length	2 x 3ft each
Cable Type	Bonded USB KVM
Housing
Case	Plastic

Dimensions	GCS72DPKIT
POP Information
10'' Peg Hook	4
6'' Peg Hook	2
Unit Dimensions
Height	6" (15.24cm)
Depth	7" (17.78cm)
Length	2" (5.08cm)
Unit Package Dimensions
Width	6.25" (15.87cm)
Height	8.87" (22.54cm)
Depth	2.25" (5.72cm)
Master Carton
Width	8" (20.32cm)
Height	7" (17.78cm)
Depth	15.25" (38.74cm)
Master Carton Qty.	6
Weight
Master Carton Wt.	7.52lb (3.42kg)
Unit Pack Wt.	1.14lb (0.52kg)
Unit Wt. w/accessories	0.92lb (0.42kg)
Unit Wt.	0.82lb (0.37kg)

3 Year Limited Warranty
