4-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232
4-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232
4-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232
4-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232
4 Port Desktop KVMs

4-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232

4-Port DisplayPort EOL TAA Compliant
MPN: GCS1934M

UPC: 881317516497

This product is EOL and is no longer being sold.
Sale price$649.95
  • Turn a single video output to two monitors
  • Up to Cinema 4K for one monitor or 4K UHD for two monitors
  • Switch between 4 DisplayPort computers easily
  • RS-232 Command Control
  • Full cable set included for out-of-the-box setup
4-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232
4-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232 Sale price$649.95

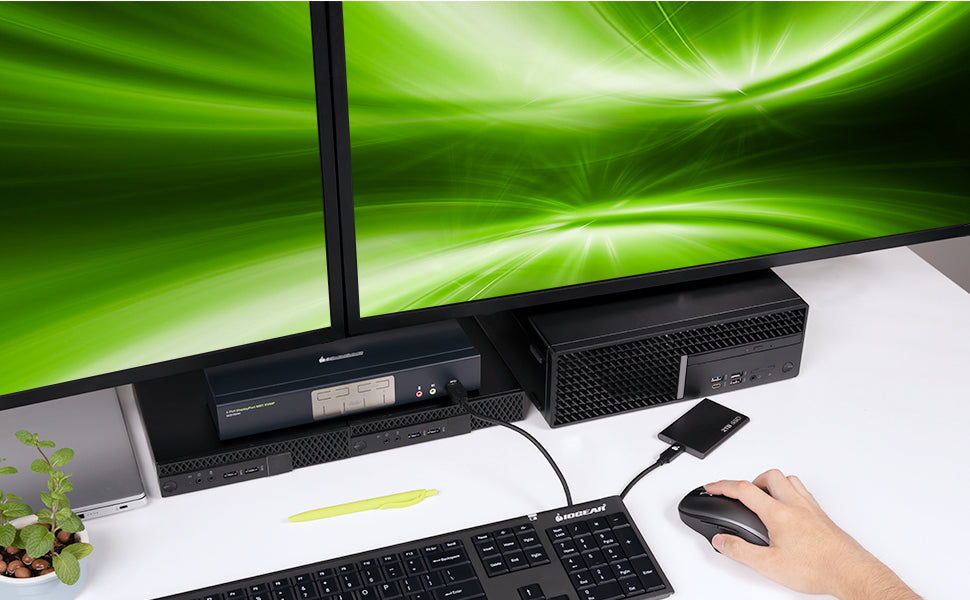

Cinema 4K Experience The DisplayPort 1.2 KVMP tech

The DisplayPort 1.2 KVMP technology delivers resolutions up to Cinema 4K (4096 x 2160) at a frame rate of 60Hz. This 4-Port 4K KVMP Switch is designed for environments requiring high graphics resolution, such as the healthcare industry, engineering, medium-sized businesses, and the federal segment. Customize your video content viewing from one (1) to two (2) monitors* - from mirror image to extended image, for a more cinematic experience. IOGEAR 4K DisplayPort KVMP Switch also enhances end-user electronics applications in diagnostic, coding, software development, application design, and forensic analysis.

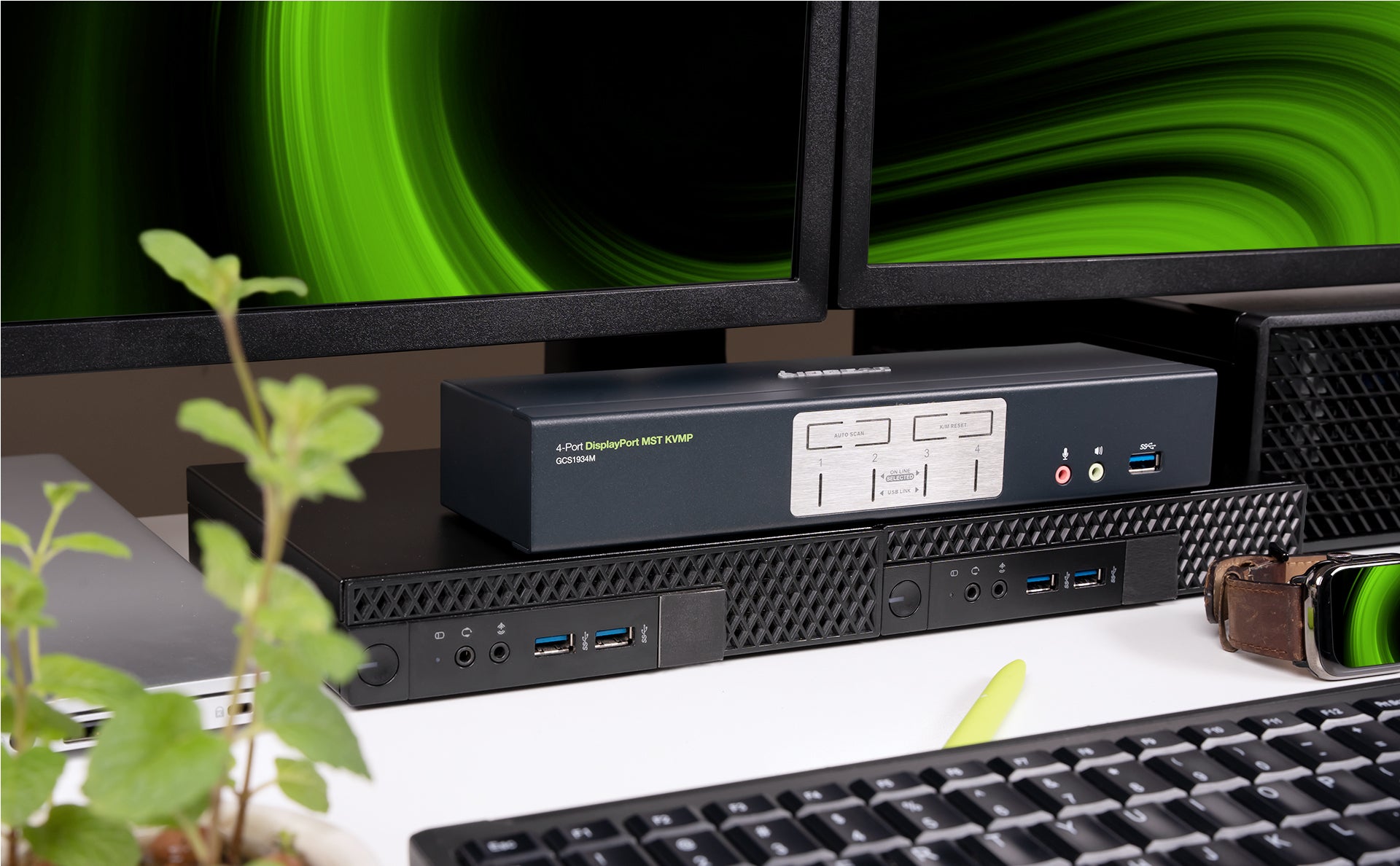

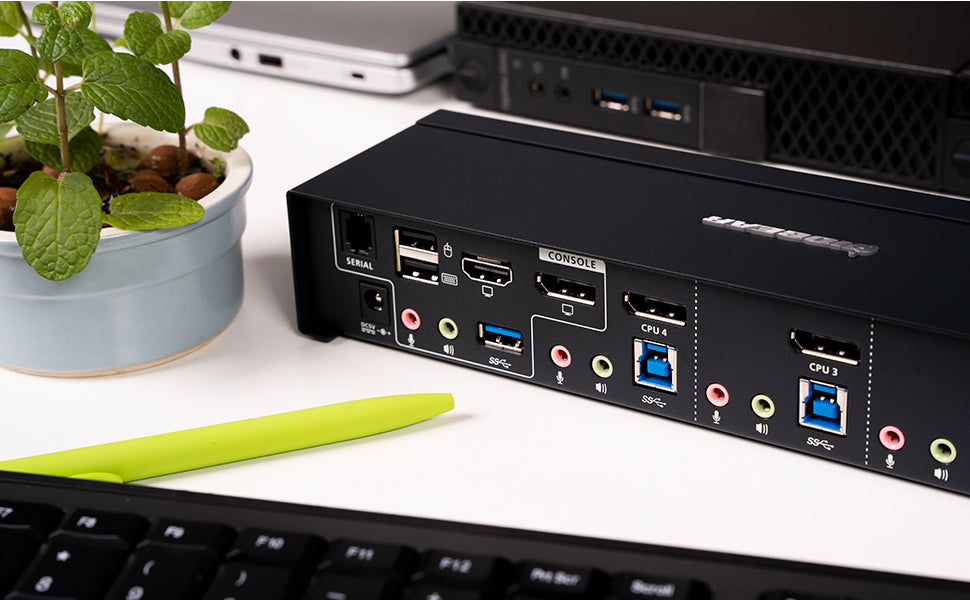

Flexible Connectivity

Connect your powerhouse computers and experience superior resolution while switching between two (2) DisplayPort desktops or laptop computers and sharing two (2) USB peripherals, like a keyboard and mouse with the push of a button. Work between two (2) computers with ease using a single (1) keyboard and mouse, while your viewing options include a mix of up to two HDMI or DisplayPort monitors. Expand your USB 3.0 peripherals' connectivity with faster data transfer rates while saving your desktop real state.

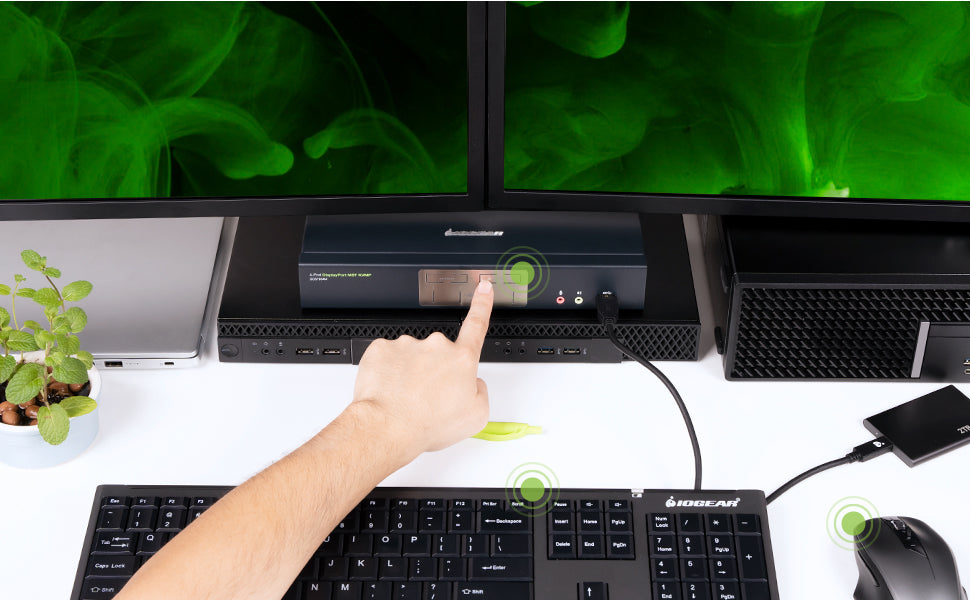

Convenient Switching Methods

Switch and access four DisplayPort computers from a simple push-button on the front panel, hotkeys combination on your keyboard, or 3-button USB wheel mouse. With mouse emulation turned on, quickly switch between connected computers by clicking the wheel button on your 3-button USB mouse. IOGEAR's 4-Port 4K DisplayPort KVMP Switch also offers the option to send RS-232 commands via serial port for source switching. Perfect for 911 call centers, broadcast centers, video control rooms, or any application where you need to control the KVM from a different room remotely.
Cost-Saving Solution

Avoid the plugging and unplugging wear and tear on your USB peripherals and audio devices between your two computers. Share your peripherals with the push of a button and forget about purchasing additional keyboards, mice, monitors, hard drives, flash drives, printers and more. Additionally, straightforward firmware updates eliminate the need to buy upgraded KVMP switches.

*PC source must be DP1.2 MST compliant to extend viewing. DP1.1 source supports mirror viewing onlybr />
**Requires compatible graphics cards that support three monitor extensions. Not compatible with Radeon RX560 cards.

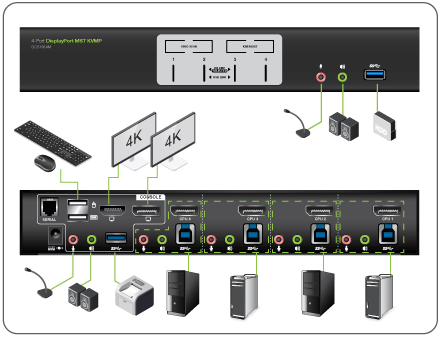

  • Control and switch 4 computers with 1 keyboard, mouse, and monitor(s)
  • Expand 1 DisplayPort input to 2 video outputs (DisplayPort/HDMI)
  • With DisplayPort 1.1 Graphic Cards:
    • Dual 4K UHD (DisplayPort/HDMI) - mirrored screen only
  • With DisplayPort 1.2 Graphic Cards:
    • 1 Monitor: Up to 5K Resolution
    • 2 Monitors: Up to 4K UHD (DisplayPort/HDMI)
    • 3 Monitors: Shared video bandwidth1
  • Convenient computer selection via front panel push-buttons, hotkeys, mouse2, and RS-232 commands3

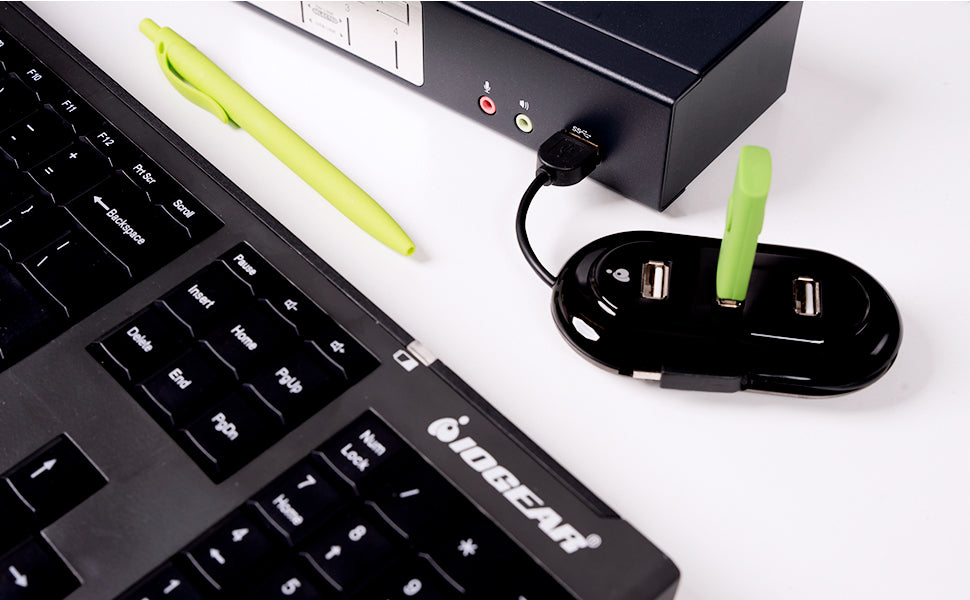

  • 2-Port built-in USB 3.1 Gen 1 Hub for peripheral sharing with SuperSpeed 5 Gbps data transfer
  • Independent switching of KVM, USB Peripherals, and 2.1 analog audio
  • Supports Ultra Wide Monitors
  • DisplayPort 1.2 and HDCP compliant
  • DP++ (Dual-Mode DisplayPort) technology supports HDMI and DVI adapters4
  • Support 7.1 HD audio through DisplayPort connection5
  • Power on Detection - GCS1934M automatically switches to the next powered-on computer
  • Hot pluggable - Add or remove computers without powering down the connection
  • Mouse emulation supports most mouse drivers and multifunction mice
  • Mac® keyboard support and emulation6
  • Multilingual keyboard mapping supports English, French, and German keyboards
  • Firmware upgradable
  • All KVM and audio cables are included

Note:
1 3 Monitors setup example: Monitor #1 up to 3840 x 2160, Monitor #2 up to 2560 x 1600, Monitor #3 Up to 1920 x 1200
2 Supported alongside mouse emulation mode using a USB 3-button mouse wheel
3 DB9 to RJ-11 cable not included
4 Dual-Mode DisplayPort (DP++) requires active HDMI and DVI adapters for most display setups
5 HD audio through DisplayPort cannot be switched independently
6 PC keyboard combinations emulate Mac® keyboards.

  • Console
  • DisplayPort or HDMI compatible monitors
  • Standard 104 key wired USB keyboard
  • Standard 2 or 3 button wired USB mouse
  • Microphone and speakers (optional)
  •
  • Computers
  • DisplayPort port
  • Type-A USB port
  • Audio ports (optional)

*Use with video adapter may change performance

  • 1 x GCS1934M 4K KVMP Dual Video Out Switch
  • 4 x DisplayPort Cables - 5ft.
  • 4 x USB 3.0 Cables
  • 4 x Audio Cable Sets
  • 1 x Power Adapter
  • 1 x Manual
  • 1 x Warranty

GCS1934M Product Manual Download

GCS1934M Quick Start Guide Download

GCS1934M RS232 Product Manual Download

GCS1934M Firmware V1.1.106 Download

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS1934M
Computer Connections
Direct4
Port SelectionPushbutton, Hotkeys, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode), RS-232 Commands
Console Connectors
Monitor1 x DisplayPort; 1 x HDMI
Keyboard1 x USB Type A (Black)
Mouse1 x USB Type A (Black)
Audio2 x 3.5mm Mini Stereo Jack (Green; Front and Rear)
Microphone2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear)

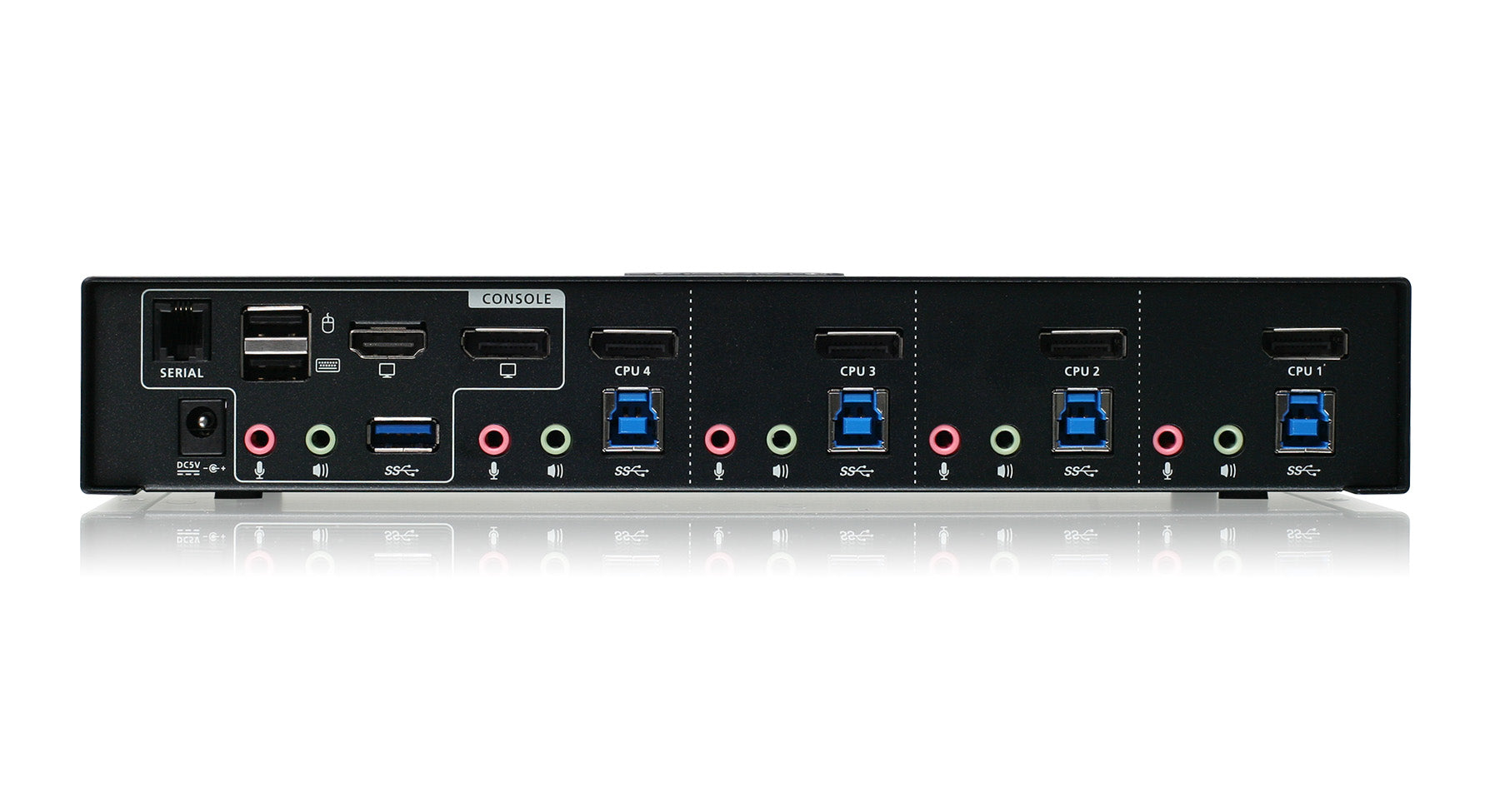

CPU Connectors
Monitor4 x DisplayPort (Black)
Keyboard & Mouse4 x USB 3.0 Type B (Blue)
Audio4 x 3.5mm Mini Stereo Jack (Green)
Microphone4 x 3.5mm Mini Stereo Jack (Pink)
Switches
F/W Upgrade1 x USB Type B
Port Selection4 x Pushbutton
Connectors
USB2 x USB 3.0 Type A (Blue; Front and Rear)
Serial1 x RJ-11 Female
LEDs
On Line4 x Orange
Selected4 x Orange
Audio4 x Orange
USB Peripherals4 x Green
Emulation
KeyboardUSB
MouseUSB
Video ResolutionUp to 4096 x 2160 @60 Hz (4K DCI)
Scan Interval1~99 seconds (5 seconds default)
Power ConsumptionDC 5V
Environment
Operation Temperature0~50 C
Storage Temperature-20~60 C
Humidity0~80% RH, Non-condensing
Housing
CaseMetal
DimensionsGCS1934M
Unit Dimensions
Height2.94" (7.47cm)
Length10.25" (26.04cm)
Depth1.69" (4.29cm)
Unit Package Dimensions
Height8.31" (21.11cm)
Width13" (33.02cm)
Depth3.88" (9.86cm)
Master Carton
Height14.25" (36.2cm)
Width17.5" (44.45cm)
Depth12.69" (32.23cm)
Master Carton Qty.6
Weight
Master Carton Wt.34.87lb (15.85kg)
Unit Pack Wt.5.46lb (2.47kg)
Unit Wt.1.9lb (0.86kg)
