KVMP 2-Port 4K DisplayPort Switch with Dual Video
UPC: 881317516480
Choose options
Cinema 4K Experience
The DisplayPort 1.2 KVMP technology delivers resolutions up to Cinema 4K (4096 x 2160) at a frame rate of 60Hz. This 2-Port 4K KVMP Switch is designed for environments requiring high graphics resolution, such as the healthcare industry, engineering, medium-sized businesses, and the federal segment. Customize your video content viewing from one (1) to two (2) monitors* - from mirror image to extended image, for a more cinematic experience. IOGEAR 4K DisplayPort KVMP Switch also enhances end-user electronics applications in diagnostic, coding, software development, application design, and forensic analysis.
Flexible Connectivity

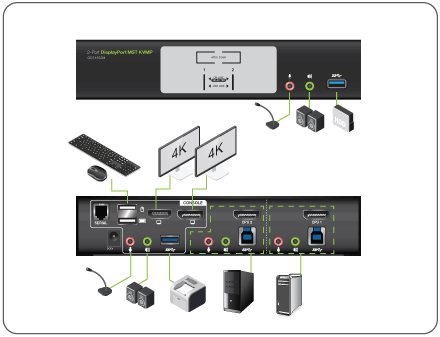

Connect your powerhouse computers and experience superior resolution while switching between two (2) DisplayPort desktops or laptop computers and sharing two (2) USB peripherals, like a keyboard and mouse with the push of a button. Work between two (2) computers with ease using a single (1) keyboard and mouse, while your viewing options include a mix of up to two HDMI or DisplayPort monitors. Expand your USB 3.0 peripherals' connectivity with faster data transfer rates while saving your desktop real state.
Convenient Switching Methods
Switch and access two DisplayPort computers from a simple push-button on the front panel, hotkeys combination on your keyboard, or 3-button USB wheel mouse. With mouse emulation turned on, quickly switch between connected computers by clicking the wheel button on your 3-button USB mouse. IOGEAR's 2-Port 4K DisplayPort KVMP Switch also offers the option to send RS-232 commands via serial port for source switching. Perfect for 911 call centers, broadcast centers, video control rooms, or any application where you need to control the KVM from a different room remotely.
Cost-Saving Solution
Avoid the plugging and unplugging wear and tear on your USB peripherals and audio devices between your two computers. Share your peripherals with the push of a button and forget about purchasing additional keyboards, mice, monitors, hard drives, flash drives, printers and more. Additionally, straightforward firmware updates eliminate the need to buy upgraded KVMP switches.
*PC source must be DP1.2 MST compliant to extend viewing. DP1.1 source supports mirror viewing only
**Requires compatible graphics cards that support three monitor extensions. Not compatible with Radeon RX560 cards.
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GCS1932M |
|---|---|
| Computer Connections | |
| Direct | 2 |
| Port Selection | Pushbuttons, Hotkey, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode), RS-232 Commands |
| Console Connectors | |
| Monitor | 1 x DisplayPort (Black); 1 x HDMI (Black) |
| Keyboard | 1 x USB Type A (Black) |
| Mouse | 1 x USB Type A (Black) |
| Audio | 2 x 3.5mm Mini Stereo Jack (Green; Front and Rear) |
| Microphone | 2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear) |
| CPU Connectors | |
| Monitor | 2 x DisplayPort (Black) |
| Keyboard & Mouse | 2 x USB 3.0 Type B (Blue) |
| Audio | 2 x 3.5mm Mini Stereo Jack (Green) |
| Microphone | 2 x 3.5mm Mini Stereo Jack (Pink) |
| Switches | |
| F/W Upgrade | 1 x USB Type B |
| Port Selection | 2 x Pushbutton |
| Connectors | |
| USB | 2 x USB 3.0 Type A (Blue; Front and Rear) |
| Serial | 1 x RJ-11 Female |
| LEDs | |
| On Line | 2 x Orange |
| Selected | 2 x Orange |
| Audio | 2 x Orange |
| USB Peripherals | 2 x Green |
| Emulation | |
| Keyboard | USB |
| Mouse | USB |
| Video Resolution | up to 4096 x 2160 @60 Hz (4K DCI) |
| Scan Interval | 1~99 seconds (5 seconds default) |
| Power Consumption | DC 5V |
| Environment | |
| Operation Temperature | 0~50 C |
| Storage Temperature | -20~60 C |
| Humidity | 0~80% RH, Non-condensing |
| Housing | |
| Case | Metal |
| Dimensions | GCS1932M |
|---|---|
| Unit Dimensions | |
| Height | 2.94" (7.47cm) |
| Length | 7.875" (20cm) |
| Depth | 1.69" (4.29cm) |
| Unit Package Dimensions | |
| Height | 6.81" (17.3cm) |
| Width | 11.25" (28.58cm) |
| Depth | 4" (10.16cm) |
| Master Carton | |
| Height | 14.75" (37.47cm) |
| Width | 12.5" (31.75cm) |
| Depth | 12" (30.48cm) |
| Master Carton Qty. | 6 |
| Weight | |
| Master Carton Wt. | 24.7lb (11.24kg) |
| Unit Pack Wt. | 3.68lb (1.67kg) |
| Unit Wt. | 1.45lb (0.66kg) |
