4-port DualView Mini DisplayPort KVMP Switch with Peripheral Sharing (TAA Compliant)
UPC: 881317509338
Choose options
4-Port DualView Mini DisplayPort KVMP Switch with Peripheral Sharing

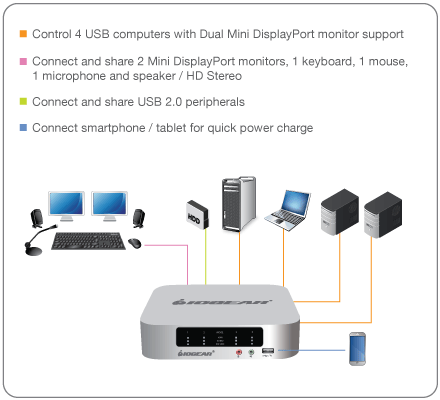

The 4-port USB 2.0 Mini DisplayPort Dual View KVMP Switch, GCS1924, charts a revolutionary new direction in KVM switch functionality by combining a 4-port Mini DisplayPort dual view switch with a 2-port USB 2.0 hub. This 4-port Mini DisplayPort KVMP Switch allows users to access 4 computers from a single USB keyboard, USB mouse, and dual-view Mini-DisplayPort console monitors. The built in USB 2.0 hub allows each computer to access connected peripherals on a one-computer-at-a-time basis. GCS1924’s independent switching feature allows the KVM focus to be on one computer while the USB peripheral focus is on another. This eliminates the need to purchase a separate USB hub as well as the need to purchase separate stand-alone peripheral sharing switch.
Superb Video Resolution
GCS1924 further improve on previous KVM designs with latest Mini-DisplayPort and Mini-TOSLINK connectors. It provides the capability of digital video & audio to the computers with ultra-high resolution up to 2560x1600; and up to 3840x2160 @24Hz for special monitors (mostly in the medical field); or a 3D display 1920x1080 resolution @120Hz, and vivid picture quality and a surround sound SPDIF connection.
GCS1924 is designed with the same footprint as Mac Mini, so you can stack 4 Mac Mini directly on top of GCS1924, saving precious desk space.
Need more help with this product? Visit IOGEAR Knowledge Base
| Distributor | Part # |
|---|---|
| Ingram | PJ8661 |
| DH | GCS1924 |
| Synnex | 3312227 |
| SKU | ECCN |
|---|---|
| GCS1924 | EAR99 |
| Function | GCS1924 |
|---|---|
| Computer Connections | |
| Direct | 4 |
| Port Selection | Hotkeys or TouchPanel |
| Console Connectors | |
| Monitor | 2 x Mini DisplayPort |
| Keyboard | 1 x USB Type A Female |
| Mouse | 1 x USB Type A Female |
| Audio | 1 x Mini Stereo Jack Female (Green) |
| Microphone | 1 x Mini Stereo Jack Female (Pink) |
| CPU Connectors | |
| Monitor | 8 x Mini DisplayPort |
| Keyboard | 4 x USB Type B Female |
| Mouse | 4 x USB Type B Female |
| Audio | 4 x Mini Stereo Jack Female (Green) |
| Microphone | 4 x Mini Stereo Jack Female (Pink) |
| Dimensions | GCS1924 |
|---|---|
| Unit Dimensions | |
| Height | 1.7 in. [4.2 cm] |
| Length | 7.8 in. [19.7 cm] |
| Depth | 7.8 in. [19.7 cm] |
| Unit Package Dimensions | |
| Height | 10.4 in. [26.5 cm] |
| Length | 10.6 in. [27.0 cm] |
| Width | 5.0 in. [12.7 cm] |
| Master Carton | |
| Height | 15.9 in. [40.4 cm] |
| Width | 11.6 in. [29.4 cm] |
| Depth | 21.6 in. [54.9 cm] |
| Master Carton Qty. | 6 |
| Weight | |
| Master Carton Wt. | 33.7 lbs [15.3 kg] |
| Unit Pack Wt. | 4.7 lbs [2.1 kg] |
| Unit Wt. w/accessories | 1.3 lbs [0.6 kg] |
| Unit Wt. | 1.6 lbs [0.7 kg] |
