2 Port Desktop KVMs

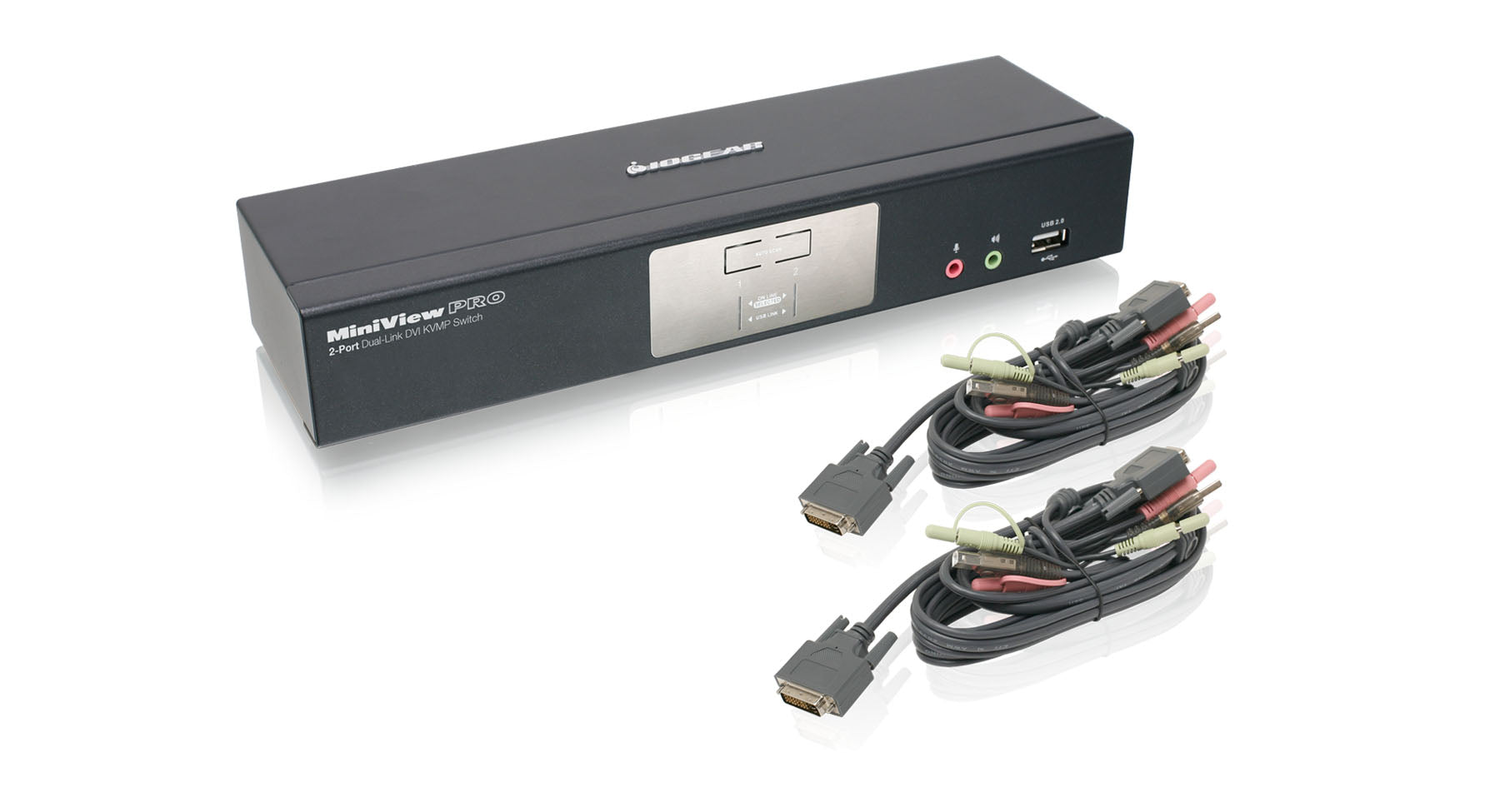

2-Port Dual-Link DVI KVMP Pro with 7.1 Audio (TAA)

EOL
MPN: GCS1782G

UPC: 881317508553

This product is EOL and is no longer being sold.
Sale price$219.95

  • Share two computers using a keyboard, mouse and DVI monitor (2560x1600) with 7.1 surround sound. Cables included.

2-Port Dual-Link DVI KVMP Pro with 7.1 Audio

IOGEAR's 2-port Dual-Link DVI KVMP switch with 7.1 audio supports high-end 3D graphics support (NVIDIA® 3D Vision Ready), compatible with most gaming keyboards. The integrated 2-port USB 2.0 hub allows for peripheral sharing. Experience up to 2560 x 1600 video resolution on two computers and share multiple USB peripherals from a single keyboard, monitor, and mouse console.

EDID Support

This 2-Port DVI KVM switch features IOGEAR's DynaSync™* technology, enabling the KVMP to read and remember the monitor's optimal display (EDID) parameters and refresh rate. This is a critical function in today's graphic intense applications where large wide screen displays (up to 30") are required.

Convenient Switching Method

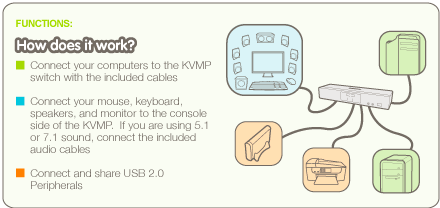

Switching between computers can be done in three convenient ways:

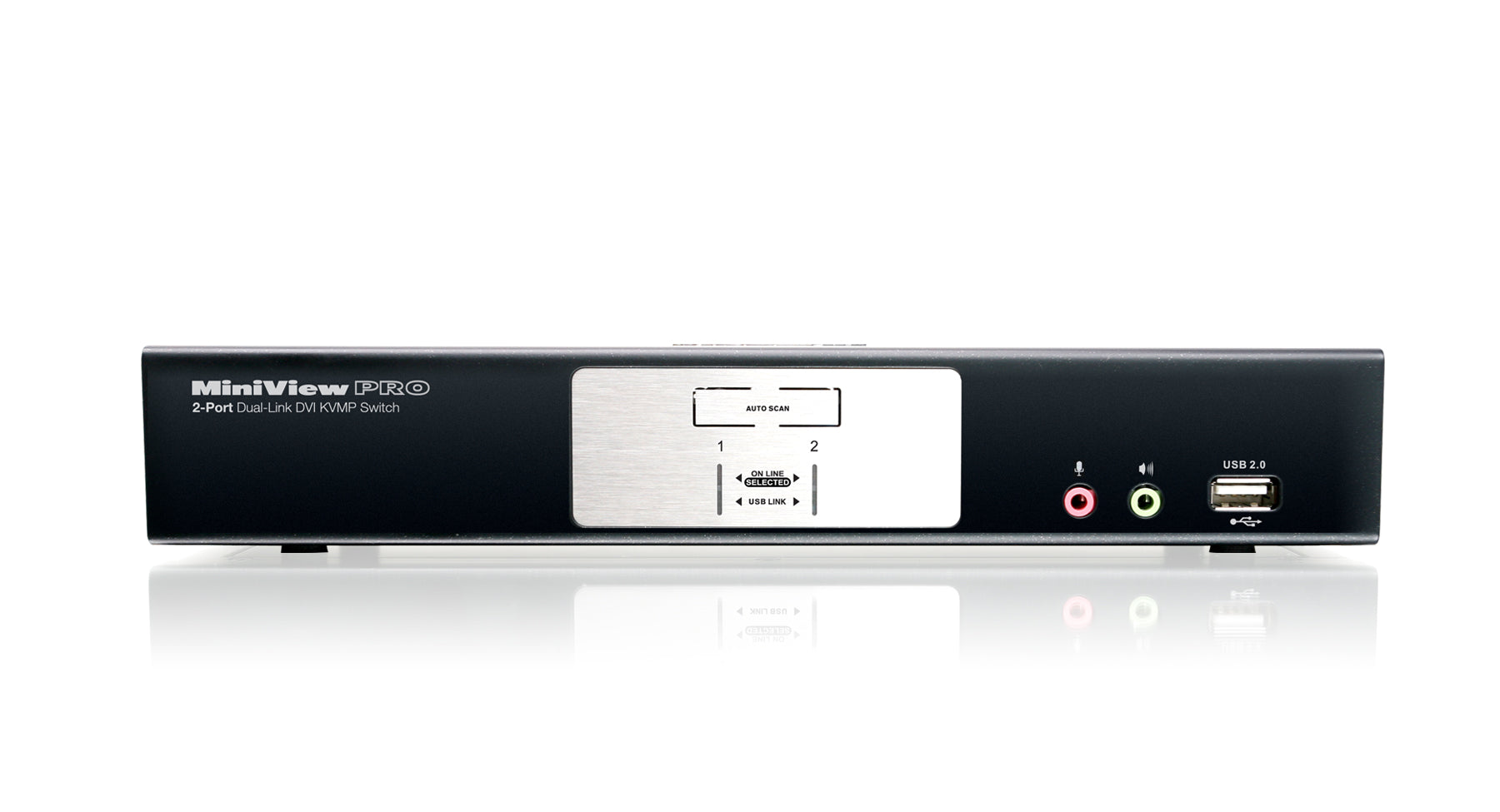

  1. Push button port selection located on the unit's front panel
  2. "Hotkey" combinations entered from the keyboard
  3. Mouse** port switching

High Video Resolution Solution

This powerful 2-Port Dual-Link DVI KVMP will increase efficiency and save equipment cost for applications where ultra-high video resolution, large or widescreen monitors are required such as:

  • CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing)
  • Desktop Publishing / Graphic Design / Video Editing
  • Medical / Surgical / Diagnostic Displays
  • And High-End Gaming, where high and ultra-high video resolution is demanded.

4K UHD Resolution

Achieve 3840 x 2160 @30Hz 4K UHD Resolution with this Dual-Link DVI KVM Switch using IOGEAR’s 4K HDMI to DVI-D Converter Cable GHDDVIC4K3. With this reversible 4K cable, you may use 4K source and project to 4K monitor, without the need to upgrade your Dual-Link DVI KVM switch setup.

Increase Efficiency from One Workstation

The patented asynchronous switching allows the user to independently switch applications between the connected computers. You can run one application on one computer while running another application on the other. Moreover, the integrated 2-port USB 2.0 hub is available for each computer to share multiple peripherals connected to the hub or via an external powered USB 2.0 hub. Access to such peripherals is performed on a one-at-a-time basis.

7.1 Surround Sound

Share 7.1 surround sound audio between two computers. Connect powered desktop speakers for stereo sound and a single microphone for audio input/output to each computer.

Secure Access and Control

This 2-port KVM also offers a cost-effective solution to increase security by allowing users to switch between the Internet connected PC and an Intranet connected PC.


*IOGEAR's DynaSync provides the EDID support for Windows 7
**Only on 3-button wheel mouse

  • Share a professional quality monitor between two USB, DVI computers

Maximum video resolutions:

  • 4K UHD: 3840 x 2160 @30Hz1
  • DVI-D Dual link: 2560 x 1600
  • DVI-D Single link: 1920 x 1200

  • Increase security for your intranet by separating a PC connected to the Internet and a PC connected to an Intranet
  • DynaSync2 technology reads and remembers the monitor's parameters to eliminate delay or change of video resolution when switching between or booting computers
  • Compatible with gaming keyboards
  • Supports high-end 3D graphics
  • Share a 7.1 surround sound system between two computers
  • 2-port USB 2.0 peripheral hub to share printers or external hard drives
  • Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
  • Complete keyboard and mouse emulation for error free booting and real-time switching
  • Mouse emulation may be disabled to allow programmable buttons to function
  • Supports MAC keyboard and special keys
  • Firmware upgradeable
  • All cables are included

1Use with IOGEAR's 4K cable GHDDVIC4K3, 4K sources, and 4K monitor
2IOGEAR’s DynaSync provides EDID support for Windows

Console:

  • 1 x DVI display
  • 1 x standard 104 key wired USB keyboard
  • 1 x standard 2 or 3 button wired USB mouse

Computers:

  • 1 x DVI port
  • 1 x USB port

Operating Systems:

  • Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
  • Mac OS 9 to 10.x
  • Oracle® Solaris
  • Linux®, Unix and other USB supported systems*

*Additional drivers and support may be needed
**IOGEAR’s DynaSync provides the EDID support for Windows(R) 7

  • 1 x 2-Port Dual-Link DVI KVMP Pro with 7.1 Audio
  • 2 x Dual-Link DVI-D KVM Cable
  • 2 x 7.1 Audio Cable
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Warranty Card

GCS1782G Firmware V 1.0.079 Download

Release Date: 12/05/2016

Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

Distributor Part #
Ingram GF9749
DH GCS1782G
Synnex 2959473
SKU ECCN
GCS1782G EAR99
FunctionGCS1782G
Computer Connections
Direct2
Port SelectionHotkey, Push Button
Console Connectors
Mouse1 x USB Type A Female
Keyboard1 x USB Type A Female
Monitor1 x Dual Link DVI-I Female
Flash ROM Upgrade1 x 4-conductor 3.5mm Jack (Black)
Connectors-Audio(console)
Center/Subwoofer1 x Mini Stereo Jack Female (Orange)
Line In1 x Mini Stereo Jack Female (Blue)
Line Out1 x Mini Stereo Jack Female (Green)
Microphone1 x Mini Stereo Jack Female (Pink)
Rear Speaker Out1 x Mini Stereo Jack Female (Black)
Side Speaker Out1 x Mini Stereo Jack Female (Grey)

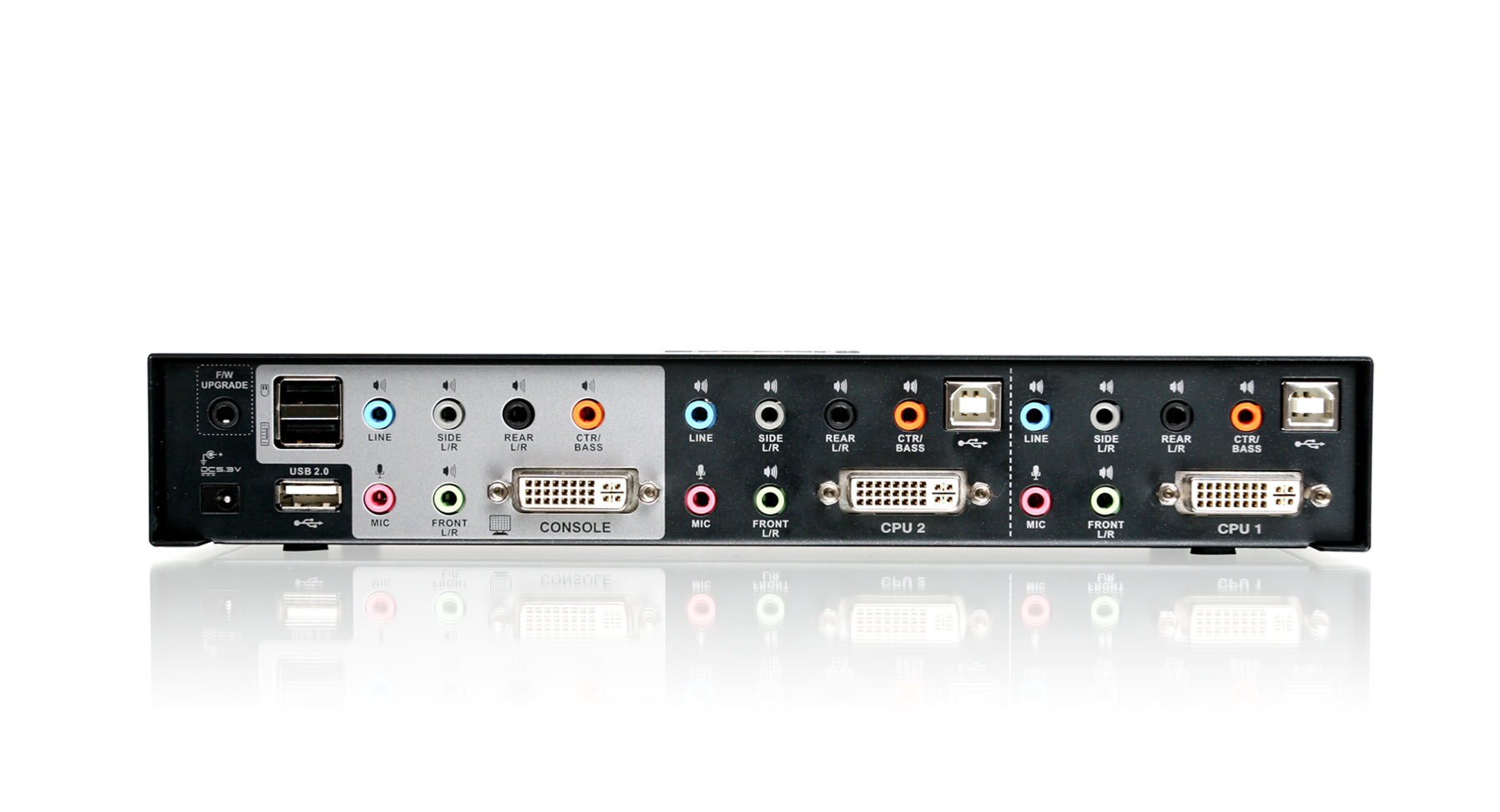

CPU Connectors
Keyboard & Mouse2 x USB Type B Female
Monitor2 x Dual Link DVI-I Female
Connectors-Audio(CPU)
Center/Subwoofer1 x Mini Stereo Jack Female (Orange)
Line In1 x Mini Stereo Jack Female (Blue)
Line Out1 x Mini Stereo Jack Female (Green)
Microphone1 x Mini Stereo Jack Female (Pink)
Rear Speaker Out1 x Mini Stereo Jack Female (Black)
Side Speaker Out1 x Mini Stereo Jack Female (Grey)
Peripheral Sharing2 x USB 2.0 Type A Female
LEDs
Selected2 (Orange)
USB Peripherals2 (Green)
Emulation
KeyboardUSB
MouseUSB
Video Resolution4K UHD: 3840 x 2160 @30Hz (use with GHDDVIC4K3, 4K sources, and 4K monitors); DVI-D: 2560x1600 @60Hz (Dual Link); 1920x1200 @60Hz (Single Link); 3840x2400 @13Hz (Single Link - with special monitors only); DVI-A: 2048x1536; DDC2B
Scan Interval1-99 sec (5 sec default)
Power
VoltageDC 5.3V
Amps2.4A
Environment
Operation Temperature0~50?C
Storage Temperature-20~60?C
Humidity0~80% RH, Non-condensing
Housing
CaseMetal
DimensionsGCS1782G
Unit Dimensions
Width10in
Height1.5in
Depth2.75in
Unit Package Dimensions
Width13.0 in
Height8.5in
Depth4in
Master Carton
Width15.75in
Height9.5in
Depth 13.5 in
Master Carton Qty.3 ea.
Weight
Master Carton Wt.17.83lbs
Unit Pack Wt.5.44lbs
Unit Wt. w/accessories4.6 lbs
Unit Wt.1.84Lbs
