Secure KVMs

4-Port HDMI Secure KVM Switch (TAA)


UPC: 881317516251

This product is EOL and is no longer being sold.
Sale price$699.95

  • NIAP-Certified PP3.0
    Validated to Protection Profile v3.0 for Peripheral Sharing Switches
  • CAC & Biometrics Support
    Dedicated peripheral port for authorized CAC readers only and supported Biometrics readers
  • 4-Port HDMI Secure KVM Switch
    One USB console controls 4 secure computers

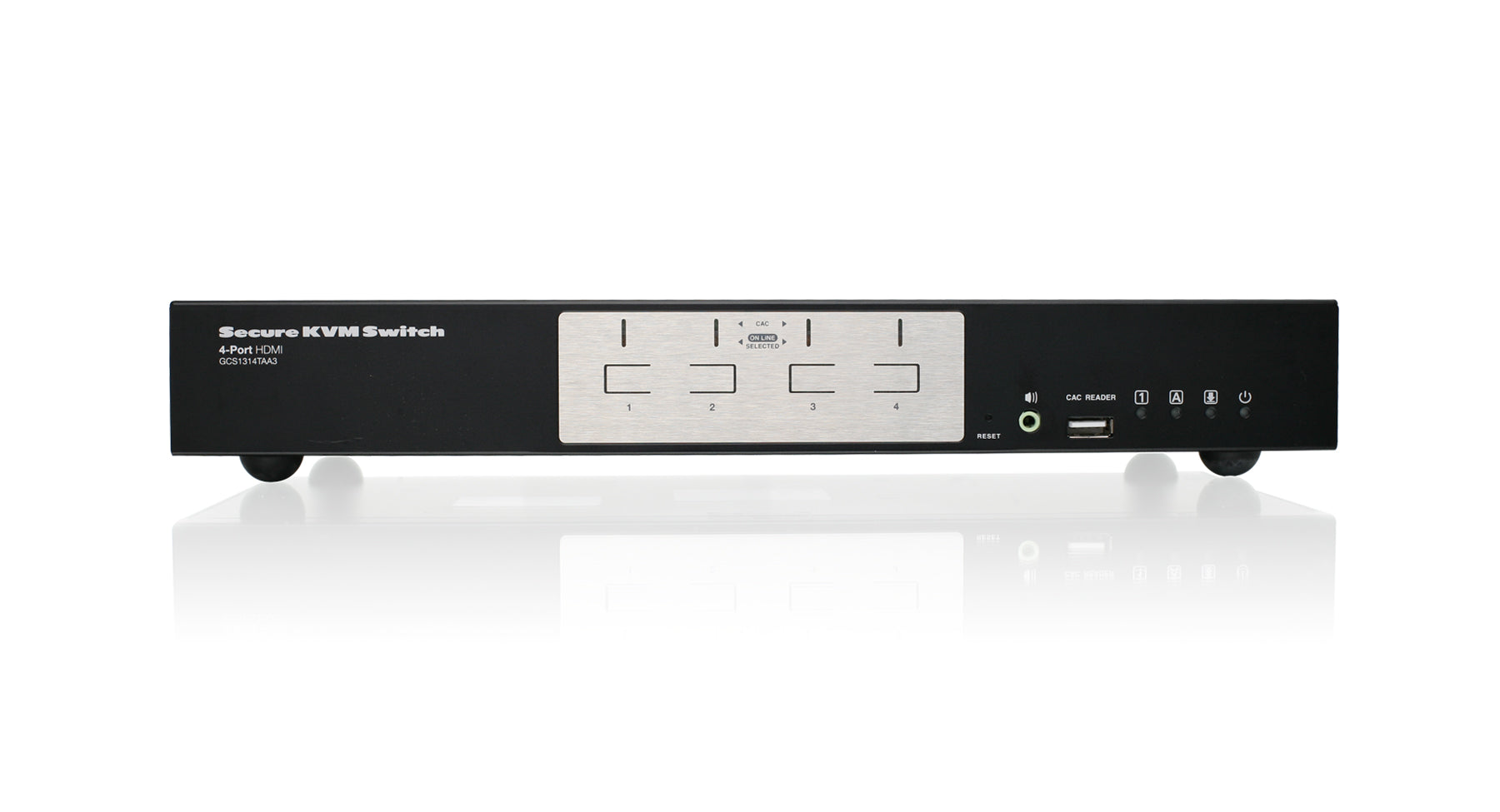

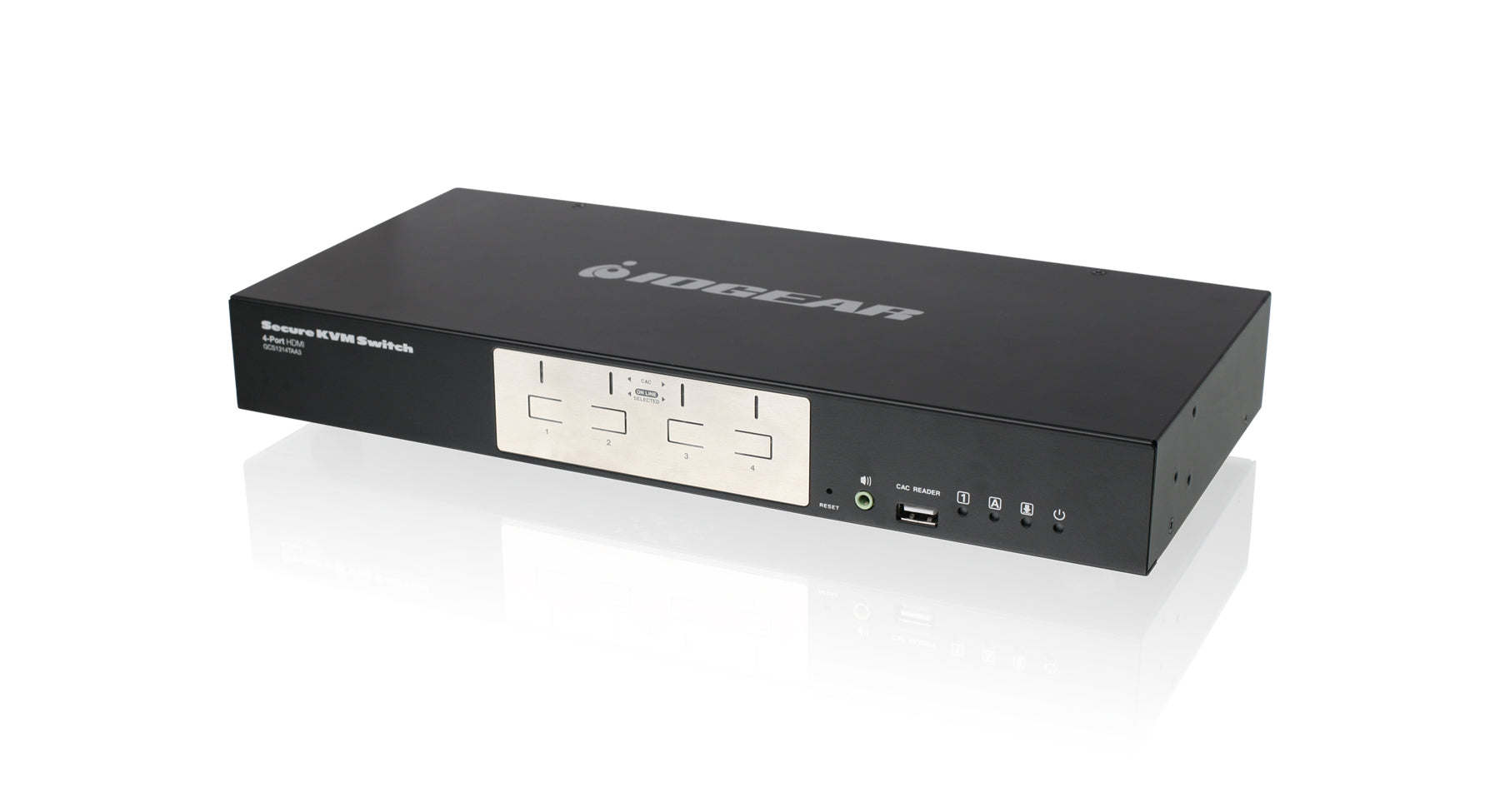

4-Port Secure HDMI KVM Computer Switch - Protection Profile 3.0

IOGEAR's 4-Port HDMI Secure KVM Switch is NIAP-certified and compliant with PP3.0 (Protection Profile for Peripheral Sharing Switch version 3.0) requirements, satisfying the latest security requisites set by the U.S. Department of Defense for peripheral sharing switches.

Common criteria compliance ensures maximum information security while sharing a single set of approved HIDs - keyboards, mice, speakers, CAC readers, and Microsoft Biometric Readers - between multiple computers. Conformity with Protection Profile v3.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the Secure KVM, providing high-level security, protection, and data safekeeping.

Active Tamper-Proof System

The IOGEAR Secure KVM Switch's hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Embedded software security allows administrators to grant controlled USB port access for keyboards, mice and other devices while ignoring commands from non-HIDs when switching between ports. The onboard software restricts mouse and hotkey commands while clearing the keyboard's buffer when switching ports while ensuring data travels isolated on each port preventing exposure.

With the combination of physical and software security, IOGEAR Secure KVM series consolidates multiple workstations with varying security classification levels using one keyboard, monitor, and mouse (KVM) console.

Superior Video Quality

The 4-Port HDMI Secure KVM supports a single view display and exceptional 4K Ultra-HD resolutions to 3840 x 2160 @ 30Hz.

  • NIAP-Certified PP3.0
    Validated to Protection Profile v3.0 for Peripheral Sharing Switches
  • CAC & Biometrics Support
    Dedicated peripheral port for authorized CAC readers only and supported Biometrics readers1
  • 4-Port HDMI Secure KVM Switch
    One USB console controls 4 secure computers
  • Superior 4K UHD Video Resolution
  • 1920 x 1080 (FHD); 4K UHD Resolution: 3840 x 2160 @30Hz
  • Port Selection via Push-Button for Enhanced Security
    Keyboard restrictions - OSD & hotkey methods are not allowed
  • Isolated Channel per Port
    Unidirectional data flow restricts data leakage between connected computers
  • Active Chassis Intrusion Detection
    Compromising the unit's cover renders the switch inoperable
  • Tamper-Evident Seals
    Visually detect attempts to gain access to switch's internal components
  • Tamper-Proof Hardware
    Integrated circuits are soldered directly onto the circuit board to hinder component sabotage
  • Non-Reprogrammable Firmware
    Prevents tampering and attempts to reprogram the switch's firmware
  • Clears Keyboard Buffer
    Data clears automatically after transmission to switch and resets
  • Analog Speaker Support
  • Secure audio data input does not convert digital audio to analog audio
  • Multiplatform Support
    Windows® 2000, Vista, 7, 8, 8.1, 10, Linux, Mac OS X, & Sun
  • Rugged Metal Enclosure
    Durable, Full Metal Chassis
  • Build-In, Internal Power Supply

1Compatible with Microsoft® LifeCam HD-3000 and Microsoft Fingerprint Reader. Please contact your Administrator for CAC and Biometric Reader authorization.

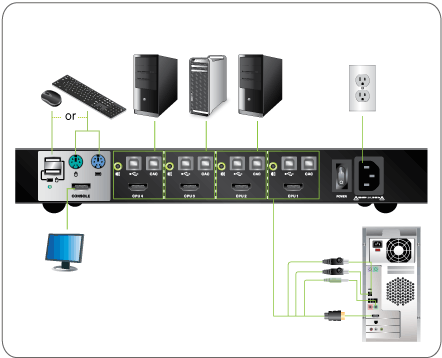

  • HDMI monitor capable of the highest resolution that you will be using on any computer in the installation
  • Standard 104-key wired USB or PS/2 keyboard
  • Standard 2 or 3 button wired USB or PS/2 mouse
  • Speaker (optional)

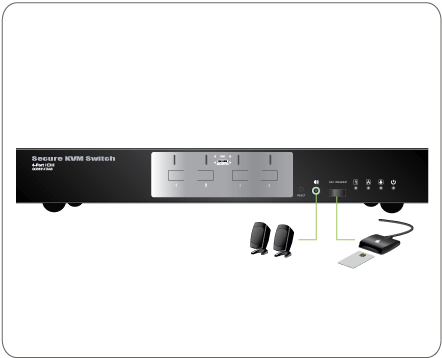

  • USB Smart card or CAC (Common Access Card) reader (Optional)



  • An HDMI Video output connector
  • A USB Type A port for keyboard and mouse
  • A USB Type A port for Smart Card or CAC reader (Optional)
  • A 3.5mm jack Audio port for speaker (Optional)



  • Do not attach cables that has microphone or line-in audio input


Operating Systems

  • Windows 2000, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10
  • Linux: Kernel 2.6+, RedHat v6.0+, SuSE v8.2+. Mandriva (Mandrake) v9.0+
  • UNIX: AIX v4.3+, FreeBSD v3.51+, Sun Solaris v9+
  • Novell Netware v5.0+
  • Mac OS v9+
  • DOS v6.2+
  • 1 x 4-Port Single View HDMI Secure KVM Switch
  • 1 x Power Cord
  • 1 x Manual
  • 1 x Warranty

Need more help with this product? Visit IOGEAR Knowledge Base

Computer Connections
Console Connection1 Direct
Port SelectionPushbutton
Console Connectors
Monitor1 x HDMI 1.4 Female (Black)
Keyboard1 x 6-pin Mini-DIN Female (Purple); 1 x USB Type-A Female (Black)
Mouse1 x 6-pin Mini-DIN Female (Green); 1 x USB Type-A Female (Black)
Audio1 x Mini Stereo 3.5mm Jack Female (Green)
CAC1 x USB Type-A Female (Black)
CPU Connectors
Monitor4 x HDMI 1.4 Female (Black)
Keyboard & Mouse4 x USB Type-B Female (White)
Audio4 x Mini Stereo 3.5mm Jack Female (Green)
CAC4 x USB Type-B Female (White)
F/W UpgradeN/A
Port Selection4 x Pushbuttons
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker
On Line4 x Orange
Selected4 x Orange
CAC4 x Green
Power On1 x Blue
Key Lock3 x Green (Num Lock, Caps Lock, Scroll Lock)
Console Video1 x Green (Rear Panel)
Video ResolutionMax. 3840 x 2160 @30Hz (UHD); 1920 x 1080 (FHD)
Scan IntervalN/A
Voltage100 - 240V, 50 - 60Hz
Operation Temperature0 - 50C
Storage Temperature-20 - 60C
Humidity0 - 80% RH, Non-condensing
Unit Dimensions
Height1.75" (4.45cm)
Length13.25" (33.66cm)
Depth6.063" (15.4cm)
Unit Package Dimensions
Height4.75" (12.07cm)
Width16.25" (41.27cm)
Depth8.25" (20.96cm)
Master Carton
Height9.5" (24.13cm)
Width17" (43.18cm)
Depth15" (38.1cm)
Master Carton Qty.3
Master Carton Wt.16.55lb (7.52kg)
Unit Pack Wt.4.70lb (2.14kg)
Unit Wt.3.74lb (1.70kg)
