Secure KVM

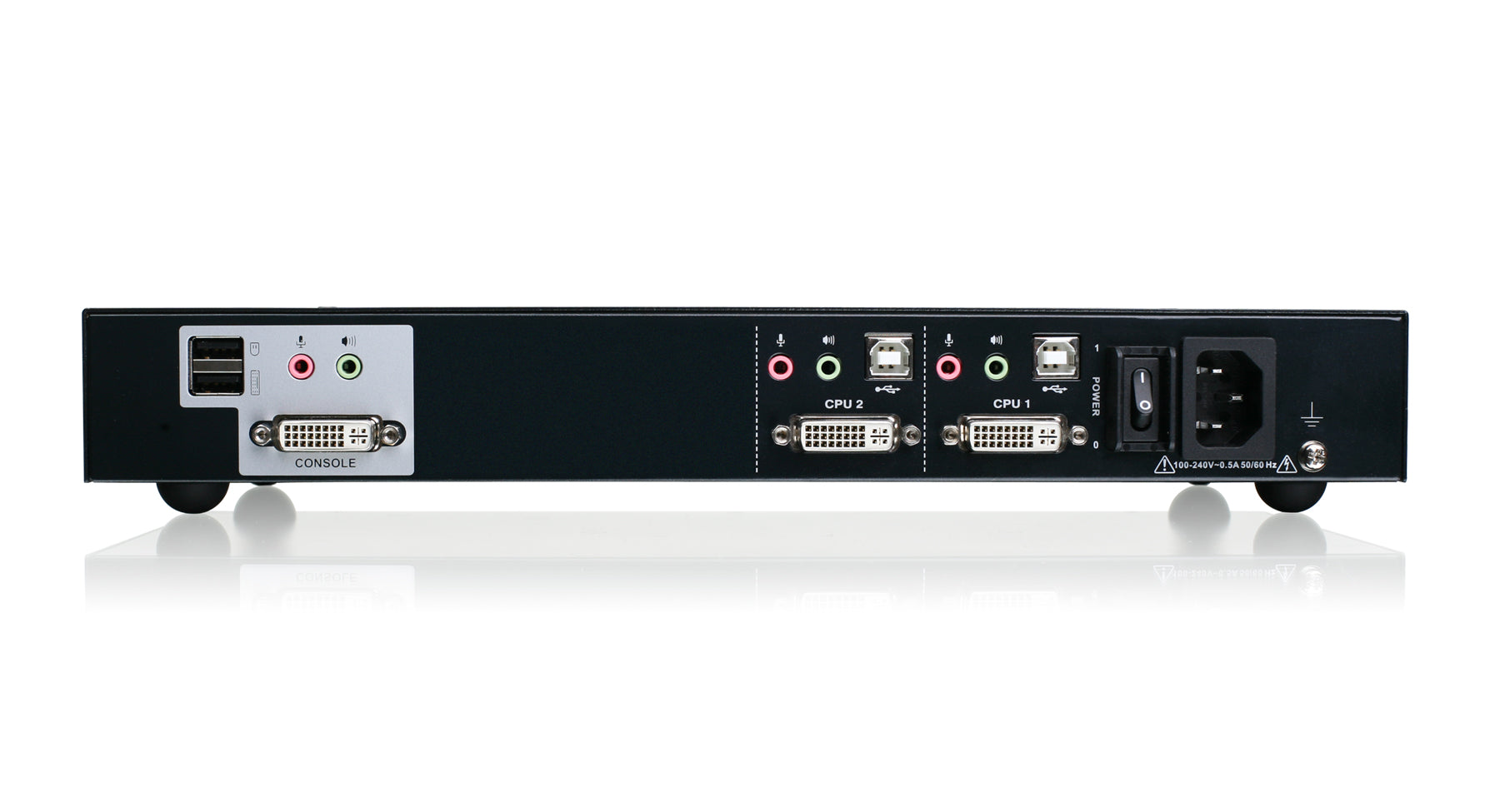

2-Port Dual-Link DVI Secure KVM Switch (TAA)

MPN: GCS1212TAA

UPC: 881317508652

This product is EOL and is no longer being sold.
Sale price$549.95

2 Port Dual-Link DVI KVMP with 2.1 Sound Audio

2 Port Dual Link DVI Secure KVM Switch
The IOGEAR 2-port USB DVI Dual-Link Secure KVM Switch allows one USB console to control 2 computers and offers additional security features for government and military environment where security is imperative. The IOGEAR GCS1212TAA is NIAP-CERTIFIED - Validated to EAL2+ security requirements, with Peripheral Sharing Switch Protection Profile v2.1., and TAA Compliant.

GCS1212TAA supports CAC readers, but does not support any storage related devices such as thumb drives, portable hard drives and memory card readers. The support of CAC readers is not covered by the NIAP certification.

NIAP Certified / Common Criteria Certified
NIAP announced the new strategy to verify all peripheral switches such as KVMs to EAL 2+, in September 07, 2010. The new strategy also updated Peripheral Sharing Switch Protection Profile to v2.1. The Protection Profile specifies U.S. Department of Defense minimum-security requirements for peripheral switches; which enable a single set of human interface devices to be shared between multiple computers. (Refer to the NIAP U.S. Government Approved Protection Profiles website http://www.niap-ccevs.org/pp/, and the NIAP Products and Protection Profiles in Evaluation website http://www.niap-ccevs.org/in_evaluation/)

Additional hardware security includes tamper-evident tape, chassis intrusion detection, and tamper-proof hardware, while software security includes restricted USB connectivity – non HIDs (Human Interface Devices) are ignored when switching – an isolated channel per port that makes it impossible for data to be transferred between secure and unsecure computers, and automatic clearing of the keyboard and mouse buffer.
By combining physical security with controlled USB connectivity, the GCS1212TAA gives you the means to consolidate multiple workstations of various security classification levels with one keyboard, monitor and mouse (KVM) console.

Note:

1. The National Information Assurance Partnership (NIAP) is a United States government initiative to meet the security testing needs of IT consumers and manufacturers. It is operated by the National Security Agency (NSA) and the National Institute of Standards and Technology (NIST).

2. The GCS1212TAA additionally satisfies Evaluation Assurance Level 2 (EAL2+) requirements for Peripheral Sharing Switch (PSS) for Human Interface Devices Protection Profile v2.1. (Refer to the NIAP U.S. Government Approved Protection Profiles website http://www.niap-ccevs.org/pp/, and the NIAP Products and Protection Profiles in Evaluation website http://www.niap-ccevs.org/in_evaluation/)

3. IOGEAR Secure KVMs are TAA compliant.

  • 2-PORT USB DUAL-LINK DVI SECURE KVM SWITCH
    One USB console controls 2 secure computers
  • PORT SELECTION VIA PUSHBUTTON ONLY TO ENHANCE SECURITY
    (OSD, hotkey methods are not allowed)
  • NIAP-CERTIFIED
    Validated to EAL2+ security requirements
  • ISOLATED CHANNEL PER PORT
    Makes it impossible for data to be transferred between computers
  • TAMPER-EVIDENT TAPE
    Provides a visual indication of any attempt to gain access to the switch's internal components
  • CHASSIS INTRUSION DETECTION
    If the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
  • TAMPER-PROOF HARDWARE
    All integrated circuits are soldered directly to the circuit board to prevent tampering with the components
  • NON-REPROGRAMMABLE ROM
    Prevents tampering and attempts to reprogram the switch's firmware
  • CLEARS KEYBOARD BUFFER
    Keyboard data is automatically cleared after transmission to the switch
  • MULTIPLATFORM SUPPORT
    Windows 2000 / XP / Vista / 7, Linux, Mac, & Sun
  • SUPERIOR VIDEO QUALITY
    2560 x 1600 (DVI Dual-Link), 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
  • RUGGED METAL ENCLOSURE
  • BUILT-IN INTERNAL POWER
  • SPEAKER AND MICROPHONE SUPPORT
  • CAC READER SUPPORT
    Supports CAC readers, but does not support any storage related devices such as thumb drives, portable hard drives and memory card readers. The support of CAC readers is not covered by the NIAP certification.

Console:

  • DVI monitor
  • USB keyboard and mouse
  • Speakers and microphone

Computers:

  • DVI port - Single or Dual-Link DVI video card
  • Type "A" USB port

Operating Systems:

  • Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
  • Mac OS 9 to 10.x
  • Oracle® Solaris
  • Linux, UNIX and other USB supported systems*

*Additional drivers and support may be needed

**Dual-Link DVI-D USB 2.0 TAA compliant KVM Cables sold separately (G2L7D02UDTAA, G2L7D03UDTAA, G2L7D05UDTAA)

  • 1 x 2-Port Dual-Link DVI Secure KVM Switch
  • 1 x Power Cord
  • 1 x User Manual
  • 1 x Registration Form

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS1212TAA
CPU Connectors
MouseUSB
KeyboardUSB
MonitorDual Link DVI
MicrophoneYes
Audio2.1
Console Connectors
MouseUSB
KeyboardUSB
MonitorDual Link DVI
MicrophoneYes
Audio2.1
Power
Voltage5 Vdc
Amps2 A
LEDs
SelectedBright Orange
On LineDim Orange
Auto ScanBlinking Orange
USB PeripheralsGreen
Port SelectionFront-Panel Pushbutton
Connectors
Video InputDual Link DVI
Video OutputDual Link DVI
Video Resolution2560 x 1600 (DVI Dual-Link), 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
DimensionsGCS1212TAA
Unit Dimensions
Width6.0 in [15.5 cm]
Height1.75 in [4.4 cm]
Length13.1 in [33.4 cm]
Unit Package Dimensions
Width17 in. [43.2 cm]
Height3.5 in. [8.9 cm]
Depth8.75 in. [22.2 cm]
Master Carton
Width17.5 in. [44.5 cm]
Height9.5 in. [24.1 cm]
Depth11.5 in [29.2 cm]
Master Carton Qty.3
Weight
Master Carton Wt.16 lbs. [7.3 kg]
Unit Wt.3.65 lbs. [1.7 kg]
Physical Properties
Unit Weight3.65 lbs. [1.7 kg]
HousingMetal
Unit Weight with package4.85 lbs. [2.2kg]
