4 Port Desktop KVMs

4-Port Dual-Link DVI KVMP Pro (TAA Compliant)

EOL
MPN: GCS1204G

UPC: 881317508546

This product is EOL and is no longer being sold.
Sale price$269.95

IOGEAR's 4-port Dual-Link DVI KVMP switch with 2.1 audio supports high-end 3D graphics support (NVIDIA® 3D Vision Ready), compatible with most gaming keyboards.

4-Port Dual-Link DVI KVMP Pro with 2.1 Audio

IOGEAR's 4-port Dual-Link DVI KVMP switch with 2.1 audio supports high-end 3D graphics support (NVIDIA® 3D Vision Ready), compatible with most gaming keyboards. The integrated 2-port USB 2.0 hub allows for peripheral sharing. Experience up to 2560 x 1600 video resolution on four computers and share multiple USB peripherals from a single keyboard, monitor, and mouse console.

EDID Support

This 4-Port DVI KVM switch features IOGEAR's DynaSync™* technology, enabling the KVMP to read and remember the monitor's optimal display (EDID) parameters and refresh rate. This is a critical function in today's graphic intense applications where large wide screen displays (up to 30") are required.

Convenient Switching Method

Switching between computers can be done in three convenient ways:

  1. Push button port selection located on the unit's front panel
  2. "Hotkey" combinations entered from the keyboard
  3. Mouse** port switching

High Video Resolution Solution

This powerful 4-Port Dual-Link DVI KVMP will increase efficiency and save equipment cost for applications where ultra-high video resolution, large or widescreen monitors are required such as:

  • CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing)
  • Desktop Publishing / Graphic Design / Video Editing
  • Medical / Surgical / Diagnostic Displays
  • And High-End Gaming, where high and ultra-high video resolution is demanded.

4K UHD Resolution

Achieve 3840 x 2160 @30Hz 4K UHD Resolution with this Dual-Link DVI KVM Switch using IOGEAR’s 4K HDMI to DVI-D Converter Cable GHDDVIC4K3. With this reversible 4K cable, you may use 4K source and project to 4K monitors, without the need to upgrade your Dual-Link DVI KVM switch setup.

Increase Efficiency from One Workstation

The patented asynchronous switching allows the user to independently switch applications between the connected computers. You can run one application on one computer while running another application on the other. Moreover, the integrated 2-port USB 2.0 hub is available for each computer to share multiple peripherals connected to the hub or via an external powered USB 2.0 hub. Access to such peripherals is performed on a one-at-a-time basis.

2.1 Surround Sound

Share 2.1 surround sound audio between two computers. Connect powered desktop speakers for stereo sound and a single microphone for audio input/output to each computer.

Secure Access and Control

This 4-port KVM also offers a cost-effective solution to increase security by allowing users to switch between the Internet connected PC and an Intranet connected PC.


*IOGEAR’s DynaSync provides the EDID support for Windows 7

**Only 3-button wheel mouse

  • Share a professional quality monitor between four USB / DVI computers
  • Maximum video resolutions:
  • DynaSync™ - Reads and remembers the monitor's parameters to eliminate delay or change of video resolution when switching between, or booting computers2
  • Compatible with gaming keyboards
  • Supports high-end 3D graphics
  • Audio support for 2.0 or 2.1 Audio
  • 2-port USB 2.0 peripheral hub to share printers or external hard drives
  • Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
  • Complete keyboard and mouse emulation for error free booting and real-time switching
  • Mouse emulation may be disabled to allow programmable buttons to function
  • Support Mac keyboard and special keys
  • All cables are included
  • Firmware Upgradable

1Use with IOGEAR's 4K cable GHDDVIC4K3, 4K sources, and 4K monitor

2IOGEAR's DynaSync provides the EDID support for Windows 7 OS

Console:

  • 1 x DVI Display
  • 1 x Standard 104 key wired USB keyboard
  • 1 x Standard 2 or 3 button wired USB mouse
  • Microphone and speakers (optional)

Computers:

  • DVI Port
  • USB Port
  • Audio ports (optional)

Operating Systems:

  • Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
  • Mac OS 9 to 10.x
  • Oracle® Solaris
  • Linux®, Unix and other USB supported systems*

*Additional drivers and support may be needed

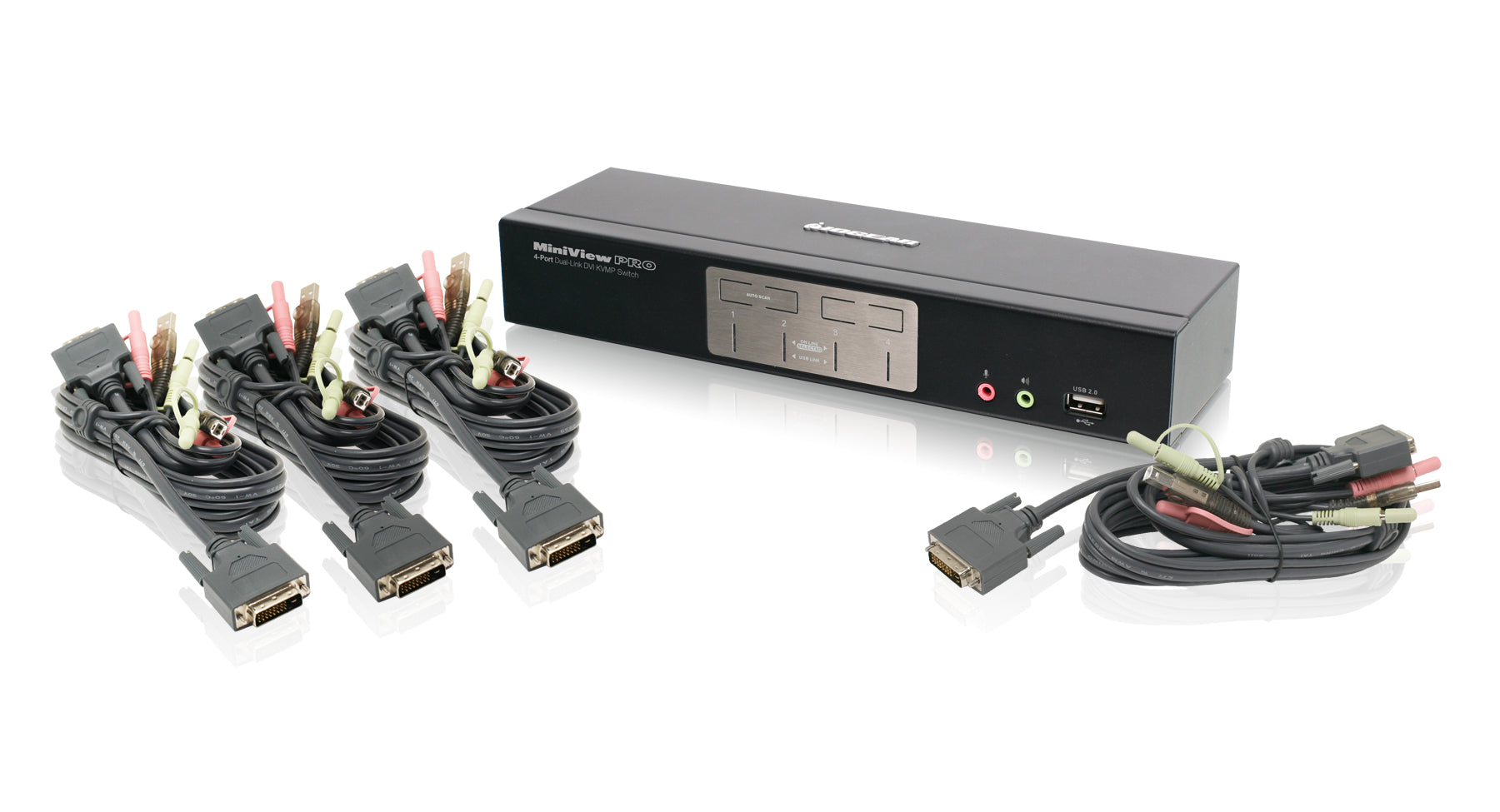

  • 1 x 4-Port Dual-Link DVI KVMP Pro
  • 4 x Custom KVM Cables (6ft)
  • 1 x Power Adapter
  • 1 x User Manual
  • 1 x Registration Card

GCS1204G Firmware V 1.0.079 Download

Release Date: 12/05/2016

Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

Distributor Part #
Ingram KD2846
DH GCS1204G
Synnex 2970614
SKU ECCN
GCS1204G EAR99
FunctionGCS1204G

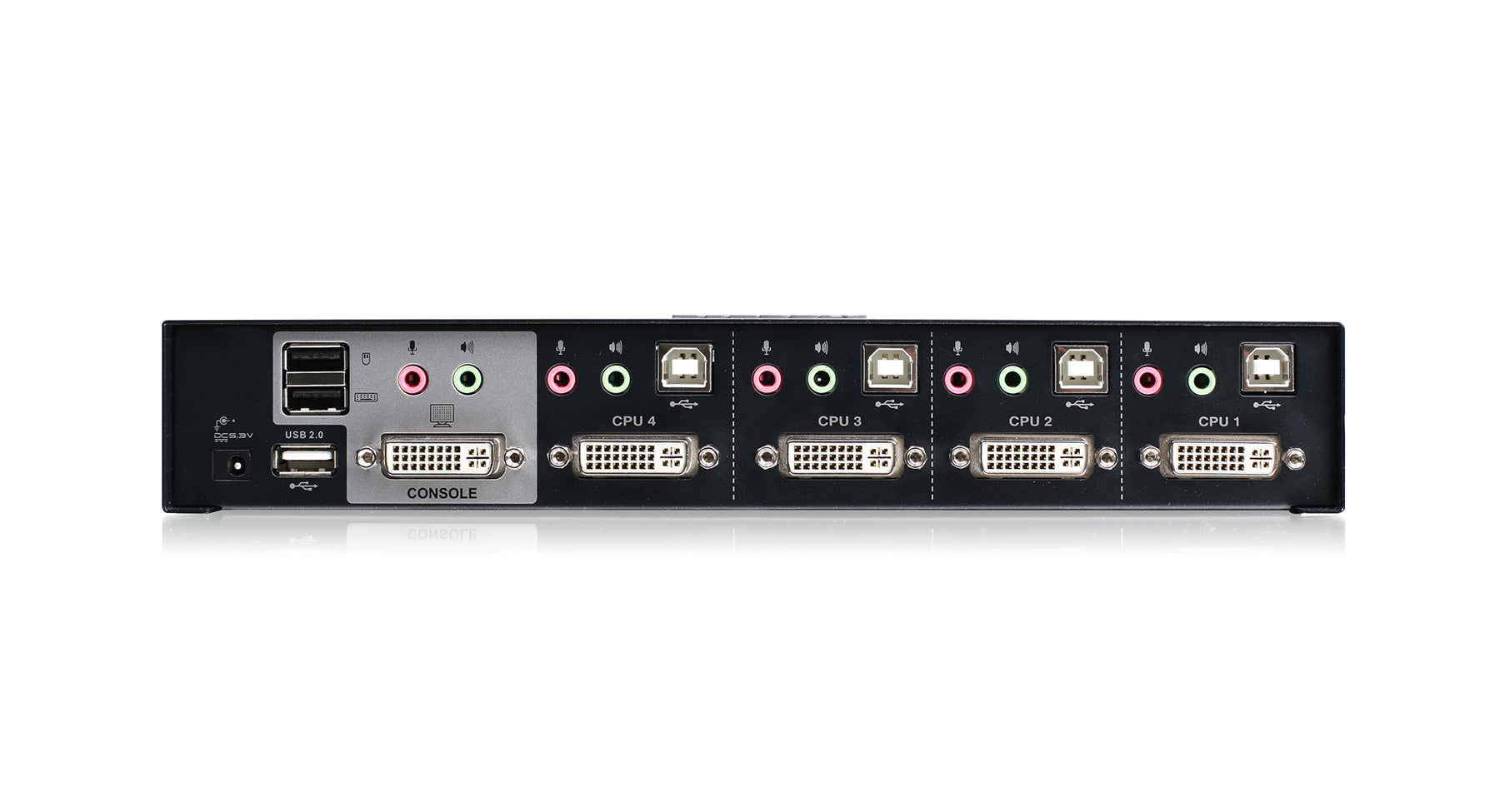

CPU Connectors
MouseUSB
KeyboardUSB
Monitor4 x Dual-Link DVI Female
Microphone4 x 3.5mm Stereo Jack (Pink)
Audio4 x 3.5mm Stereo Jack (Green)
Keyboard & Mouse4 x USB Type-B Female
Console Connectors
Mouse1 x USB Type-A Female
Keyboard1 x USB Type-A Female
Monitor1 x Dual-Link DVI Female
Microphone1 x 3.5mm Stereo Jack (Pink)
Audio1 x 3.5mm Stereo Jack (Green)
Power
VoltageDC 5.3V
Amps2.4A
LEDs
SelectedBright Orange
On LineDim Orange
Auto ScanBlinking Orange
USB PeripheralsGreen
Port SelectionHotkey, Pushbutton, or 3-button Mouse (mouse emulation on)
Connectors
Video InputDual Link DVI
Video OutputDual Link DVI
Scan Interval0~80% RH, Non-condensing
Video Resolution4K UHD: 3840 x 2160 @30Hz (use with GHDDVIC4K3, 4K sources, and 4K monitors); DVI-D: 2560x1600 @60Hz (Dual Link); 1920x1200 @60Hz (Single Link); DVI-A: 2048x1536; DDC2B
DimensionsGCS1204G
Unit Dimensions
Width10.2 in [26 cm]
Height1.6 in [4.1cm]
Depth2.9 in [7.4 cm]
Unit Package Dimensions
Width12.9 in [32.8 cm]
Height8.4 in [21.3 cm]
Depth4.0 in [10.2 cm]
Master Carton
Width13.7 in [32.8 cm]
Height9.4 in [23.9 cm]
Depth12.9 in [32.8 cm]
Master Carton Qty.3 ea.
Weight
Master Carton Wt.23 lbs [10.4 kg]
Unit Pack Wt.7.2 lbs [ 3.3 kg]
Unit Wt. w/accessories6.4 lbs [2.9 kg]
Unit Wt.2.0 lbs [.9 kg]
