2 Port DVI KVM w/cables & Wireless Keyboard/Mouse Combo (TAA)
UPC: 881317506283
Choose options
The GCS1102-KM1 is a special combo which combines the power of IOGEAR's popular 2-Port DVI KVMP USB Switch and the long range 2.4GHz wireless media center keyboard and mouse. This allows you to work wirelessly across all 2 computers attached to the KVMP for an efficient and convenient working station.

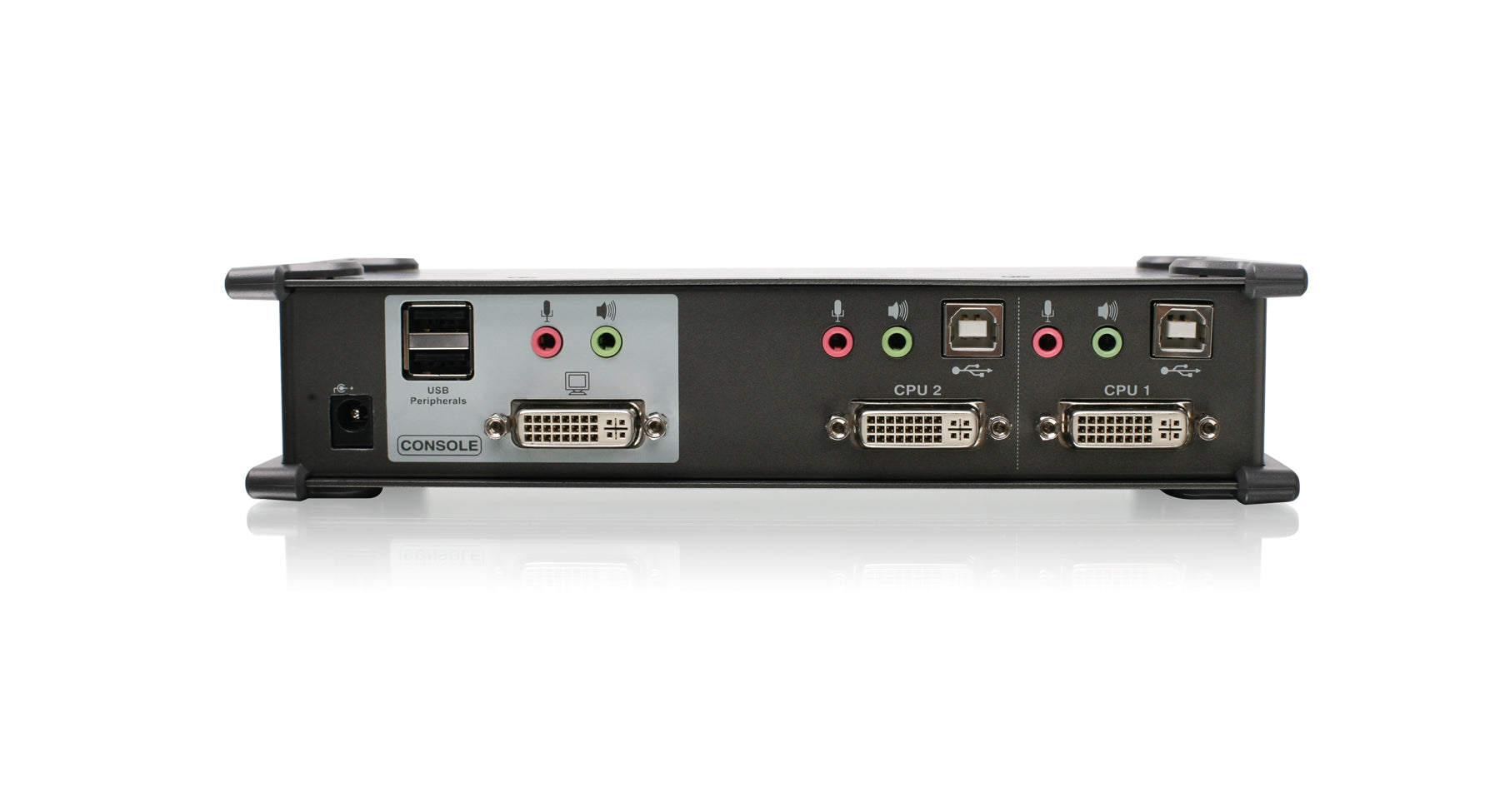

GCS1102 DVI KVMP USB Switch w/ USB and audio cables
The IOGEAR DVI KVMP Switch GCS1102 switch charts a revolutionary new direction in KVM switch functionality by combining a 2-port USB KVM switch with USB peripheral sharing capability.

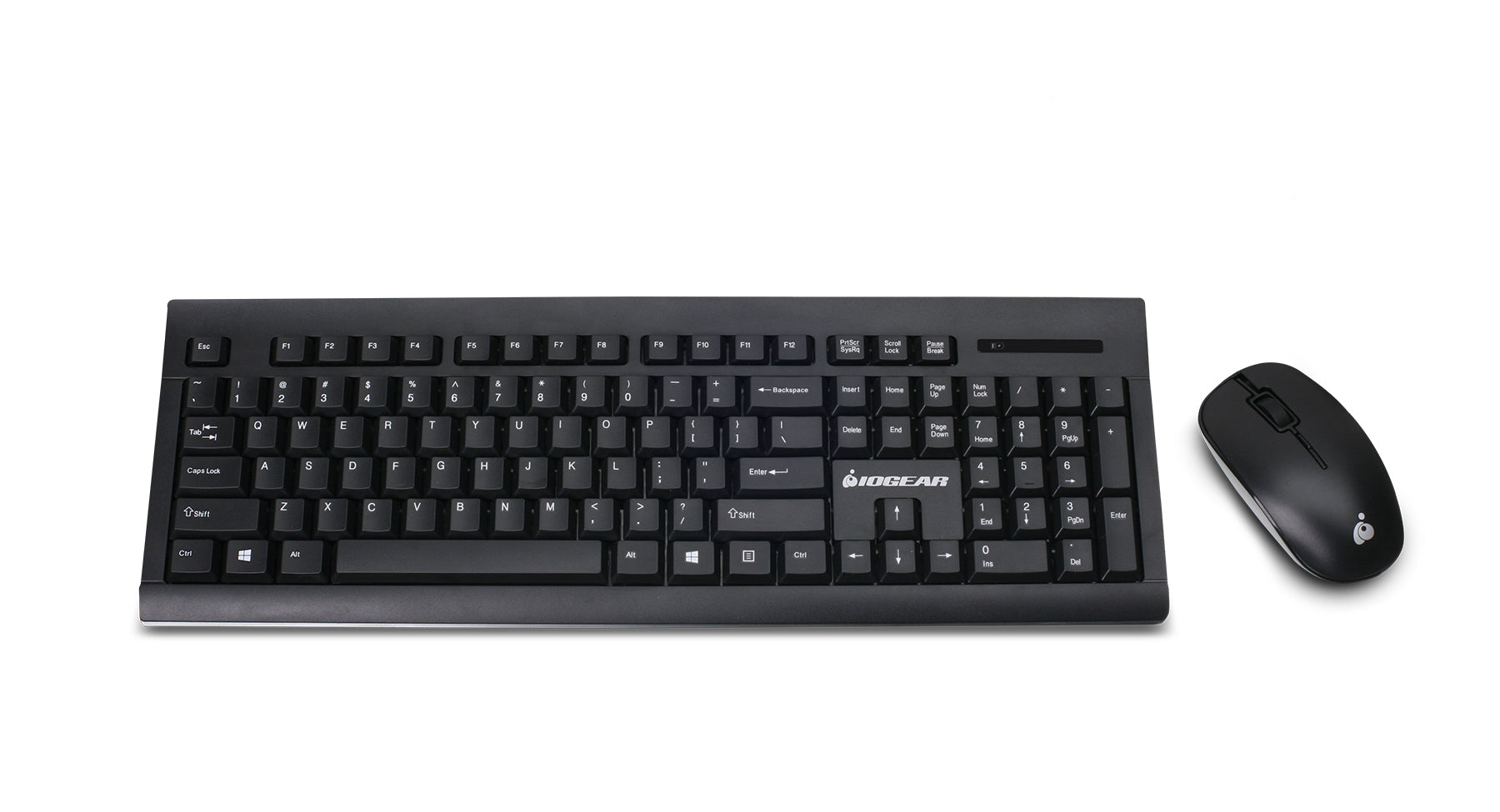

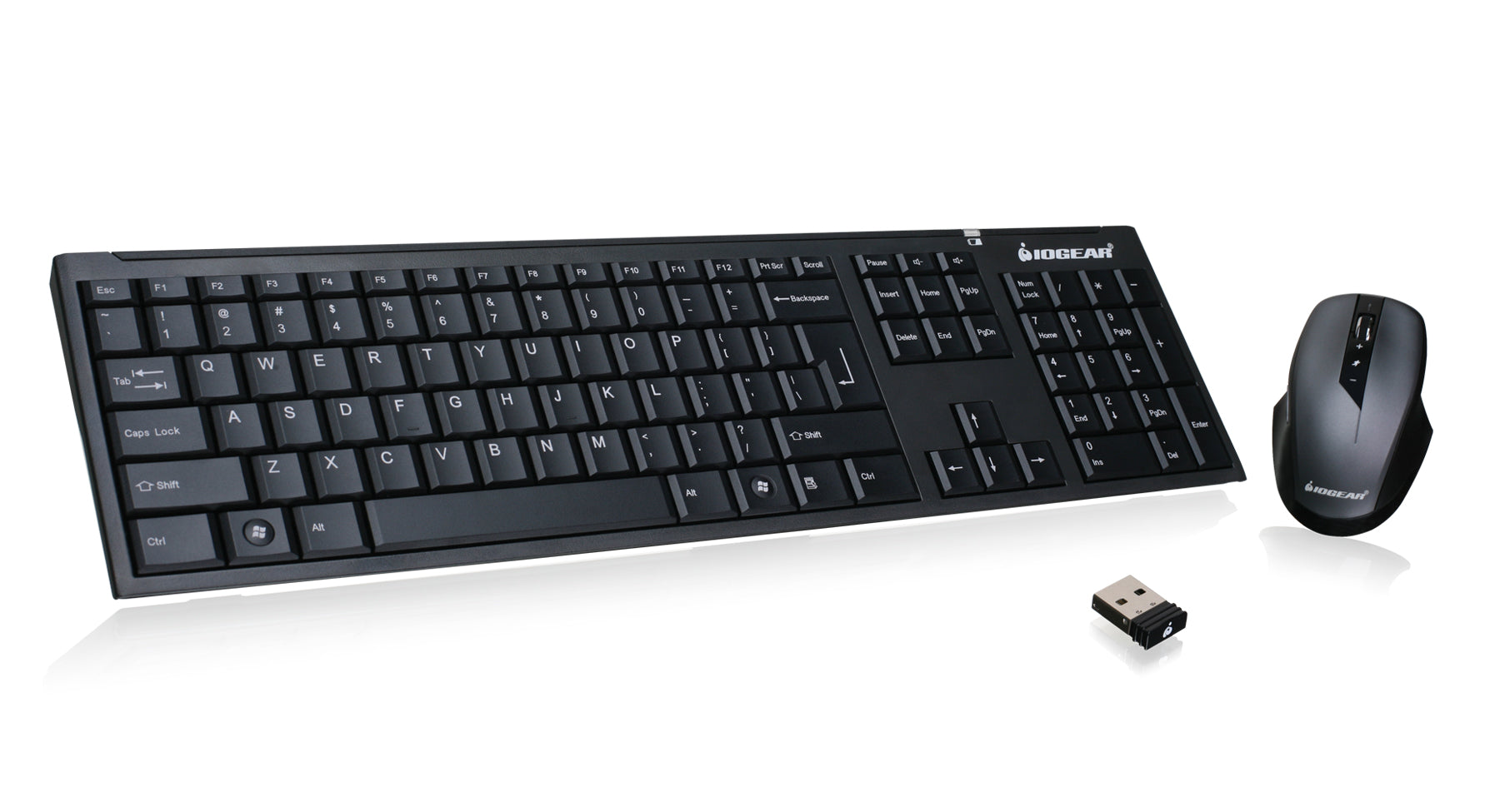

GKM552R Long Range 2.4GHz Wireless Keyboard and Mouse Combo
IOGEAR's ultra-thin 2.4GHz long range media center keyboard with laser mouse allows you to work up to 33ft away from the USB receiver connected to your computer or KVM. The laser mouse provides great accuracy requiring minimal hand movement due to its 800-dpi resolution.
- Dual function KVMP / USB switch
- One console controls 2 computers
- Control your computers up to 33ft away with the reliable 2.4GHz bi-directional technology keyboard and laser mouse *
- Conveniently switch USB peripheral devices independently from one computer to another using hotkeys
- Media Center hot keys offer quick access to your media tasks such as "My TV", playback and volume control
- IOGEAR's DynaSync Technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers**
- Independent (asynchronous) switching of KVM and peripheral USB / audio ports
- KVM Fully compliant with the USB 2.0 specification
- DVI digital and analog monitor support
- Computer selection via front panel switches or hot keys
- LED display for easy status monitoring
- Auto Scan Mode for monitoring all computers
- Complete keyboard emulation for error free booting
- Superior Video quality - 1920 x 1200 @ 60Hz; DDC2B
- Hot Pluggable - Add or remove computers for maintenance without powering down the switch
- Supports Windows and Mac host systems
- Compatible with most wireless keyboards and mice
- USB Firmware upgradeable
*Depending on available inventory the included keyboard/mouse will be either GKM551R or GKM552R
**IOGEAR’s DynaSync Technology provides the EDID support for Windows 7
- Console:
- DVI monitor
- Computer:
- DVI port
- Type "A" USB port
- Audio ports
- Operating Systems:
- Windows XP®, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1
- Mac OS 9 to 10.x
- Oracle® Solaris
- Linux®
- 1 x 2-Port DVI KVMP Switch
- 1 x 2.4GHz Wireless Keyboard and Mouse Combo
- 2 x USB DVI-D KVM Cables
- 1 x Power Adapter
- 1 x Installation Guide
- 1 x Quick Start Guide
- 2 x Warranty Card
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GCS1102-KM1 |
|---|---|
| Computer Connections | |
| Direct | 2 |
| Port Selection | Front Panel Pushbutton; Hotkey |
| Connectors | |
| Power | 1 x DC Jack |
| USB | 2 x USB 2.0 Type A Female |
| Console Connectors | |
| Monitor | 1 x DVI-I Female |
| Keyboard | 1 x USB Type A Female |
| Mouse | 1 x USB Type A Female |
| Audio | 1 x 3.5mm Mini Stereo Jack (Green) |
| Microphone | 1 x 3.5mm Mini Stereo Jack (Pink) |
| CPU Connectors | |
| Monitor | 2 x DVI-I Female |
| Keyboard & Mouse | 2 x USB Type B Female |
| Audio | 2 x 3.5mm Mini Stereo Jack (Green) |
| Microphone | 2 x 3.5mm Mini Stereo Jack (Green) |
| Switches | |
| Port Selection | 2 x Pushbutton |
| LEDs | |
| On Line | 2 (Orange) |
| USB Peripherals | 2 (Green) |
| Emulation | |
| Keyboard | USB |
| Mouse | USB |
| Video Resolution | Up to 1920x1200@60Hz;DDC2B |
| Scan Interval | 1-99 Seconds (Default at 5 Seconds) |
| Power | |
| Voltage | DC 5.3V |
| Amps | 2.4A |
| Environment | |
| Operation Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| Humidity | 0~80% RH; Non-condensing |
| Housing | |
| Case | Metal |
| Dimensions | GCS1102-KM1 |
|---|---|
| Master Carton | |
| Width | 10in. |
| Height | 9in. |
| Depth | 22in. |
| Master Carton Qty. | 1 |
| Weight | |
| Master Carton Wt. | 8lb |
