8-Port LCD KVM Console

8-Port 19" LCD KVM Drawer (TAA Compliant)

MPN: GCL1908

UPC: 881317512888

This product is EOL and is no longer being sold.
Sale price$1,249.95

IOGEAR's GCL1908 is an integrated LCD console with an 8-port KVM (keyboard, video, and mouse) switch that offers secure access to 8 VGA, USB or PS/2 computers.

8-Port 19" LCD KVM Drawer (TAA Compliant)
8-Port 19" LCD KVM Drawer (TAA Compliant) Sale price$1,249.95

8-Port KVM LCD Console

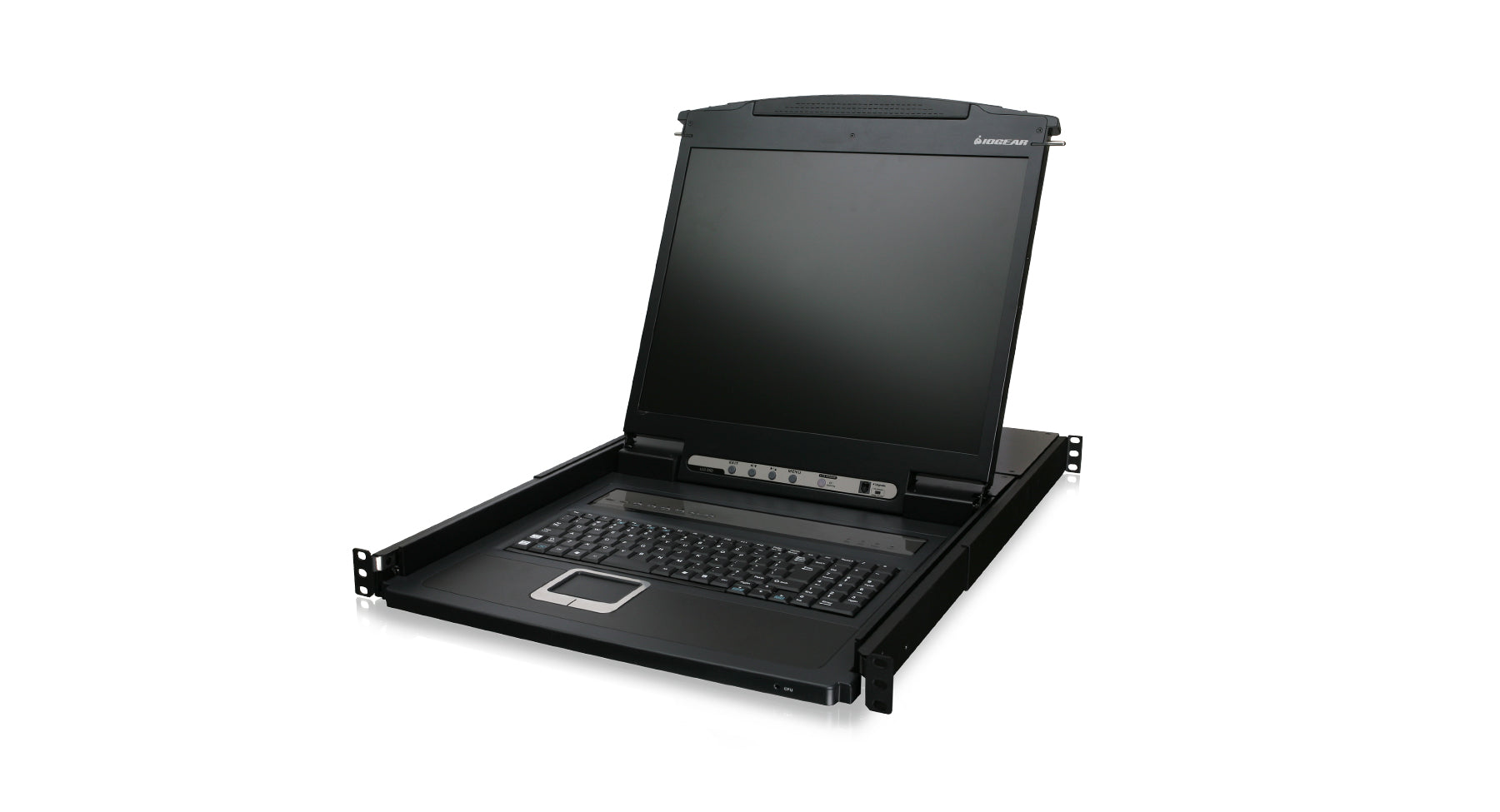

IOGEAR's GCL1908 is an integrated LCD console with an 8-port KVM (keyboard, video, and mouse) switch that offers secure access to 8 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 19" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. The GCL1908 fits into a universal 1U rack mount space.

The GCL1908 supports both PS/2 and USB keyboards and mice for the connected computers and supports USB peripheral devices for the attached computers. A single GCL1908 can control up to 8 computers, but as many as 8 additional compatible KVM switches can be cascaded to reach up to 128 computers* controlled from a single keyboard, monitor and mouse console.


  • It increases space, productivity, and provides an energy cost saving solution
  • It contributes to a greener environment by reducing the amount of waste generated by multiple components
  • An easy and efficient way to organize and streamline a growing or expanding server operation

*Can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models

  • Integrated 8-port KVM console featuring a 19" TFT LCD active-matrix monitor, keyboard and touchpad
  • 1280x1024 resolution on 19" rack mount LCD provides a sharp video display
  • Adjustable mounting rail to fit different sizes of racks
  • Multiplatform OS support - Windows®, Mac and Linux®
  • Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on-screen display) and hotkeys
  • Auto Scan Mode to monitor connected computers
  • External USB or PS/2 with VGA Console port
  • Support special keys on Mac and Sun keyboards
  • Cascade up to 2 levels - control up to 128 computers from a single console*
  • Security - 2 level password protection for OSD
  • DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
  • Rack mountable in a 19" (1U) system rack
  • Firmware upgradeable
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B

*Can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models


  • VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini-DIN) or 1 USB port

Operating Systems:

• Windows® XP, Windows Vista®, Windows® 7*, Windows® 8, Windows® 8.1, Windows® 10
• Mac OS 9 to 10.x
• Oracle® Solaris
• Linux, Unix and other USB supported systems **
**Additional drivers and support may be needed
*IOGEAR’s DynaSync provides the EDID support for Windows® 7

  • 1 x 8-Port 19" LCD KVM
  • 1 x PS/2 KVM Cable
  • 1 x USB KVM Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Standard Long Rack Mount Kit (Fits 27.6~41.3 Inch Depth)
  • 1 x Power Cord
  • 1 x Quick Start Guide
  • 1 x Warranty Card

GCL1908 Firmware V 1.2.113 Download

Release Date: 05/06/2020

Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

Distributor Part #
Ingram YZ3796
DH GCL1908
Synnex 4162239
GCL1908 5A992

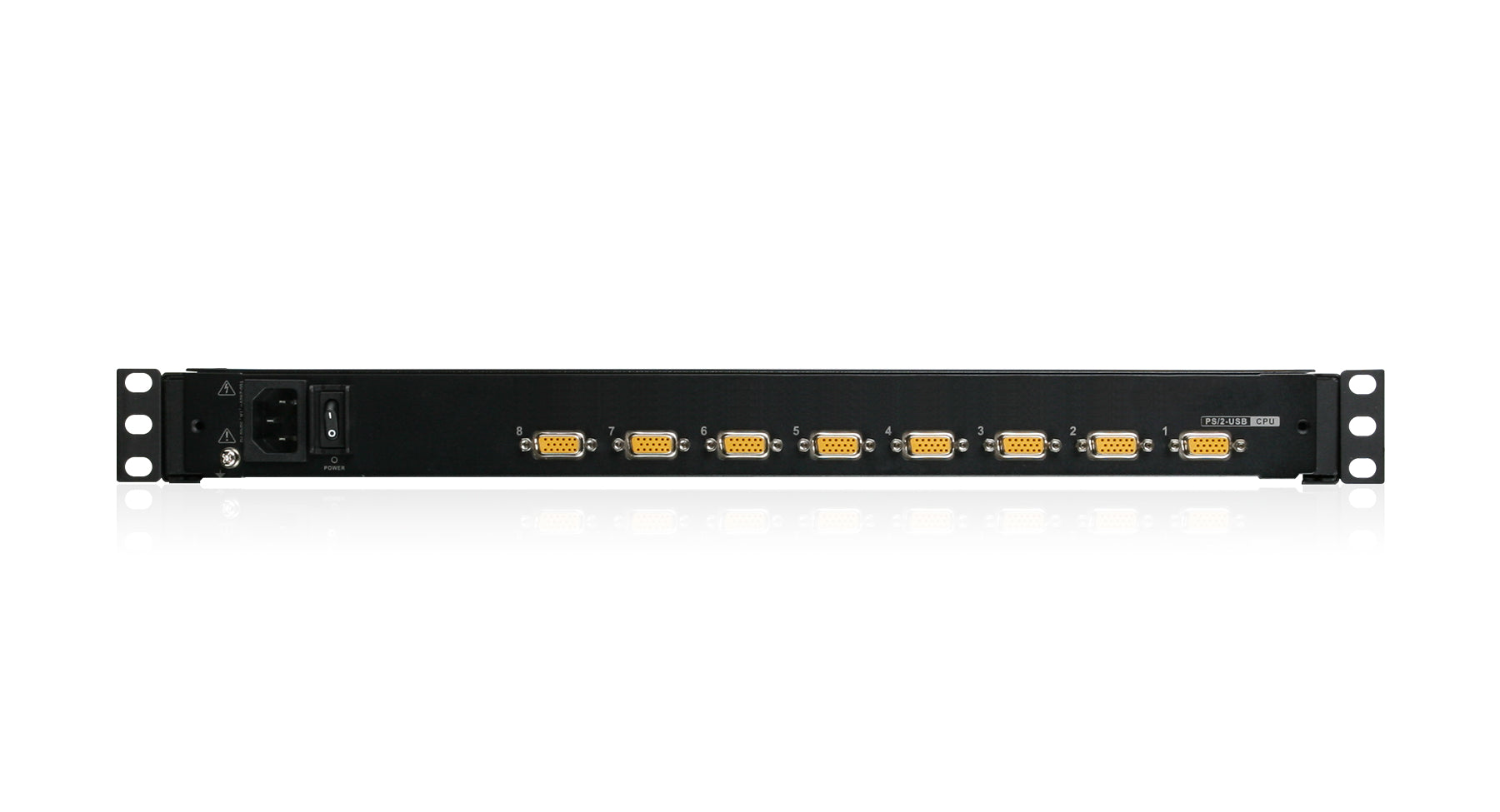

Computer Connections
Daisy Chain or Cascading128 (via Cascade)
Power1 x 3-Prong AC Socket
Computer/KVM8 x SPHD-17 Female (Yellow)
F/W Upgrade1 x Slide Switch
Port Selection8 x Pushbutton
Power1 x Rocker Switch
Reset1 x Semi-recessed Pushbutton
LCD Power 1 x Pushbutton
LCD Adjustment4 x Pushbutton
KeyboardPS/2, USB
MousePS/2, USB
Video Resolution19-Inch LCD 1280Ă—1024 @ 75 Hz ; DDC2B
VoltageDC 5.3V
Scan Interval1-255 sec
Operation Temperature0~50C
Storage Temperature-20~60C
Humidity0~80% RH, Non-condensing
Port SelectionHotekys, OSD, Button
On Line8 (Orange)
Selected8 (Green)
Power OnKVM: 1 Dark Green ; LCD: 1 Orange
Unit Dimensions
Height27" (68.58cm)
Length17.75" (45.1cm)
Depth1.75" (4.45cm)
Unit Package Dimensions
Height32.5" (82.55cm)
Width26.75" (67.95cm)
Depth5.25" (13.34cm)
Master Carton
Height32.5" (82.55cm)
Width26.75" (67.95cm)
Depth5.25" (13.34cm)
Master Carton Wt.40.85lbs (18.54kg)
Unit Pack Wt.40.85lbs (18.54kg)
Unit Wt. w/accessories31.75lbs (14.4kg)
Unit Wt.27.75lbs (12.58kg)
