16-Port LCD KVM Console

16-Port LCD Combo KVM Switch with USB KVM Cables

16-Port TAA Compliant VGA
MPN: GCL1816KITU

UPC: 881317506436

Sale price$1,619.95

IOGEAR's GCL1816KITU is an integrated LCD console and 16 port KVM (keyboard, video, and mouse) switch with bundled USB KVM cables that offers secure access to 16 VGA, USB computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration.

IOGEAR's GCL1816KITU is an integrated LCD console and 16 port KVM (keyboard, video, and mouse) switch with bundled USB KVM cables that offers secure access to 16 VGA, USB computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space.

The GCL1816KITU supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816KITU supports USB** peripheral devices to be used for system upgrades with the attached computers. A single GCL1816KITU can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers* controlled from a single keyboard, monitor, and mouse console with easy computer switching via front LED pushbuttons, OSD, and hotkeys.

Benefits:

  • Equipped with USB KVM Cables
    • 8 x 6ft USB(G2L5202U)
    • 8 x 10ft USB (G2L5203U)
  • Increases space, productivity, and provides as an energy cost savings solution
  • It contributes to a greener environment by reducing the amount of waste generated by multiple components
  • An easy / efficient way to organize and streamline a growing or expanding server operation

*Cascade with other IOGEAR KVM's: GCS1808's or GCS1716's.
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

  • Integrated 16-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
  • 1280 x 1024 resolution on 17" rack mount LCD provides a sharp video display
  • Equipped with 16 USB KVM Cables
  • Adjustable depth to fit different sizes of racks
  • Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
  • Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on screen display), and hotkeys
  • External USB mouse port for convenience
  • External USB or PS/2 with VGA Console port
  • USB media port support for attached USB computers (system upgrades, etc)**
  • Cascade up to 2 levels - control up to 256 computers from a single console*
  • Security - 2 level password protection for OSD
  • DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B

*Cascade with IOGEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

Computers:

  • VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port

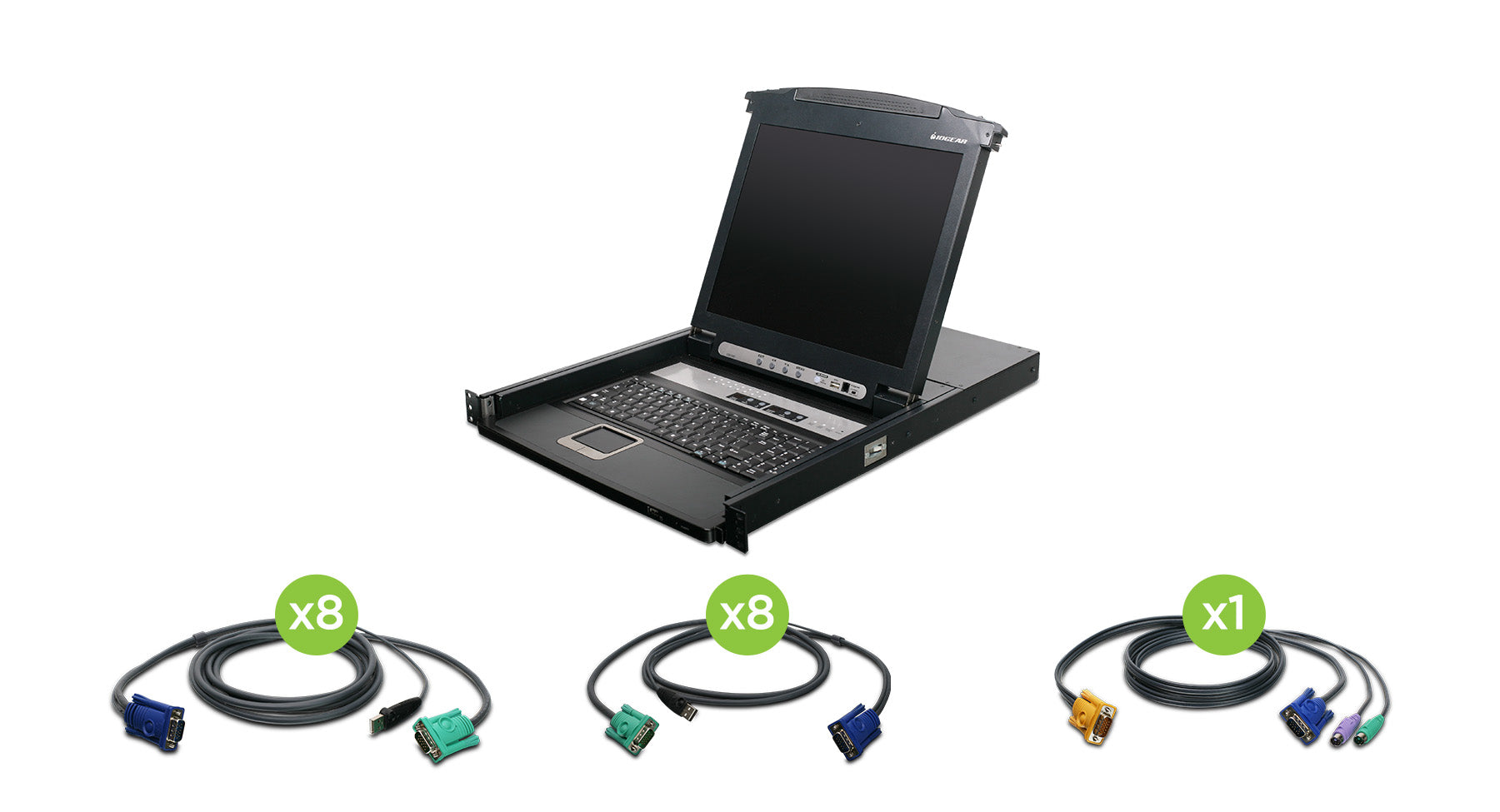

  • 1 x 16-Port LCD Combo KVM Switch
  • 8 x USB KVM Cable (6ft - G2L5202U)
  • 8 x USB KVM Cable (10ft - G2L5203U)
  • 1 x PS/2 KVM Cable (6ft - G2L5202P)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Power Cord
  • 1 x Installation Guide
  • 1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCL1816KITU
Computer Connections
Direct16
Daisy Chain or Cascading256
Port SelectionOSD, Hotkeys, Pushbuttons
Connectors
Console1 x SPHD-18 Male
Power1 x 3-Prong AC Socket
Console Connectors
Monitor1 x HDB-15 Male
KeyboardPS/2 or USB
MousePS/2 or USB
Extra Mouse1 x USB Type A Female
Flash ROM Upgrade1 x RJ-11 Female
CPU Connectors
Keyboard, Mouse, and Monitor16 x SPHD-15 Female
Switches
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker Switch
F/W Upgrade1 x Switch
LCD Adjustment4 x Pushbutton
LCD Power1 x LED Pushbutton (Orange)
Port Selection4 x Pushbutton
LEDs
On Line16 (Orange)
Port ID4 x 7 Segment LED Display (Yellow)
Power OnDark Green
Emulation
KeyboardPS/2, USB
MousePS/2, USB
Video Resolution1280 x 1024 @ 75Hz; DDC2B
Scan Interval1-255 Seconds
Power Input Rating
Per AC Power Inlet, 50/60Hz100~240VAC. 50/60Hz, 1A
Power Consumption120V, 28W
Environment
Operation Temperature0~40°C
Storage Temperature-20~60°C
Humidity0~80% RH; Non-condensing
Housing
CaseMetal and Plastic
DimensionsGCL1816KITU
Unit Dimensions
Width19in.
Height1.75in.
Depth25in.
Unit Package Dimensions
Width30.25in.
Height6.5in.
Depth37.25in.
Weight
Unit Pack Wt.55.96lb
Unit Wt. w/accessories41.92lb
Unit Wt.29.03lb
