16-Port LCD Combo KVM Switch with PS/2 KVM Cables
UPC: 881317506443
Choose options

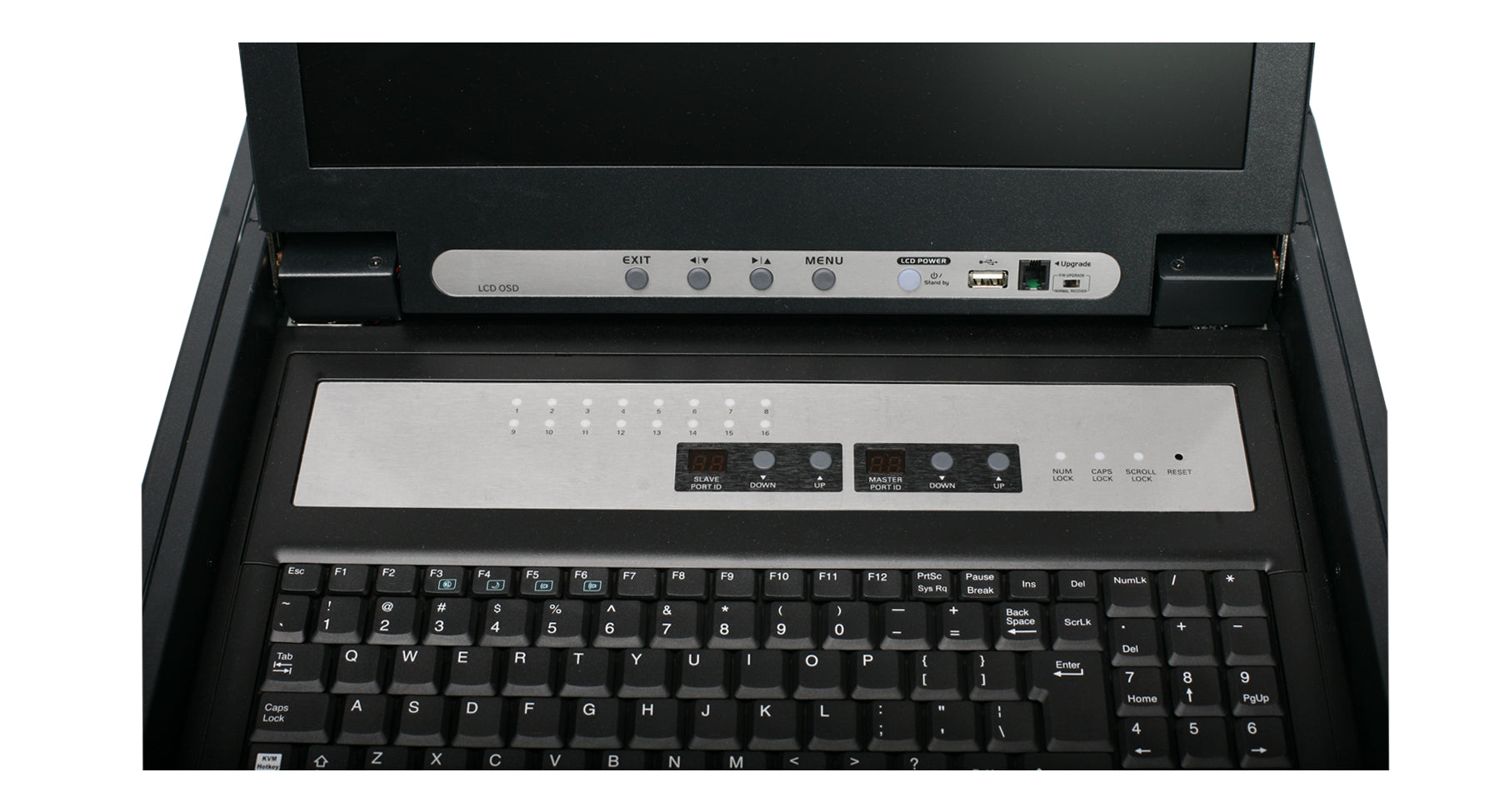

Integrated 16-port KVM console featuring a 17" TFT LCD active-matrix monitor, keyboard and touchpad
1280 x 1024 resolution on 17" rack mount LCD provides a sharp video display
Equipped with 16 PS/2 KVM Cables
Adjustable depth to fit different sizes of racks
Multi-platform OS support - Windows®, Mac, Sun Solaris™, and Linux®
Easy to operate - computer selection via front panel pushbutton LED™, intuitive OSD (on screen display), and hotkeys
External USB mouse port for convenience
External USB or PS/2 with VGA Console port
USB media port support for attached USB computers (system upgrades, etc.) **
Cascade up to 2 levels - control up to 256 computers from a single console*
Security - 2 level password protection for OSD
DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
Rack mountable in a 19" (1U) system rack
Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
Fully Supports DDC2B
*Cascade with IOGEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals
- Integrated 16-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
- 1280 x 1024 resolution on 17" rack mount LCD provides a sharp video display
- Equipped with 16 PS/2 KVM Cables
- Adjustable depth to fit different sizes of racks
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
- Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on screen display), and hotkeys
- External USB mouse port for convenience
- External USB or PS/2 with VGA Console port
- USB media port support for attached USB computers (system upgrades, etc)**
- Cascade up to 2 levels - control up to 256 computers from a single console*
- Security - 2 level password protection for OSD
- DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Fully Supports DDC2B
*Cascade with IOGEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals
Computers:
- VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
- PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port
- 1 x 16-Port LCD Combo KVM Switch
- 8 x PS/2 KVM Cable (6ft - G2L5202P)
- 8 x PS/2 KVM Cable (10ft - G2L5203P)
- 1 x USB KVM Cable (6ft - G2L5202U)
- 1 x Console Cable
- 1 x Cascade Cable
- 1 x Firmware Upgrade Cable
- 1 x Grounding Wire
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Warranty Card
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GCL1816KITP |
|---|---|
| Computer Connections | |
| Direct | 16 |
| Daisy Chain or Cascading | 256 |
| Port Selection | OSD, Hotkeys, Pushbuttons |
| Connectors | |
| Console | 1 x SPHD-18 Male |
| Power | 1 x 3-Prong AC Socket |
| Console Connectors | |
| Monitor | 1 x HDB-15 Female |
| Keyboard | PS/2 or USB |
| Mouse | PS/2 or USB |
| Extra Mouse | 1 x USB Type A Female |
| Flash ROM Upgrade | 1 x RJ-11 Female |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 16 x SPHD-15 Female |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | 1 x Rocker Switch |
| F/W Upgrade | 1 x Switch |
| LCD Adjustment | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton (Orange) |
| Port Selection | 4 x Pushbutton |
| LEDs | |
| On Line | 16 (Orange) |
| Port ID | 4 x 7 Segment LED Display (Yellow) |
| Power On | Dark Green |
| Emulation | |
| Keyboard | PS/2, USB |
| Mouse | PS/2, USB |
| Video Resolution | 1280 x 1024 @ 75Hz; DDC2B |
| Scan Interval | 1-255 Seconds |
| Power Input Rating | |
| Per AC Power Inlet, 50/60Hz | 100~240VAC. 50/60Hz, 1A |
| Power Consumption | 120V, 28W |
| Environment | |
| Operation Temperature | 0~40°C |
| Storage Temperature | -20~60°C |
| Humidity | 0~80% RH; Non-condensing |
| Housing | |
| Case | Metal and Plastic |
| Dimensions | GCL1816KITP |
|---|---|
| Unit Dimensions | |
| Width | 19in. |
| Height | 1.75in. |
| Depth | 25in. |
| Unit Package Dimensions | |
| Width | 30.25in. |
| Height | 6.5in. |
| Depth | 37.25in. |
| Weight | |
| Unit Pack Wt. | 55.96lb |
| Unit Wt. w/accessories | 41.92lb |
| Unit Wt. | 29.03lb |
