16-Port LCD KVM Console

16-Port LCD Combo KVM Switch with Cables

16-Port TAA Compliant VGA
MPN: GCL1816KIT

UPC: 881317506429

Sale price$1,619.95

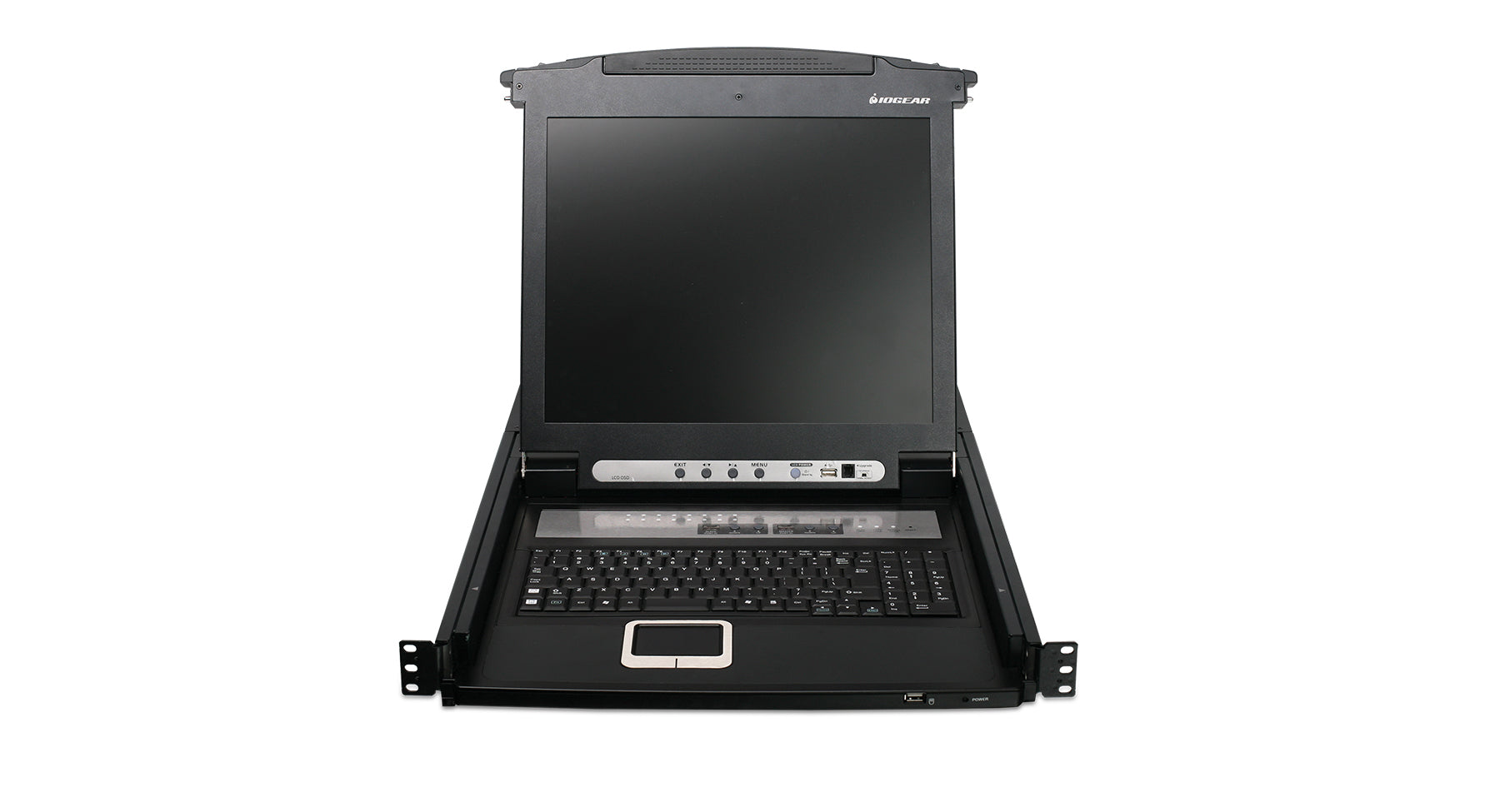

IOGEAR’s GCL1816KIT is an integrated LCD console and 16 port KVM (keyboard, video, and mouse) switch with bundled KVM cables that offers secure access to 16 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration.

IOGEAR™ GCL1816KIT is an integrated LCD console and 16 port KVM (keyboard, video, and mouse) switch with bundled KVM cables that offers secure access to 16 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space.

The GCL1816KIT supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816KIT supports USB** peripheral devices to be used for system upgrades with the attached computers. A single GCL1816KIT can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers* controlled from a single keyboard, monitor, and mouse console with easy computer switching via front LED pushbuttons, OSD, and hotkeys.

Benefits:

  • Equipped with USB & PS/2 KVM Cables
    • 4 x 6ft USB & 4 x 6ft PS/2 (G2L5202U / G2L5202P)
    • 4 x 10ft USB & 4 x 10ft PS/2 (G2L5203U / G2L5203P)
  • Increases space, productivity, and provides as an energy cost savings solution
  • It contributes to a greener environment by reducing the amount of waste generated by multiple components
  • An easy / efficient way to organize and streamline a growing or expanding server operation

*Cascade with other IOGEAR KVM™; GCS1808™ or GCS1716™.

**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

  • Integrated 16-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
  • 1280 x 1024 resolution on 17" rack mount LCD provides a sharp video display
  • Equipped with 8 USB & 8 PS/2 KVM Cables
  • Adjustable depth to fit different sizes of racks
  • Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®

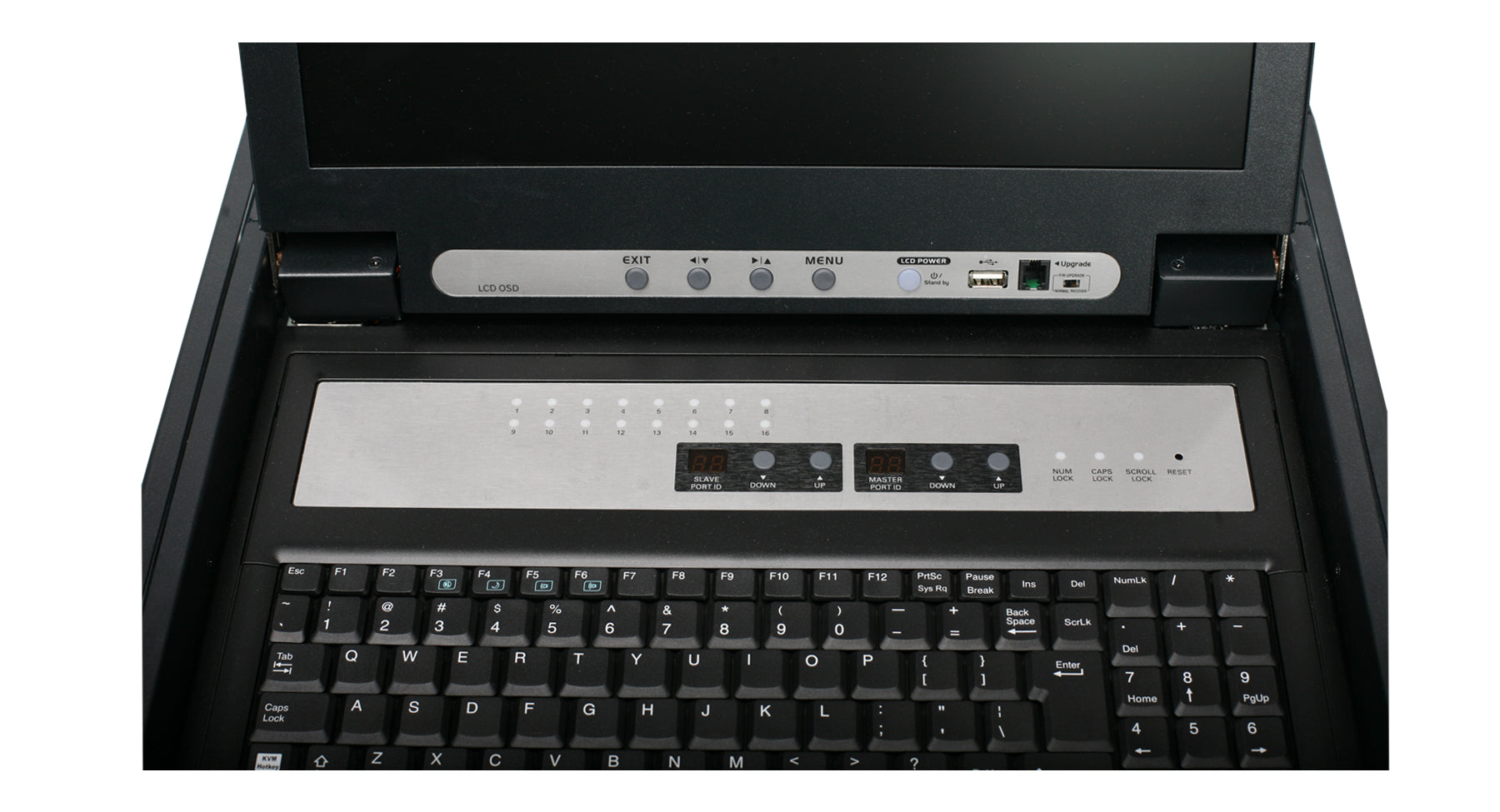

  • Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on screen display), and hotkeys
  • External USB mouse port for convenience
  • External USB or PS/2 with VGA Console port
  • USB media port support for attached USB computers (system upgrades, etc)**
  • Cascade up to 2 levels - control up to 256 computers from a single console*
  • Security - 2 level password protection for OSD
  • DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B

*Cascade with IGOEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)

**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

Computers:

  • VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port

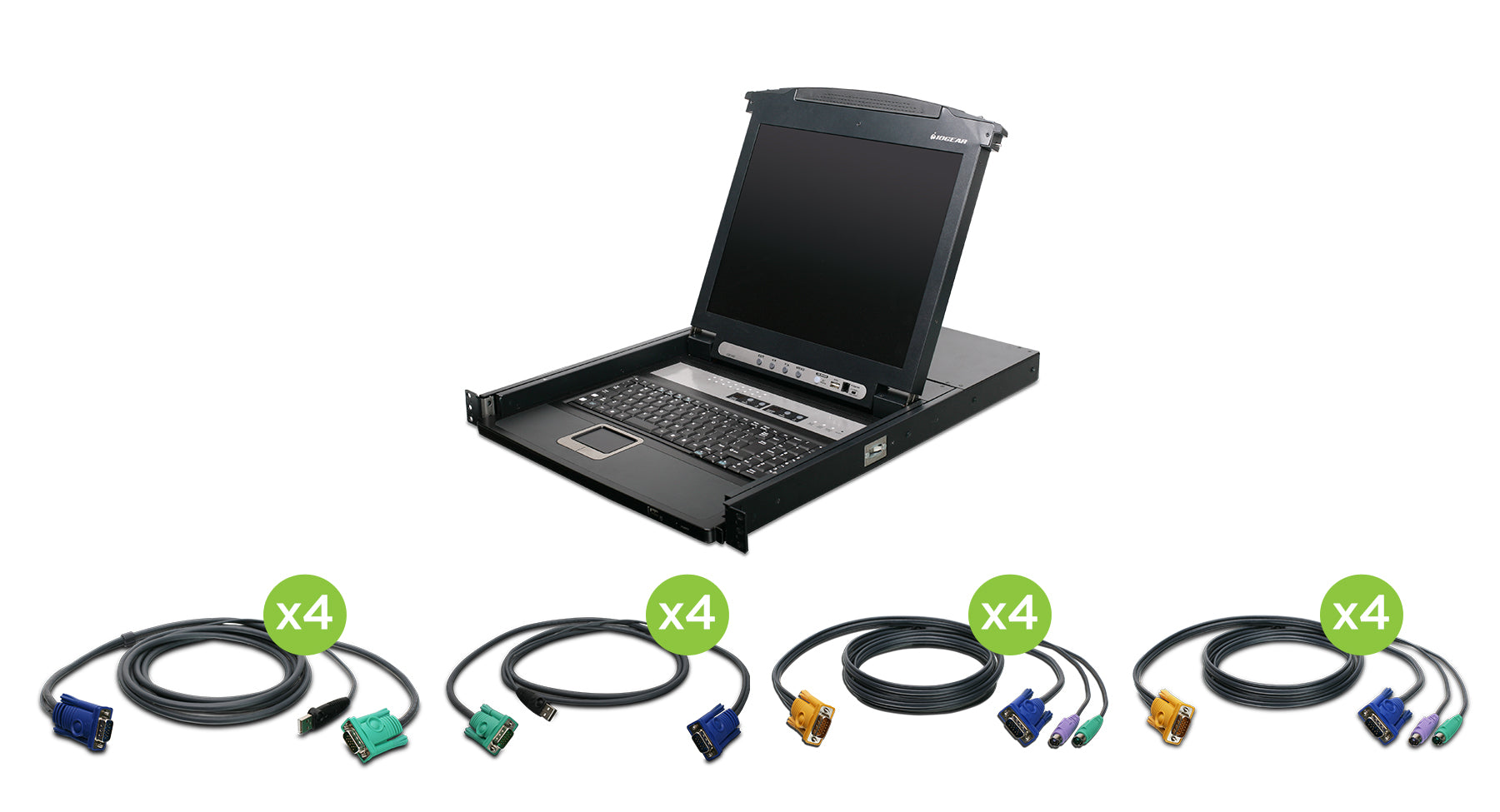

1 x 16-Port LCD Combo KVM Switch
4 x PS/2 KVM Cable (6ft - G2L5202P)
4 x PS/2 KVM Cable (10ft - G2L5203P)
4 x USB KVM Cable (6ft - G2L5202U)
4 x USB KVM Cable (10ft - G2L5203U)
1 x Console Cable
1 x Cascade Cable
1 x Firmware Upgrade Cable
1 x Grounding Wire
1 x Power Cord
1 x Installation Guide
1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCL1816KIT
Computer Connections
Direct16
Daisy Chain or Cascading256
Port SelectionOSD, Hotkeys, Pushbuttons
Connectors
Console1 x HDB-15 Female
Power1 x 3-Prong AC Socket
Console Connectors
Monitor1 x HDB-15 Female
KeyboardPS/2 or USB
MousePS/2 or USB
Extra Mouse1 x USB Type A Female
Flash ROM Upgrade1 x RJ-11 Female

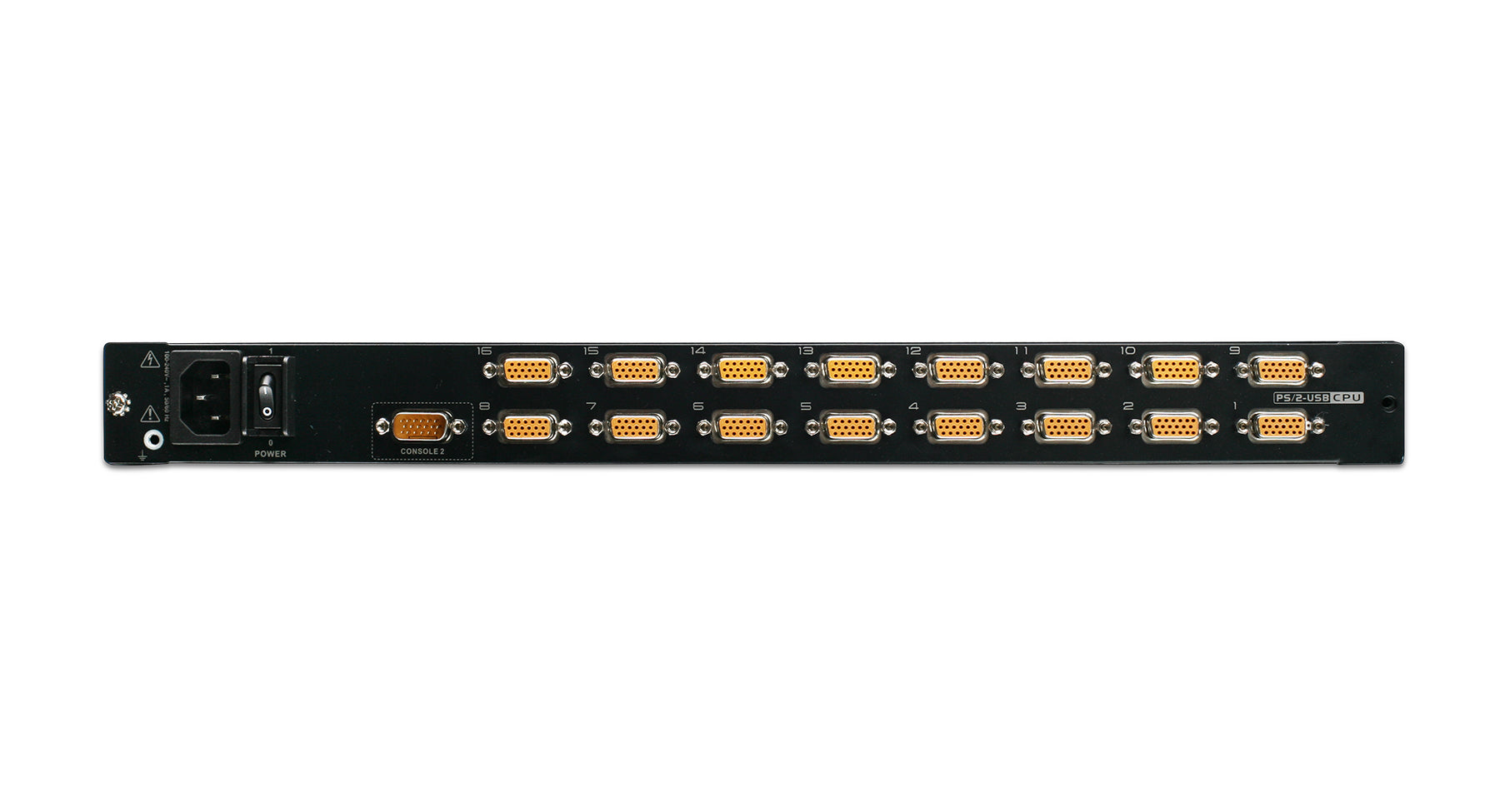

CPU Connectors
Keyboard, Mouse, and Monitor16 x SPHD-15 Female
Switches
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker Switch
F/W Upgrade1 x Switch
LCD Adjustment4 x Pushbutton
LCD Power1 x LED Pushbutton (Orange)
Port Selection4 x Pushbutton
LEDs
On Line16 (Orange)
Port ID4 x 7 Segment LED Display (Yellow)
Power OnDark Green
Emulation
KeyboardPS/2, USB
MousePS/2, USB
Video Resolution1280 x 1024 @ 75Hz; DDC2B
Scan Interval1-255 Seconds
Power Input Rating
Per AC Power Inlet, 50/60Hz100~240VAC. 50/60Hz, 1A
Power Consumption120V, 28W
Environment
Operation Temperature0~40°C
Storage Temperature-20~60°C
Humidity0~80% RH; Non-condensing
Housing
CaseMetal and Plastic
DimensionsGCL1816KIT
Unit Dimensions
Width19in.
Height1.75in.
Depth25in.
Unit Package Dimensions
Width30.25in.
Height6.5in.
Depth37.25in.
Weight
Unit Pack Wt.55.56lb
Unit Wt. w/accessories41.52lb
Unit Wt.29.03lb
