16-Port 17" LCD Combo KVM Switch (TAA Compliant)
16-Port 17" LCD Combo KVM Switch (TAA Compliant)
16-Port 17" LCD Combo KVM Switch (TAA Compliant)
16-Port 17" LCD Combo KVM Switch (TAA Compliant)
16-Port 17" LCD Combo KVM Switch (TAA Compliant)
16-Port 17" LCD Combo KVM Switch (TAA Compliant)
16-Port 17" LCD Combo KVM Switch (TAA Compliant)
16-Port LCD KVM Console

16-Port 17" LCD Combo KVM Switch (TAA Compliant)

16-Port TAA Compliant VGA
MPN: GCL1816

UPC: 881317505620

Sale price$1,369.95

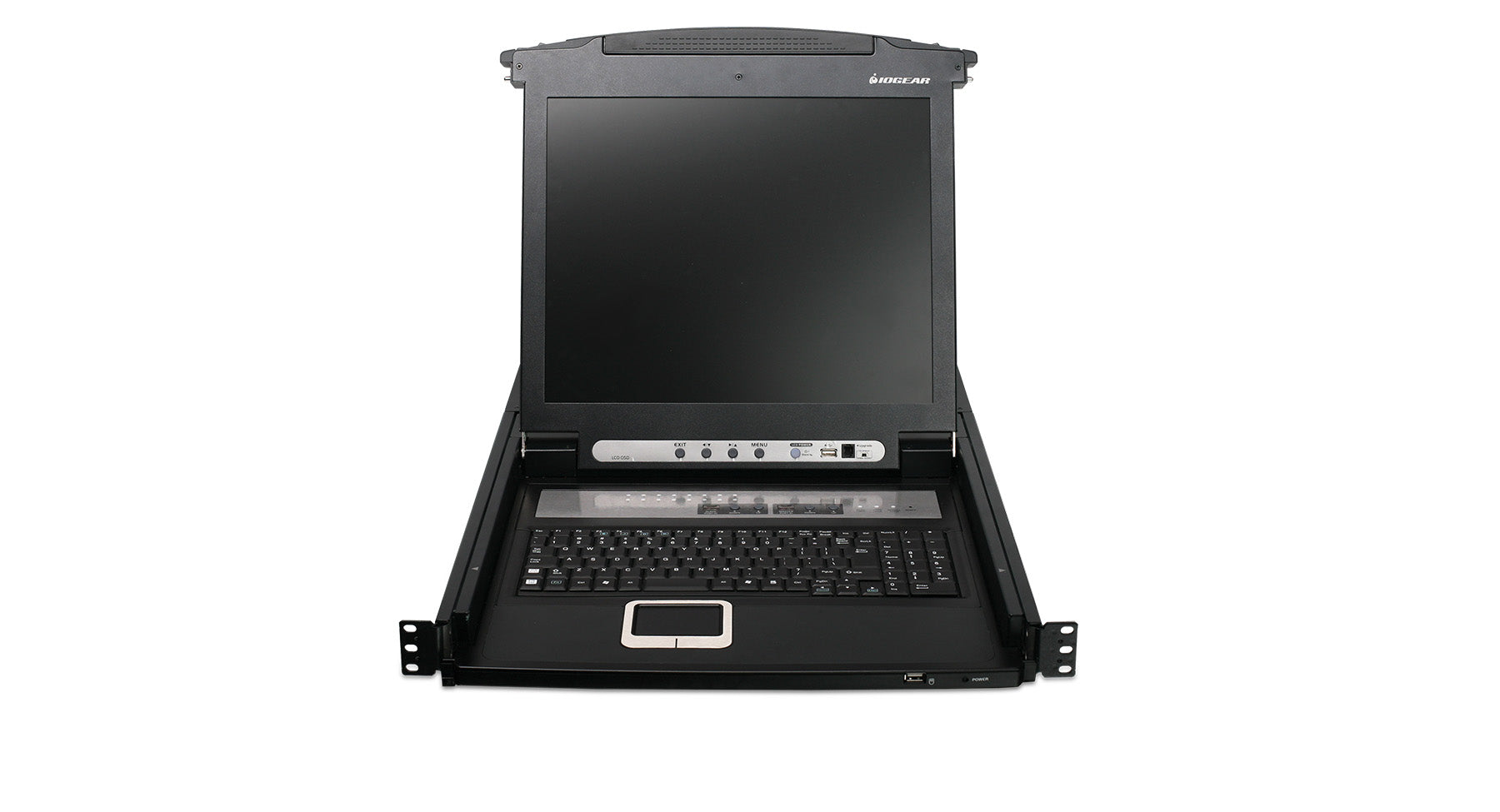

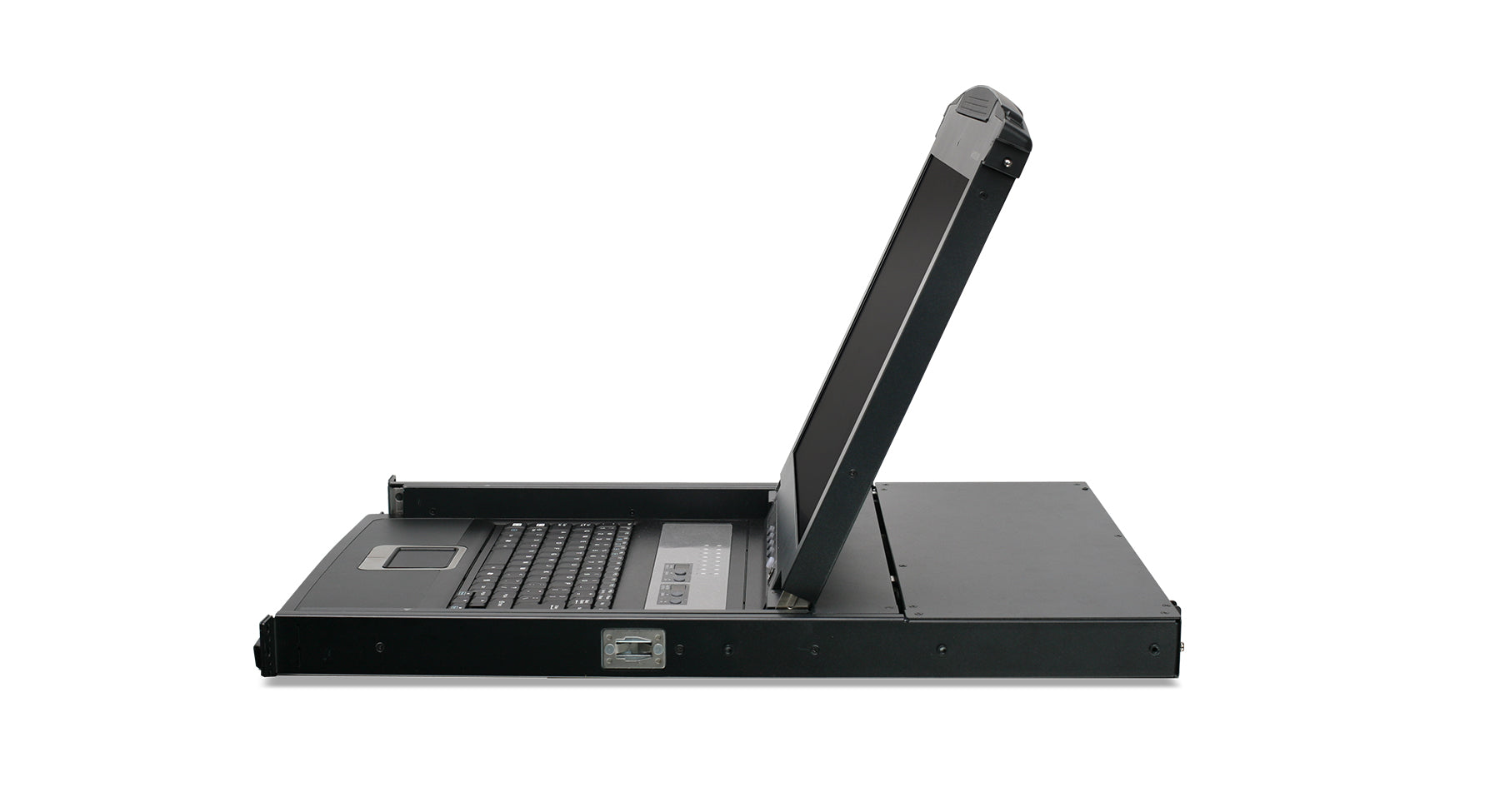

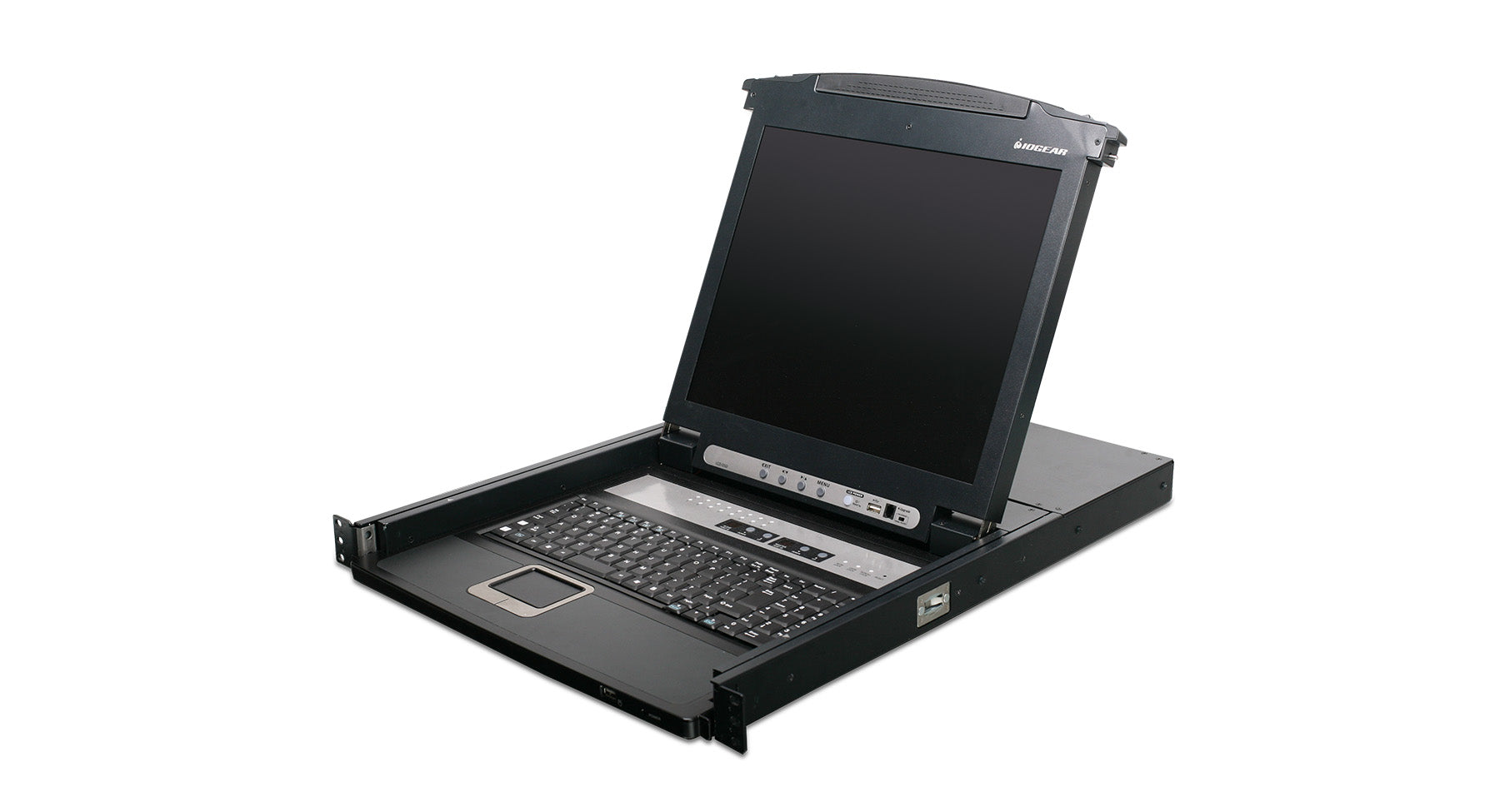

IOGEAR's new GCL1800 Rackmount LCD offers a space saving, streamlined approach to IT environments by integrating a keyboard, 17" TFT LCD active-matrix monitor, and touchpad in one unit. The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy. There is no software to configure, no installation routines and no incompatibility problems. Slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.

16-Port 17" LCD Combo KVM Switch (TAA Compliant)
16-Port 17" LCD Combo KVM Switch (TAA Compliant) Sale price$1,369.95

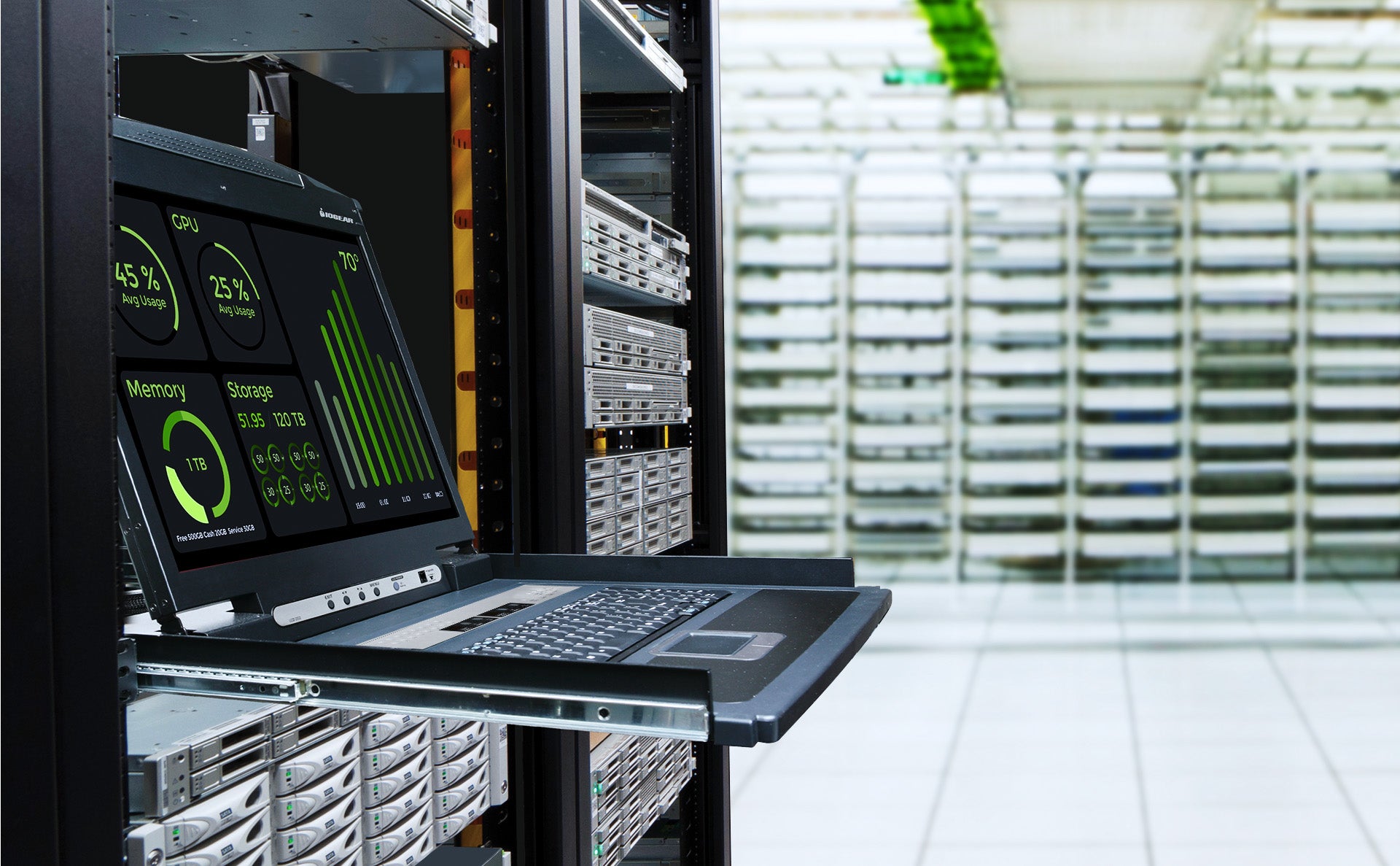

Ease of Installation & Operation

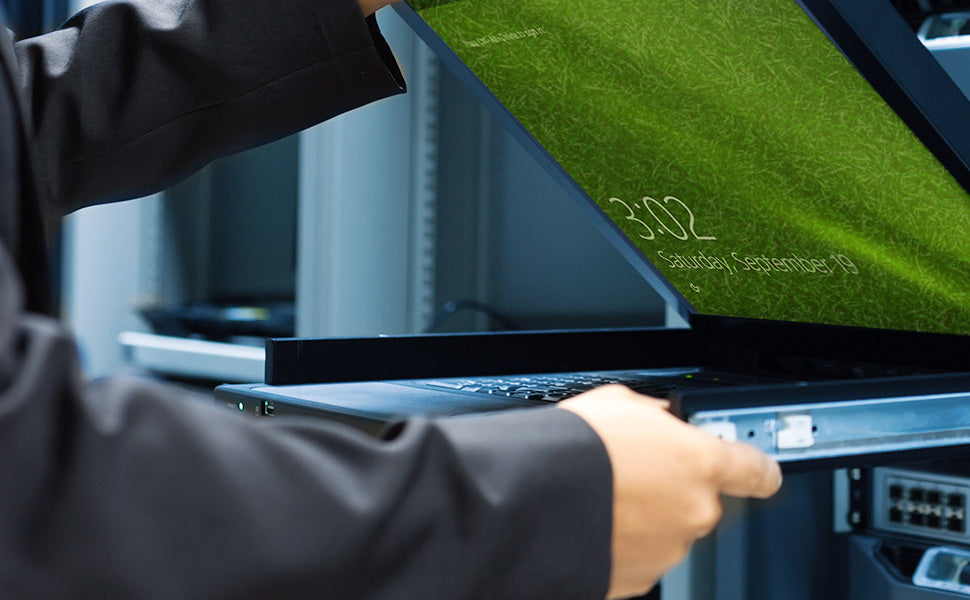

The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy with the included mounting brackets. There is no software to configure, no installation routines and no incompatibility problems. Simply wide the console module section out; flip the cover up; and you are ready to work. When finished, flip the cover down and slide the console module back into the rack.

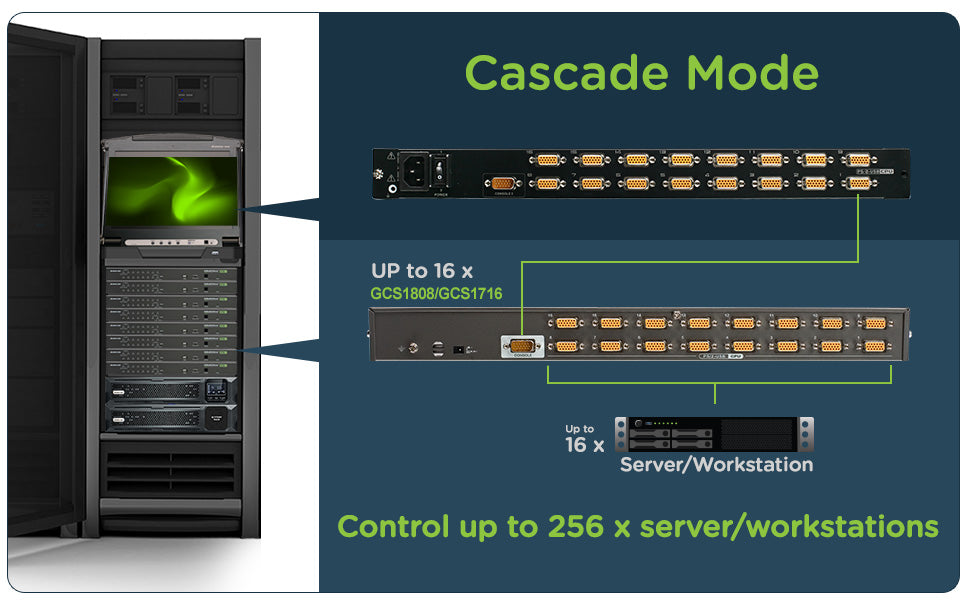

Expand and Control More

A single GCL1816W can control up to 16 computers, but as many as two (2) additional compatible KVM switches can be cascaded to reach up to 256 computers* controlled for a single keyboard, monitor and mouse console.

*Can only be cascaded with other IOGEAR KVMs: GcS1808 or GCS1716 models.

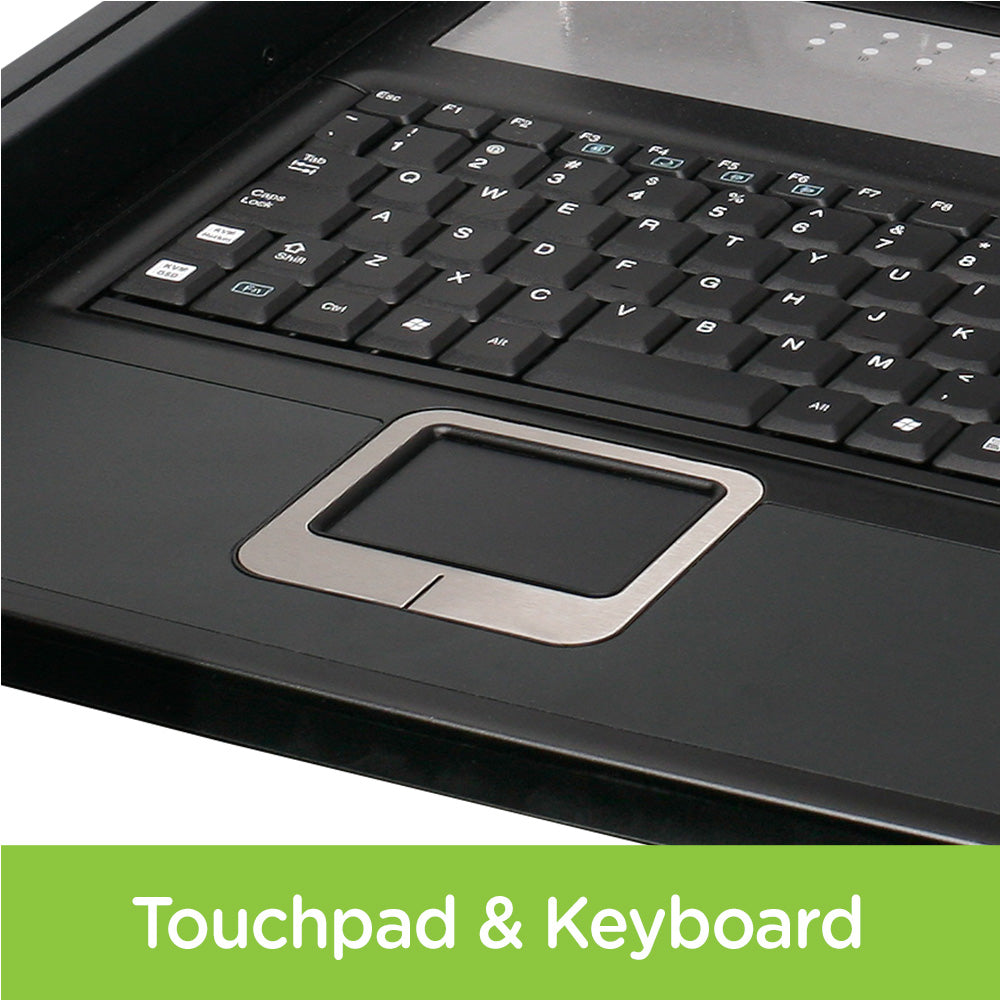

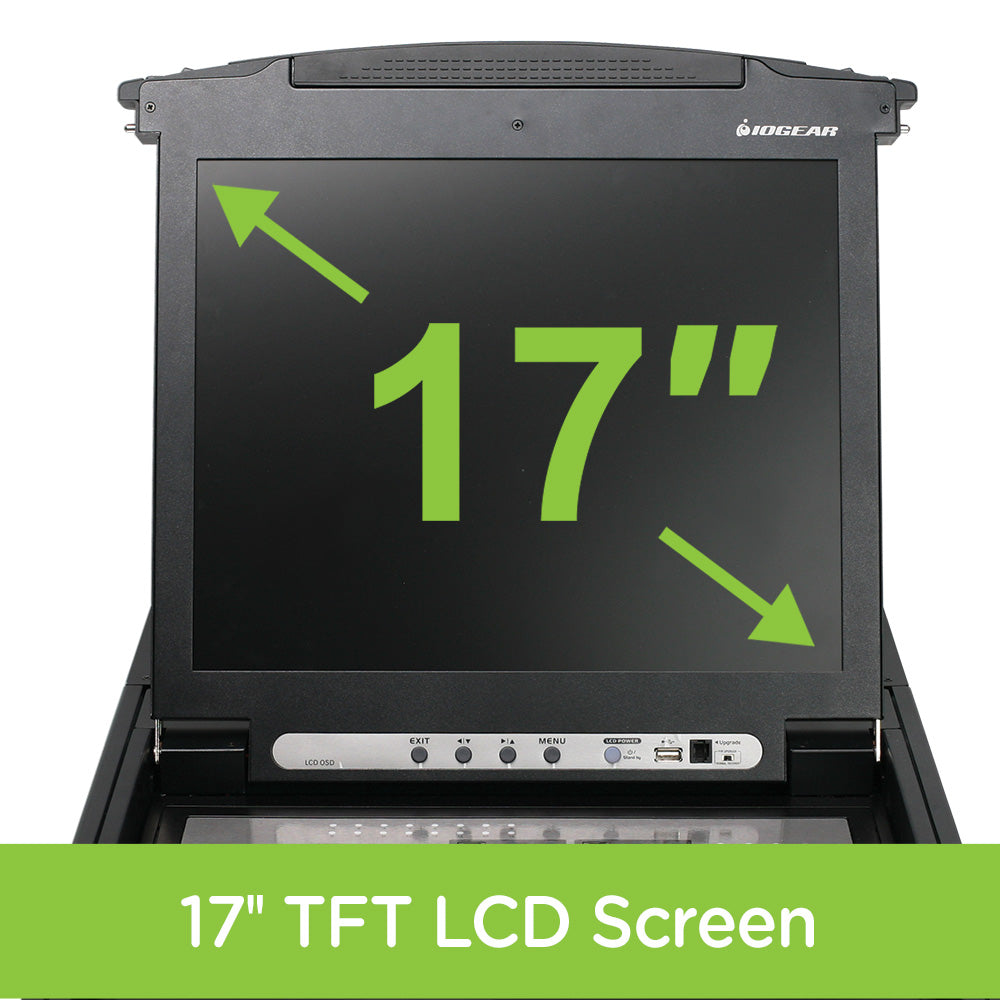

  • Integrated 16-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
  • 1280 x 1024 resolution on 17" rack mount LCD provides a sharp video display
  • Adjustable depth to fit different sizes of racks
  • Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
  • Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on screen display), and hotkeys
  • Auto Scan Mode to monitor all connected computers
  • External USB mouse port for convenience
  • External USB or PS/2 with VGA Console port
  • Support special keys on Mac and Sun keyboards
  • USB media port support for attached USB computers (system upgrades, etc) **
  • Cascade up to 2 levels - control up to 256 computers from a single console*
  • Security - 2 level password protection for OSD
  • DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
  • Rack mountable in a 19" (1U) system rack
  • Firmware upgradeable
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B

*Cascade with IGOEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

Computers:

  • VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini-DIN) or 1 USB port

Operating Systems:

• Windows® XP, Windows Vista®, Windows® 7*, Windows® 8, Windows® 8.1, Windows 10®
• Mac OS 9 to 10.x
• Oracle® Solaris
• Linux, Unix and other USB supported systems **
**Additional drivers and support may be needed
*IOGEAR’s DynaSync provides the EDID support for Windows® 7

  • 1 x 16-Port LCD KVM
  • 1 x PS/2 KVM Cable
  • 1 x USB KVM Cable
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Rack Mount Kit - Short Bracket( Fits 16.6~32.2 Inch Depth) and Long Brackets(Fits 26.8~41.3 Inch Depth)
  • 1 x Grounding Wire
  • 1 x Power Cord
  • 1 x Installation Guide
  • 1 x Warranty Card

GCL1808 Product Manual Download

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCL1816
Computer Connections
Direct16
Daisy Chain or Cascading256
Port SelectionOSD, Hotkeys, Pushbuttons
Connectors
Console1 x SPHD-18 Male
Power1 x 3-Prong AC Socket
Console Connectors
Monitor1 x HDB-15 Female
KeyboardPS/2 or USB
MousePS/2 or USB
Extra Mouse1 x USB Type A Female
Flash ROM Upgrade1 x RJ-11 Female

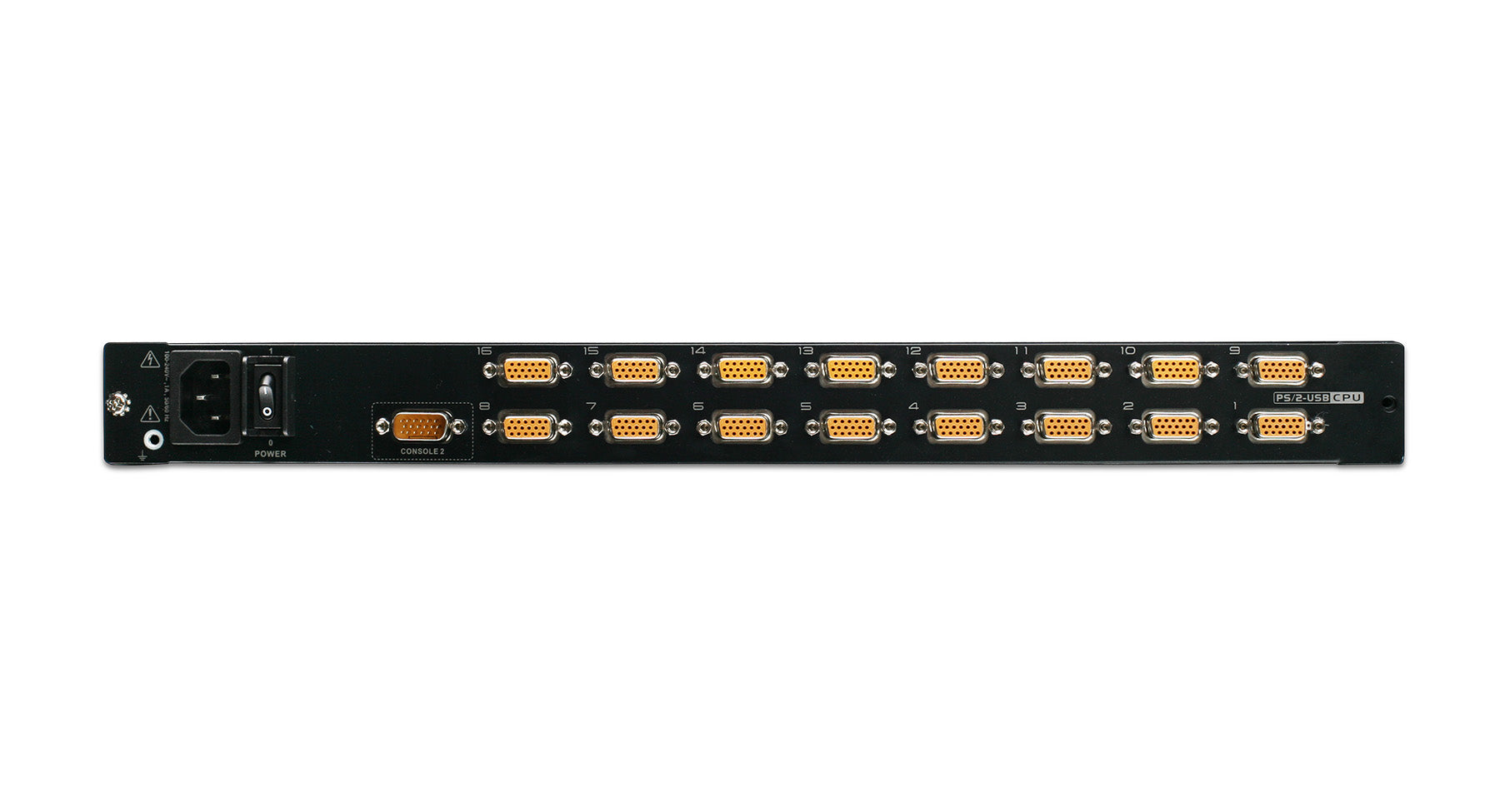

CPU Connectors
Keyboard, Mouse, and Monitor16 x SPHD-15 Female
Switches
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker Switch
F/W Upgrade1 x Switch
LCD Adjustment4 x Pushbutton
LCD Power1 x LED Pushbutton (Orange)
Port Selection4 x Pushbutton
LEDs
On Line16 (Orange)
Port ID4 x 7 Segment LED Display (Yellow)
Power OnDark Green
Emulation
KeyboardPS/2, USB
MousePS/2, USB
Video Resolution1280 x 1024 @ 75Hz; DDC2B
Scan Interval1-255 Seconds
Power Input Rating
Per AC Power Inlet, 50/60Hz100~240VAC. 50/60Hz, 1A
Power Consumption120V, 28W
Environment
Operation Temperature0~40°C
Storage Temperature-20~60°C
Humidity0~80% RH; Non-condensing
Housing
CaseMetal and Plastic
DimensionsGCL1816
Unit Dimensions
Height1.75in.
Depth25in.
Width19in.
Unit Package Dimensions
Height5.5in.
Width26.75in.
Depth28.5in.
Weight
Unit Pack Wt.44.36lb
Unit Wt. w/accessories34.32lb
Unit Wt.29.03lb

3 Year Limited Warranty
