KVM Extender, Cables and Accessories

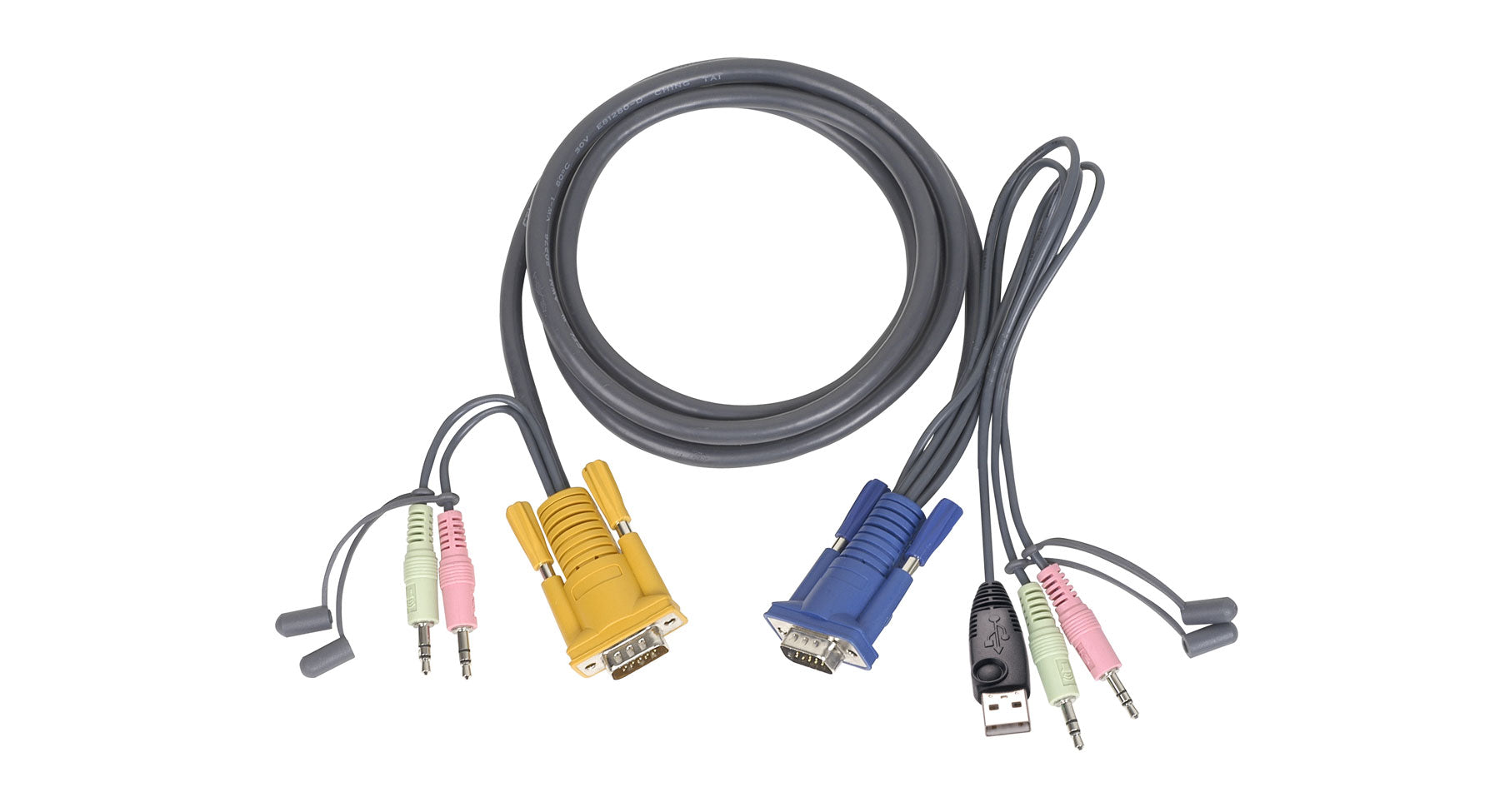

3 ft. Micro-Lite™ Bonded All-in-One USB KVM Cable

3.5mm Audio Single View VGA
MPN: G2L5301U

UPC: 881317002808

Sale price$24.95

  • Innovative cable technology to minimize cross-talk and deliver superb video quality for your high resolution applications
  • Copper shield to eliminate EMI/RFI interference and ensure signal integrity and error-free transmission
  • Custom designed DB15 connector allows 16 ports on a 1U high space
  • Oversized ergonomic thumbscrews make installation quick and easy All-In-One bonded cable design eases connections, setups and cable management
  • Thin and flexible cable structure saves space and lowers carrying and storage cost UL rated materials used to ensure safety, corrosion resistance, and longevity of the cable
3 ft. Micro-Lite™ Bonded All-in-One USB KVM Cable
3 ft. Micro-Lite™ Bonded All-in-One USB KVM Cable Sale price$24.95

This cable is designed for the following IOGEAR KVM switches: GCS1732GCS1734, and GCS1758. These All-In-One bonded KVM cables are designed to deliver superb video quality and error-free transmission for your high-resolution applications. The copper shield and an all-in-one bonded structure provide the maximum in quality, performance, and reliability. The custom designed the DB15 connector combines keyboard, mouse, and video connections in one to save the space on the KVM and allows 16 ports on a mere 1U high space. The thin, flexible cable and the over-sized thumbscrews also make installation quick and easy.

  • Innovative cable technology to minimize cross-talk and deliver superb video quality for your high resolution applications
  • Copper shield to eliminate EMI/RFI interference and ensure signal integrity and error-free transmission
  • Custom designed DB15 connector allows 16 ports on a 1U high space
  • Oversized ergonomic thumbscrews make installation quick and easy All-In-One bonded cable design eases connections, setups and cable management
  • Thin and flexible cable structure saves space and lowers carrying and storage cost UL rated materials used to ensure safety, corrosion resistance, and longevity of the cable
  • 1 KVM cable

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionG2L5301U
CPU Connectors
Monitor1 x HDB15
Microphone1
Audio1
Keyboard & Mouse1 x USB Type A
Console Connectors
Microphone1
Audio1
Keyboard, Mouse, and Monitor1 x HDB15
Cable Length1.21 m. (4 ft.)
DimensionsG2L5301U
Unit Dimensions
Length1.21 m. (4 ft.)
Unit Package Dimensions
Width7.5 in.
Height8.5 in.
Depth1.75 in.
Master Carton
Width11 in. (27.94 cm.)
Height7.5 in. (19.05 cm.)
Depth14 in. (35.56 cm.)
Master Carton Qty. 24
14 x 11 x 7.5 in
Weight
Master Carton Wt.15.8 lbs. (6.9 kg.)
Unit Pack Wt.0.44 lb.
Unit Wt.0.5 lbs. (0.225 kg.)
