Docking Station

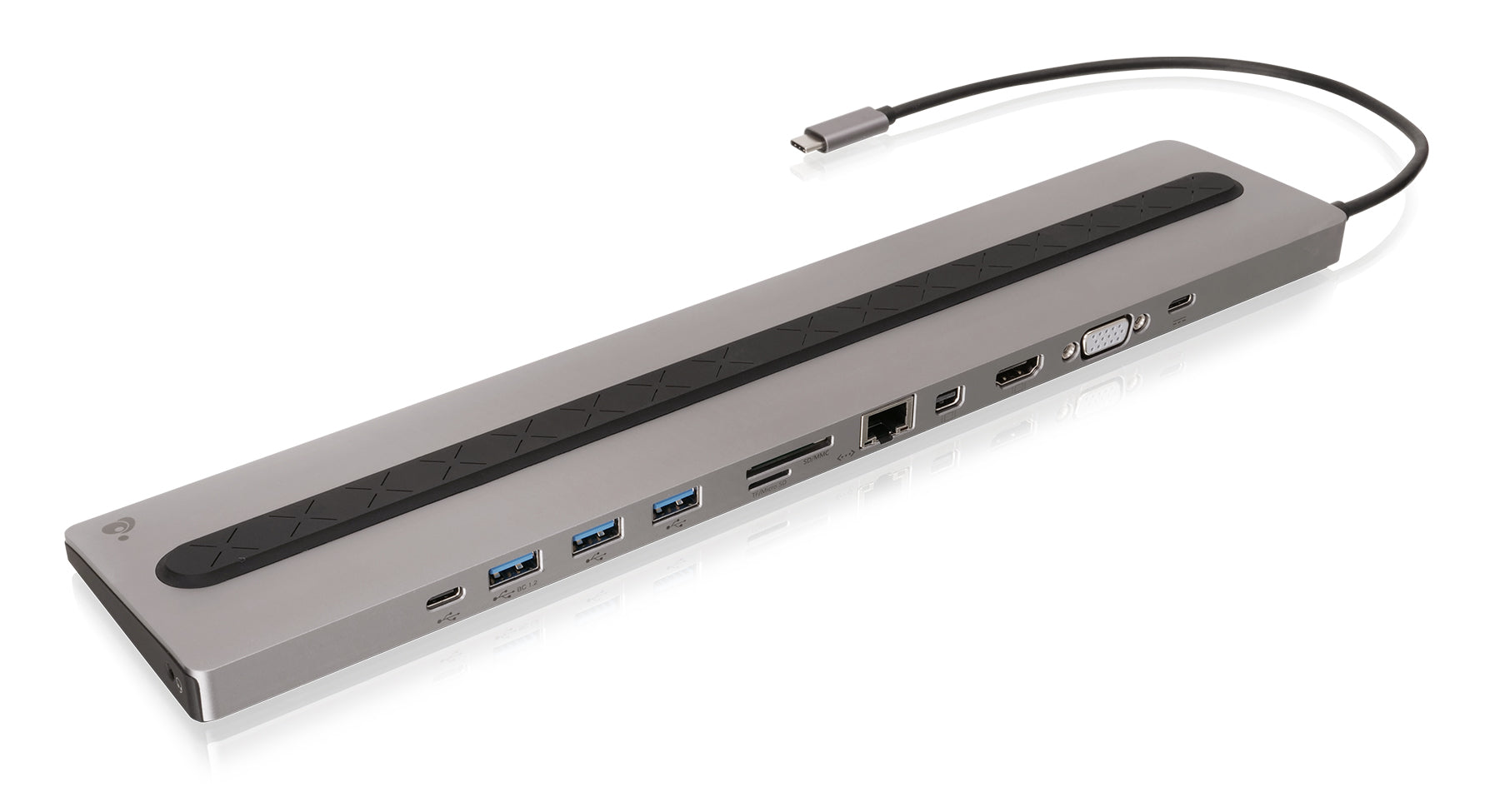

USB-C Docking Station with Power Delivery 3.0

EOL
MPN: GUD3C05

UPC: 881317517180

This product is EOL and is no longer being sold.
Sale price$179.95

Connect and expand your USB-C laptop to accommodate up to 10 must-need devices. Quickly turn your MacBook or Windows laptop or tablet into a powerhouse of productivity through a single USB-C cable. Connect a wide variety of devices such as a full-sized keyboard and mouse, an external hard drive, a printer, a microphone, headphones or speaker set, and transfer files through its built-in SD/MicroSD card reader.

USB-C Docking Station with Power Delivery 3.0
USB-C Docking Station with Power Delivery 3.0 Sale price$179.95

Laptop Expandability for up to 10 Devices

Connect and expand your USB-C laptop to accommodate up to 10 must-need devices. Quickly turn your MacBook or Windows laptop or tablet into a powerhouse of productivity through a single USB-C cable. Connect a wide variety of devices such as a full-sized keyboard and mouse, an external hard drive, a printer, a microphone, headphones or speaker set, and transfer files through its built-in SD/MicroSD card reader. Enjoy the flexibility of the dock's versatile video options including 4K resolutions through the HDMI or Mini DisplayPort connections or 1080p video through the VGA port.


Brilliant 4K or Dual HD Monitor Versatility

  • Enhance your work visually by adding a single 4K monitor or dual monitors at high definitions resolutions.
  • This IOGEAR dock offers high-quality image resolutions and enhanced versatility for connections to a VGA (1080p), HDMI (4K) or Mini DisplayPort (4K) monitor.
  • Dock a single VGA monitor for HD resolutions to 1920 x 1200 @ 60Hz and a single HDMI or MIni DisplayPort monitor for 4K resolutions to 3840 x 2160 @ 30Hz.
  • Add two monitors via HDMI and Mini DisplayPort for dual HD resolutions to 1920 x 1080.


Laptop Expandability for up to 10 Devices

Connect and expand your USB-C laptop to accommodate up to 10 must-need devices.

  • Quickly turn your MacBook or Windows laptop or tablet into a powerhouse of productivity through a single USB-C cable.
  • Connect a wide variety of devices such as a full-sized keyboard and mouse, an external hard drive, a printer, a microphone, headphones, speaker set, and transfer files through its built-in SD/MicroSD card reader.
  • Enjoy the flexibility of the dock's versatile video options including 4K resolutions through the HDMI or Mini DisplayPort connections or 1080p video through the VGA port.

Dock and Charge

  • Dock and charge up your laptop or tablet through the docking station via your manufacturer's USB-C AC power adapter and charge a USB device through the BC 1. Port while you work or play with up to 100W of power delivery pass-through.
  • The Dock passes a maximum of 85W of power-to-charge laptops and tablets as it utilizes 15W of power to operate when connected to laptops and tablets.
  • This bus-powered dock is powered through the laptop's USB-C port, connecting all your devices without requiring a separate power supply.

Stay Connected

  • With Fast Role Swap, an advanced feature in the USB Power Delivery 3.0 specification, the dock will maintain power levels anytime it detects a drop below a set threshold such as while unplugging the laptop or tablet's USB-C power adapter from the dock or during an unexpected loss of building power.
  • This feature provides for a safer operation of connected devices while ensuring your work does not get interrupted during power changes.

Sleek, Minimalist Design

  • The USB-C Docking Station with Power Delivery 3.0 boasts an innovative, slim design that saves desktop space.

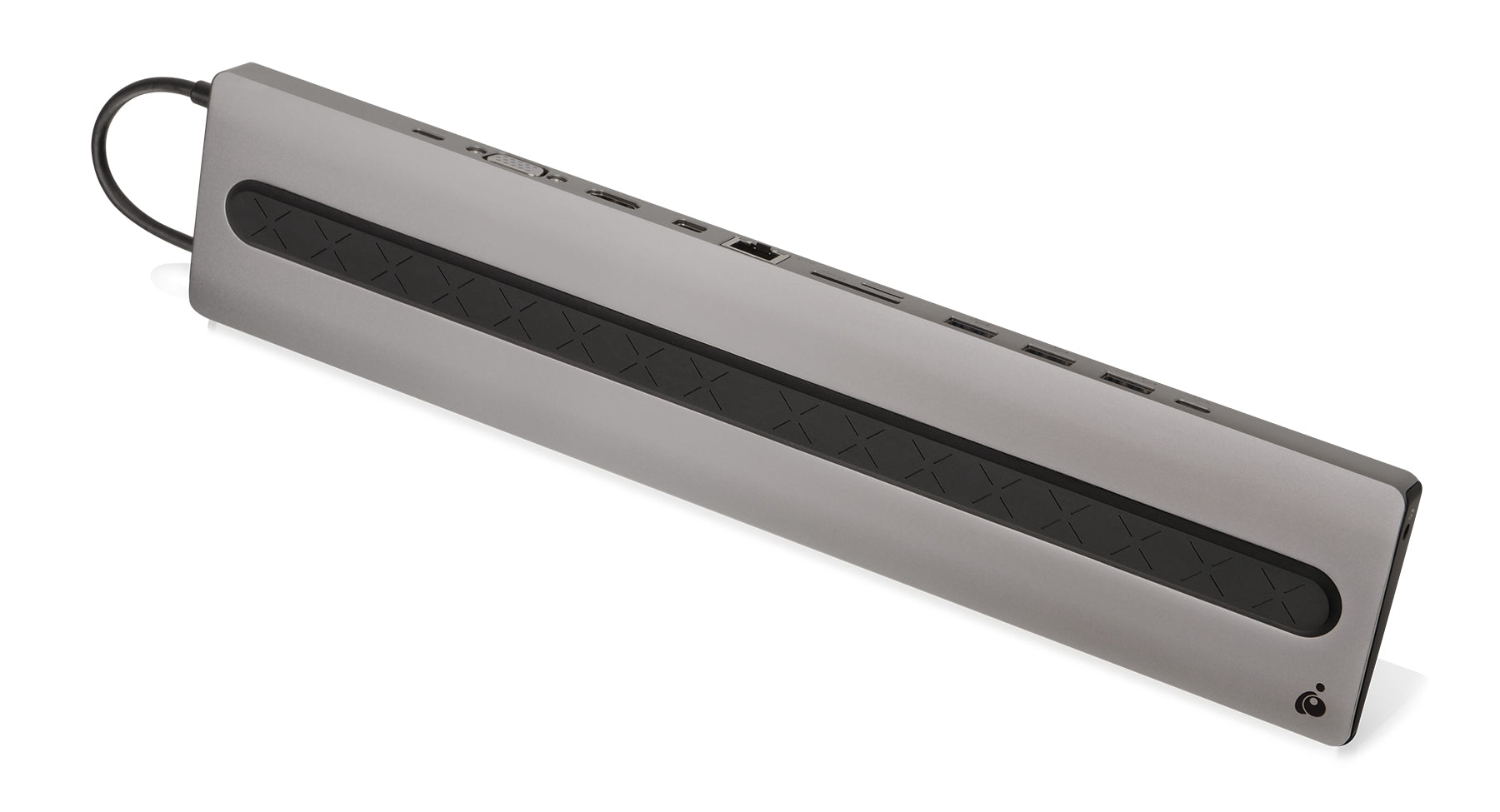

  • Store your laptop directly on the Docking Station's non-slip silicon rubber pad or next to your monitor for a neat, minimalist workstation.

*Disclaimer on Functional Diagrams: MST-enabled systems support extended mode; without MST, device operates in mirror mode only. Mac OS does not support MST

  • Quickly connect up to 10 devices through one USB-C cable
  • Charge laptop & devices with up to100W pass-through1&2
  • Fast Role Swap provides safe operation for connected devices during power changes
  • Versatile video options: HDMI (4K), Mini DisplayPort (4K) or VGA (1080p)
  • Dual video outputs available via HDMI & Mini DisplayPort for up to 1080p @60Hz3
  • Silicon rubber pad prevents dock from slipping or scratching laptop
  • SD/MicroSD card reader/writer supports memory expansion
  • 1 x 3.5mm Audio input & 1x 3.5mm Audio output
  • 3x USB-A 3.0 ports; with 1 BC 1.2 charging port (1.5A)
  • 1 x USB-C data port
  • 1 x Gigabit Ethernet port
  • HDCP 1.4 compliant
  • Works with the latest USB-C iPad Pro (2018 late)  under mirror-mode

1 Power Delivery 3.0 pass0through offers up to 100W of charging power utilizing the laptop's USB-C power adapter. USB-C power adapter not included.
2 Maximum of up to 85W of power can be delivered to the laptop after deduction of 15W used by the docking station. Pass-thru power delivered to the laptop is dependent upon the capacity of your USB-C power supply. Ex. If your USB-C power supply is 60W, then the maximum power can be delivered to the laptop is 60W-15W = 45W.  If your power supply is 87W, then the maximum power can be delivered to the laptop is 87W-15W= 60W.
3Only one additional video output is supported for extended desktop on macOS X.


Note: For best video performance direct connections are recommended. Adapters and converters are not guaranteed to function properly.

System Requirements

  • USB-C compatible laptops with DP Alt-Mode support
  • USB-C AC Adapter from Laptop is needed for Power Delivery Pass-Through Function
  • Only one additional video output can be utilized for extended desktop using Mac OS
  • For dual screen extended desktop in Windows, you must use HDMI with DisplayPort
  • When VGA output is utilized, only one additional extended desktop screen will be available
  • Compatible with USB-C and Thunderbolt 3 laptop
  • For Windows OS: dual screen extended desktop can only configured though both HDMI and Mini DisplayPort*
  • For Mac OS: dual screen is operate in mirror mode via HDMI and Mini DisplayPort*

Operating System Requirements

  • Windows 10
  • Mac OS X 10.10.5+ (MST is not supported by Mac OS)
  • Google Chrome OS

* Mini DisplayPort is not compatible with Thunderbolt 2 port, and the docking station will not work with Thunderbolt 2 display
** For best video performance, it is recommended to have direct connection between your external displays and the docking station, without using an adapter between the docking station and the display or video cables
*** Kindly note that for iPad pro, mouse or trackpad device will not work due to the lack of mouse pointer location in iPad

  • GUD3C05 x 1
  • Quick Start Guide x 1
  • Warranty card x 1

FunctionGUD3C05
Upstream Port
USB-CBuilt-in USB 3.1 G1 Type-C cable
Downstream Port
HDMI1x HDMI port (v.1.4 spec compliant, up to 3840x2160@30Hz)
Mini DisplayPort1x miniDisplayPort port (v.1.2 spec compliant, up to 3840x2160@30Hz)
VGA1x VGA port (up to 1920x1200@60Hz)
USB-A3x USB 3.0 A ports, 1 port with BC1.2 charging
USB-C1x USB-C port for charging, 1 x USB-C for data
Card ReaderSupports SD/SDHC/SDXC @ UHS-I class, MMC
Ethernet1x Gigabit Ethernet port
AudioDC3.5 port, support audio or microphone
Power
Power Delivery Pass-ThruPD 3.0 / 100W (A total of up to 85W can be charged to the laptop after deduction of max 15W used by the dock)
Operating System Requirements
WindowsWindows 7 / 8 / 8.1 / 10
MacMac OS X 10.10.5+
DimensionsGUD3C05
Unit Dimensions
Height2.96" (7.5cm)
Length13.78" (35cm)
Depth0.39" (1.5cm)
Unit Package Dimensions
Height4.53" (11.5cm)
Width18.5" (47cm)
Depth1.57" (4cm)
Master Carton
Height5.9" (15cm)
Width17.32" (44cm)
Depth9.84" (25cm)
Master Carton Qty.6
Weight
Master Carton Wt.7.72lb (3.5kg)
Unit Pack Wt.1.1 lb (0.5kg)
Unit Wt.0.85lb (0.39kg)
