USB Multiport Adapter

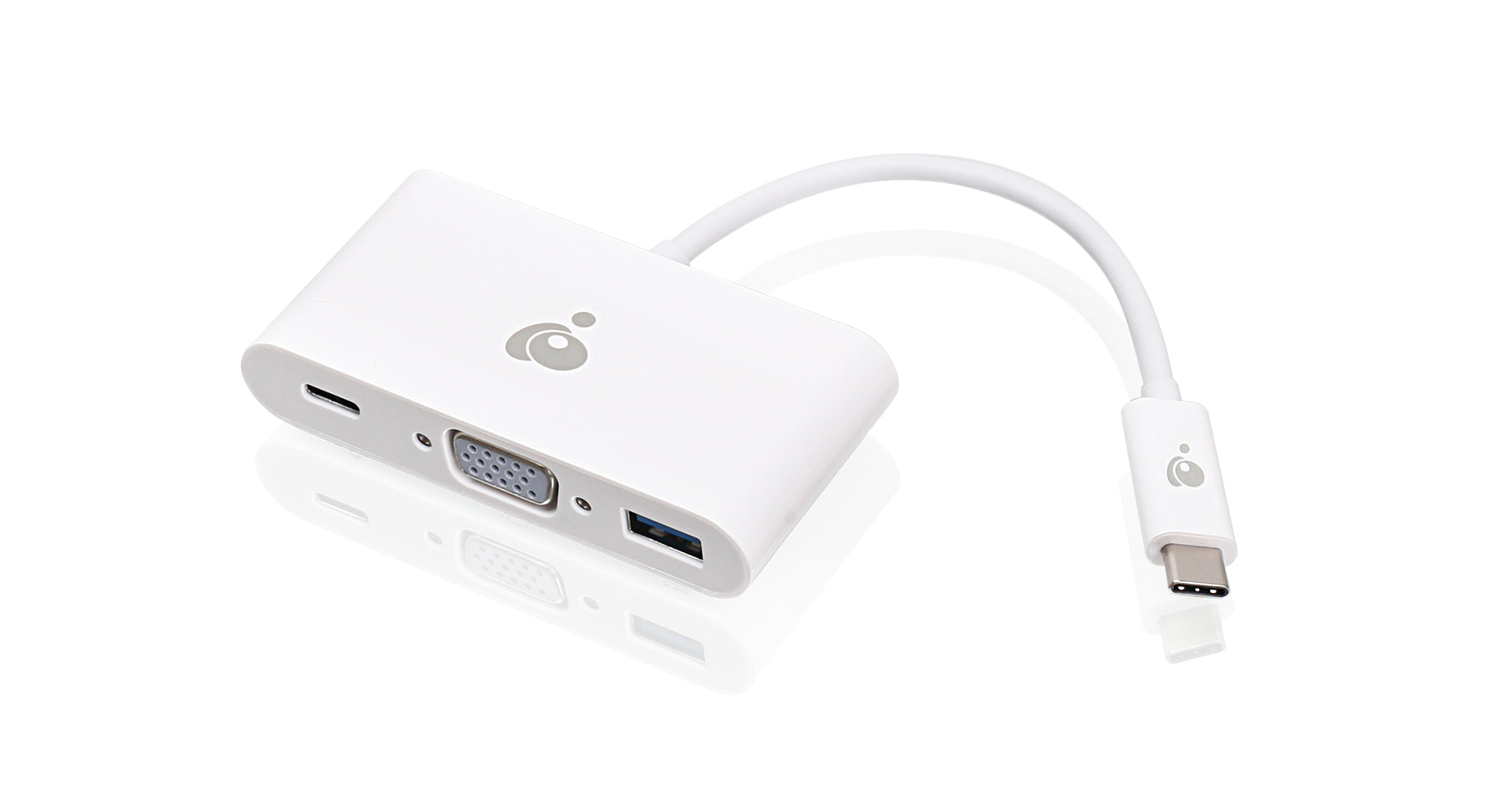

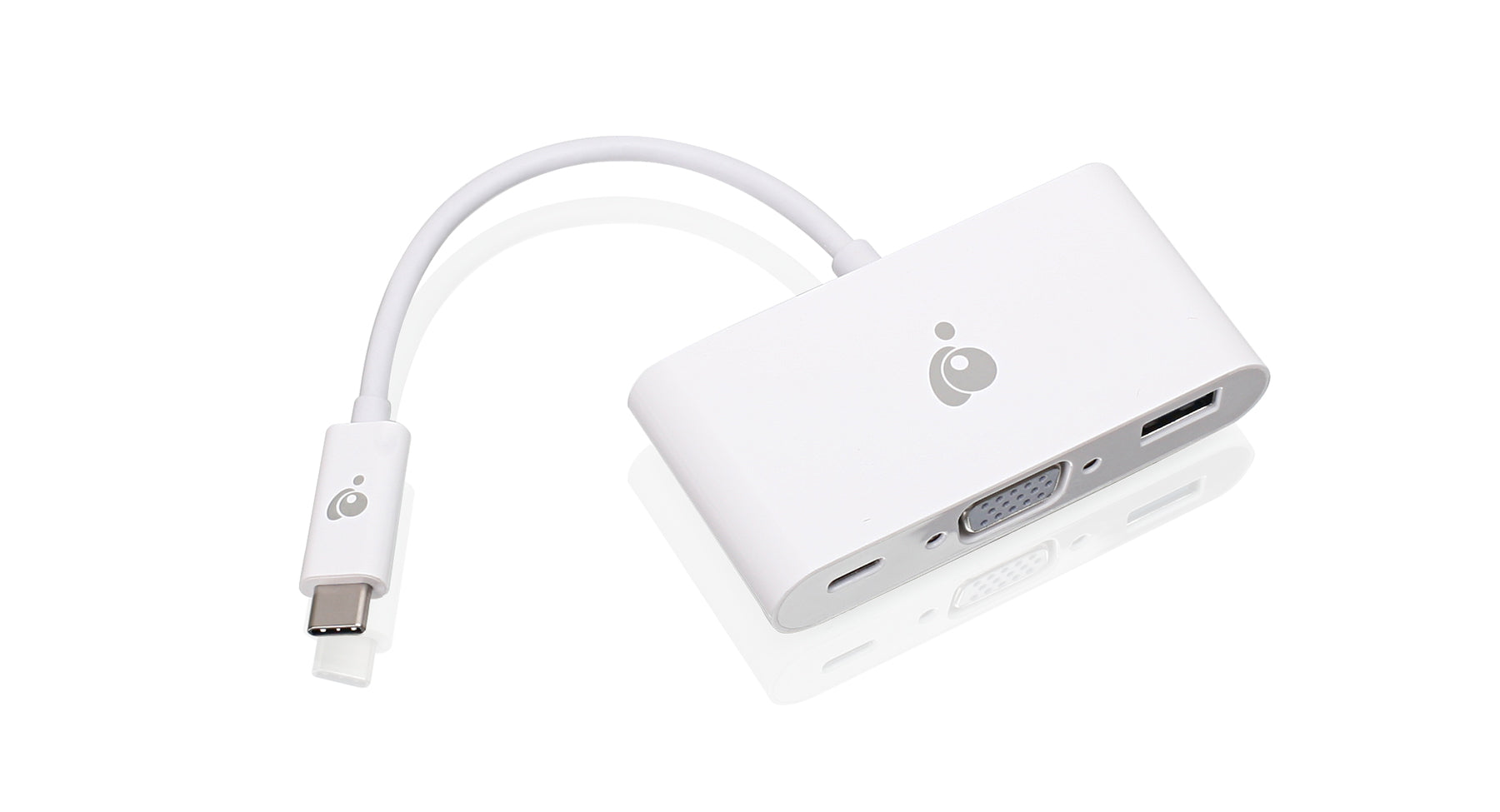

USB-C to VGA/USB Multiport Adapter w/ PD Pass-Thru


UPC: 881317514745

This product is EOL and is no longer being sold.
Sale price$39.95

This all-in-one adapter allows customer to easily output HD video via VGA and add a USB Type-A port while powering their laptop up to 60W.

Get More Out Of Your USB-C Port

This all-in-one adapter allows customer to easily output HD video via VGA and add a USB Type-A port while powering their laptop up to 60W. If the USB-C port is not utilized, it can become a standard USB-C port for use with any USB-C peripheral device such as a hub, Ethernet adapter, card reader and more.

1. PD (Power Delivery) Pass-Thru

No need to worry about running out of power while using your USB-C port. Connect your laptop's original USB-C charger to the multiport adapter and charge your laptop while you work or play. Providing up to 60w of power, your laptop will charge at the fast rate you expect from USB-C.

2. HD Resolution On An Additional Monitor

Add a VGA video port to your laptop and extend your monitor for a more complete workstation. The USB-C to VGA / USB Multiport Adapter supports up to HD resolution from the VGA video output for an astonishing video experience. To add your extra VGA monitor, no drivers are needed- making this a simple Plug-N-Play installation.

3. USB-C And Type-A Connectivity

Connect any of your current USB devices with the USB Type-A 3.0 port like your keyboard, mouse, printer, scanner, etc. When you are not charging your laptop, you can use the USB-C port to plug in any cutting edge USB-C devices.

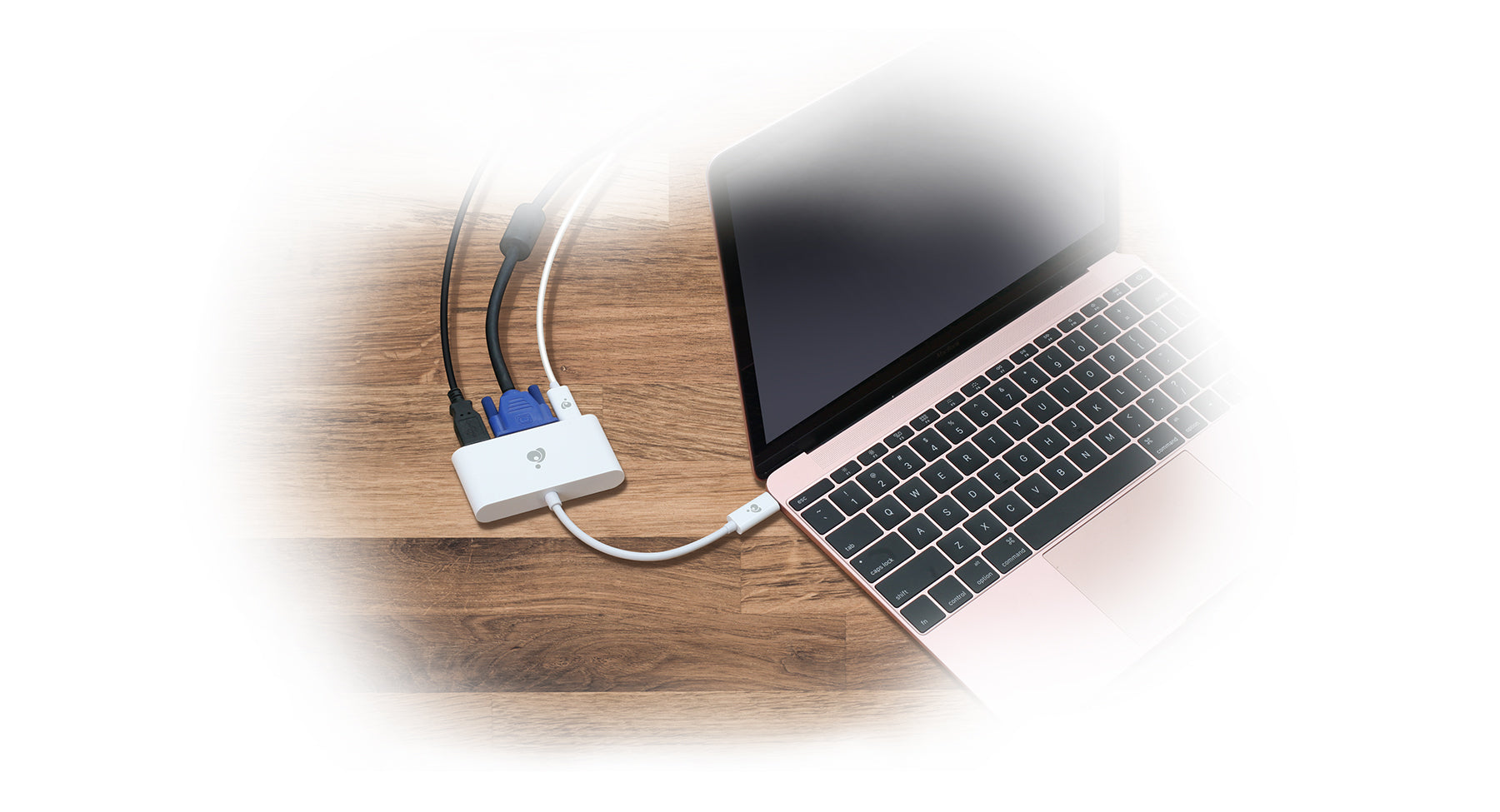

Lightweight and Portable

This USB-C Multiport adapter is designed to be compact and light for people on-the-go without sacrificing the peripheral connectivity and usability. Smaller than a deck of cards, you can easily slide this device into your purse, backpack or pocket.

  • Expand your USB-C port to VGA, USB-C and USB Type-A port
  • HD Video Resolution of up to 1920x1200@60HZ
  • Supports USB-C Power Delivery up to 60W *
  • USB-C downstream port x 1 (5Gbps)
  • USB Type-A port x 1 (5Gbps)
  • Compatible with Thunderbolt 3 (USB-C)
  • DP (DisplayPort) ALT Mode1

1Compatible with DP ALT mode supported USB-C and Thunderbolt 3 (USB-C) laptops*
* Power Delivery pass-through requires USB-C charger from your laptop. A total of up to 52.5W can be charged to the laptop after deduction of 7.5W is used by the dock.
** Pass-thru power delivered to the laptop is dependent upon the capacity of your USB-C power supply.
Ex. If your USB-C power supply is 60W, then the maximum power can be delivered to the laptop is 60W-7.5W = 52.5W.
Regardless of the capacity of your USB-C power supply, the maximum power can be delivered to your laptop is 52.5W.


  • Windows and Mac USB-C Enabled Computers
  • DP (DisplayPort) ALT Mode Support
  • 1 x GUC3C3V
  • 1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

Upstream Port
USB-CBuilt-in USB 3.1 G1 Type-C cable
Downstream Port
USB-A1 x USB-A 3.0
USB-C1 x USB-C for Power Delivery Pass-through or data transfer
VGA1x VGA port (up to 1920x1200@60Hz)
Power Delivery Pass-Thru60W (A total of up to 45W can be charged to the laptop after deduction of max 15W used by the dock
Operating System Requirements
WindowsWindows 7/8/8.1/10
MacMac OS X 10.7+
POP Information
10'' Peg Hook6
6'' Peg Hook4
Unit Dimensions
Height0.6" (1.5 cm)
Length3.15" (8 cm)
Depth1.58" (4 cm)
Inner Pack
Height6.1" (15.5 cm)
Length4.7" (12 cm)
Width7.7" (19.5 cm)
Inner Pack Qty.6
Unit Package Dimensions
Height5.7" (14.5 cm)
Width4.33" (11 cm)
Depth1.2" (3 cm)
Master Carton
Height7" (18 cm)
Width16.2" (41 cm)
Depth6.3" (16 cm)
Master Carton Qty.24
Master Carton Wt.6 lb (2.7kg)
Inner Pack Wt.1.25 lb (0.57 kg)
Unit Pack Wt.0.2 lb (0.09 kg)
Unit Wt.0.1 lb (0.05 kg)
