Thunderbolt KVM

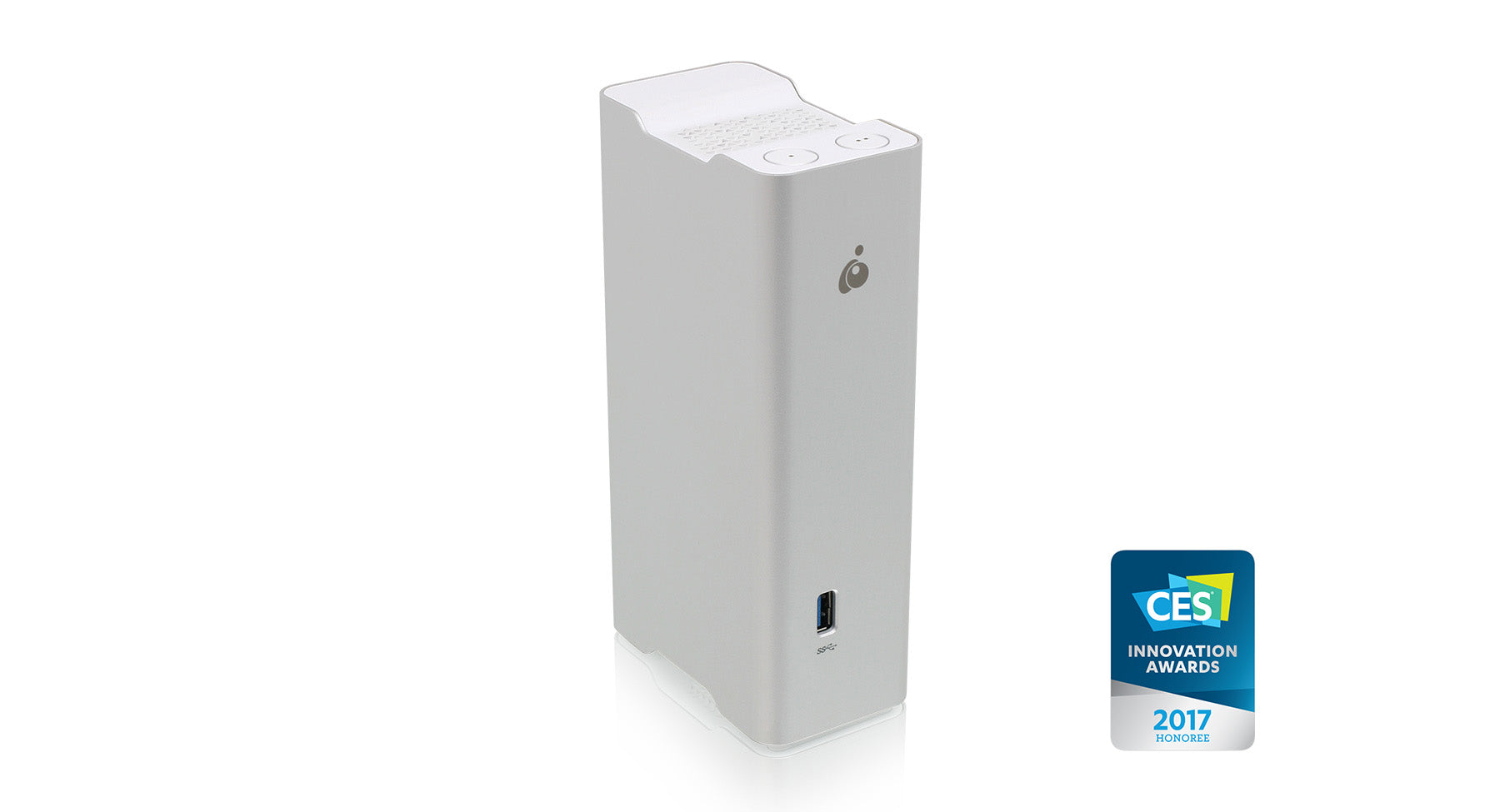

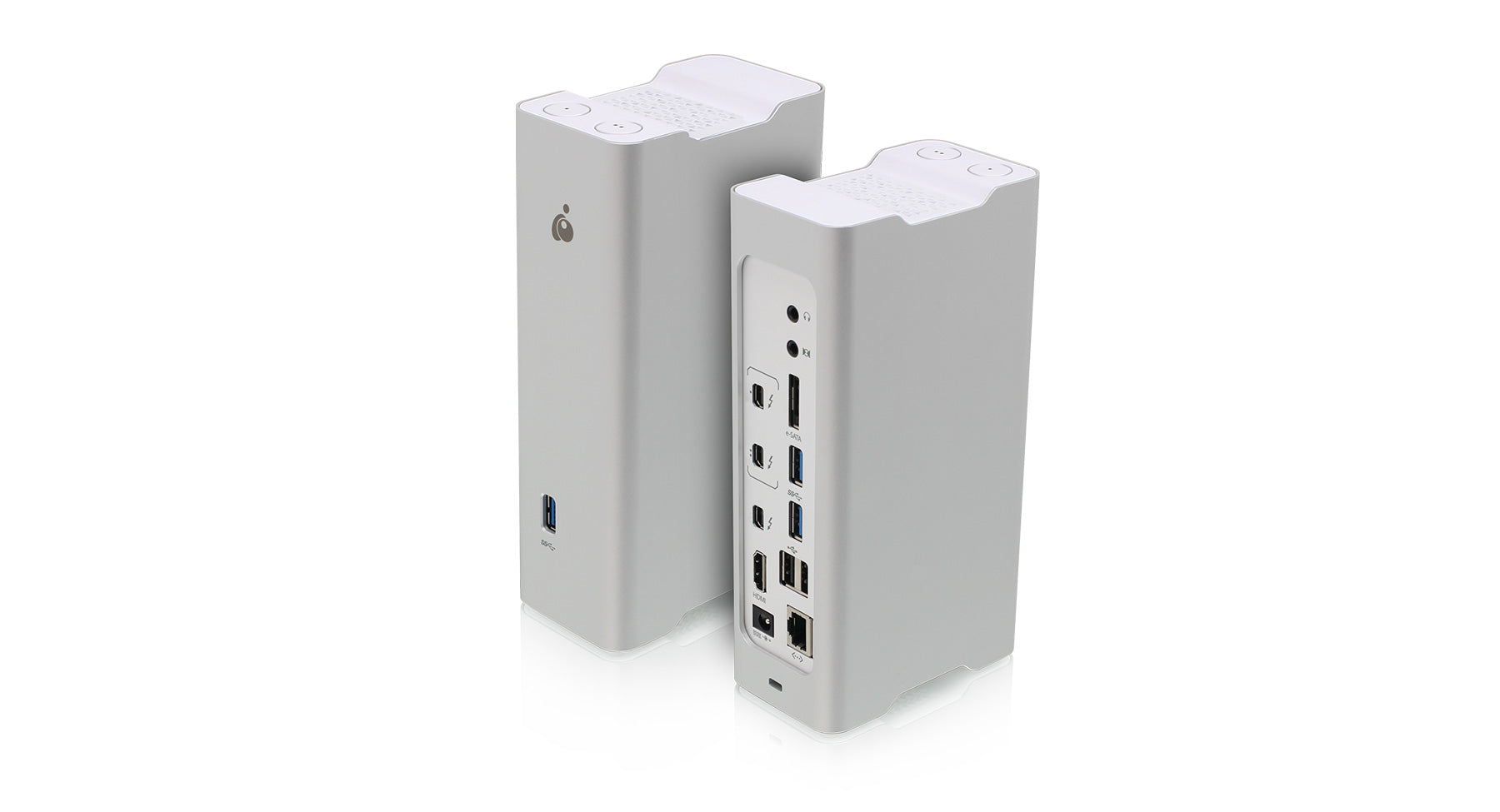

Thunderbolt 2 KVM / Docking Station (TAA Compliant)

2-Port EOL Thunderbolt
MPN: GTD732

UPC: 881317514561

This product is EOL and is no longer being sold.
Sale price$399.95

World's first Dock + KVM Switch. Instantly dock with up to 15 devices. Switch between your 2 computers with the push of a button & share these connected resources.

Docking Station On Steroids

World's first Dock + KVM Switch. Instantly dock with up to 15 devices. Switch between your 2 computers with the push of a button & share these connected resources.


The game-changing tool only the Pro's are using

"A CES Innovation Award honoree, the ultra-sleek Thunderbolt 2 lets you transition from your home office to work on the road without the typical headaches. It connects up to two Thunderbolt 2 enabled computers and switches between them with the push of a button." - The Huffington Post | Best Tech Products of CES 2017
learn more


World's first Dock + KVM Switch

  • 2 additional monitors up to 4K (UHD) resolution
  • 5 extra Thunderbolt 2 devices (daisy-chained)
  • 5 peripherals (keyboard, mouse, camera, etc.)
  • All your devices in one digital hub

Graphic Designers & 3D Animators

Architects & Civil Engineers

Video Editors

Advertising Agencies


Blazing-Fast Transfer Speed

With ultra-high speed bandwidth expansion and a data transfer rate of up to 20Gbps, the KVM Dock will allow you to transfer a full-length HD video in a matter of minutes!

4K Cinematic Experience

Unravel the remarkable visual experience of 4K Ultra HD (UHD). The KVM Dock flawlessly supports 4K video output and high-speed file transfer simultaneously.

Intuitive Daisy Chaining

Build the ultimate workstation setup: connect up to 5 additional Thunderbolt enabled devices, including a Thunderbolt monitor.

Connect Beyond Belief

Connect two Thunderbolt 2 computers and switch between them with the push of a button. Dock all your devices and share them between your computers with ease.


Instructional Video

  • Compatible with Thunderbolt 3 computers via a Thunderbolt 3 to Thunderbolt 2 Adapter*
  • Share your peripherals and Thunderbolt 2¬†devices between 2 computers
  • Supports up to 4K¬†(3840x2160) resolution on both¬†HDMI and Thunderbolt 2 ports**
  • Supports dual displays¬†with HDMI and Thunderbolt 2 monitors***
  • Daisy chain up to 4 additional Thunderbolt devices plus 1 Thunderbolt Monitor¬†(5 total)
  • Ultra-high speed bandwidth expansion for 4 times faster data transfer than USB 3.0 and 25 times faster than FireWire 800
  • Ability to connect up to 15 devices or¬†peripherals¬†to the dock (10 on dock + 5 via Thunderbolt expansion)
  • Integrated 3-port USB 3.0 and 2-port USB 2.0 Hub for external USB drives, cameras and phones
  • Optical audio-in/ audio-out port provides 5.1 digital audio editing and playback capabilities
  • Gigabit Ethernet port (RJ-45)
  • eSATA interface
  • TAA Compliant
  • Backwards compatible with Thunderbolt 1


*An optional Apple Thunderbolt 3 (USB-C)  to Thunderbolt 2 (mDP) Adapter is required

**Maximum resolution is dependent on the capability of the video display and its computer source

***Dual display feature is only available on HDMI and Thunderbolt 2 connections.  If connecting to an external display via Mini DisplayPort cable, then only one external display will work at a time.


  • 1 x Thunderbolt 2 KVM / Docking Station¬†
  • 1 x 1m (3ft) Thunderbolt 2¬†Cable
  • 1 x AC Power Adapter
  • 1 x Base Stand
  • 1 x Quick Start Guide
  • 1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGTD732
Cable Connections
InputThunderbolt 2 (Dual Inputs)
OutputThunderbolt 2
Cable Length3.3ft (1m)
Cable TypeThunderbolt™ 2 Male to Male Cable
Connectors
Audio InputAnalog/Optical Line-In
Audio OutputAnalog/Optical Line-Out
Computer SideThunderbolt Port
Power12V 7.5A Full Range Power Adapter
USB3 x USB3.0 Data Port ; 2 x USB 2.0
Video OutputHDMI and Mini DP (Thunderbolt)
SATA / eSATAeSATA Port x 1
LANGigabit Ethernet
LEDs
Power OnWhite LED
DimensionsGTD732
Unit Dimensions
Height7.22" (18.34cm)
Depth3.84" (9.75cm)
Length2.24" (5.7cm)
Unit Package Dimensions
Width6.3" (16cm)
Height8.75" (22.25cm)
Depth5.51" (14cm)
Master Carton
Width7.0" (17.78cm)
Height9.50" (24.13cm)
Depth17.4"(44.2cm)
Master Carton Qty.3
Weight
Master Carton Wt.13.15 lbs (6.12kgs)
Unit Pack Wt.4.05 lbs (1.84kgs)
Unit Wt.1.70 lbs (0.77kgs)
