USB CAC Reader

USB-C CAC Reader Plus


UPC: 881317519986

This product is EOL and is no longer being sold.
Sale price$109.95

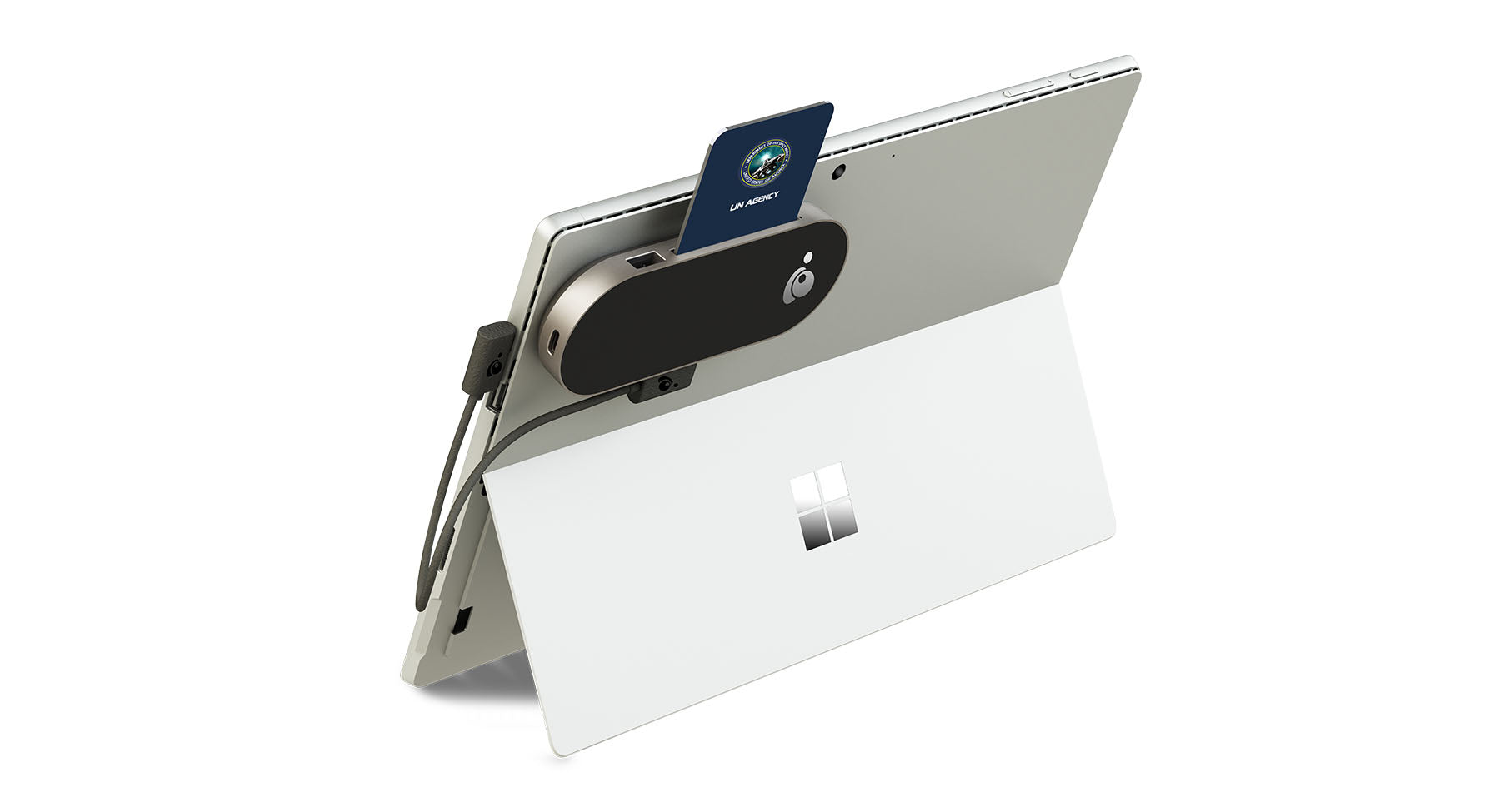

The IOGEAR USB-C CAC Reader Plus is an easy-to-install USB™-C device designed for all Microsoft Surface devices, but compatible with most USB-C or Thunderbolt™3 laptop, smartphone, or tablet.

Universal CAC Compatibility

Utilizing the latest common access card encryptions (CAC) and compatible with most CAC middleware software, the USB-C CAC Reader Plus works with all CACs issued by any organization from the U.S. Department of Defense (DOD) to military personel, federal and state employees, government contractors as well as corporate, banking and healthcare industries.

Quick Attach & Release System

Installation is fast and straightforward. Simply connect the included transmitter to your HDMI source and plug the receiver to your TV.

  • TAA Compliant USB-C CAC Reader* with PD 3.0 and USB 3.2 Gen1 Hub
  • Quick attach and release mounting system
  • Compatible with Microsoft USB-CCID driver
  • Ideal for government, military, healthcare or banking
  • Portable design with power and scan LED indicators
  • 688Kbps read speed with multi-protocol support**
  • ISO7816 implementation-Class A, B and C (5V,3V,1.8V) card
  • EMV2000 Level 1 approved and supports 3V & 5V cards
  • EMVCo 4.3 Level 1 Specification certified
  • PBOC3.0 Level 1 Specification certified
  • Support PC Smart Card industry standard-PC/SC 2.0
  • Support ISO7816 T0, T1 protocol
  • Support ISO7816 Class A, B, C (5/3/1.8V) cards
  • Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436,SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM
  • Support customized USB VID/PID, manufacture/product strings and serial number by external EEPROM via USB interface
  • Support remote wake up through inserting card/removing card
  • Support USB selective suspend
  • Support Power Saving Mode (Using one pin to select between Normal/PWR Saving Mode)
  • Support card power over current protection mechanism
  • Supports PIV cards
  • Support single slot
  • TAA compliant

* CAC Middleware is not included
** Software driver may be needed to achieve maximum speed. Actual speed may be dependent on system environments.

Windows® 8.1, Windows® 10,  Windows® 11

  • 1 x USB-C CAC Reader
  • 1 x USB-C to C cable
  • 1 x Quick Start Guide
  • 1 x Warranty

Need more help with this product? Visit IOGEAR Knowledge Base

Power OnWhite
Cable Length8.25" (20.625cm)
Downstream Port
USB-C1 x USB-A (5Gbps); 1 x CAC slot; 1 x USB-C PD3.0 (Power)
Upstream Port
USB-C1 x USB-C (5Gbps)
Unit Dimensions
Height0.5 in (1.27 cm)
Length5 in (12.7 cm)
Width1.7 in (4.3 cm)
Unit Package Dimensions
Height8.2 in (21 cm)
Length1.5 in (4 cm)
Width5.9 in (15.2 cm)
Master Carton
Height8.5 in (21.6 cm)
Length12.5 in (31.75 cm)
Width10.1 in (25.7 cm)
Master Carton Qty.12 pcs
Master Carton Wt.5.4 lbs (2.4 kg)
Unit Pack Wt.0.35 lbs (0.16 kg)
Unit Wt.0.15 lbs (0.08 kg)
