USB CAC Reader

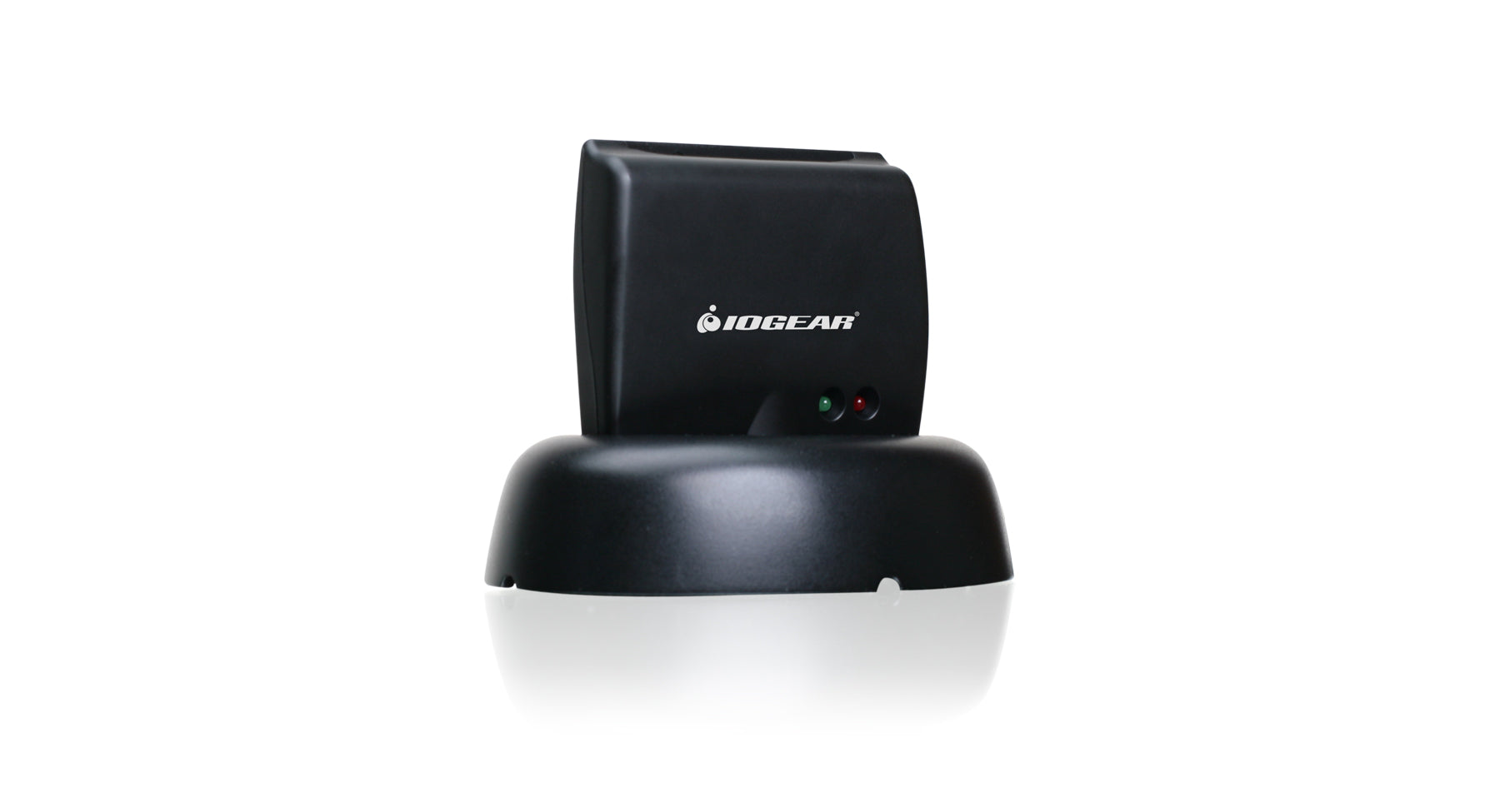

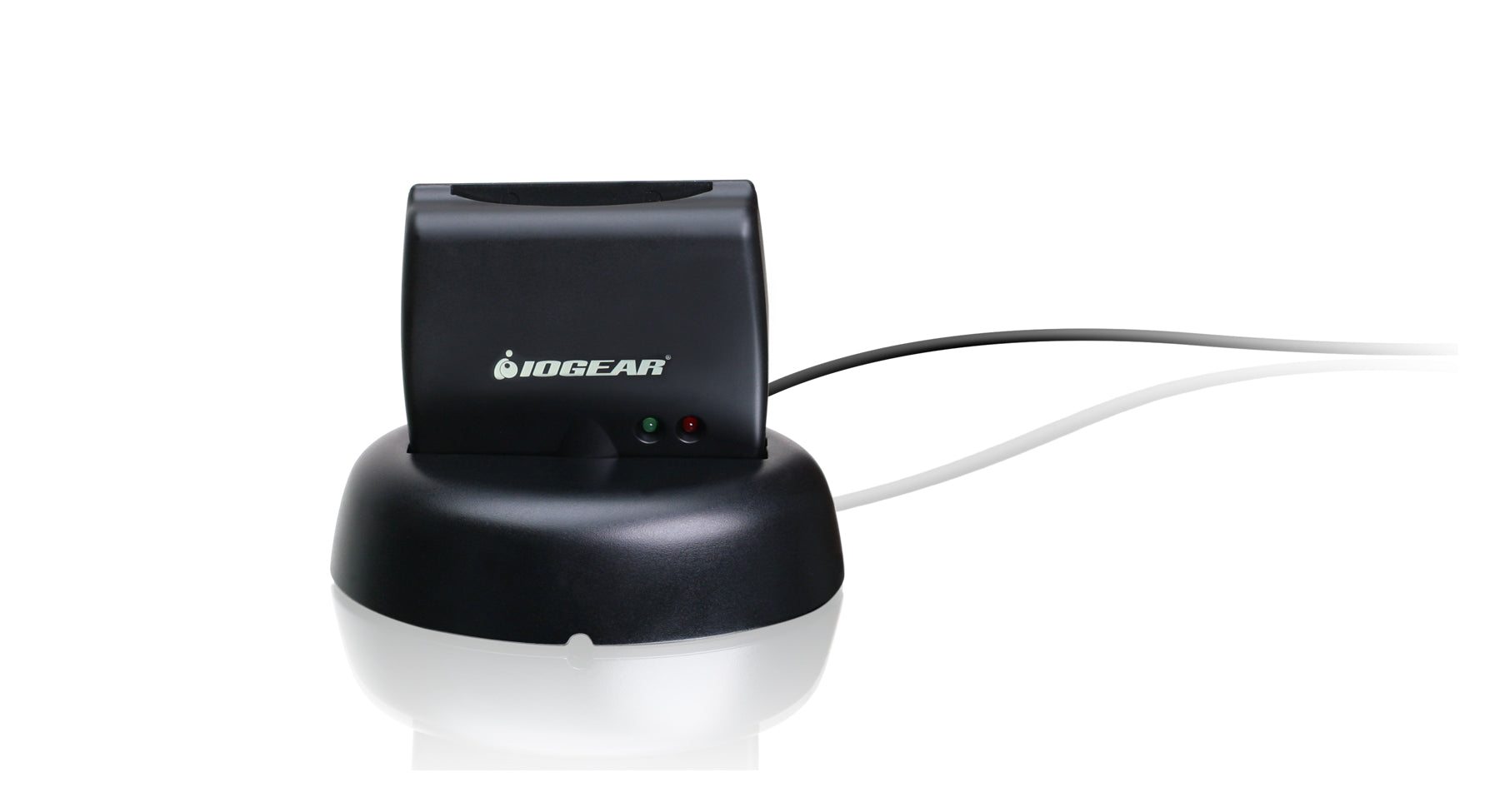

Vertical USB Smart Card Access Reader TAA

EOL
MPN: GSR202V

UPC: 881317510617

This product is EOL and is no longer being sold.
Sale price$37.95

Smart Cards are the next step in convenience and security. Get ready for the future with the new IOGEAR Vertical USB Smart Card Access Reader.

IOGEAR Vertical USB CAC Reader / Smart Card Access Reader

Smart Cards are the next step in convenience and security. Get ready for the future with the new IOGEAR Vertical USB Smart Card Access Reader. Effortlessly scan your Smart Card with the assurance of data protection and an added layer of security. It supports multiple Smart Card protocols and relevant industry standards for digital signage and secure personal identification.

What is a Smart Card Reader?

A Smart Card is a small portable credit-card shaped pocket-sized card with embedded integrated circuits or IC chips which can process data. The combination of the small size and IC in the Samrt Card make them a valuable tool for security, data storage, and other special applications. The use of Smart Cards can improve user security by combining something a user has (the Smart Card) with something only the user should know (a PIN). This provides two level of security that is more secure than passwords alone. A Smart Card Reader is a communications medium between the smart card and a host (e.g. a computer, a point-of-sale terminal) adding a level of security to prevent unwanted users accessing the system.

Designed for Security and Accuracy

The traditional credit card uses a magnetic-strip which stores a very small amount of information and has no processing capability of its own. Smart Cards are the next generation of secure and user friendly identification, authentication and data storage solution. IOGEAR USB Smart Card Access Readers use a contact system where the card must be inserted directly into the card reader; this type of reader is less prone to misalignment and eliminates the possibility of being misread.

Smart Card Reader Usage

  • Healthcare - Secure patient information by requiring smart card access of system terminals and computers
  • Government - Add an additional level of security to computers with sensitive information
  • Banking -Protect your customers from unwanted data and monetary theft

Smart Card Reader with TAA Compliance

GSR202 is listed on the Approved Product List and is TAA compliant product. Users can go to the following website for more info.

http://fips201ep.cio.gov/apl.php

APL# 579

  • USB Smart Card Access reader
  • Suitable for applications in government, healthcare, banking, entertainment, and secure network login
  • Supports multiple Smart Card protocols and relevant industry standards for digital signage and secure personal identification
  • FIPS-201 Compliant: Meets US Federal Information Processing Standard Publication 201*
  • EMV 2000 Level 1 approved and support 3V and 5V cards
  • Designed for use with CAC software**
  • ISO7816 implementation - Class A, B, and C (5V / 3V / 1.8V) Card
  • USB 2.0 connection to increase reliability and ease of operation
  • Speed: 825kbps
  • Power / Scan LED indicator
  • *R-TRE.1: Follows the ISO7816-2 standard
  • R-TRE.2: GSR202 conforms to the reader-to-host system interface of Personal computer / Smart Card (PC/SC) spec
  • R-TRE.3: Support Class A operating class as defined in ISO/IEC 7816-3: 1997 and ISO/IEC 7816-3:1997/Amd 1:2002
  • R-TRE.4: Support both T=0 and T=1 transmission protocol which is defined in ISO/IEC 7816-3:1997
  • R-TRE.5: Not generate the programming Voltage
  • R-TRE.6: Data retrieved from the PIV readers shall be the data that was written on each card
  • R-TRE.13: Data format for physical readers shall consist of the 2 parity bits, agency code, system code and credential code elements of the FASC-N along with the expiration date (YYYYMMDD) from the CHUID as defined by appendix A of NIST SP 800-73. Each element shall be individually formatted as binary numbers and combined to form a 75 bit string as shown in the figure below.

**CAC Middleware is not included

  • Windows XP®, Windows Vista®, Windows® 7, Windows® 8/8.1, Windows® 10
  • MAC OSX 10.4 or later (32-bit/64-bit, embedded smart card services)
  • Linux Redhat, Ubuntu, Fedora (Kernel 2.4 or later)
  • Available USB Port 1.1 or 2.0
  • 1 x Vertical USB Smart Card Reader
  • 1 x Driver CD (Windows OS / Linux OS Only)
  • 1 x Quick Start Guide
  • 1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGSR202V
Data Rate825,806bps
DimensionsGSR202V
Unit Dimensions
Height3.5 in.
Depth3.25 in.
Length4.38 in.
Inner Pack
Width23.25"
Height7.25"
Length6"
Inner Pack Qty.6
Unit Package Dimensions
Width5.5"
Height6.25"
Depth3.75"
Master Carton
Width24"
Height8.25"
Depth13.25"
Weight
Master Carton Wt.19.10lbs
Inner Pack Wt.8.80lbs
Unit Pack Wt.1.3lbs
Unit Wt.1.15lbs
