Video Switch

4K 4-Port HDMI® Switch with Remote

4K@60hz EOL HDMI Switch
MPN: GHDSW4K4

UPC: 881317512901

This product is EOL and is no longer being sold.
Sale price$34.95

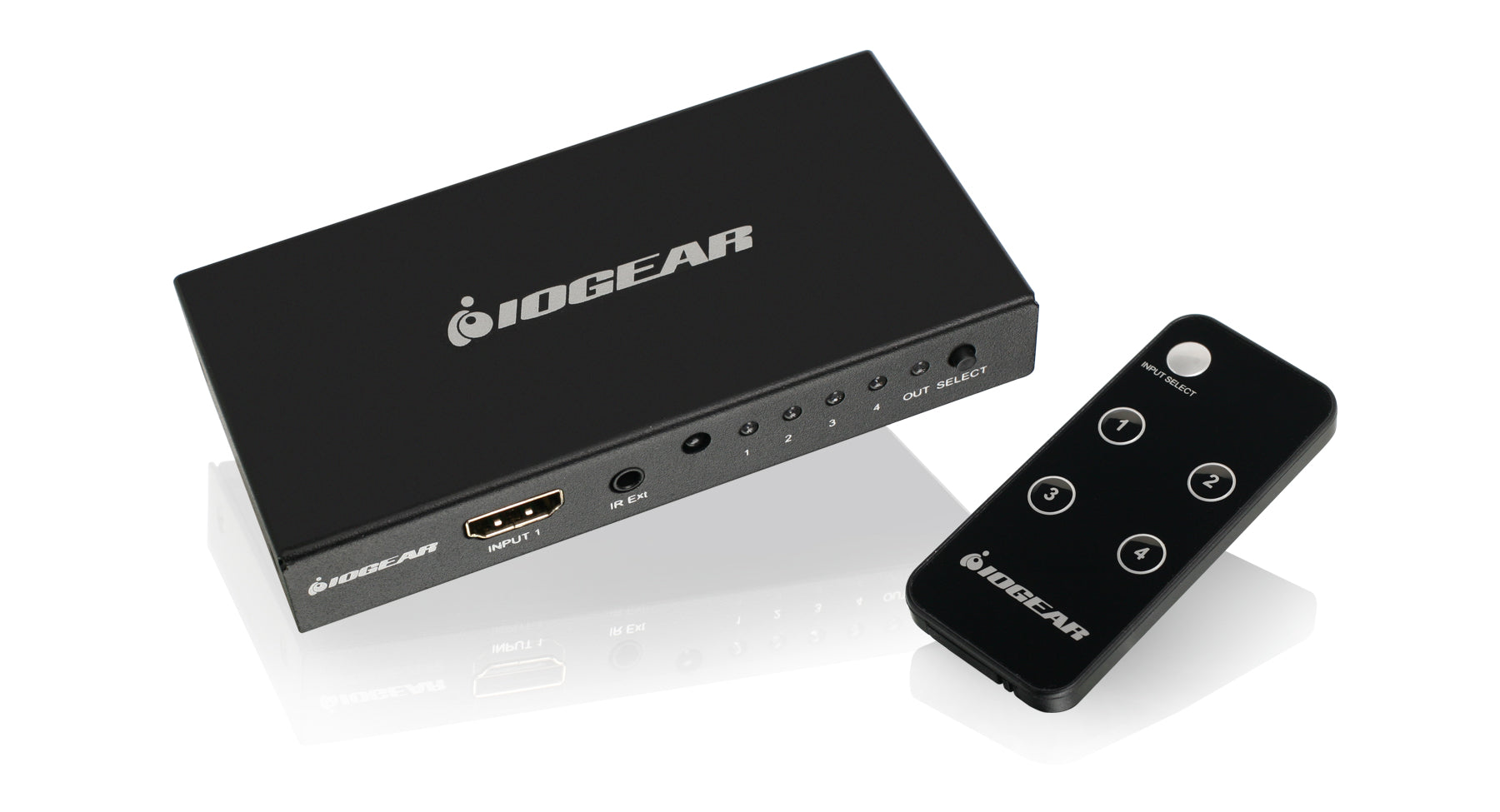

Connect up to four HDMI source devices to one HDMI display with IOGEAR's 4K 4-Port HDMI Switch. For easy access and convenience, this switch has one HDMI port on the front panel that can be used to connect your portable devices, such as laptops, tablets or digital cameras. The three additional HDMI ports on the back provide permanent connections for your Blu-ray players, set-top boxes, video game consoles and more. Switching between HDMI source devices can be done via the front panel pushbuttons or IR remote control. Easy identification of source inputs using the front panel LED indicators for each source device.

4-Port HDMI Switch

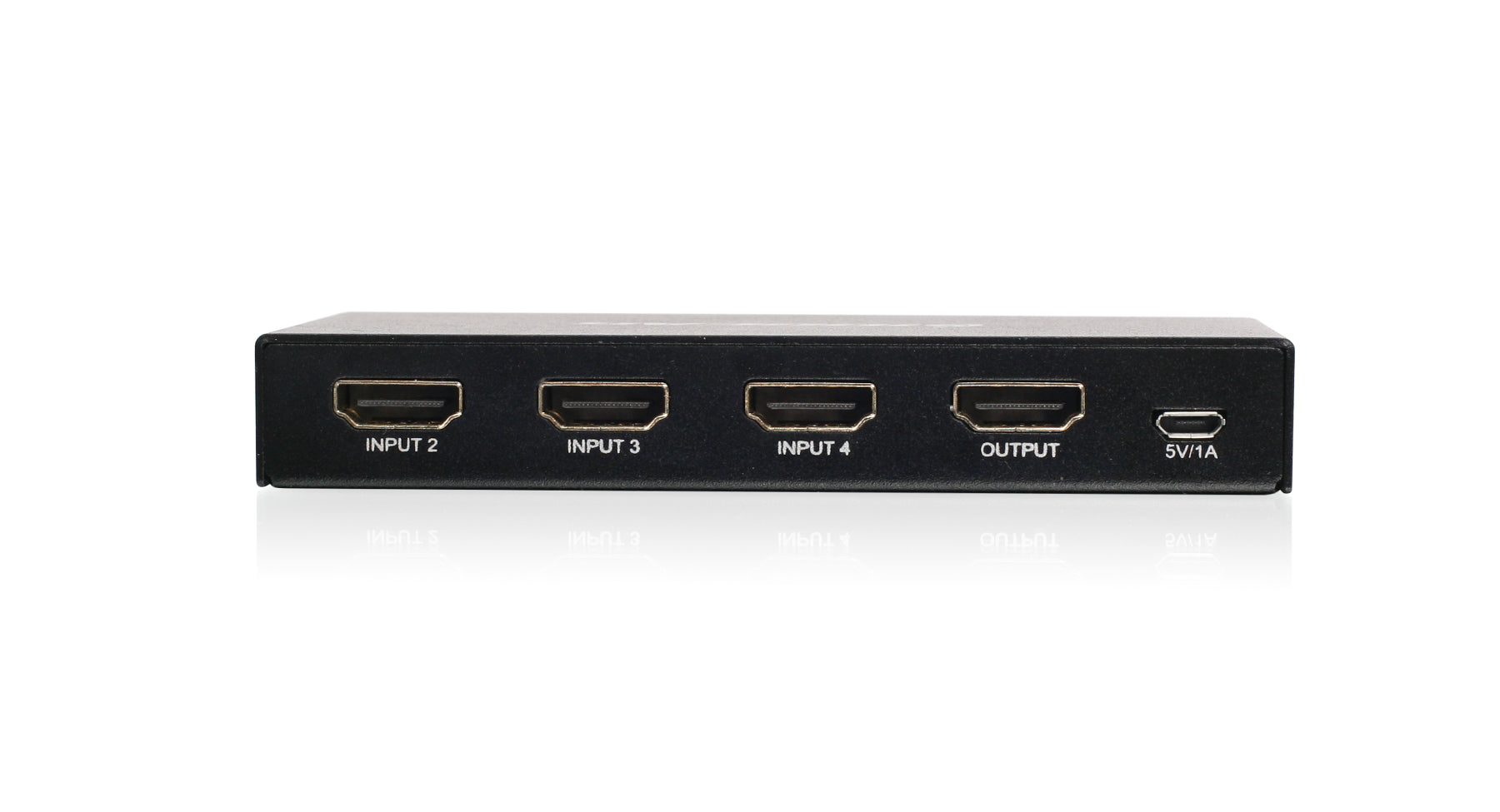

Connect up to four HDMI source devices to one HDMI display with IOGEAR's 4K 4-Port HDMI Switch. For easy access and convenience, this switch has one HDMI port on the front panel that can be used to connect your portable devices, such as laptops, tablets or digital cameras. The three additional HDMI ports on the back provide permanent connections for your Blu-ray players, set-top boxes, video game consoles and more. Switching between HDMI source devices can be done via the front panel pushbuttons or IR remote control. Easy identification of source inputs using the front panel LED indicators for each source device.

4K Ultra High Definition (UHD) Video Support

IOGEAR's 4-Port HDMI Switch supports UHD 4K, the latest digital format for high-definition displays. This switch is capable of 4K resolution and also supports 12-bit Deep Color and 3D video.

IR Remote Control

Switch between different devices from the comfort of your couch using the included IR remote. With the built in IR extension port, connect an IR extension cable (not included) to place the 4-port switch out of sight to keep your entertainment center neat and tidy.

No Power Adapter Required

IOGEAR's 4K 4-Port HDMI Switch is powered by the connected HDMI source(s) and does not require a power supply which cuts down on cable clutter and the need to plug in another power adapter. A micro-USB power port provides additional power delivery if necessary.

  • Connect and switch between 4 HDMI inputs on 1 HDMI enabled HDTV or display
  • Supported Resolutions: 480p, 720p, 1080i, 1080p and 2160p
  • No power adapter required - powered by the connected HDMI devices
  • HDMI 2.0 and HDCP 2.2 Compliant
  • Supports full 3D pass-through
  • Consumer Electronics Control (CEC) support
  • Compatible with Dolby® TrueHD and DTS-HD for uncompressed 7.1 digital surround sound
  • Switch between devices via front-panel pushbutton or IR remote
  • Supports IR extension using a receiver extension cable*
  • Front-panel LEDs for port and power status
  • Backwards compatible with DVI devices with HDMI to DVI adapter**

*The IR extension cable is not included in the packaging
**To connect to a DVI device please use the GHDFDVIMW6 adapter, visit the GHDFDVIMW6 product page for more information.

Source Devices

  • Digital media devices with HDMI connections

Display

  • HDTV or display with an HDMI Input

Cables/Adapters

*Not included

  • 1 x GHDSW4K4 4K 4-Port HDMI Switch
  • 1 x IR Remote Control
  • 1 x Quick Start Guide
  • 1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGHDSW4K4
Video connections
Input4 x Female HDMI Type A 19 Pin
Output1 x Female HDMI Type A 19 Pin
Connectors
Video InputFemale HDMI Type A 19 Pin
Video OutputFemale HDMI Type A 19 Pin
USB1 (Power - Optional)
Input Connector1 x IR Extension
LEDs
Input4
Output1
Video Resolution480i, 480p, 720p, 1080i, 1080p @60Hz, 2160p @60Hz, VGA~UXGA
Color Depth8-bit/10-bit/12-bit
Data Rate18Gbps
Environment
Operation Temperature5~131ºF (-15~55ºC)
Storage Temperature-4~140ºF (-20~60ºC)
Humidity0-80% RH (Non Condensing)
Power
Voltage5V
Amps1A
Power AdapterMicro USB (Optional - Not Included)
Housing
CaseMetal
DimensionsGHDSW4K4
Unit Dimensions
Height0.75" (1.9 cm)
Length4.75" (12.1 cm)
Depth2.4" (6 cm)
Inner Pack
Height6.9" (17.5 cm)
Length6.6" (16.8 cm)
Width6.4" (16.3 cm)
Inner Pack Qty.6
Unit Package Dimensions
Height6.1" (15.5 cm)
Width6.4" (16.2 cm)
Depth1" (2.5 cm)
Master Carton
Height7.6" (19.4 cm)
Width7.1" (18.1 cm)
Depth14" (35.6 cm)
Master Carton Qty.12
Weight
Master Carton Wt.8.65 lb (3.9 kg)
Inner Pack Wt.3.95 lb (1.79 kg)
Unit Pack Wt.0.65 lb (0.29 kg)
Unit Wt.0.45 lb (0.2 kg)
