2-Port Cable KVMs

2-Port Dual-Link DVI Cable KVM with Audio

EOL
MPN: GCS982U

UPC: 881317508676

This product is EOL and is no longer being sold.
Sale price$141.95

Plug-N-Play- Share two computers using a keyboard, mouse and DVI monitor (2560x1600@60Hz). Cables included.

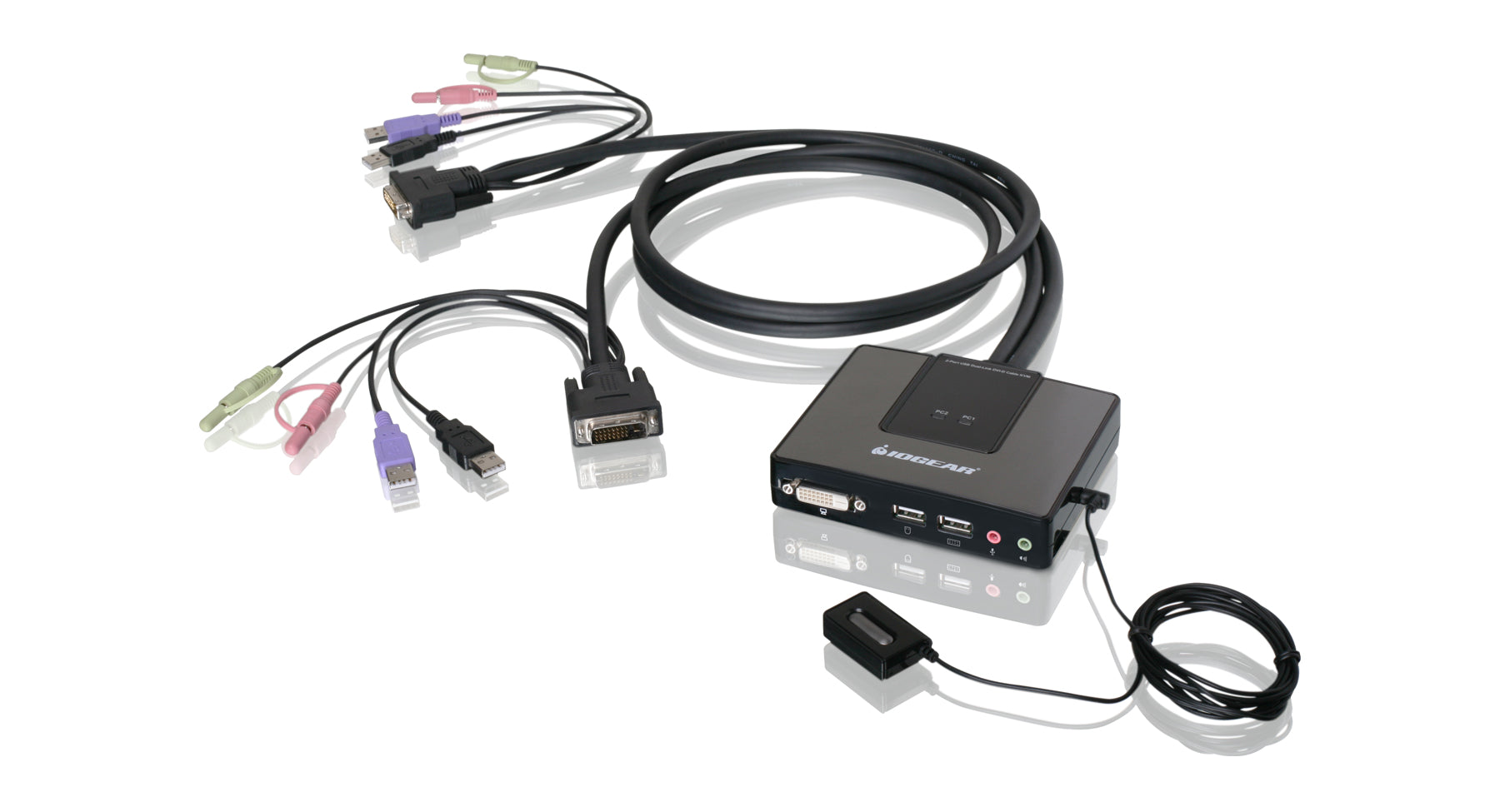

2-Port Dual-Link DVI Cable KVM with Audio

IOGEAR's 2-Port USB Dual-Link DVI Cable KVM Switch with Audio offers a simple method for switching between two computers from one dual-link DVI monitor, mouse, keyboard, and a set of speakers - microphone. This compact cable KVM comes ready with built-in KVM cables, eliminating that extra step connecting your computers, console, and the KVM itself. Customize your settings using the programmed hotkey combination with features such as Auto Scan, Port Switching, Mouse and Keyboard Emulation, Power on Detection, and so on. A complete KVM solution in a compact form factor.

Robust Features & Plug-N-Play

The 2-Port USB Dual-Link DVI Cable supports mouse and keyboard emulation, ensuring uninterrupted operation when switching computers. Simply switch between the two connected computers by hotkey, remote pushbutton, or 3-button mouse. Also, mouse and keyboard emulation. Enjoy your viewing up to Dual-Link DVI resolutions of 2560x1600 and audio of 2.1.

DynaSync Support

Equipped with IOGEAR's DynaSync* technology which remembers your monitor's ideal resolution and refresh rate, the GCS982U boots all your computers simultaneously and switches back and forth between the two computers while still maintaining the ideal resolution of the monitor.

*IOGEAR’s DynaSync provides the EDID support for Windows 7

  • Control 2 computers with one keyboard, mouse and monitor
  • 2-Port DVI cable KVM switch
  • Dual-link DVI resolution up to 2560x1600 @ 60Hz
  • Port switching via remote switch button, mouse or hotkeys
  • Hotkeys allows independent KVM and audio switching between computers
  • 2.1 stereo sound and microphone support
  • USB 2.0 Peripheral Sharing via mouse port - Connect a powered USB hub to expand your USB connectivity*
  • IOGEAR's DynaSync** technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
  • USB mouse and keyboard emulation for error-free boot-up and instantaneous recognition when switching computers
  • Power-On Detection - If one of the computers is powered off, it will automatically switch to the next powered-on computer
  • Re-programmable Hotkey activation for keyboards without a Scroll Lock key
  • Mouse emulation can be disabled to support mice with special keys
  • Mac and Sun keyboard support
  • Firmware upgradeable
  • Plug-n-Play; No software required

*Mouse emulation must be disabled for this feature to function correctly
**IOGEAR's DynaSync provides the EDID support for Windows 7

Console:

  • DVI monitor
  • Standard 104 key wired USB keyboard
  • Standard 2 or 3 button wired USB mouse
  • Speakers and microphone



Computers:

  • DVI port
  • Type "A" USB port
  • Audio ports



Operating Systems:

  • Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
  • Mac OS 9 to 10.x
  • Oracle® Solaris
  • Linux®, Unix and other USB supported systems*
  • 1 x 2-Port USB DUAL-LINK DVI Cable KVM
  • 1 x Remote Switch Button
  • 1 x Quick Installation Guide
  • 1 x Warranty Card

Distributor Part #
Ingram NF6071
DH GCS982U
Synnex 3162657
SKU ECCN
GCS982U EAR99
FunctionGCS982U
Computer Connections
Direct2
Console Connection1
Port SelectionHotkey, Mouse or Remote Switch Button
Console Connectors
Keyboard1 x USB Type A Female
Mouse1 x USB Type A Female
Monitor1 x Dual-Link DVI-D Female
Audio1 x Mini Stereo Jack Female (Green)
Microphone1 x Mini Stereo Jack Female (Pink)

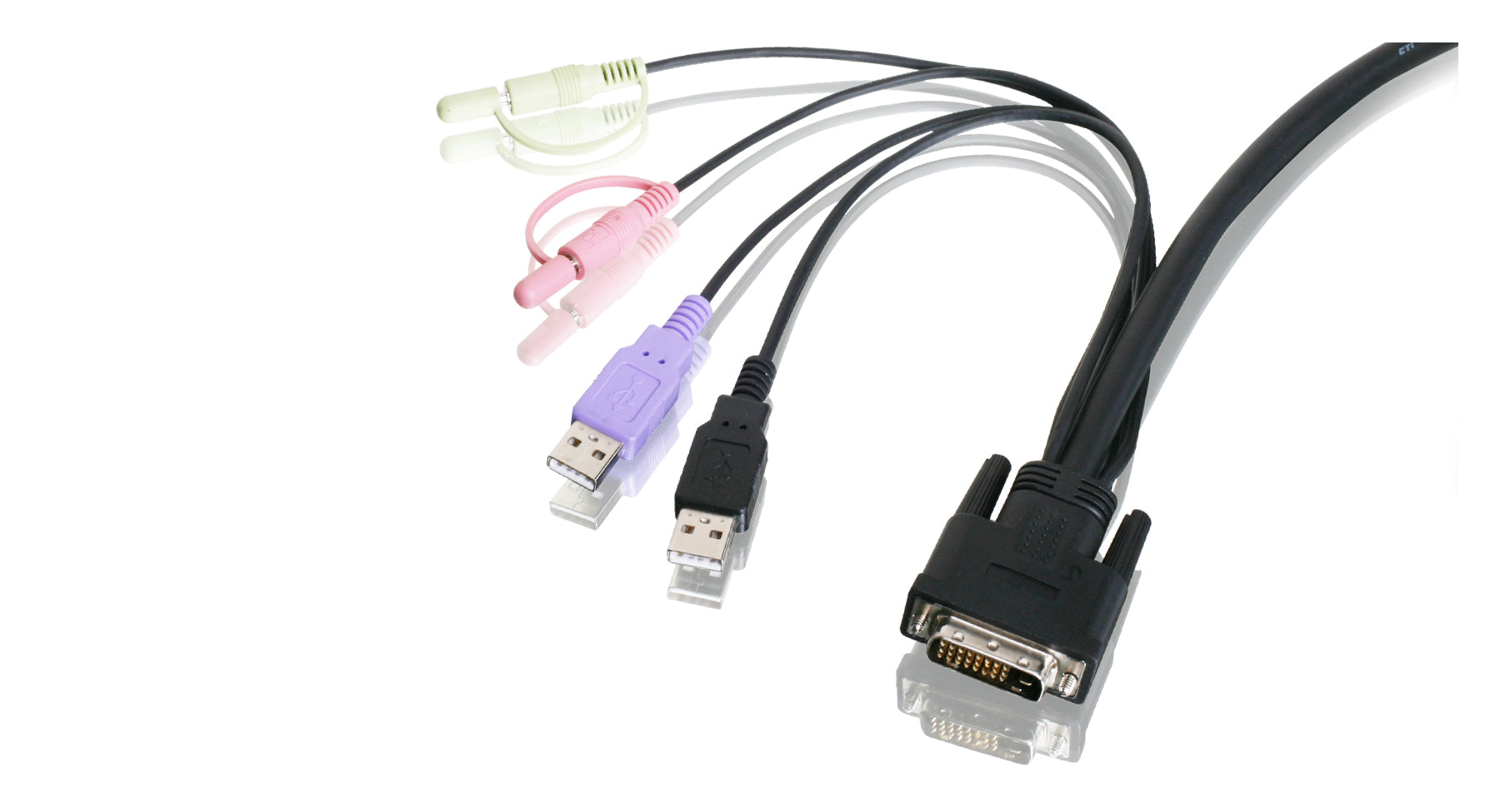

CPU Connectors
Keyboard & Mouse4 x USB Type A Male (Purple for Keyboard and Black for Mouse)
Monitor2 x Dual-Link DVI-D Male
Audio2 x Mini Stereo Jack Male (Green)
Microphone2 x Mini Stereo Jack Male (Pink)
LEDs
Port ID2 x Green
Cable Length1.2m
Emulation
KeyboardUSB
MouseUSB
Switches
F/W UpgradeUSB
Video Resolution2560 x 1600 @ 60Hz; DDC2B
Scan IntervalDefault 5 Seconds (3, 5, 10 or 20 sec.)
Environment
Operation Temperature0~50C
Storage Temperature-20~60C
Humidity0~80% RH; Non-condensing
Housing
CasePlastic
DimensionsGCS982U
POP Information
10'' Peg Hook3
6'' Peg Hook2
Unit Dimensions
Width4.75" (12.1cm)
Height3.75" (9.5cm)
Depth1" (2.5cm)
Unit Package Dimensions
Width6.5" (15.9cm)
Height9.25" (23.5cm)
Depth2.75" (7.0cm)
Master Carton
Width9.5" (24.1cm)
Height7.5" (19.1cm)
Depth16.25" (41.3cm)
Master Carton Qty.6
Weight
Master Carton Wt.9.85lb (4.47kg)
Unit Pack Wt.1.50lb (0.68kg)
Unit Wt.1.20lb (0.54kg)
