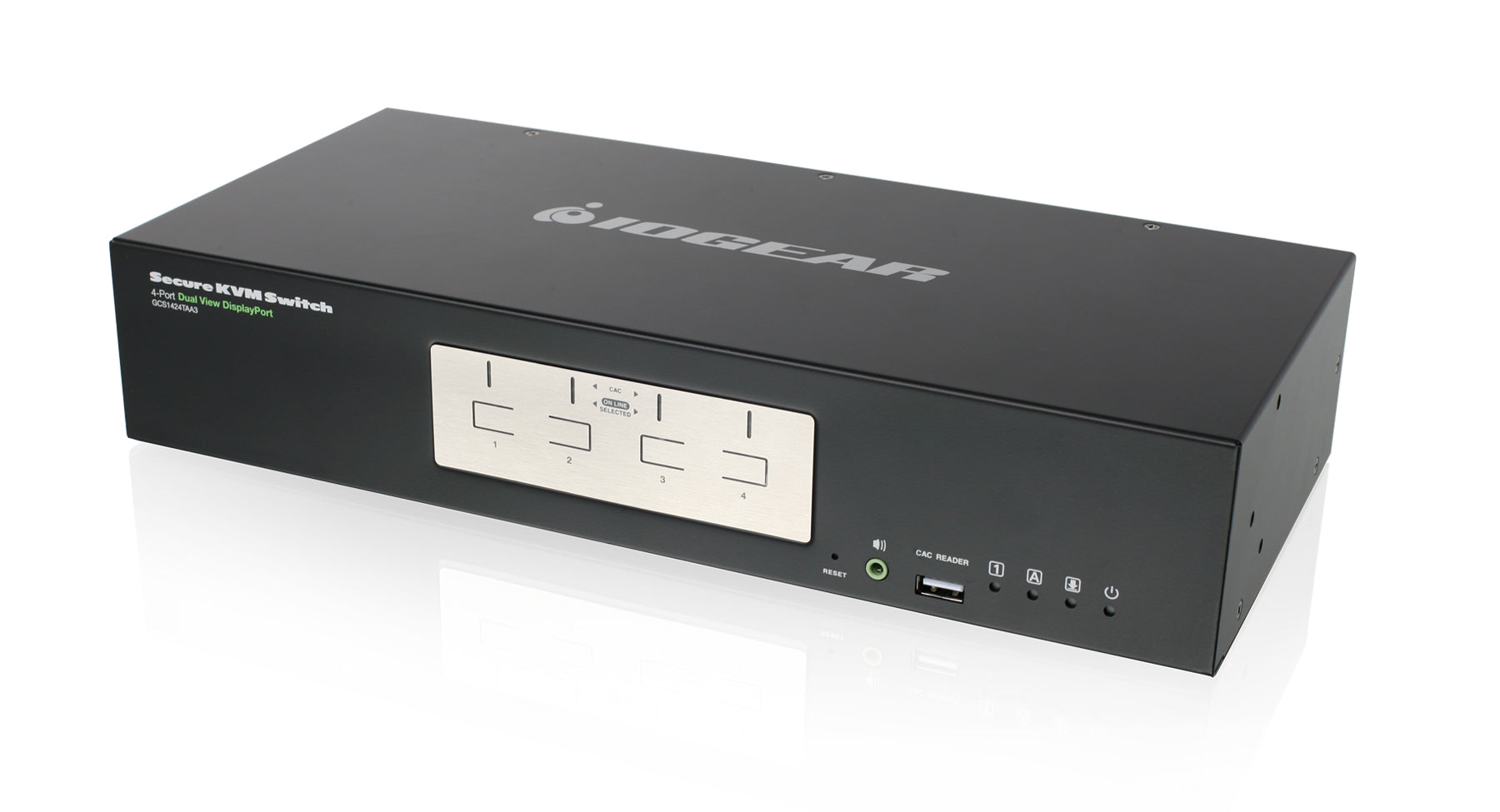

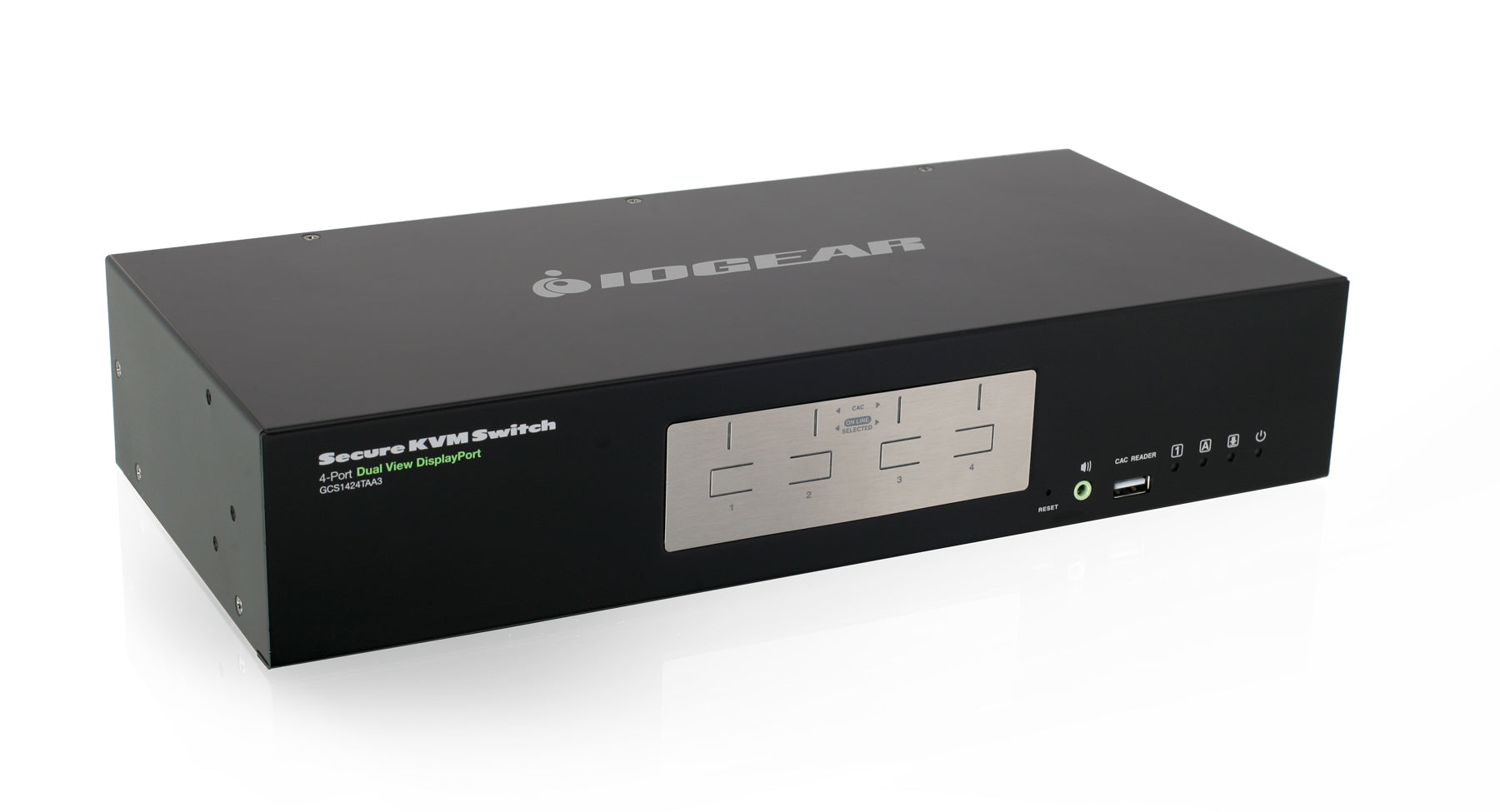

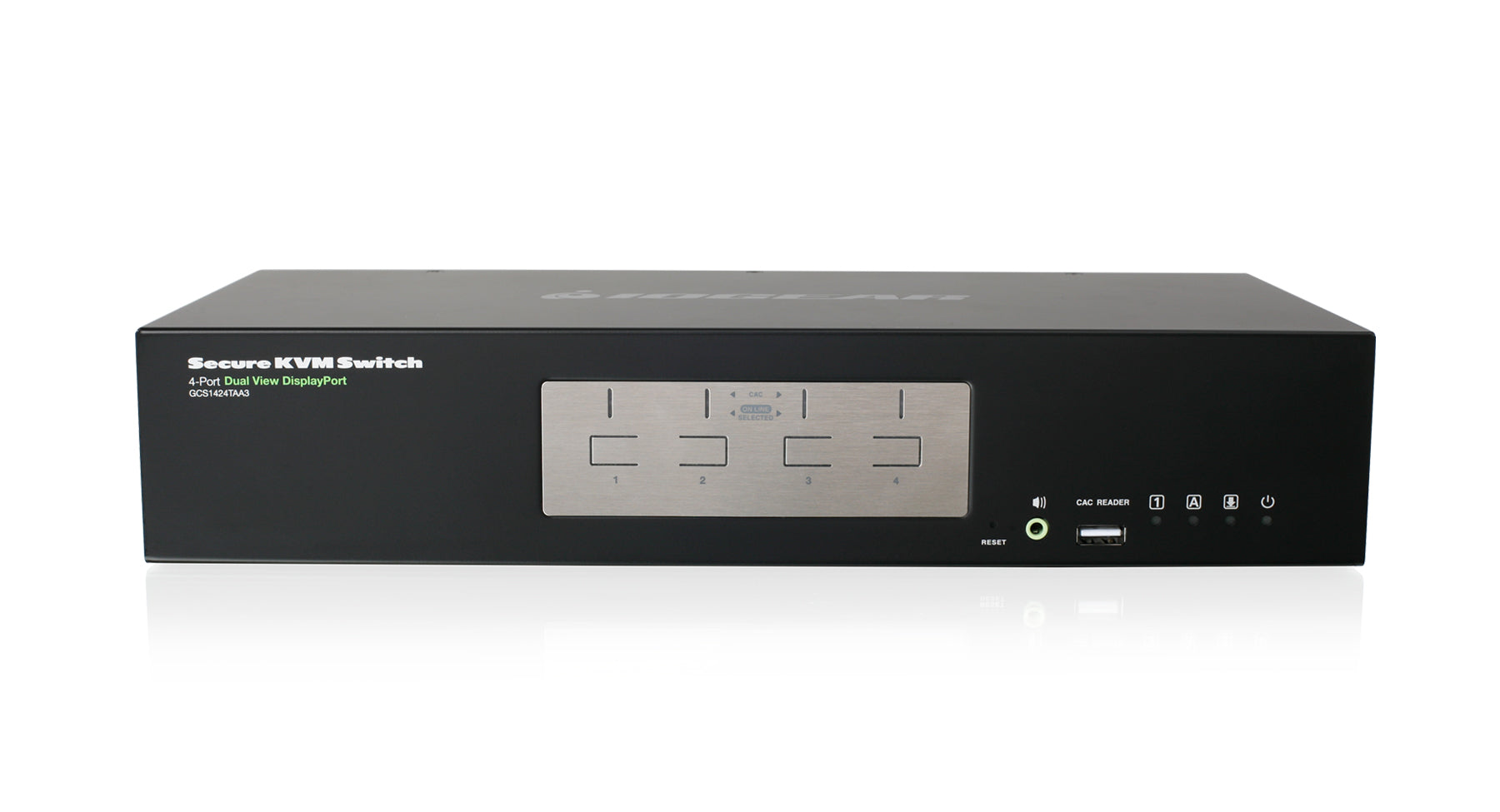

4-Port Dual View DisplayPort Secure KVM Switch (TAA)
UPC: 881317516374
Choose options
4-Port Secure Dual Monitor DisplayPort KVM Computer Switch - Protection Profile 3.0
IOGEAR's 4-Port Dual View DisplayPort Secure KVM Switch is NIAP-certified and compliant with PP3.0 (Protection Profile for Peripheral Sharing Switch version 3.0) requirements, satisfying the latest security requisites set by the U.S. Department of Defense for peripheral sharing switches.
Common criteria compliance ensures maximum information security while sharing a single set of approved HIDs - keyboards, mice, speakers, CAC readers, and Microsoft Biometric Readers - between multiple computers. Conformity with Protection Profile v3.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the Secure KVM, providing high-level security, protection, and data safekeeping.
Active Tamper-Proof System
The IOGEAR Secure KVM Switch's hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Embedded software security allows administrators to grant controlled USB port access for keyboards, mice and other devices while ignoring commands from non-HIDs when switching between ports. The onboard software restricts mouse and hotkey commands while clearing the keyboard's buffer when switching ports while ensuring data travels isolated on each port preventing exposure.
With the combination of physical and software security, IOGEAR Secure KVM series consolidates multiple workstations with varying security classification levels using one keyboard, monitor, and mouse (KVM) console.
Superior Video Quality
The 4-Port Dual View DisplayPort Secure KVM supports dual monitors and exceptional 4K Ultra-HD resolutions to 3840 x 2160 @ 30Hz.
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GCS1424TAA3 |
|---|---|
| Computer Connections | |
| Direct | 4 |
| Console Connection | 1 Direct |
| Port Selection | Pushbutton |
| Console Connectors | |
| Monitor | 2 x HDMI 1.4 Female (Black) |
| Keyboard | 1 x 6-pin Mini-DIN Female (Purple); 1 x USB Type-A Female (Black) |
| Mouse | 1 x 6-pin Mini-DIN Female (Green); 1 x USB Type-A Female (Black) |
| Audio | 1 x Mini Stereo 3.5mm Jack Female (Green) |
| Microphone | N/A |
| CAC | 1 x USB Type-A Female (Black) |
| CPU Connectors | |
| Monitor | 8 x DisplayPort 1.2 Female (Black) |
| Keyboard & Mouse | 4 x USB Type-B Female (White) |
| Audio | 4 x Mini Stereo 3.5mm Jack Female (Green) |
| Microphone | N/A |
| CAC | 4 x USB Type-B Female (White) |
| Switches | |
| F/W Upgrade | N/A |
| Port Selection | 4 x Pushbuttons |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | 1 x Rocker |
| LEDs | |
| On Line | 4 x Orange |
| Selected | 4 x Orange |
| CAC | 4 x Green |
| Power On | 1 x Blue |
| Key Lock | 3 x Green (Num Lock, Caps Lock, Scroll Lock) |
| Console Video | 2 x Green (Rear Panel) |
| Emulation | |
| Keyboard | USB |
| Mouse | USB |
| Video Resolution | Max. 3840 x 2160 @30Hz (UHD), 2560 x 1600 @60Hz, 1920 x 1200 @60Hz, 1920 x 1080 @75Hz |
| Scan Interval | N/A |
| Power | |
| Amps | |
| Voltage | 100 - 240V, 50 - 60Hz |
| Environment | |
| Operation Temperature | 0 - 50C |
| Storage Temperature | -20 - 60C |
| Humidity | 0 - 80% RH, Non-condensing |
| Housing | |
| Case | Metal |
| Dimensions | GCS1424TAA3 |
|---|---|
| Unit Dimensions | |
| Height | 2.58" (6.55cm) |
| Length | 13.2" (33.5cm) |
| Depth | 6.42" (16.3cm) |
| Unit Package Dimensions | |
| Height | 9.125" (23.18cm) |
| Width | 21" (53.34cm) |
| Depth | 5.25" (13.34cm) |
| Master Carton | |
| Height | 10.5" (26.67cm) |
| Width | 21.5" (54.61cm) |
| Depth | 17" (43.18cm) |
| Master Carton Qty. | 3 |
| Weight | |
| Master Carton Wt. | 20.75lb (9.43kg) |
| Unit Pack Wt. | 6.25lb (2.84kg) |
| Unit Wt. | 4.49lb (2.04kg) |
