USB Adapter

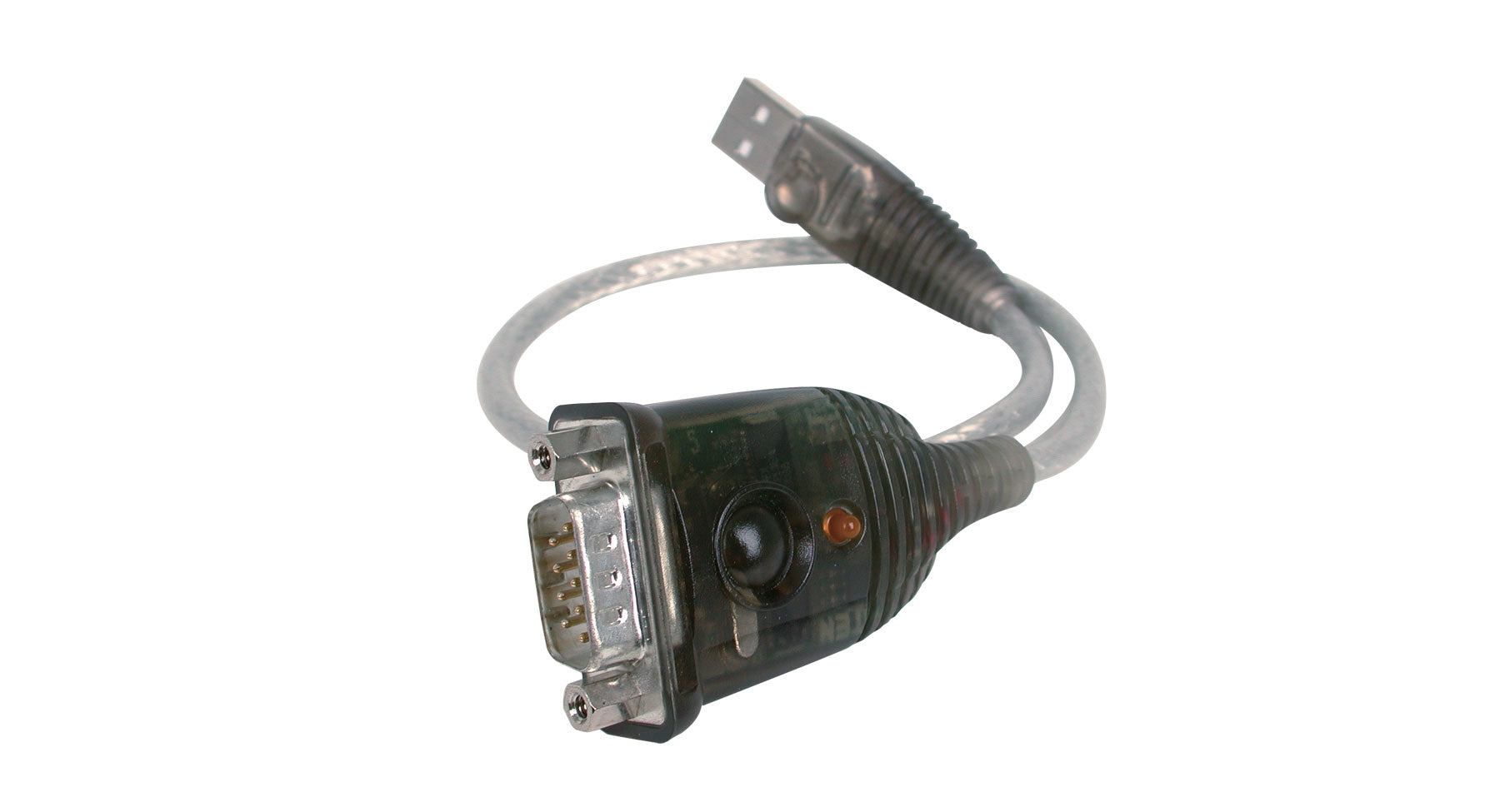

USB to Serial RS-232 Adapter

Name: USB to Serial RS-232 Adapter
Brand: IOGEAR
SKU: GUC232A
Price: 24.95 USD
Availability: OutOfStock

16 in Cable DB-9 Plug-N-Play RS-232

MPN: GUC232A

UPC: 672792550065

$24.95

Connect legacy RS-232 serial devices to your USB-equipped computer with this adapter. Supporting up to 921.6 Kbps, it's perfect for modems, printers, and more. Features plug-and-play installation and a 16" cable for flexible use.

Hassle Free Serial setup

It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications. This makes the USB interface transparent to serial peripherals, allowing them to easily interface with USB computers and eliminates the setup hassle found with traditional serial port connections.

IT Flexibility

The IOGEAR adapter provides IT with a cost-effective way to integrate older machines into newer systems. This can be helpful during transitional periods or support specialized equipment that still needs to be upgraded.

Keeping the Machines Running

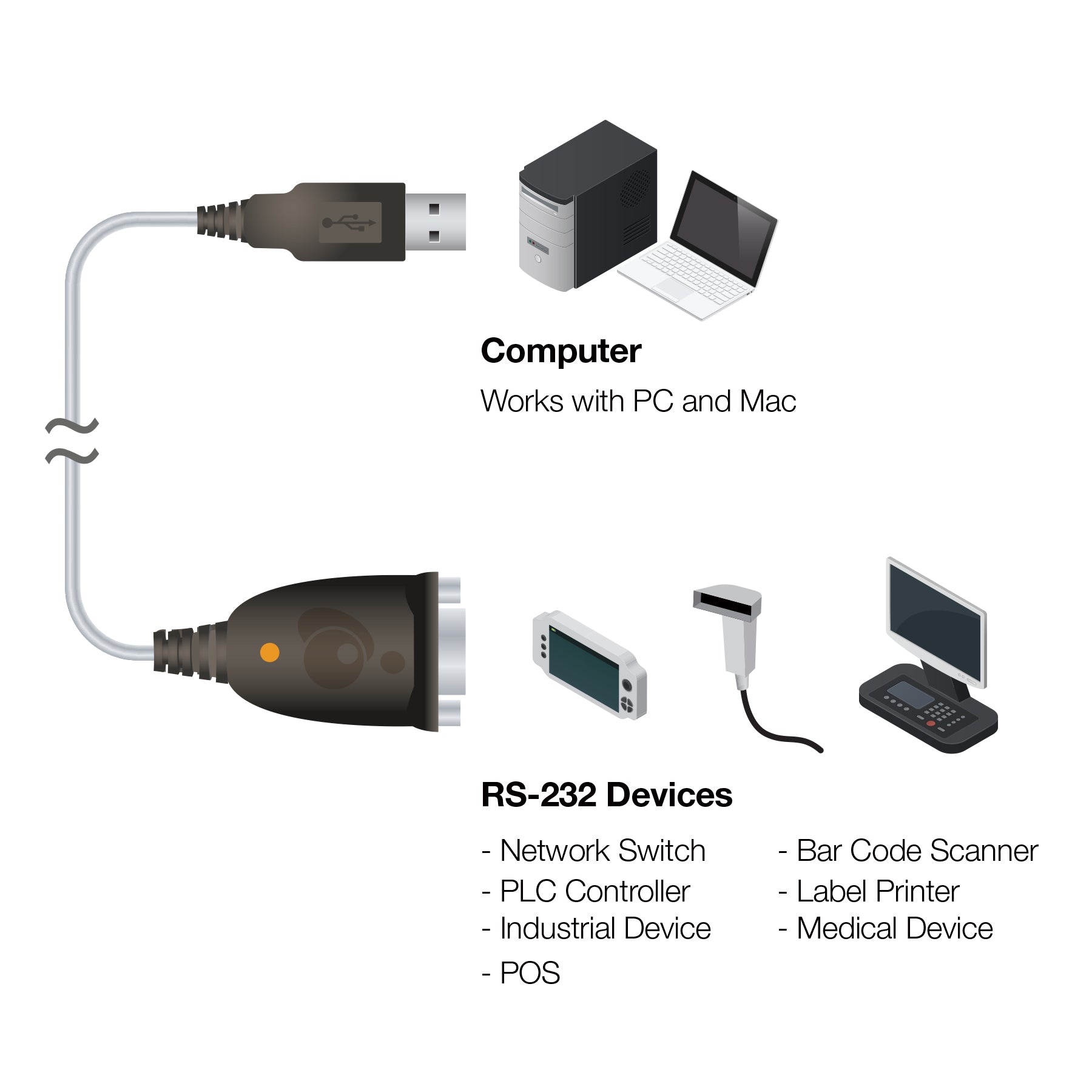

The IOGEAR USB to Serial RS-232 Adapter is a device that allows you to connect older serial devices, like PDAs, barcode scanners, and industrial machines, to your computer's USB port.

Add one serial port to your PC or Mac via USB connector
Converts older serial devices to USB connection
USB 1.1 and USB 2.0 compatible
16" cable length
Supports the RS-232 Serial interface
Supports automatic handshake mode
Up to 921.6 Kbps data transfer rate
Supports remote wakeup and power management
Provides a 96 byte buffer for each upstream and downstream data transfer
Easy Installation
No IRQ required

For PC Users

Windows® 10, Windows® 11
Available USB port

For Mac Users

Mac OS X 10.3.9 through 10.14
Available USB port

GUC232A USB to Serial adapter cable
User Manual
Warranty/Registration Card

GUC232A Quick Start Guide Download

GUC232A Mac OS Driver Download

Mac OS 10.14.x (Mojave)
Mac OS 10.15 (Catalina)
MAC OS 11x (Big Sur)
MAC OS Monterey

GUC232A Windows Driver Download

Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Windows 11

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GUC232A
Housing
Case	Plastic
Power Consumption	90mA
LEDs
On Line	1
Operating Temperature	41 to 104 degree Fahrenheit
Storage Temperature	-4 to 140 degree Fahrenheit
USB Specification	USB 1.1 compliant
Transfer Rate	Up to 921.6 Kbps
Humidity	20-80% RH, (Non Condensing)
Cable Length	14 in. (40.64 cm.)
Power Connections	Bus powered
International - Languages	English

Dimensions	GUC232A
POP Information
10'' Peg Hook	5
6'' Peg Hook	3
Unit Dimensions
Height	.6" (1.6cm)
Length	16.6" (42.2cm)
Width	1.3" (3.3cm)
Unit Package Dimensions
Height	6.2" (15.7m)
Width	4.9" (12.5cm)
Depth	1.6" (4.1cm)
Master Carton
Height	8.1" (20.6cm)
Width	10.9" (27.6cm)
Depth	15.5" (39.4cm)
Master Carton Qty.	24
Weight
Master Carton Wt.	7.9lbs (3.6kg)
Unit Pack Wt.	.30 lbs (.14kg)
Unit Wt.	.10lbs (.05kg)

3 Year Limited Warranty
